Displacement Sensors compatible with Beandevice® 2.4GHz | AN-V

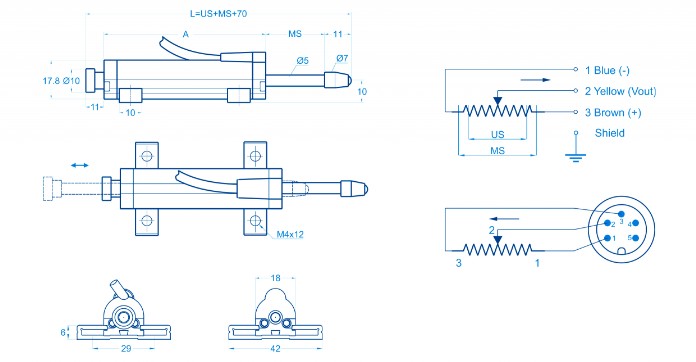

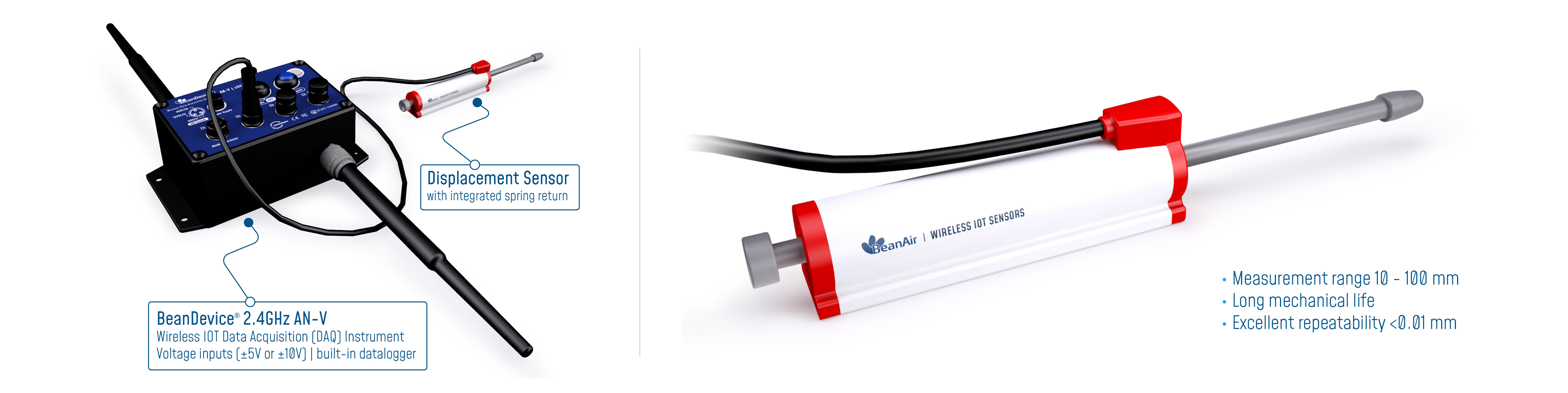

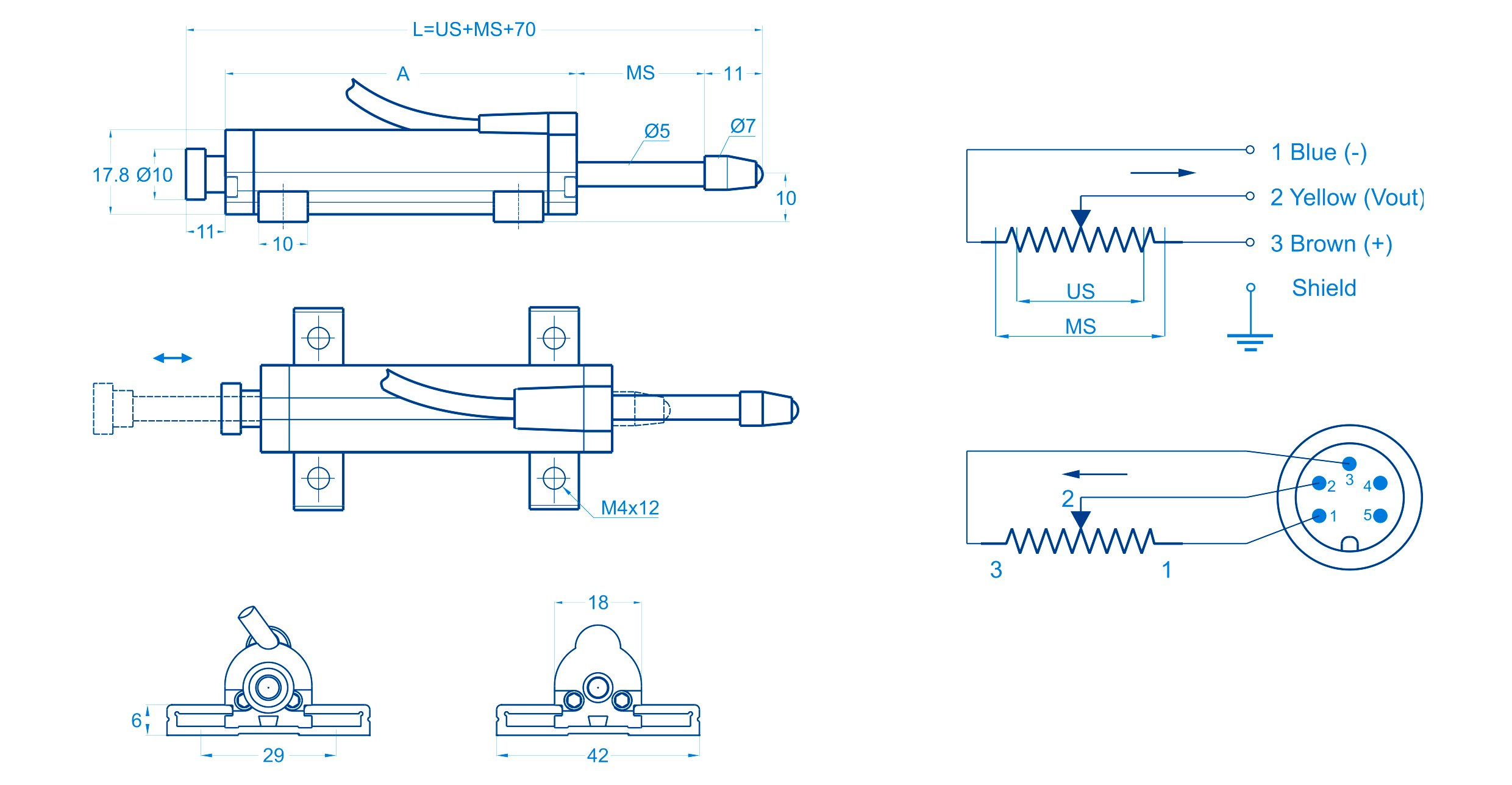

Displacement Sensor with integrated spring return
Product reference |
DISP-SENS-SR-MS-YY-CL-XX |
MS-YY - Measurement stroke 10mm, 25mm, 50mm, 75mm and 100 mm |
CL-XX– SENSOR CABLE LENGTH from 1m to 20 meters |
Example: DISP-SENS-SR-MS-50MM-CL-10M Displacement sensor with spring return, Measurement stroke 50mm, Cable length 10 meters |
Displacement sensor specifications | |
| Sensor technology | Linear potentiometer with spring return |
| Measurement stroke | 10mm to 100mm |
| Linearity | ±0.2% ( 75-100 mm) , ±0.5% (< 75mm) |
| Repeatability | < 0.01mm |
| Resolution | related to Beandevice® AN-V precision, 0.01% |
| Resistance | 2 kOhm: 10….50mm 5 kOhm : 75….100mm |
| Max Voltage | 28VDC . Can be directly powered from BeanDevice® AN-V, recommended power voltage 5VDC ( BeanDevice® AN-V ±5V) or 10VDC ( BeanDevice® AN-V ±10V) |
| Displacement speed | < 5m/s |
| Mechanical Life | 100 millions movements |
| Casing dimensions | 18 mm of diameter |
| Casing material | Anodized Aluminum |
| Rod material | stainless steel |
| Rod diameter | 5 mm of diameter |
| Mechanical mounting | Variable brackets |
| Waterproofness | IP65 |
| Operating Temperature | -20°C to +80°C |
| Connection Plug | M12-4pins Plug Waterproof IP67 |
| Beandevice Compatibility | compatible with BeanDevice® 2.4GHz AN-V ±5V and ±10V |
A | |
| DISP-SENS-SR-MS-10MM | 58 |
| DISP-SENS-SR-MS-25MM | 73 |
| DISP-SENS-SR-MS-50MM | 104 |
| DISP-SENS-SR-MS-75MM | 135 |
| DISP-SENS-SR-MS-100MM | 163 |
| DISP-SENS (mm) | 10 | 25 | 50 | 75 | 100 |
| US (Usefull Stroke) | 10 | 25 | 50 | 75 | 100 |
| MS (Mecanical Stroke) | 13 | 28 | 53 | 78 | 103 |
| L (total Length) | 93 | 123 | 179 | 235 | 288 |

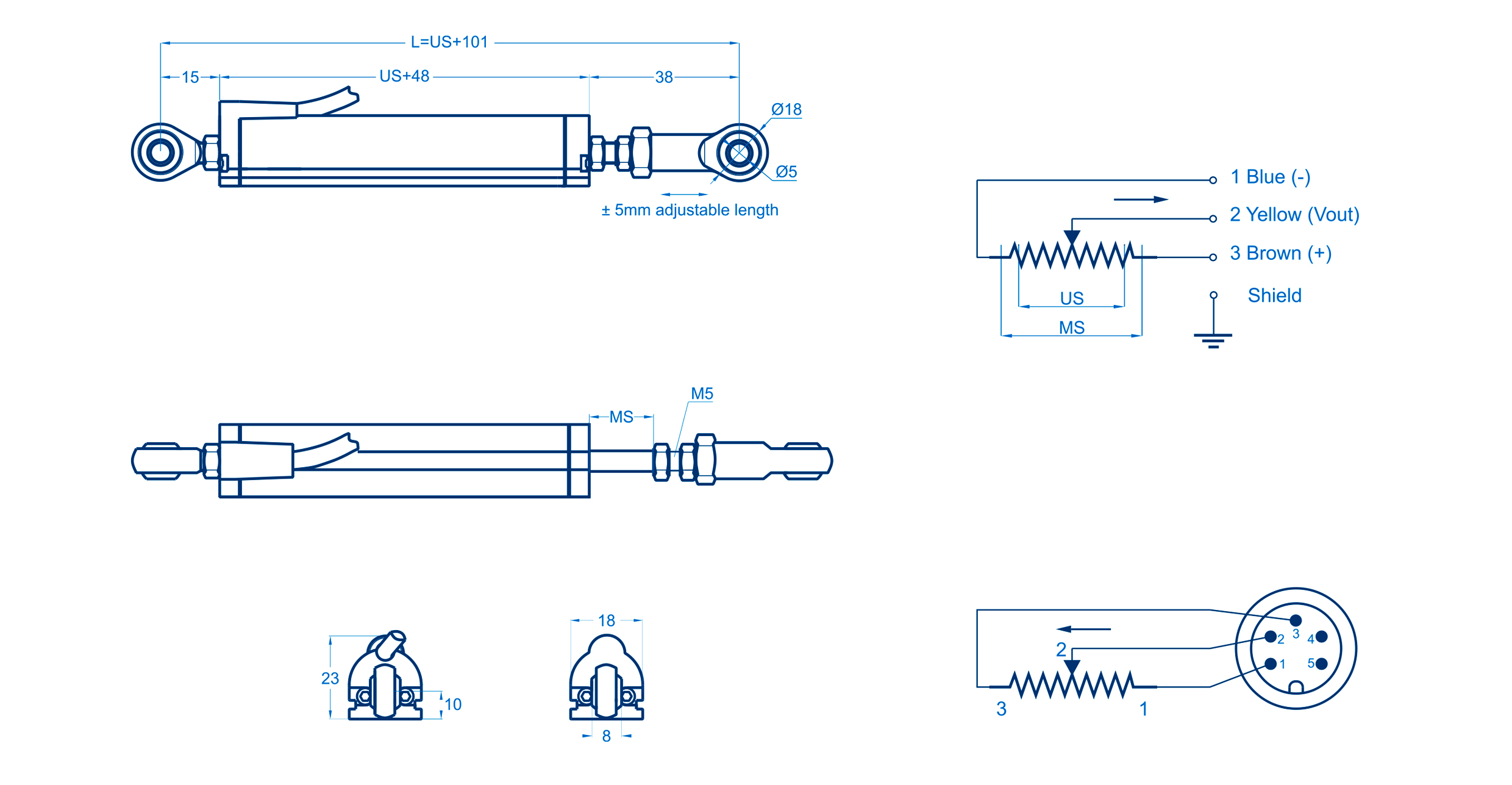

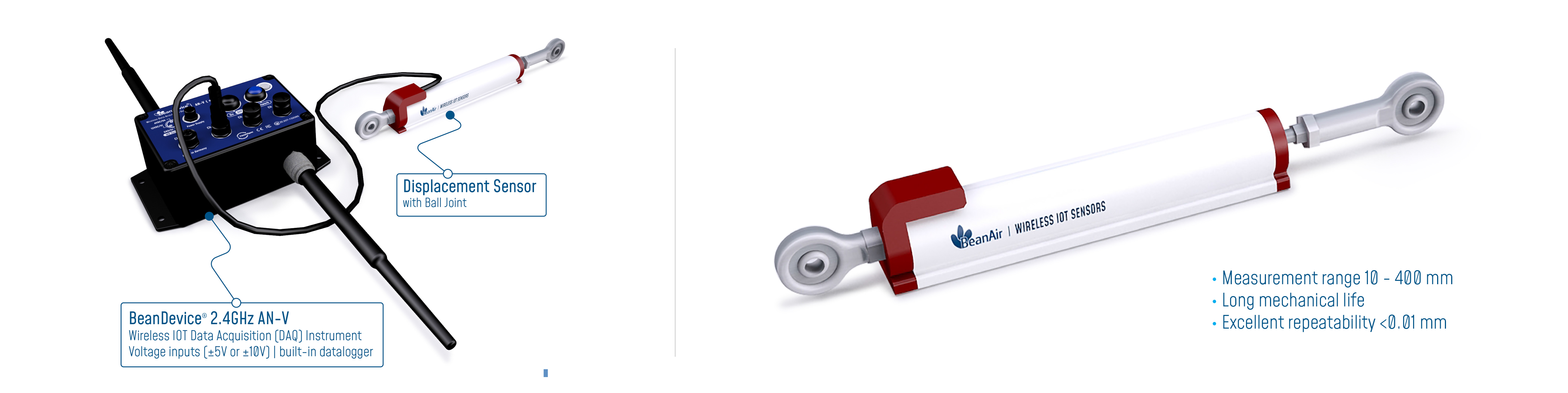

Displacement Sensor with Ball Joint
Product reference |
DISP-SENS-BJ-MS-YY-CL-XX |
MS-YY - Measurement stroke 10mm, 25mm, 50mm, 75mm, 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm |
CL-XX– SENSOR CABLE LENGTH from 1m to 20 meters |
Example: DISP-SENS-BJ-MS-100MM-CL-10M Displacement sensor with ball joint, Measurement stroke 100mm, Cable length 10 meters |
Displacement sensor specifications | |
| Sensor technology | Linear potentiometer with ball joints on both sides |
| Measurement stroke | 10mm to 400mm |
| Linearity | ±0.05% ( >200 mm) , ±0.1% (130-200mm) ±0.2% (75-130mm), ±0.5% (<75mm) |
| Repeatability | < 0.01mm |
| Resolution | related to Beandevice® AN-V precision, 0.01% |
| Resistance | 2 kOhm: 10….50mm 5 kOhm : 75….400mm |
| Max Voltage | 28VDC . Can be directly powered from BeanDevice® AN-V, recommended power voltage 5VDC ( BeanDevice® AN-V ±5V) or 10VDC ( BeanDevice® AN-V ±10V) |
| Displacement speed | < 5m/s |
| Mechanical Life | 100 millions movements |
| Casing dimensions | 18 mm of diameter |
| Casing material | Anodized Aluminum |
| Rod material | stainless steel |
| Rod diameter | 5 mm of diameter |
| Mechanical mounting | ball joints on both sides |
| Waterproofness | IP66 |
| Operating Temperature | -20°C to +80°C |
| Connection Plug | M12-4pins Plug Waterproof IP67 |
| Beandevice Compatibility | compatible with BeanDevice® 2.4GHz AN-V ±5V and ±10V |
| DISP-SENS (mm) | 10 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 |
| US (Usefull Stroke) | 10 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 |
| MS (Mecanical Stroke) | 13 | 28 | 53 | 78 | 103 | 128 | 153 | 178 | 203 | 253 | 303 | 353 | 403 |
| L (total Length) | 111 | 126 | 151 | 176 | 201 | 226 | 251 | 276 | 301 | 351 | 401 | 451 | 501 |

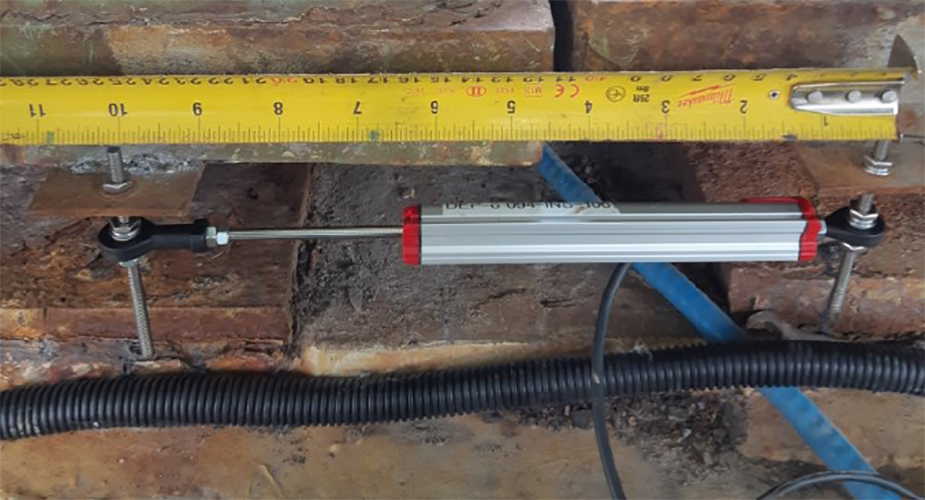

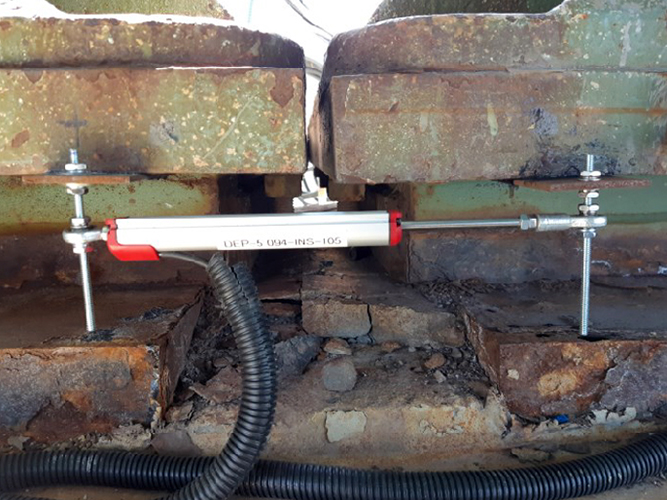

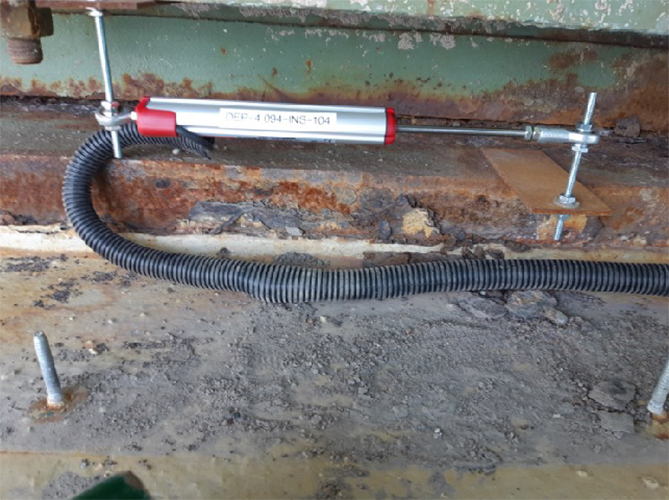

Sensor Installation on the field
