High-Performance IoT Gateway
With 4G Connectivity for Wilow® Sensors
Wilow® IoT Gateway | |||

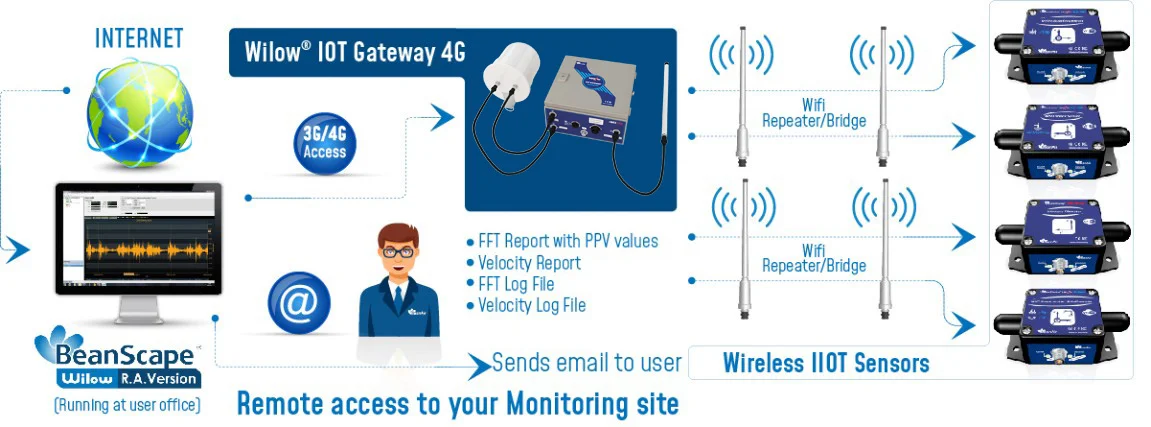

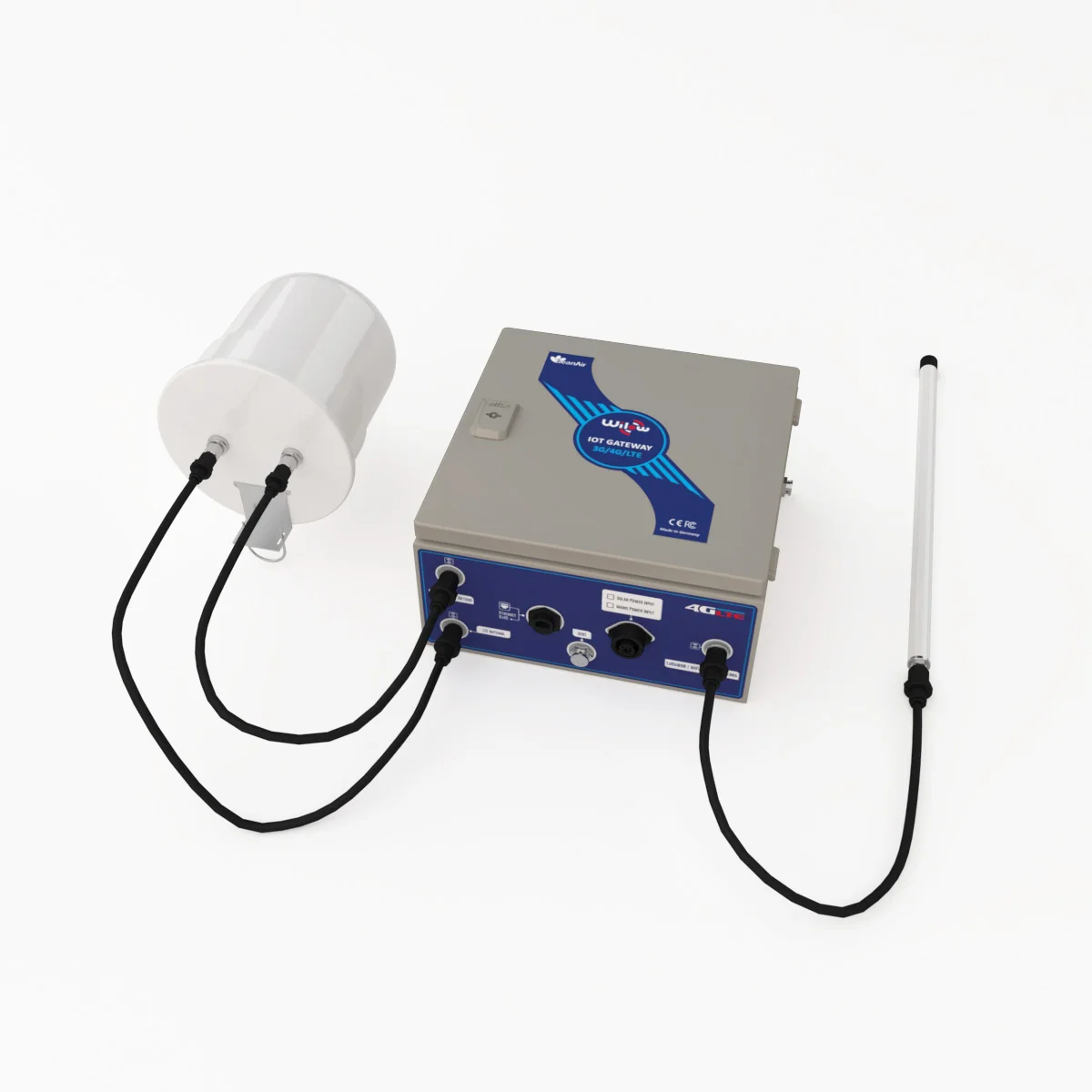

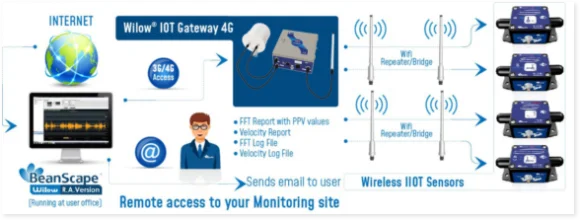

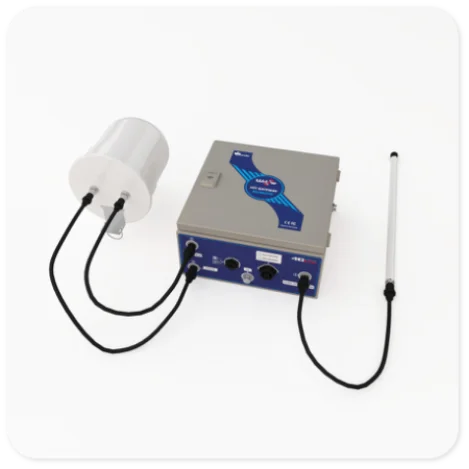

Engineered for harsh industrial environments, the Wilow® IoT Gateway is a ruggedized (IP66) outdoor solution for reliable site monitoring. It offers versatile connectivity for Wilow® IoT sensors through both Wi-Fi and 3G/4G/LTE protocols. The gateway ensures robust data transmission to the cloud using the MQTT protocol, with real-time visualization available through our BeanScape® Wilow® RA software. For enhanced network coverage, it features high-gain antennas and a Wireless Distribution System (WDS) for bridging with other Wi-Fi repeaters. Flexible power options include external AC or solar supplies, with an integrated UPS battery backup to maintain seamless operation during power interruptions, guaranteeing your monitoring is never compromised. Our Wilow® IoT Gateway 4G offers broad global compatibility with specific LTE frequency variants available for: • Europe/Middle East/Africa/Korea/Thailand • North America • Japan | |||
 | • Included Free Software |  | |
Technical Specifications
Product Reference | ||
WILOW-IOT-GATEWAY-4G-REG-NET-PWR | ||
REG: LTE Region Option EU for Europe - US for North America - JP for Japan | ||
NET: Network option for WDS function - wireless distribution system (not available if you choose Solar Power Supply) | ||

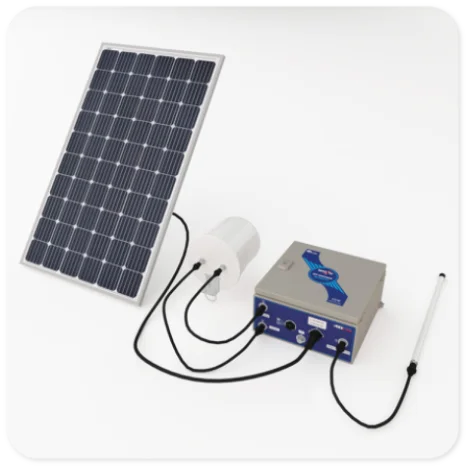

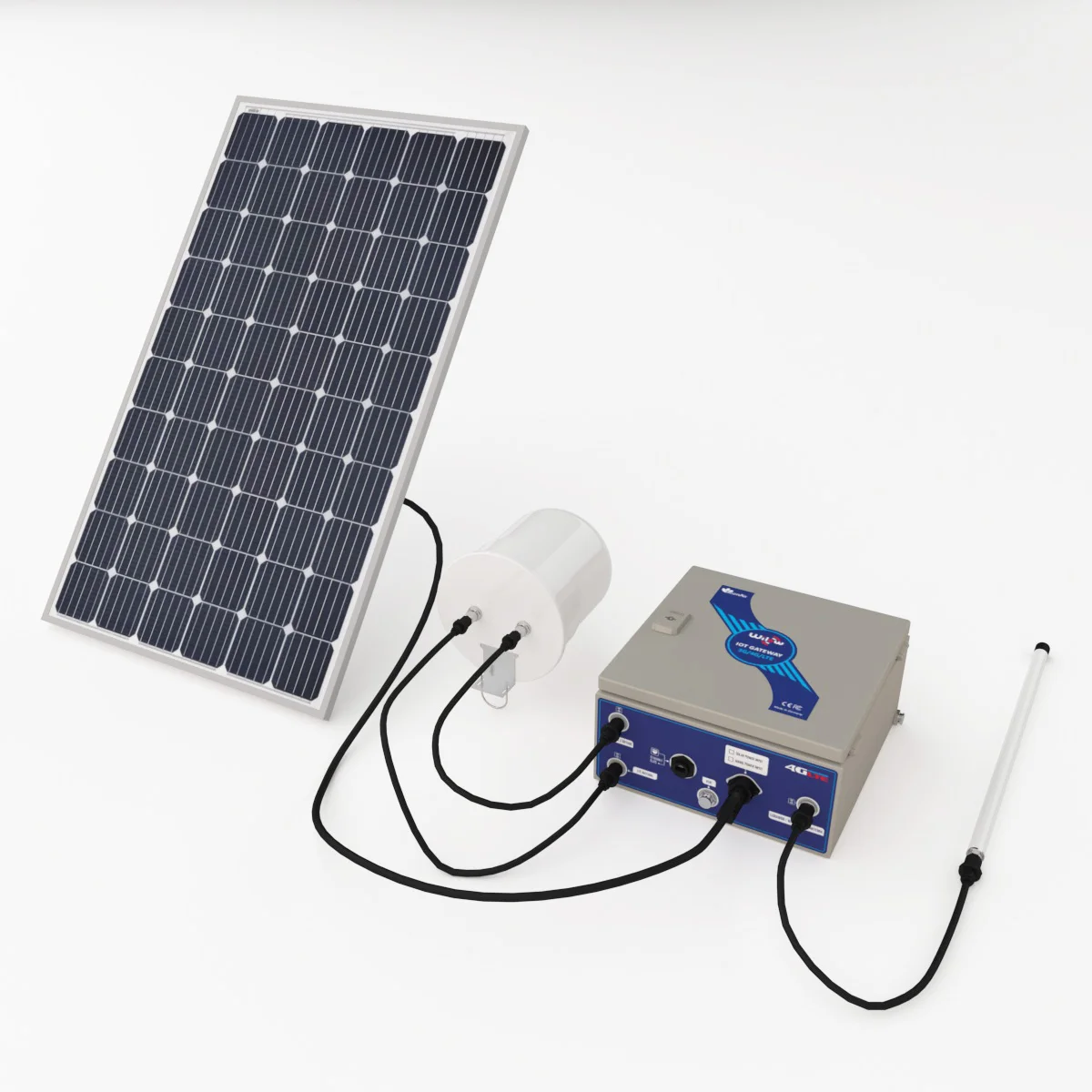

PWR - External Power supply SOLAR-VRLA - Powered from external solar panel, Integrated Valve Regulated Lead-Acid (VRLA) battery, Capacity 15Ah SOLAR-LIFEPO4 - Powered from from external solar panel, Integrated LiFePO4 Battery, Capacity 18Ah MPWR - Mains power supply with UPS Battery (Input: 90 to 264VAC) with Valve Regulated Lead-Acid (VRLA) battery, Capacity 15Ah | ||
Example 1: WILOW-IOT-GATEWAY-4G-EU-MPWR, LTE Europe Region , Mains Power supply Example 2: WILOW-IOT-GATEWAY-4G-JP-WDS-MPWPR, LTE Japan Region, WDS function, Mains power supply Example 3: WILOW-IOT-GATEWAY-4G-US-SOLAR, LTE US Region, Solar Power Supply |

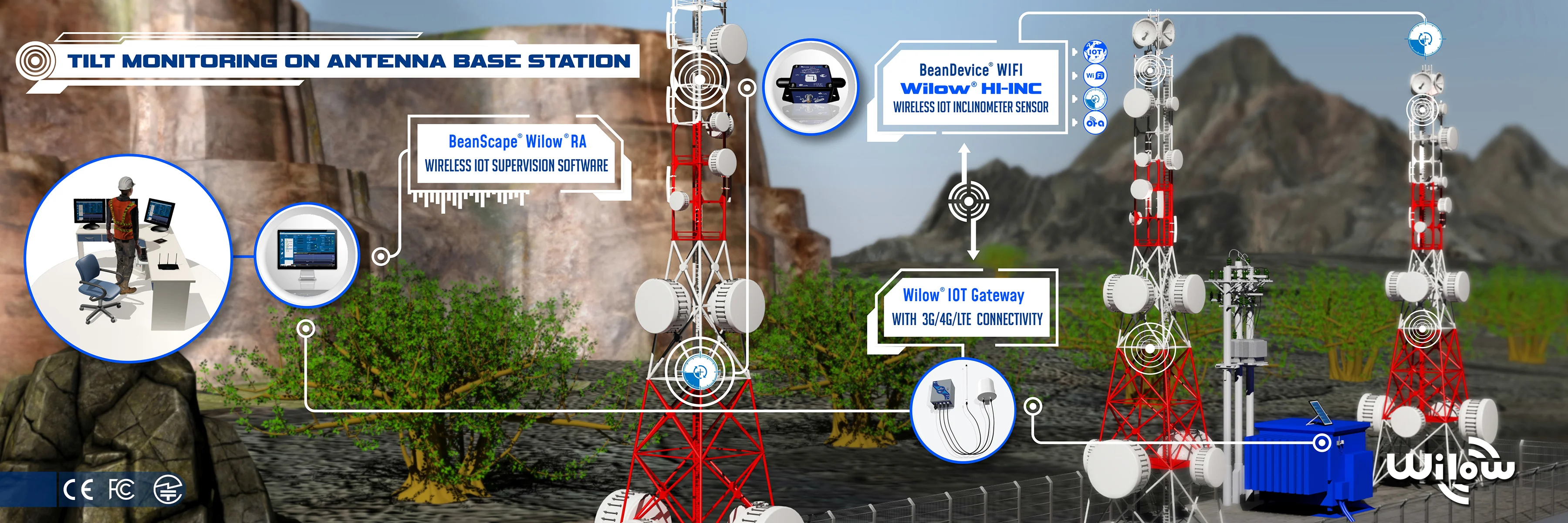

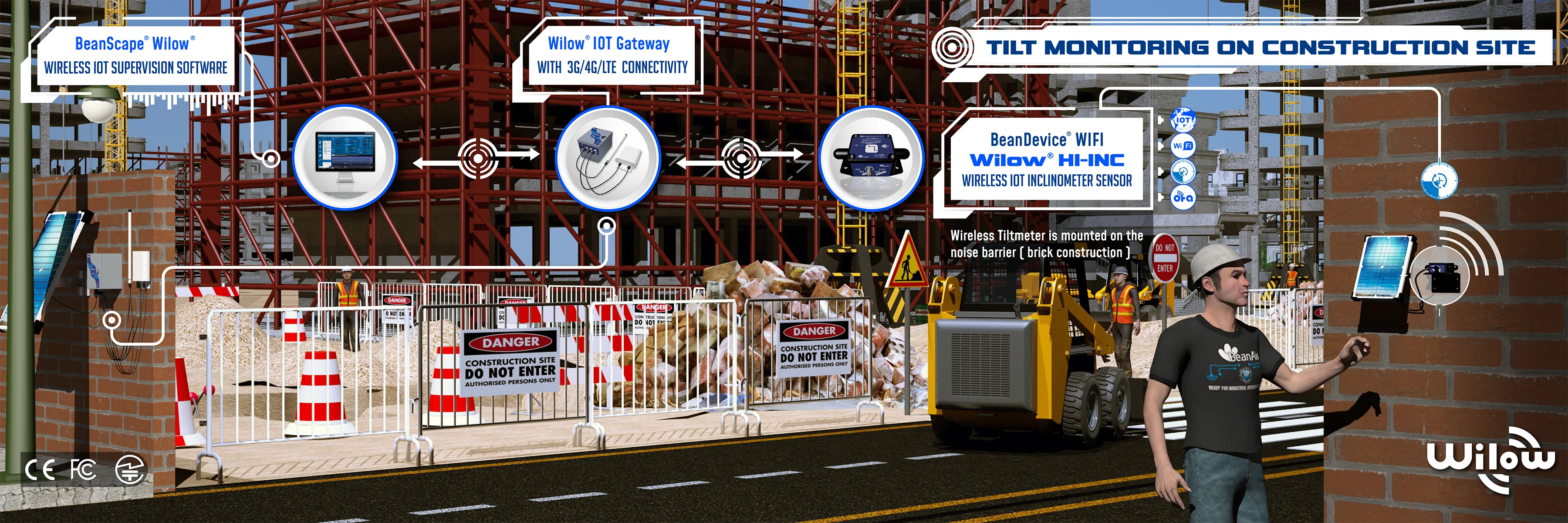

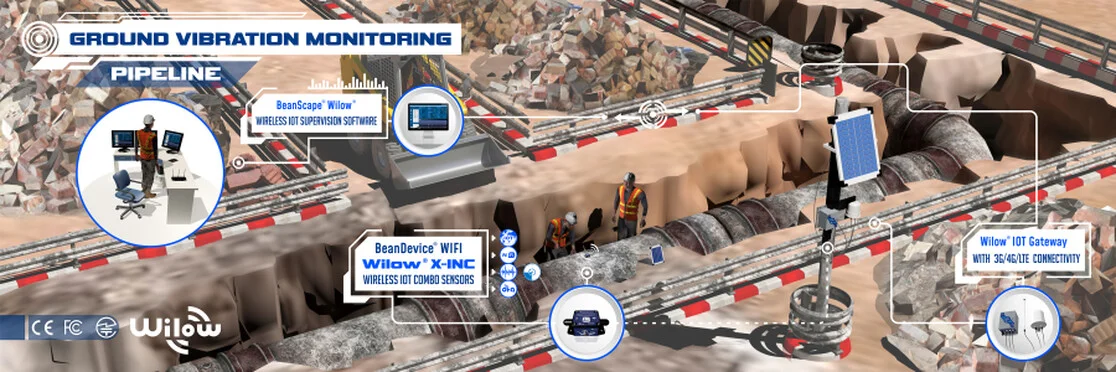

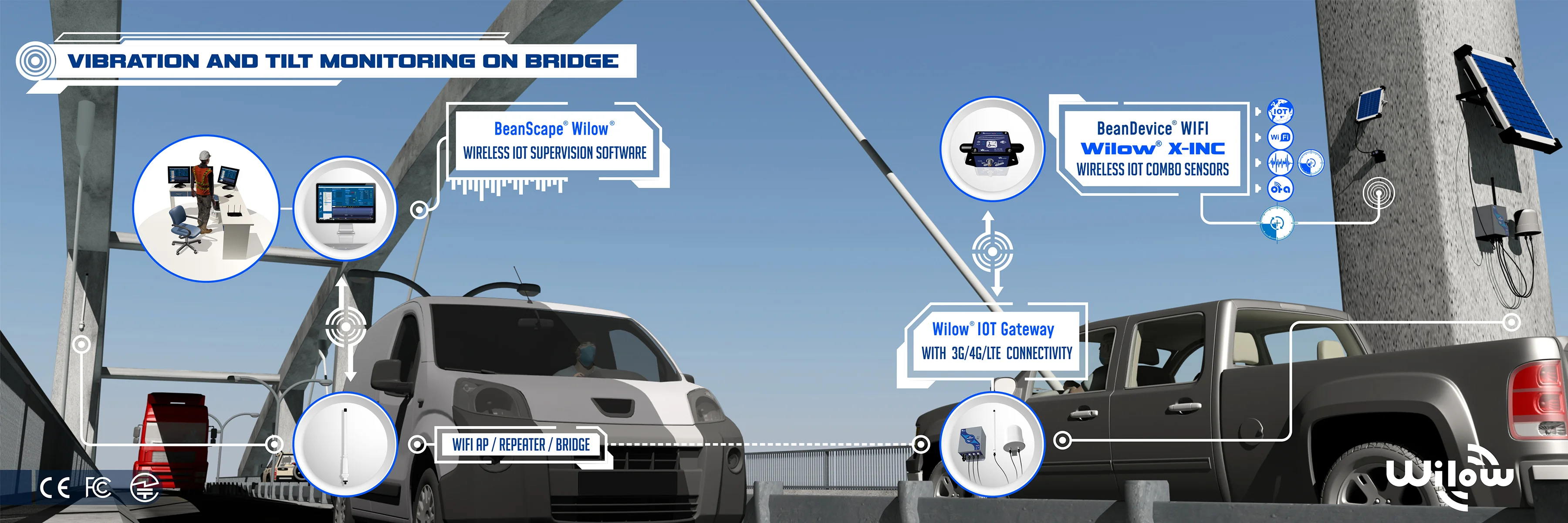

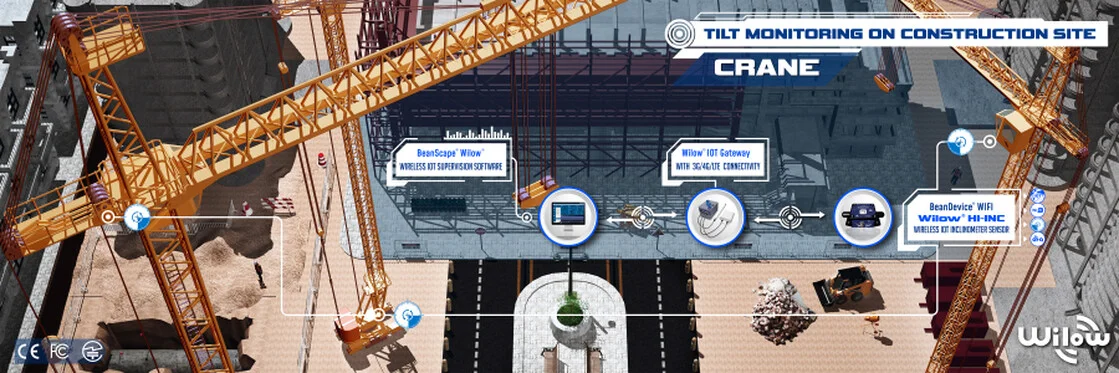

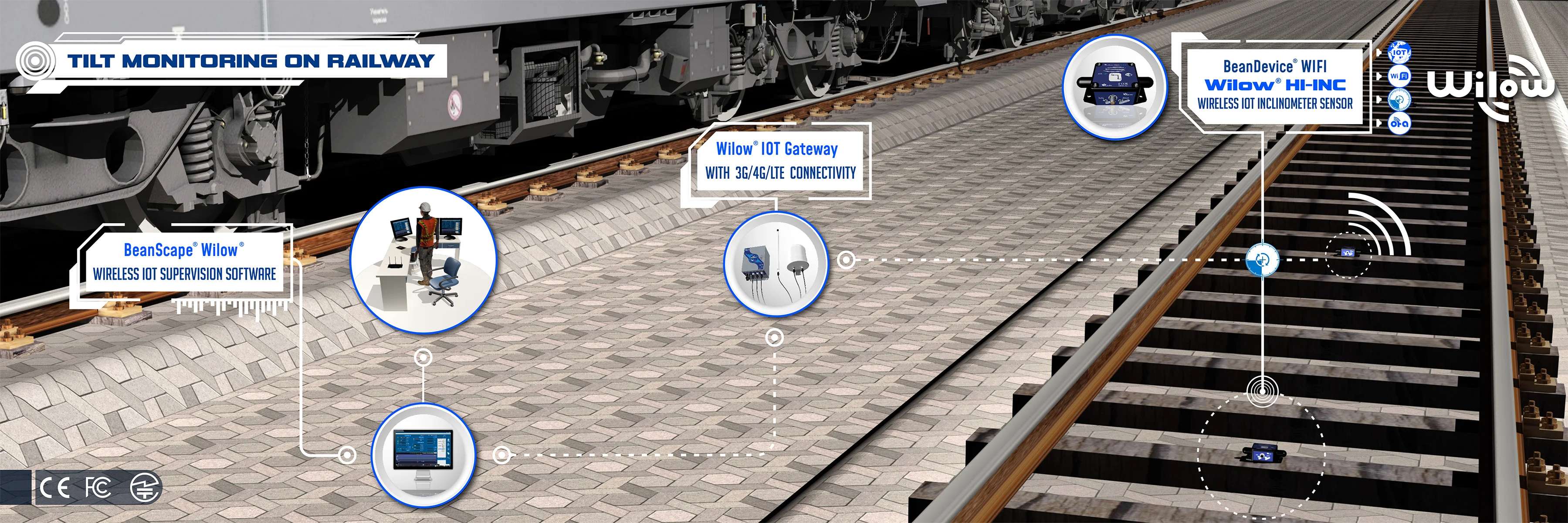

Applications
Video
Featured Video
Accessories

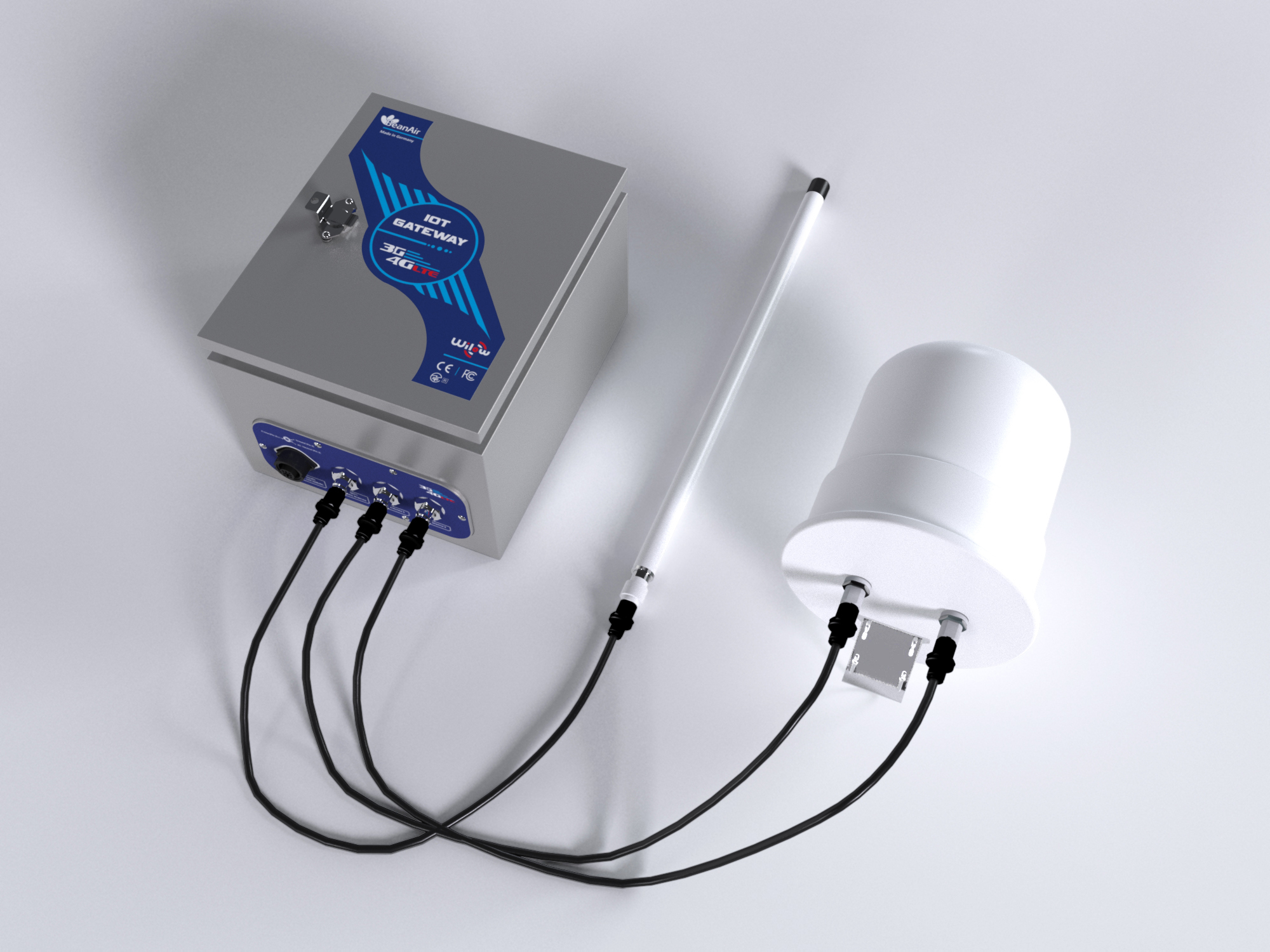

INCLUDED ACCESSORIES | |
 | 4G Antenna 1 x 4G Antenna 12dBi - with pole mounting Ref: HG-4G-OMNI-ANT-12DBI |
 | WIFI Antenna 1 x High Gain Wifi Antenna 9dBi - with pole mounting kit Ref: HG-OMNI-OUT-9DBI |
 | External cable for WIFI Antenna 1 x N-Type cable, Cable Length: 2 meters Ref: CBL-ANT-2M |
| External cable for LTE Antenna 2 x N-Type cable, Cable Length: 2 meters Ref: CBL-ANT-2M |
 | Waterproof Plug for AC Power Input (-MPWR option is selected) 1 x Circular Connector Hisrchmann CA 3LS, Waterproof IP67 Ref: PWR-CA3LS-PLUG |
OPTIONAL ACCESSORIES AND SERVICES | |
 | Pole Clamp Pole Clamp, for reliable, convenient fastening to round or square poles. For pole diameter: Ø from 40 to 170 mm For pole size: from 50 to 150 m Reference: GTW-SOLAR-MAST |
 | Solar Panel Different models are available : GTW-SP-100W-5M GTW-SP-100W-10M |
Download Resources
Technical & Product FAQ
Support
2 YEAR LIMITED WARRANTY |
We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty. |
SUPPORT MANUAL |
Do you need help with any of our SATEVIS® products ? |
