2.4GHz | Wireless IoT Shock Sensor
Shock and Impact Monitoring

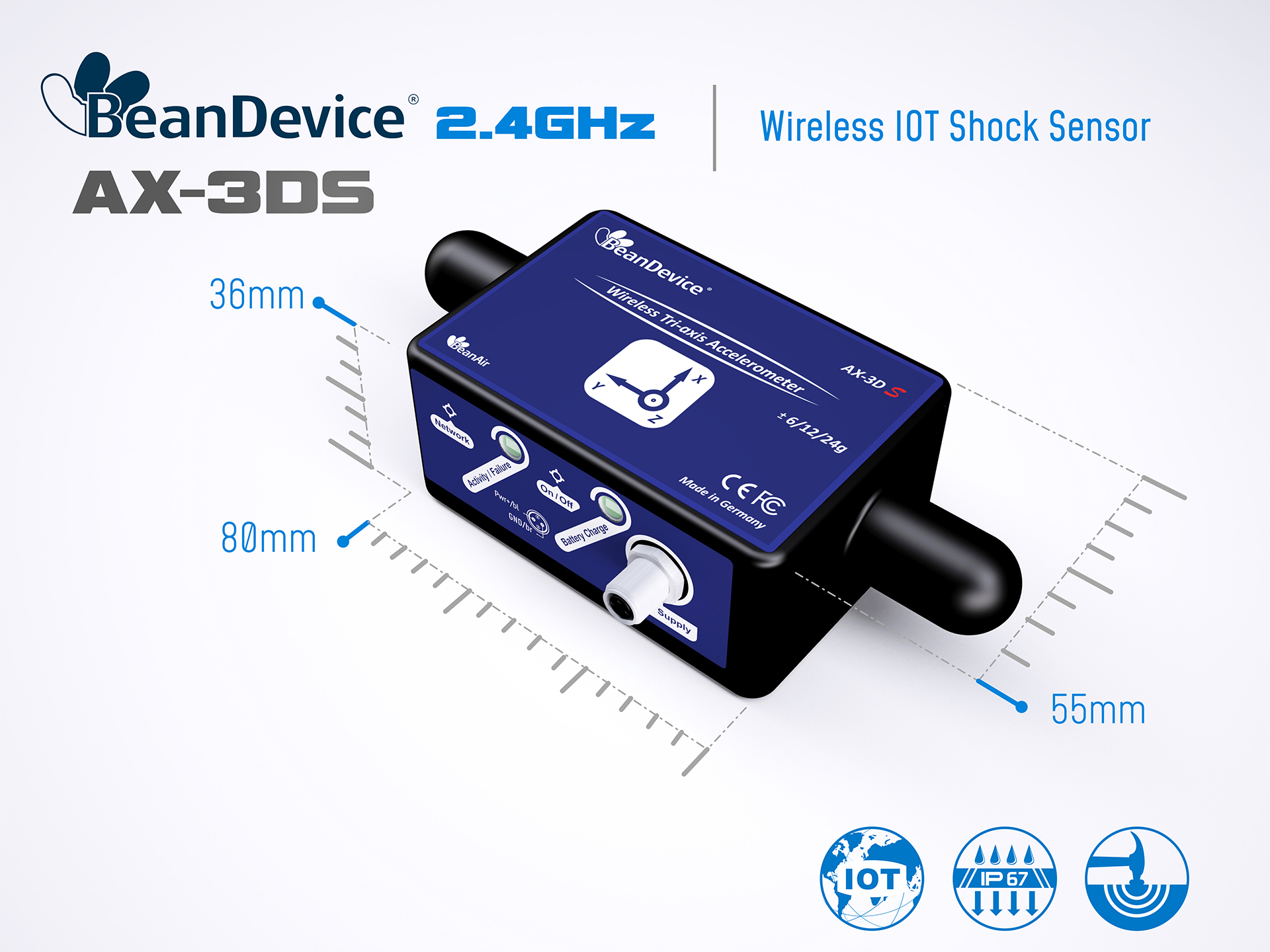

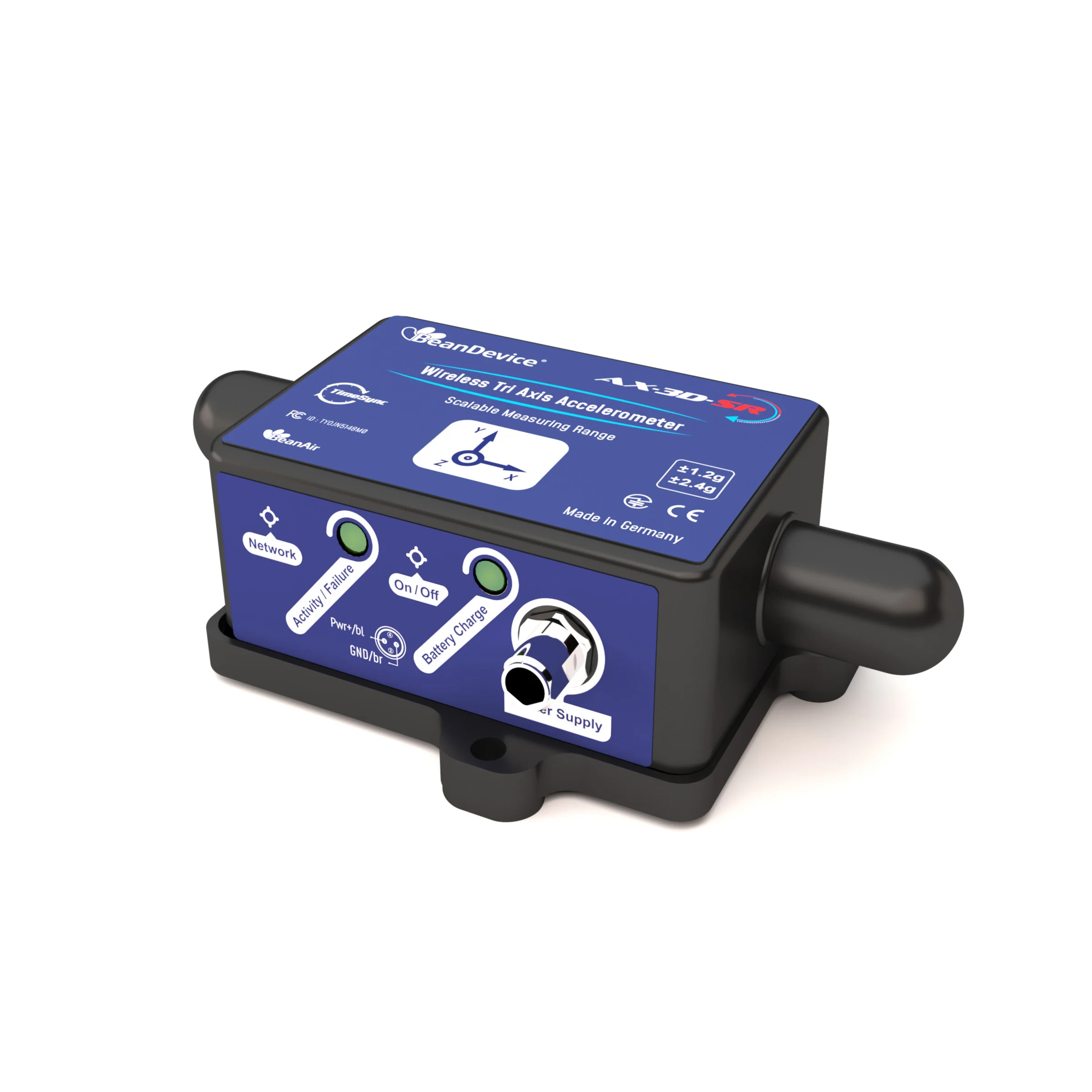

BeanDevice® AX-3DS | |||

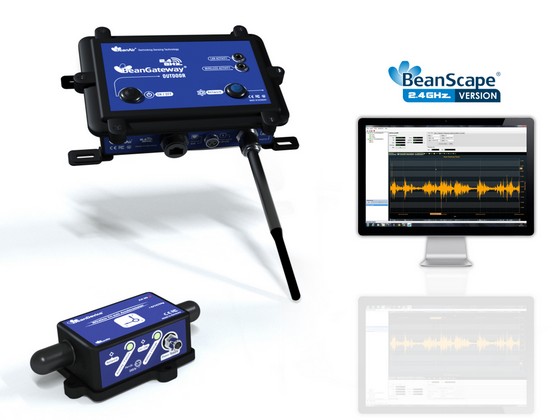

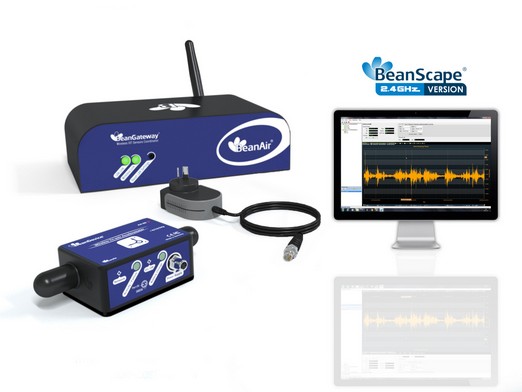

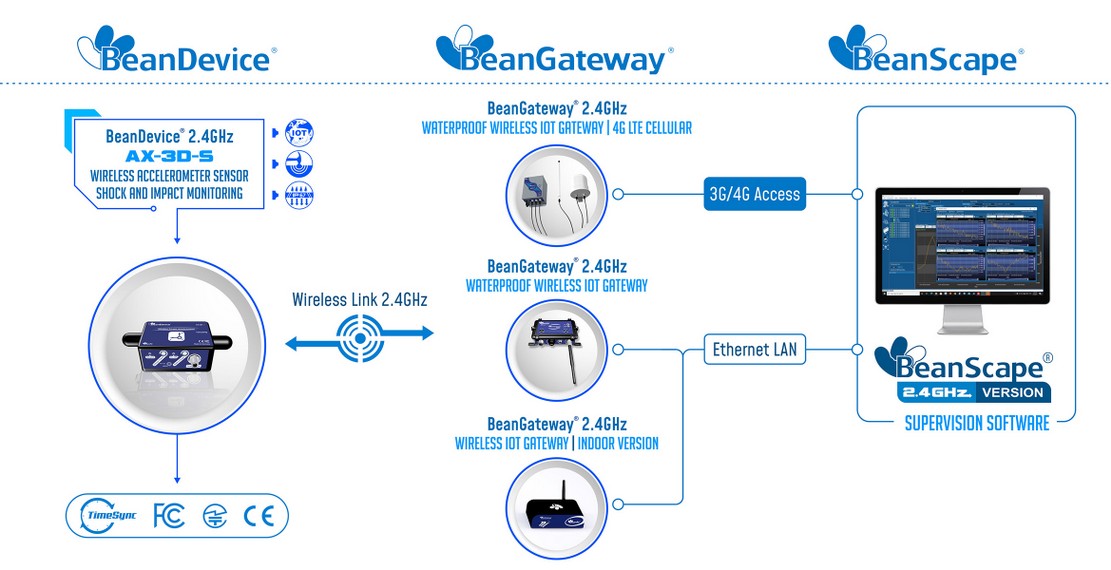

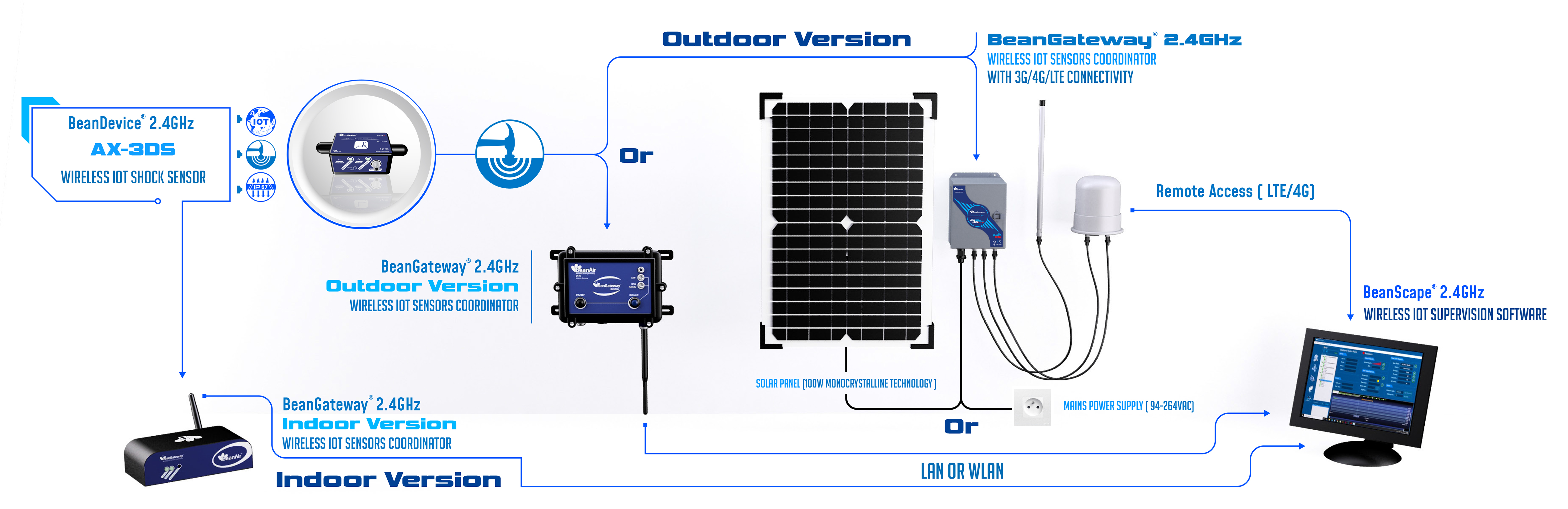

Available in versatile ranges (±2/4/8g or ±6/12/24g), the BeanDevice® 2.4GHz AX-3DS is a high-performance wireless IoT accelerometer for shock measurement, featuring an integrated data logger. Its Smart Shock Detection (SSD) technology wakes the device from deep sleep in under 10ms upon detecting shocks, instantly transmitting data to the BeanGateway® coordinator for real-time monitoring. Easily configure shock thresholds and hysteresis via BeanScape® software. | |||
 | • Included Free Software | ||
 | • Wireless Protocol: • 2.4GHz radio Technology | |
 | • Measurement Range: •±2/4/8g or ±6/12/24g | |
 | • Enclosure: • Waterproof ( IP67 / NEMA 6 ) | |
 | • Integrated data logger: • Up to 8 million data points | |
Technical Specifications
Main Features | |||
 | • High-performance wireless IoT accelerometer dedicated to shock and impact monitoring | ||
 | • Scalable measurement range: ±6g/±12g/±24g or ±2g/±4g/±8g | ||
 | • Robust Wireless Connectivity: License-free 2.4GHz for reliable, long-range data transmission in industrial environments. | ||
 | • Versatile Mounting: Screw or dual-screw & magnetic mounting options for easy, secure installation on any surface. | ||

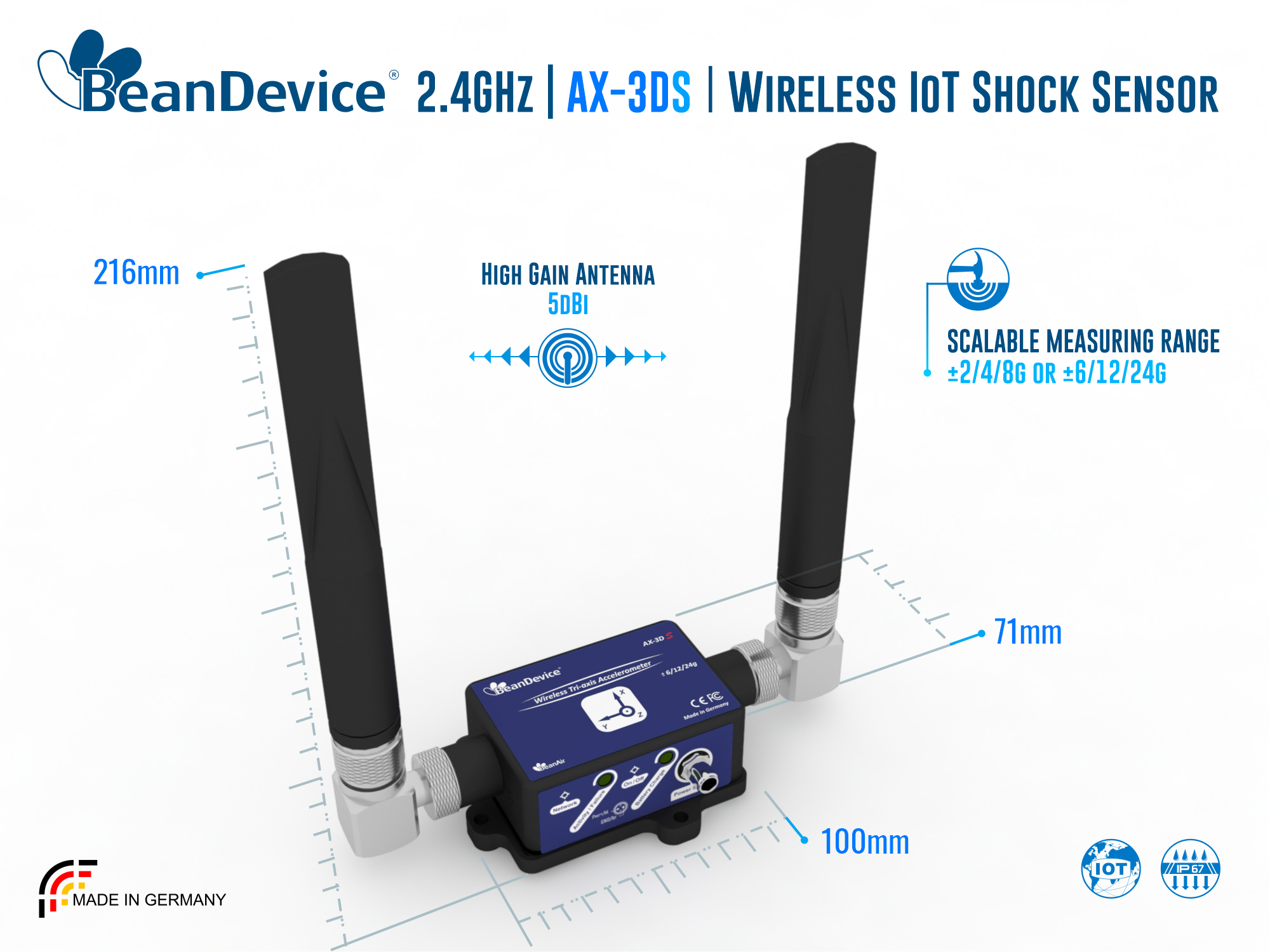

 | • Antenna Options: High-gain for extended range or compact radome for harsh, space-limited setups. | ||
 | • Durable Design: IP67 waterproof aluminum casing, lightweight and ESD-protected for rugged use. | ||
 | • High-Capacity Logging: Stores 1M logs and rechargeable battery for uninterrupted monitoring. | ||

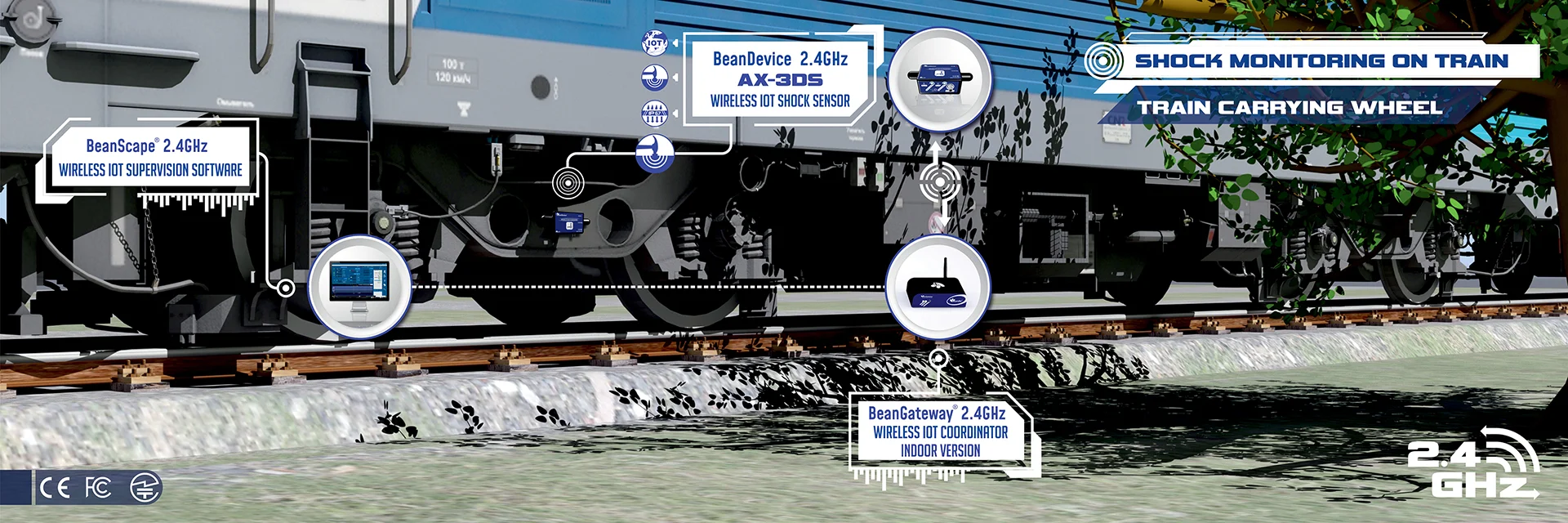

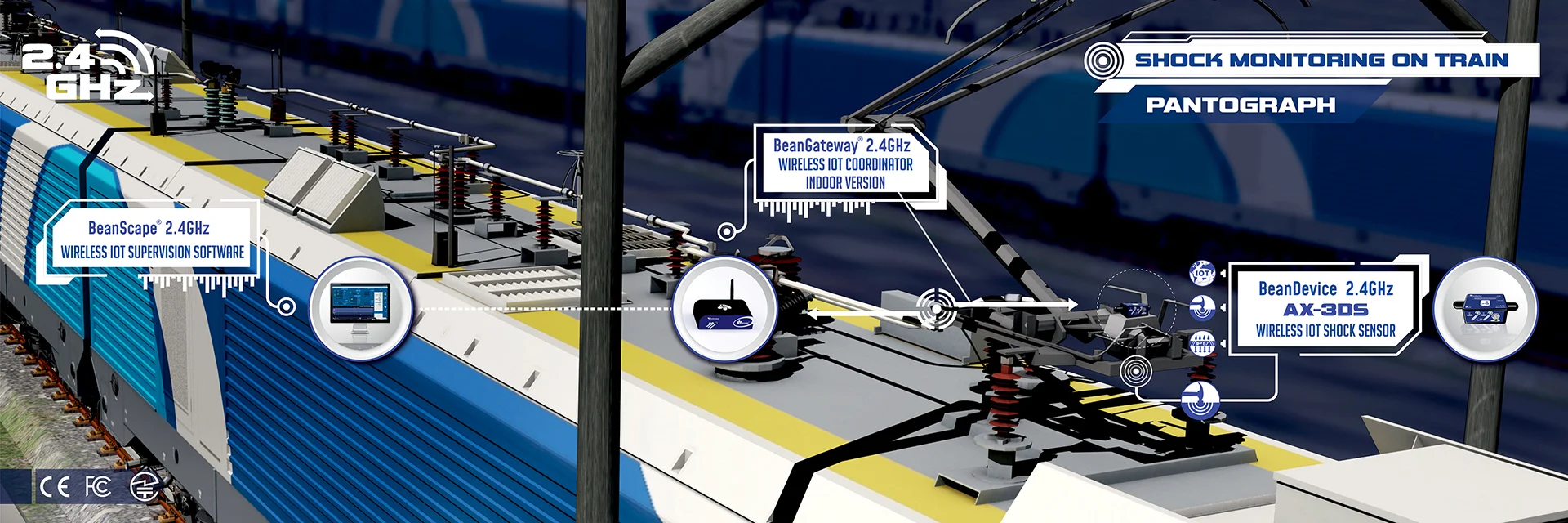

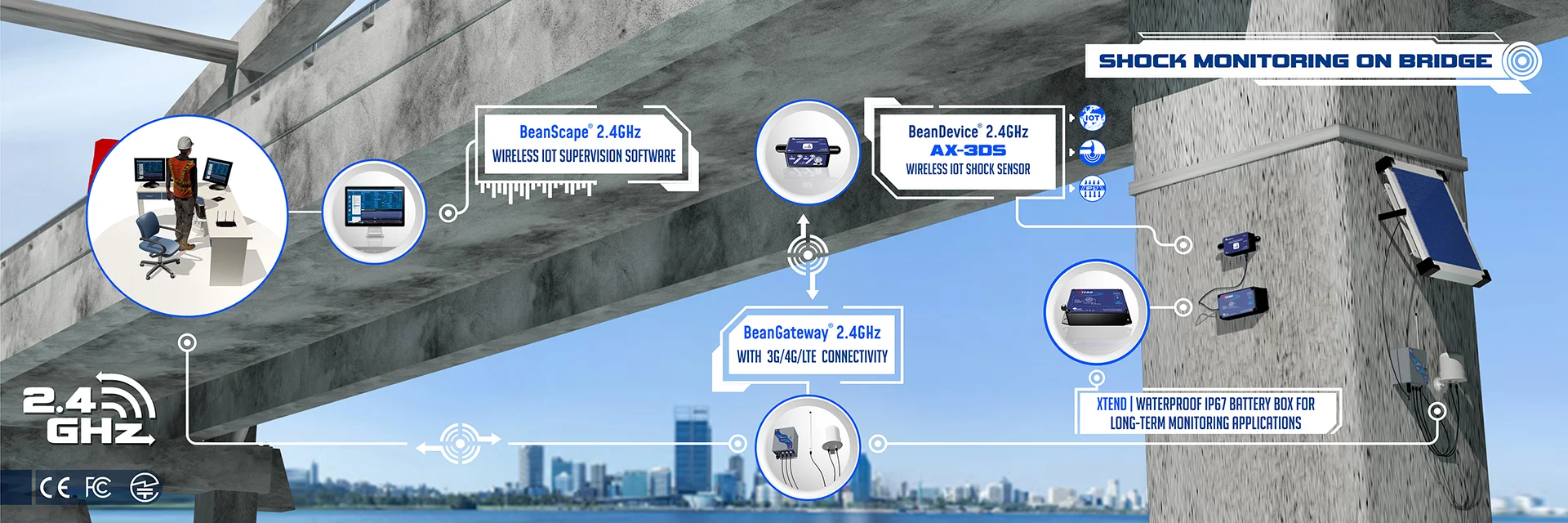

Applications
Video
Featured Video
WSN dedicated to Structural Health Monitoring
Product Video

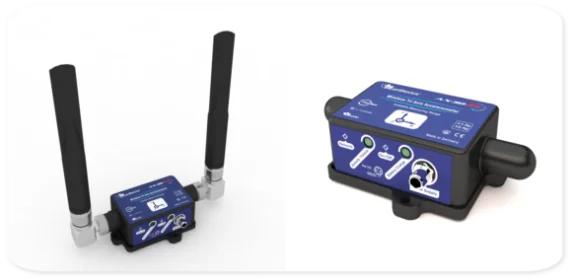

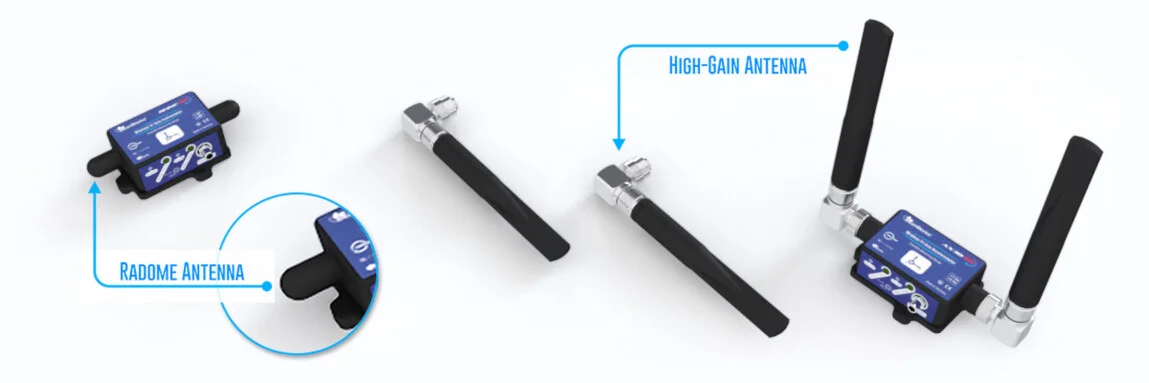

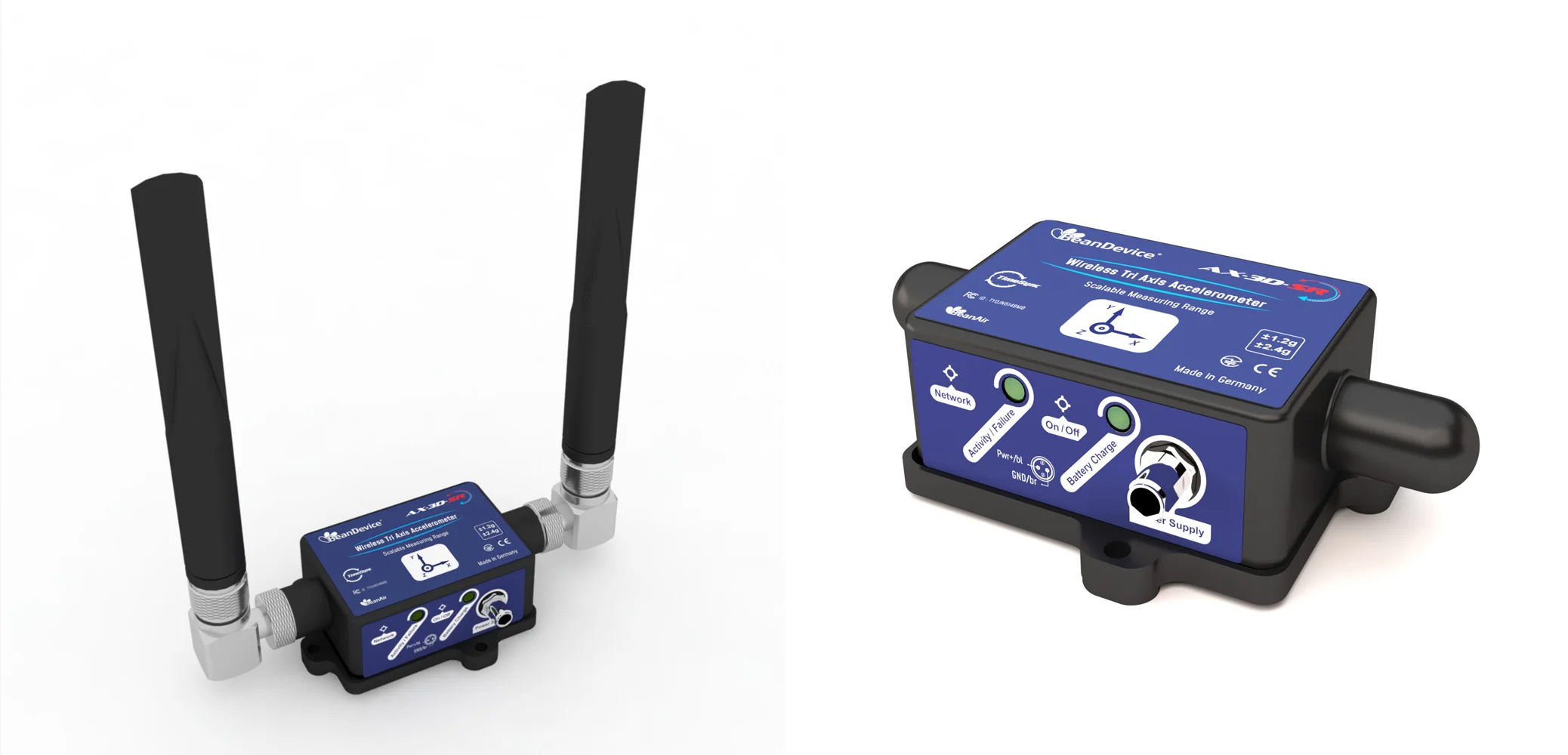

Antenna Options for Different Applications
Our antenna solutions are designed to provide reliable wireless connectivity across a variety of operational environments:• Radome Antenna:This compact antenna is perfectly suited for applications with space constraints, offering robust performance without requiring a large footprint.-Typical Wireless Range:150m (Line of Sight*) | 30-60m (Non-Line-of-Sight)• High-Gain Antenna:Optimized for maximum reach, this antenna is the premier choice for long-distance data transmission, ensuring signal integrity over extended areas.-Typical Wireless Range:400m (Line of Sight*) | 60-120m (Non-Line-of-Sight)*Line-of-Sight (LOS) range is based on field tests conducted with the device antenna oriented vertically and a BeanGateway® installed on a 10-meter mast utilizing a 9dBi antenna.

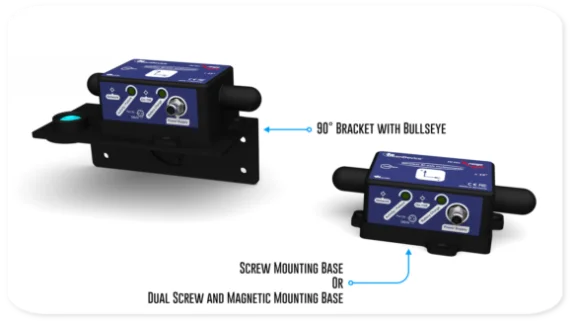

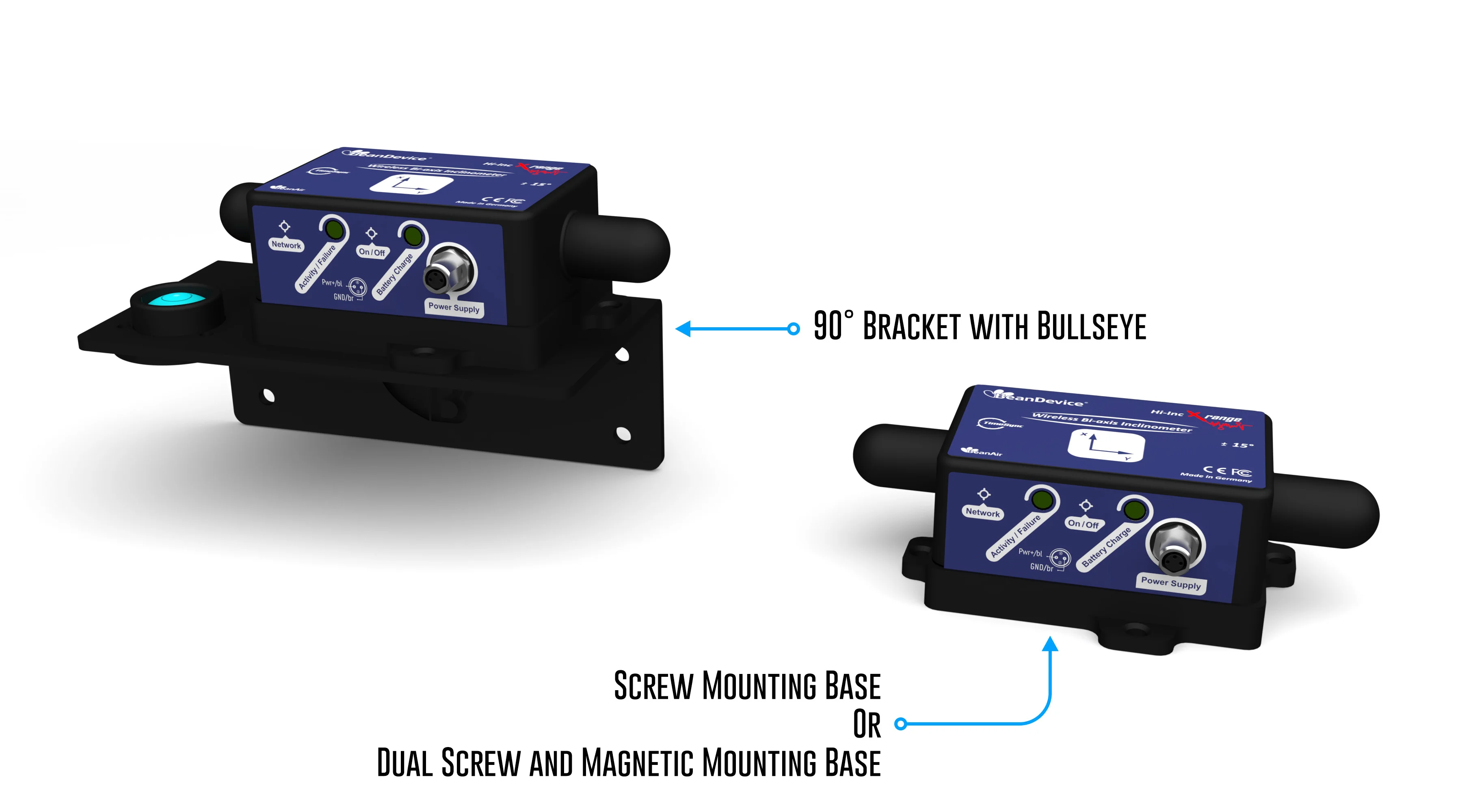

Mounting Options for Every Environment

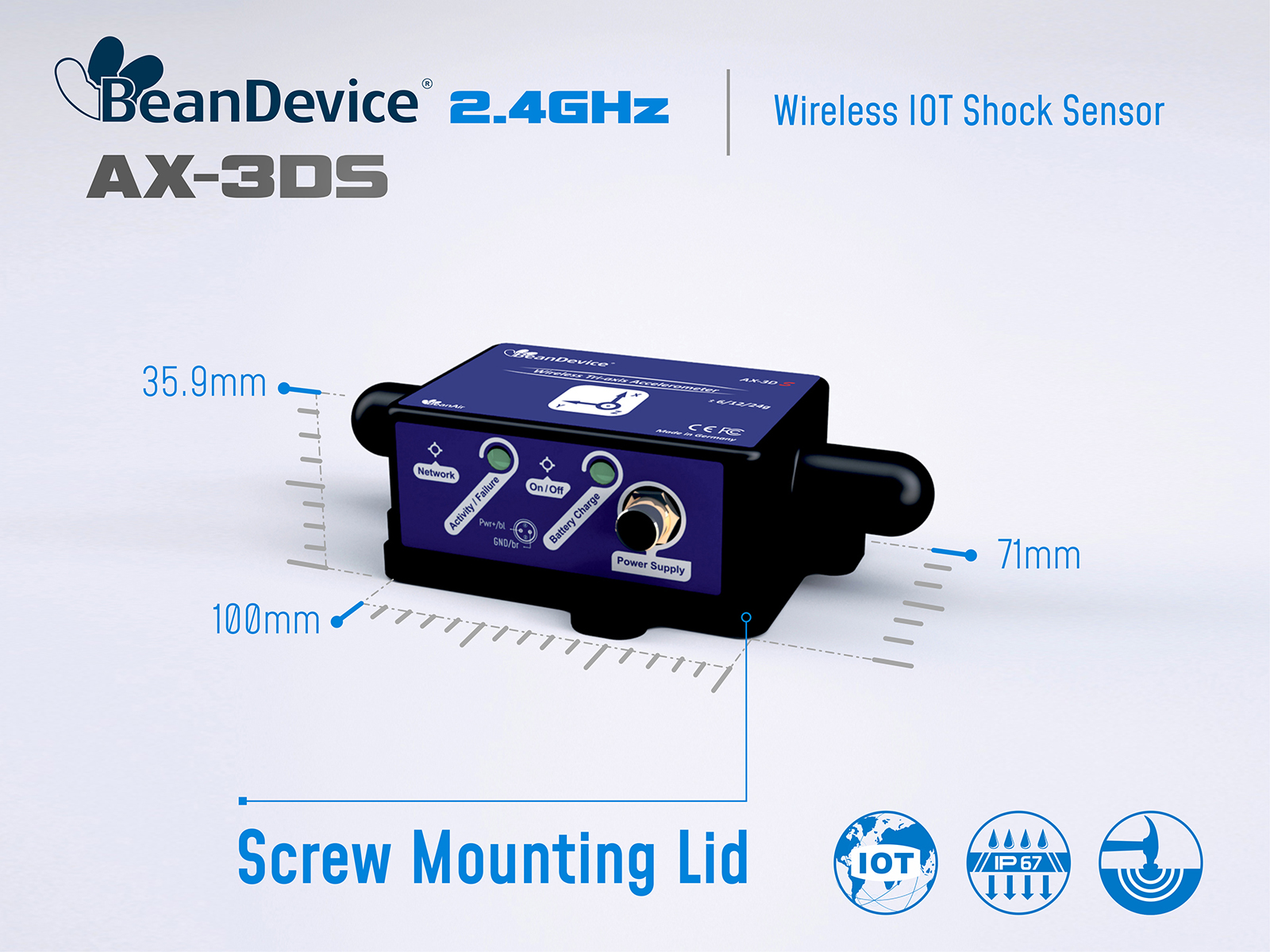

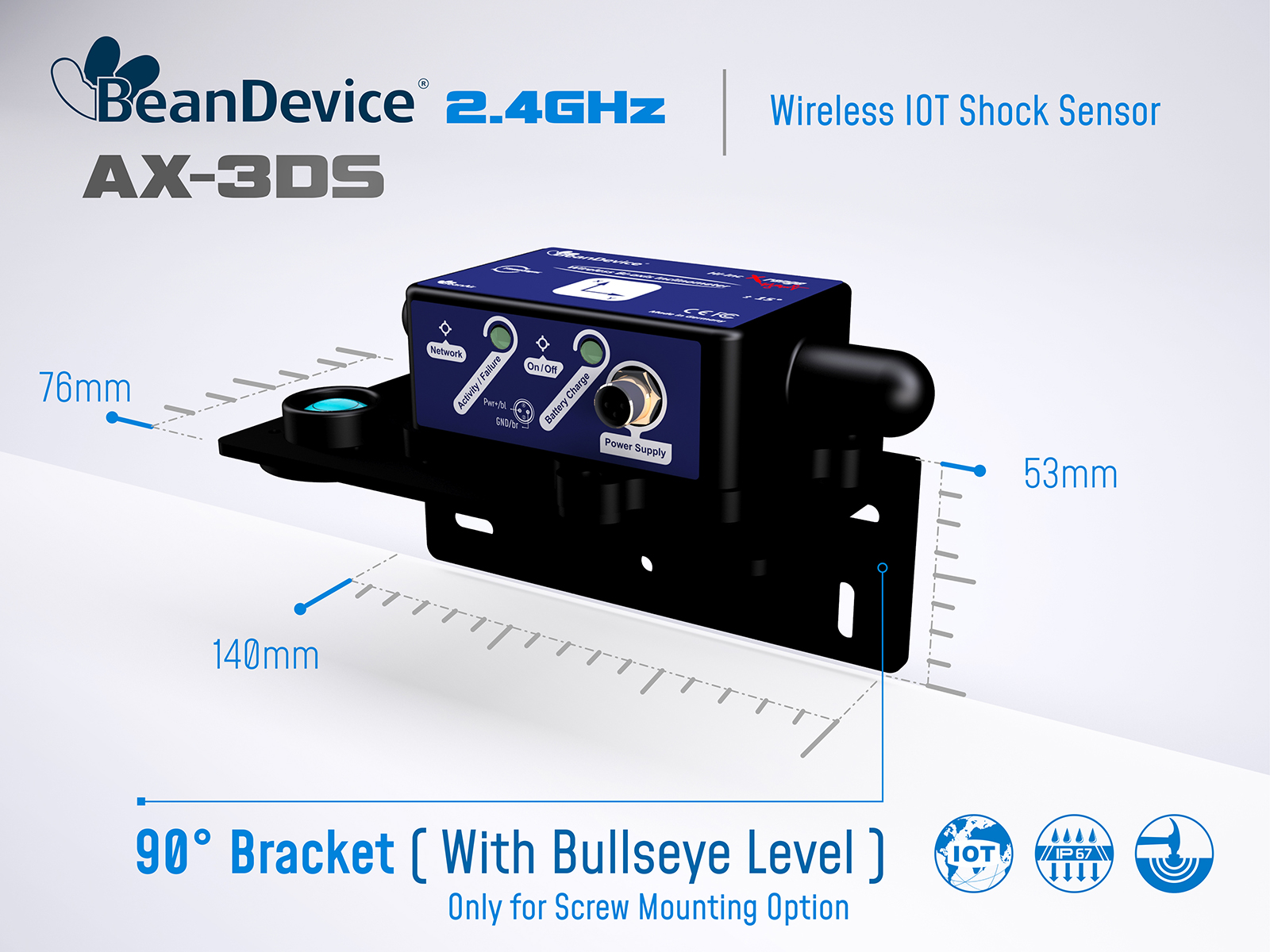

Deploy your sensor faster and smarter with our versatile mounting solutions—engineered for any surface, any environment, and zero installation hassle.Standard Screw Mounting Base• Permanent & secure for long-term applications.• Ideal for industrial, outdoor, or high-vibration setups.Dual-Mode Base (Add -M to Product Code)• Magnetic + screw in one—no extra parts needed.• Snap on magnetically (10+ kg hold) or screw for permanence.• Perfect for fast deployments or reusable setups.Optional: 90° Wall Bracket with Bullseye• Precision alignment for vertical/wall mounting.• Compatible with both mounting bases.
Accessories
INCLUDED ACCESSORIES | |
 | M8 plastic cap 1 x M8 Cap for Power Supply |
 | Magnet for Power ON | Power OFF 1pcs Magnet. |
OPTIONAL ACCESSORIES AND SERVICES | |
 | Standalone Solar System High efficiency solar panel with Solar charging controller and Lead-acid battery Ref: X-SOL-14AH-20W-4CH-4V-5M for XT version Ref: X-SOL-14AH-20W-4CH-12V-5M for RB version Ref: X-SOL-14AH-80W-4CH-4V-5M for XT version Ref: X-SOL-14AH-80W-4CH-12V-5M for RB version  Ref.: X-SOL-7AH-20W-4V-5M for XT version Ref.: X-SOL-7AH-20W-12V-5M for RB version More options and references are available on X-SOLAR datasheet |

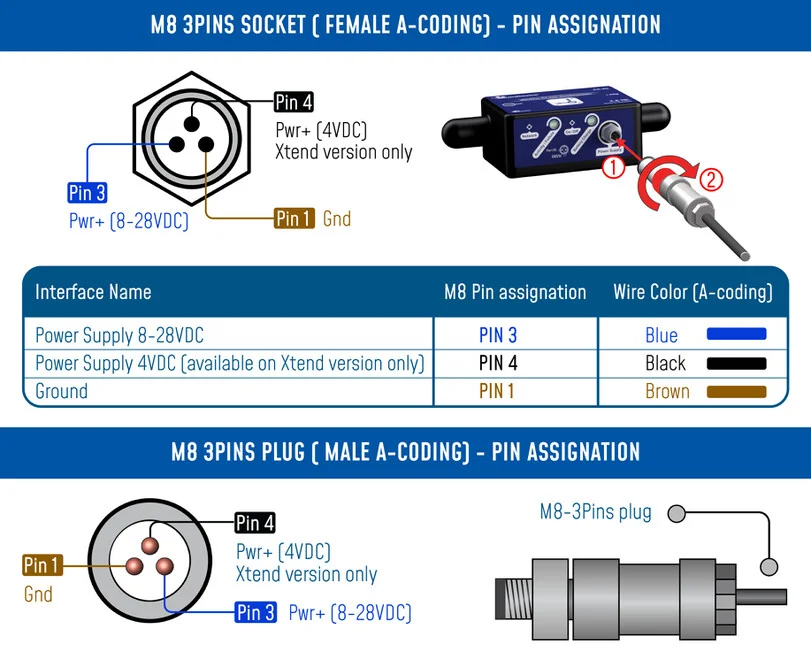

 | Molded Cable, M8 Male Plug to Bare wire For sensor power supply (8-28VDC) Material: PVC IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions ) Cable length: 2 meters , Ref: CBL-M8-2M Cable length : 5 meters, Ref: CBL-M8-5M Cable length: 10 meters, Ref: CBL-M8-10M |

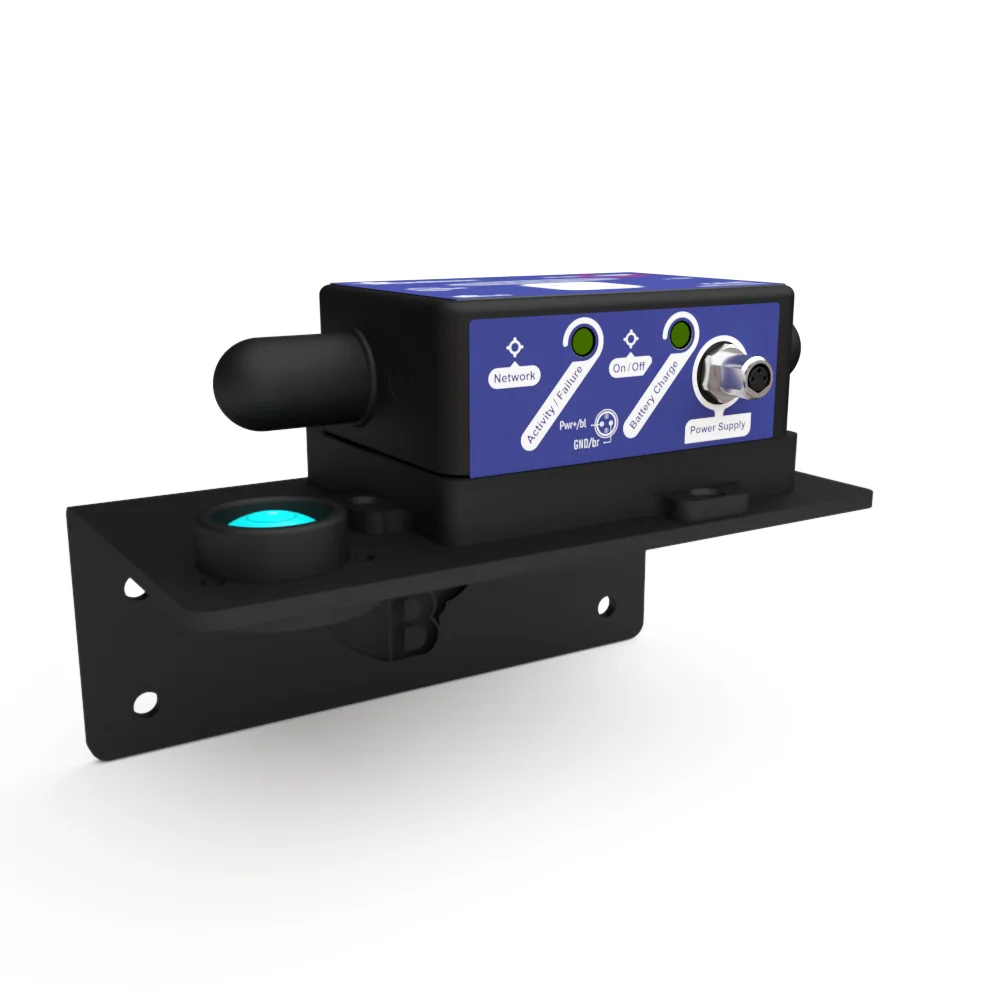

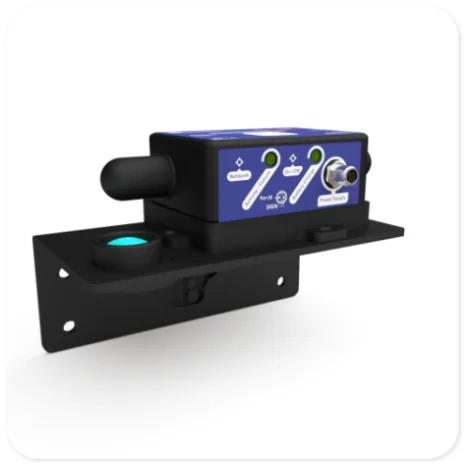

 | Mechanical Mounting Options • 90° Bracket for BeanDevice (Xrange smartsensor) with 4 x M5 screws + Locknut Ref: SMART-BRACK-MNT  |
 | Switch-Mode Power Supply 12V with M8-3Pins plug Power supply complies with IS 13252 (Part 1)/IEC 60950 1-Safety Standards Cable Lenght: 1.5meters IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions ) Ref: M8-PWR-12V |
 | External Primary Cell in a Waterproof IP67 Casing Waterproof IP67 battery box for long-term monitoring applications IP67 Battery Holder + Battery Pack with 3 x 6500mAh Li-SOCL2 Lithium Primary cell (Capacity 3x 6.5Ah) Ref: PRIM-XTEND Compatible with : BND-2.4GHZ-HI-INC-SR-10T-XT-MM & BND-2.4GHZ-HI-INC-SR-10T-XT-SCM  |
 | Calibration Certificate Calibration certificate provided by Beanair GmbH A static calibration method is used on a granite surface plate DIN876 Ref: CERT-CAL-SMART |
