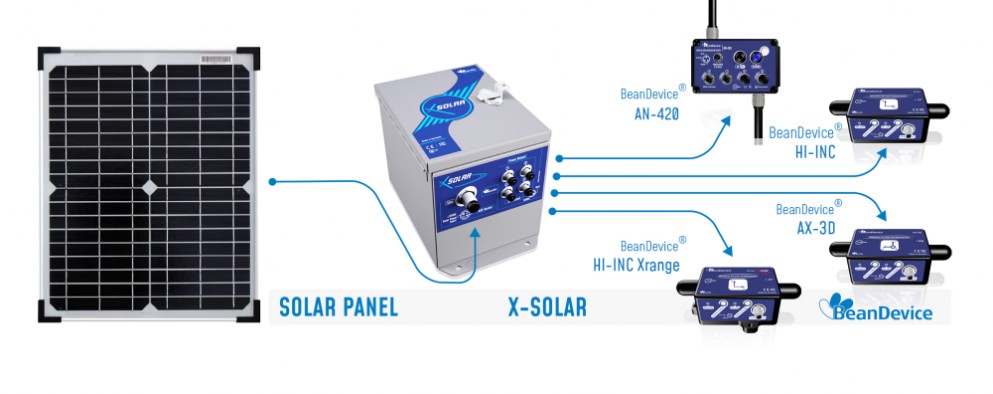

High efficiency Solar Panel with Solar Charging Controller and Lead-acid battery
Technical Documents
Certifications & Approvals
Technical Specifications
X-SOL-14AH-SLP-VOUT-CL
Product reference | |
X-SOL-14AH-SLP-VOUT-CL | |
SLP- Solar Panel Power 20W (adapted to countries with very High level of solar Irradiance: Africa/South Asia/South America) | CL– Cable length between X-solar box and solar panel 5M : 5meters |
50W (adapted to countries with High level of solar Irradiance: South of Europe/South USA) | |
100W (adapted to countries with Low level of solar Irradiance: North Europe/North USA/Canada/North Asia/Russia) | |
VOUT - Voltage Output | |
| 4VDC : 4 channels with 4VDC output | |
5VDC: 4 channels with 12VDC output (only for Wilow sensor series ) | |
| 12VDC : 4 channels with 12VDC output | |
Example 1: X-SOL-14AH-20W-4CH-4V-5M: 20W Solar panel, 4 x Power Output with 4VDC and 5 meters cable (only for 2.4GHz sensor series with XT option) Example 2: X-SOL-14AH-20W-4CH-5V-5M: 20W Solar panel, 4 x Power Output with 5VDC and 5 meters cable (only for Wilow sensor series ) | |
Solar panel specifications | |
Maximum Power (Pmax) | High effciency Monocrystalline solar cell technology |
| Max Energy efficiency | 20,40% |
Maximum Power (Pmax) | 20W, 50W or 100W |
| Voltage at Pmax | 17.8VDC |
| Current at Pmax | 1.12A(20W), 2.8A(50W) , 4.5A(100W) |
| Operating Temperature | -40°C to +85°C |
Dimensions and Weight (20W version) | 345 x 370 x 25, 2 kg weight |
Dimensions and Weight (50W version) | 662 x 460 x 35mm, 4 kg weight |

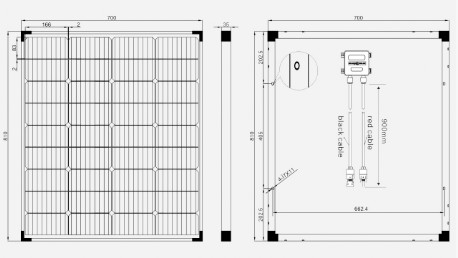

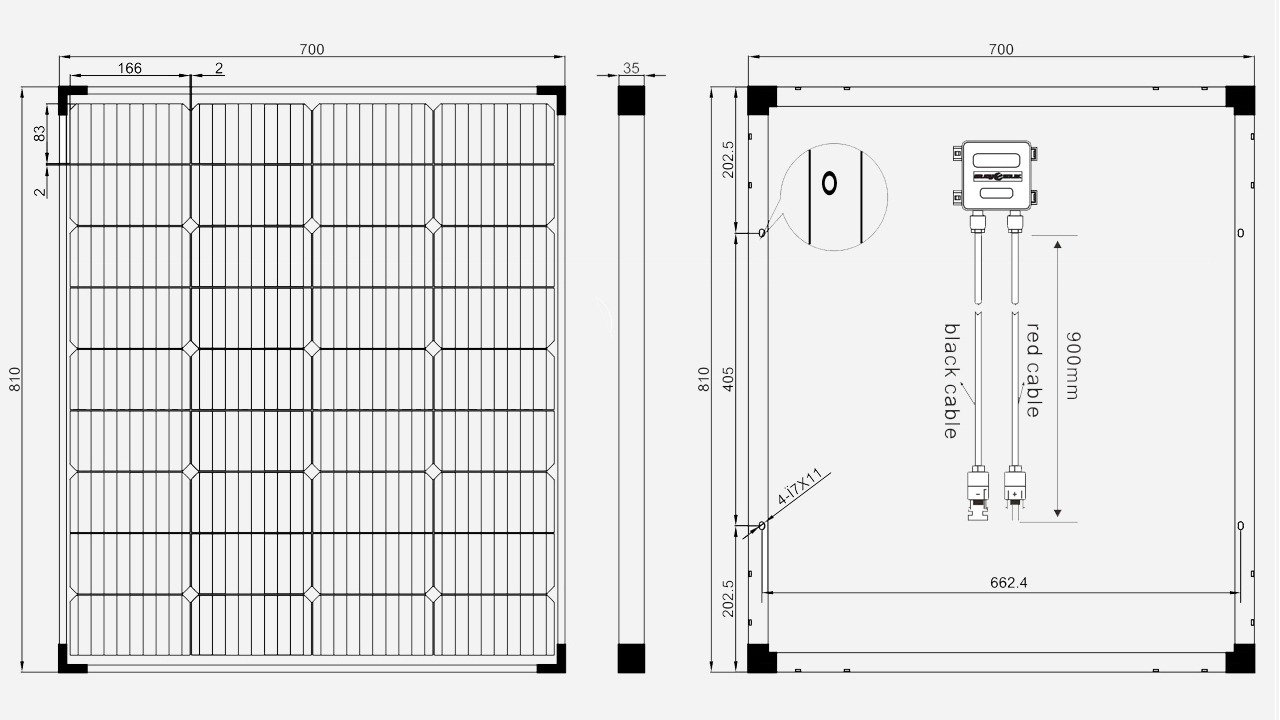

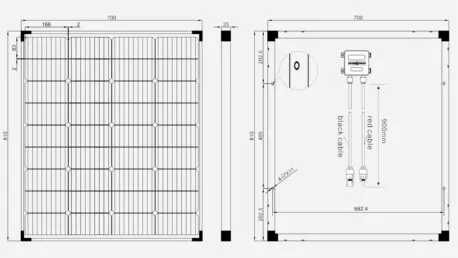

Dimensions and Weight (100W version) | 810 x 700 x 35mm, 7.8kg weight |
| Connector Type | M12-4pins Male , A-Coding |
| IP Rating | Waterproof IP67|NEMA 6 |
| Cable length | 5 meters |
Mounting method | Screw mounting |
Charging controller box specifications | |
Charging controller type | Solar charging controller with Overvoltage/Undervoltage protection |
Input voltage solar cell panel | 14-30VDC |
Number of output voltage for sensors | 4 |
| Output Voltage | 4VDC (only for 2.4GHz sensor series with XT option ) 12VDC (only for 2.4GHz sensor series ) 5VDC (only for Wilow sensor series ) |
Connector Types | 4 x M8-3Pins Female A-Coding for sensors power 1 x M12-4Pins Female A-Coding for Solar panel |
| Max Input current | 10A |
| Power consumption | < 10mA , Led switch on |
| Battery Technology | Valve regulated lead acid battery |
| Battery Capacity | 14Ah |
Led displays | Battery Full and Charging |
Dimensions | 204 mm x169 mm x156 mm |
IP Rating | Waterproof IP67|NEMA 6 |
Vandalism Protection | Padlock adapter (Padlock not included) |
Weight | 8 kg |
Operating Temperature | -15°C to +50°C |
Included Connectors | |
For 2.4GHz sensor series | 8 x M8-3Pins Plugs for connecting to your X-SOLAR to your BeanDevice® 2.4GHz |
For Wilow® sensor series | 4x M8-3Pins Plugs for connecting your X-SOLAR to your BeanDevice® Wilow® 1 x M8-3Pins Plugs for connecting your X-SOLAR to your BeanDevice® Wilow® Wilow® sensors comes with M8-6Pins socket, you can only use a M8-6Pin molded cable to connect it to your X-SOLAR |
Optional Cable Adapters | |
For 2.4GHz sensor series | Molded Cable M8-3 pins to M8-3Pins for X-Solar Box Only, PVC Material 2.4GHZ-XSOLAR-CBL-2M for 2 meters of cable length 2.4GHZ-XSOLAR-CBL-5M for 5 meters of cable length 2.4GHZ-XSOLAR-CBL-10M for 10 meters of cable length |
For Wilow® sensor series | Molded Cable M8-6 pins to M8-3Pins for X-Solar Box Only, PVC Material WL-XSOLAR-CBL-2M for 2 meters of cable length WL-XSOLAR-CBL-5M for 5 meters of cable length WL-XSOLAR-CBL-10M for 10 meters of cable length |
M12 Plug to build your own power supply | M12-4Pins Plug to build your own power supply (screw mounting) Ref: XSOLAR-M12-4PIN |
M8 Plug For Xsolar connection | M8-3Pins Plug for connecting X-SOLAR Box (screw mounting) Ref: XSOLAR-M8-3P |
AC/DC power adapter | AC/DC power adapter to load the X-SOLAR battery at your office Ref: XSOLAR-AC-DC-PWR-12VDC |
List of Beandevice® compatible with X-Solar (4VDC) | |
All the Beandevice coming with -XT extension | Example: BND-2.4GHZ-HI-INC-15B-XT, BND-2.4GHZ-INC-30B-XT, BND-2.4GHZ-INC-30B-XT |
List of Beandevice® compatible with X-Solar (12VDC) | |
All the Beandevice® 2.4Ghz coming with internal Rechargeable battery , and all the BeanDevice Wilow with EHR Option | Example: BND-2.4GHZ-AX3D-10G-RB , BND-2.4GHZ-HI-INC-15B-XR-RB-SCM |
List of Beandevice® compatible with X-Solar (5VDC) | |
All the Beandevice® Wilow® | Example: BND-WILOW-AX-3D-2G , BND-WILOW-AX-3D-10G, BND-WILOW-HI-INC-15B, BND-WILOW-X-INC-2G-15B |

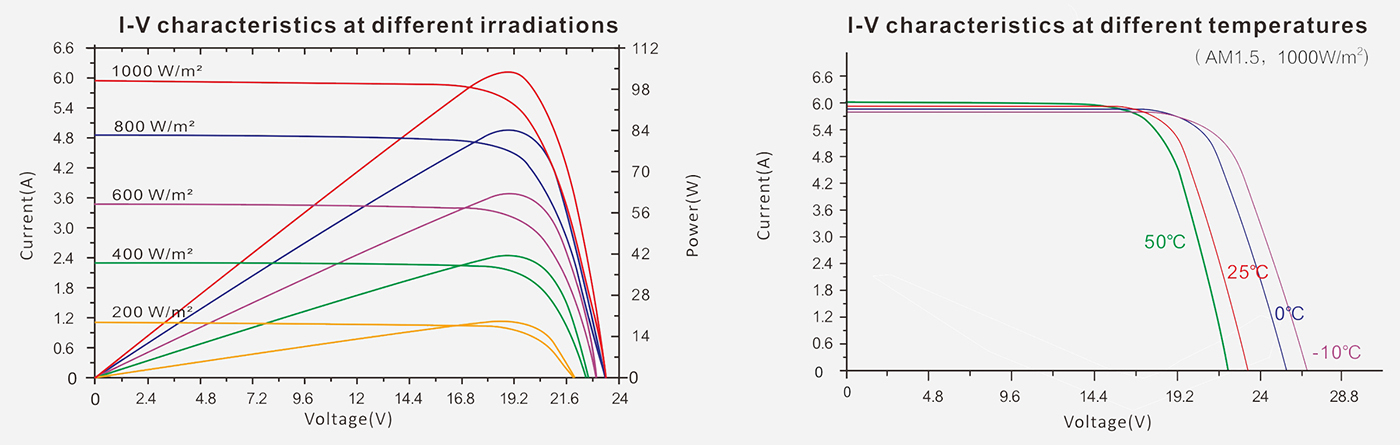

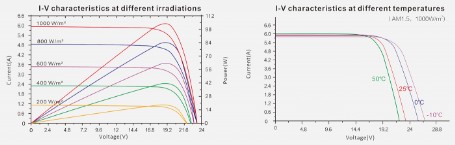

Solar Panel Characteristics
X-SOL-14AH-20W-4CH-4V-5M or X-SOL-14AH-20W-4CH-12V-5M
X-SOL-14AH-50W-4CH-4V-5M or X-SOL-14AH-50W-4CH-12V-5M
X-SOL-14AH-100W-4CH-4V-5M or X-SOL-14AH-100W-4CH-12V-5M
