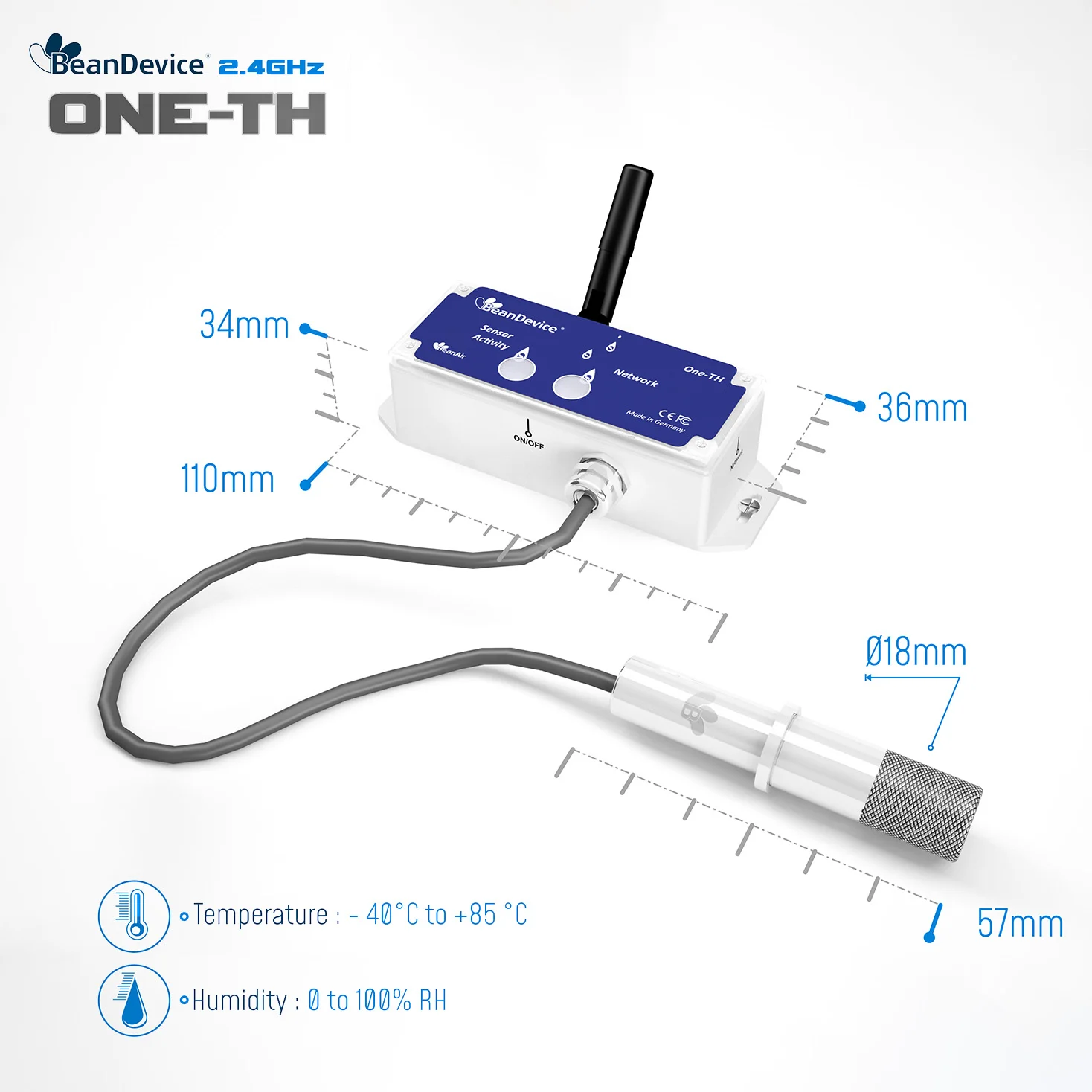

BeanDevice® 2.4GHz ONE-TH

Wireless Industrial IOT Temperature and Humidity Sensors | built-in datalogger

The BeanDevice® 2.4GHz ONE-TH is a wireless temperature & humidity data logger providing a storage capacity of 1 million data points.

Thanks to the sensor great accuracy ( ±0.1°C for temperature, and 1.5% for Humidity ), this IOT sensor is well adapted for COVID19 Vaccine storage.

The combination of a waterproof casing (IP67|Nema 6) and a powerful radio design (300 meters in L.O.S.) enables industrial applications for this IOT sensor.

The ultra-low power wireless technology (up to 7-year battery life) allows remote applications.

Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® 2.4GHz

(Premium+ & Multiview versions only).The BeanDevice® 2.4GHz ONE-TH is suitable for the following applications:

• HVAC (heating, ventilation, and air conditioning)

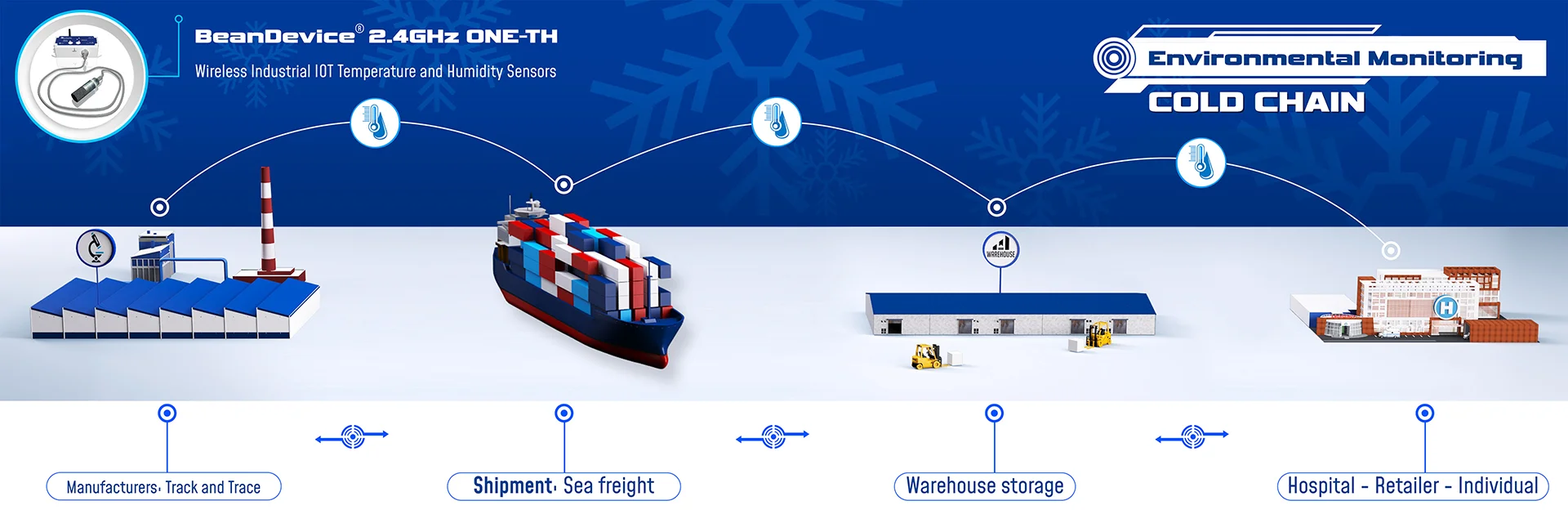

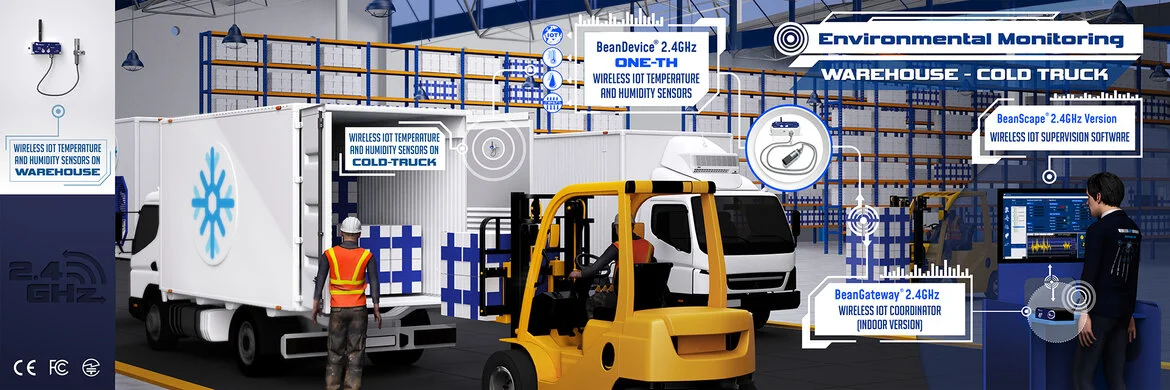

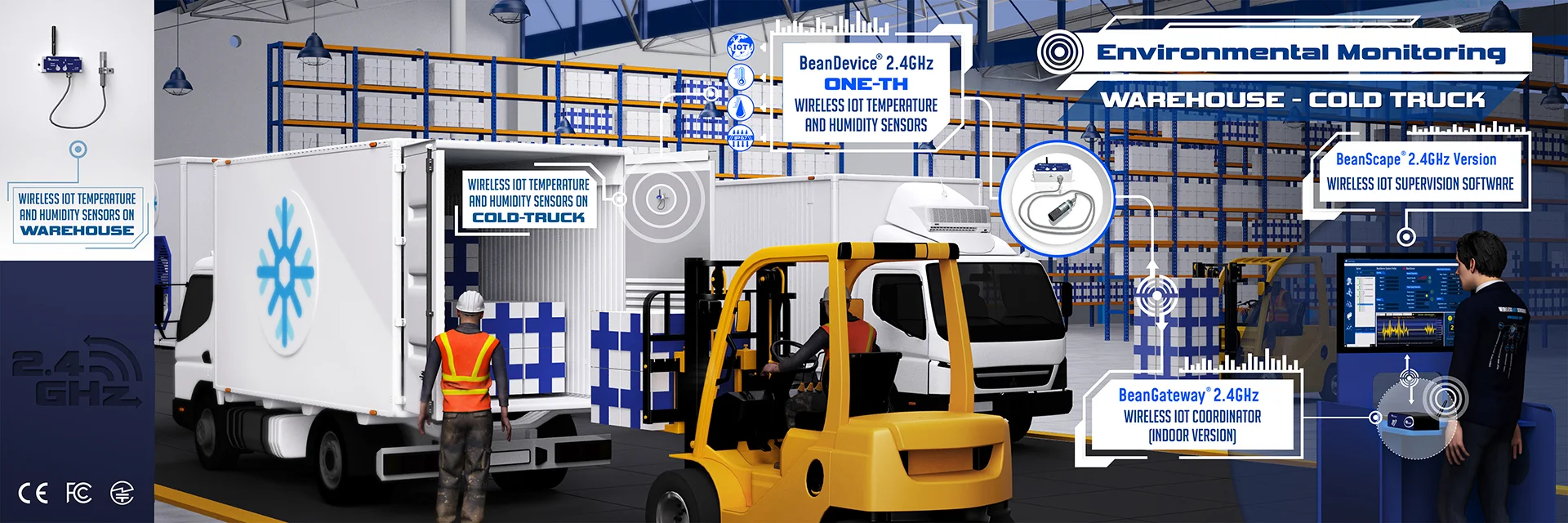

• Cold chain traceability

• Medical lab & clean room

• Agriculture & Greenhouse

• Environmental Monitoring

'Student and Education Discount' please contact us ( sales@beanair.com )

Stock Status : Available

Where to Buy ?

Main Features HOW IT WORKS ? Technical Documents StarterKit Certifications Ordering

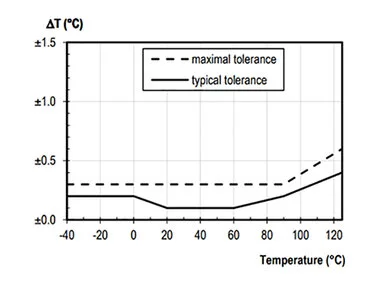

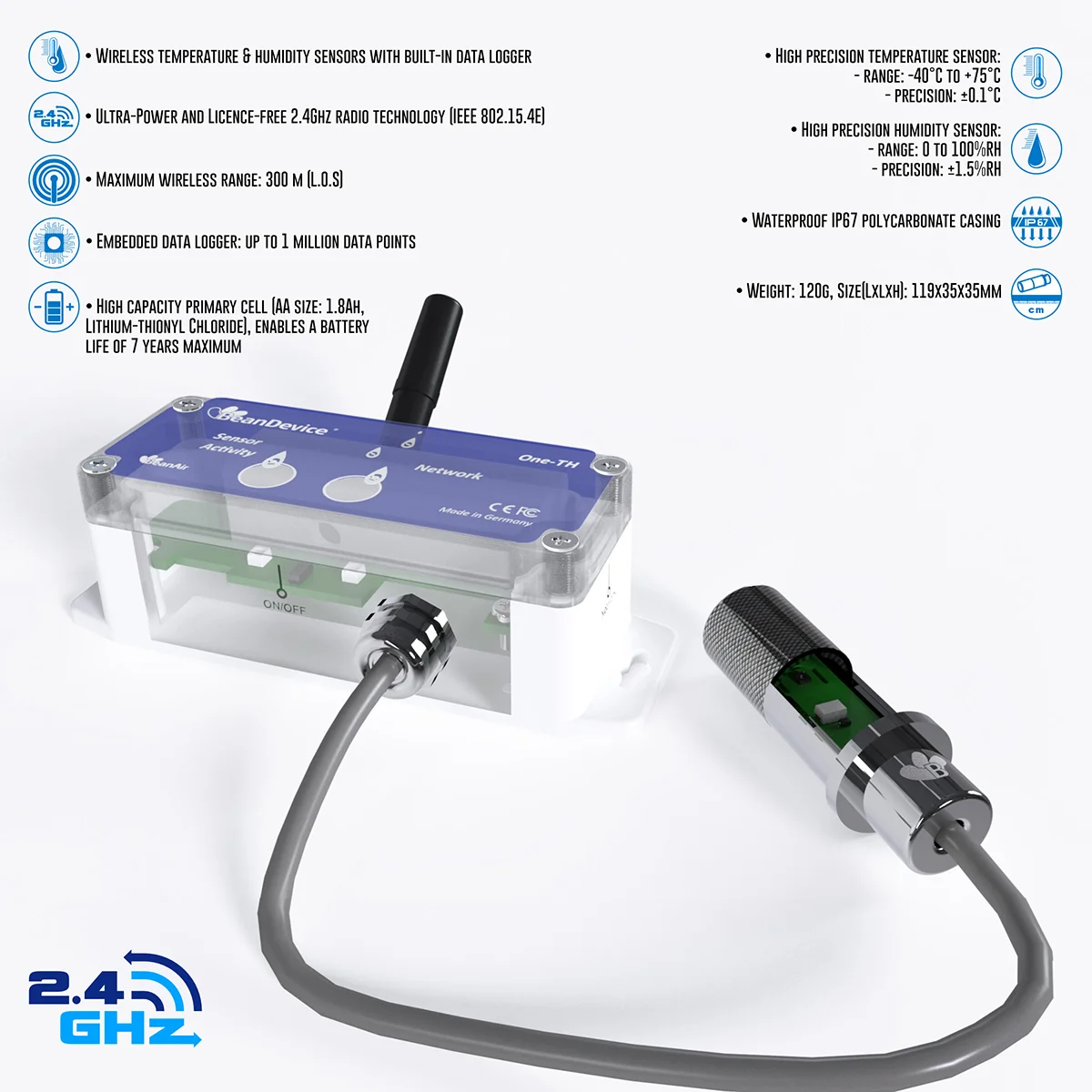

● High accuracy temperature sensor : -range : -40°C to +85°C - accuracy : ±0.1°C

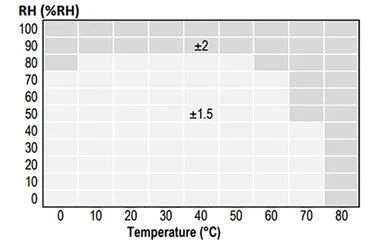

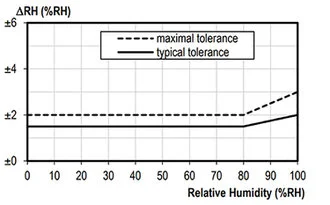

● High accuracy humidity sensor : -range : 0 to 100% RH - accuracy : ±1.5% RH
● Watertight IP67 polycarbonate enclosure Weight : 120g, Size (Lxlxh) : 119x35x35mm
● Primary cell capacity: 2200 mAh (AA size) Lithium-thionyl chloride technology
● Embedded data logger : up to 1 million data points
● Ultra-low power technology IEEE 802.15.4 (up to 7-year battery life) Max wireless range: 300m (L.O.S.)

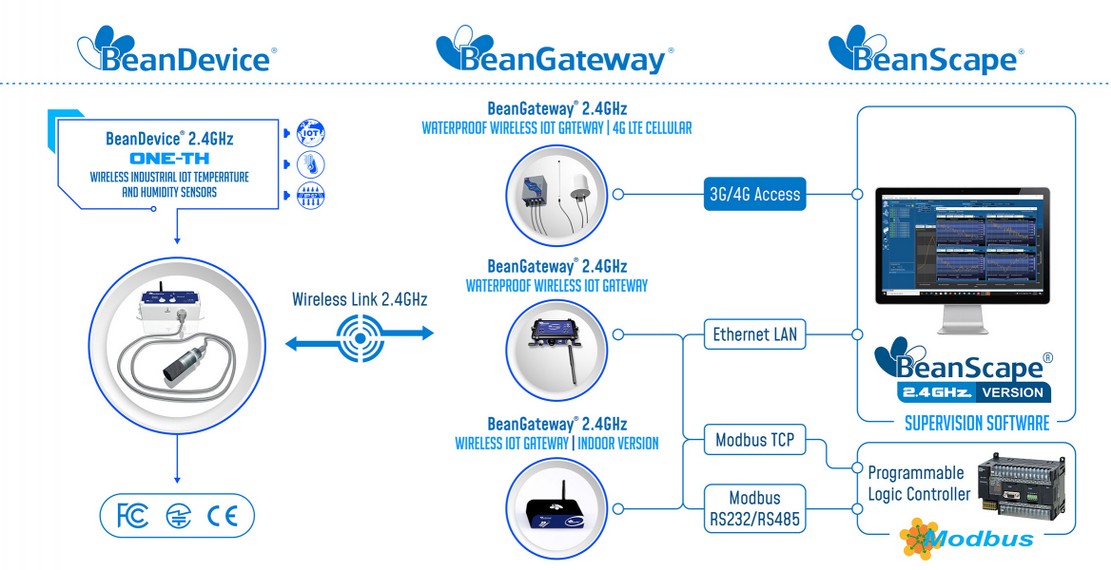

HOW IT WORKS ?

Technical Documents
● Datasheet
● Selection Guide
● Quick Start
● User Manual
● Drawing

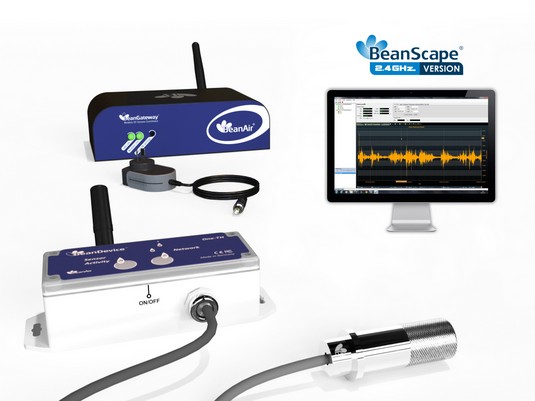

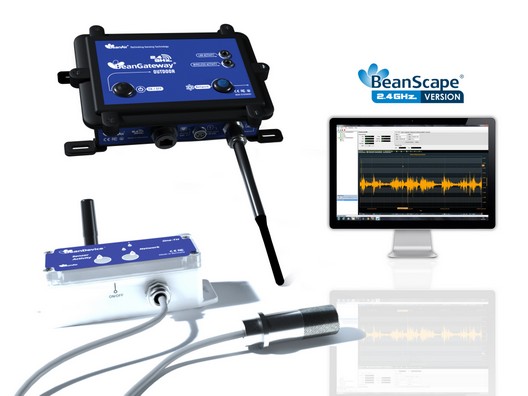

● Datasheet StarterKit BeanGateway® Indoor + Beandevice® 2.4GHZ ONE TH ● Datasheet StarterKit BeanGateway® Outdoor + Beandevice® 2.4GHZ ONE TH
● Step File

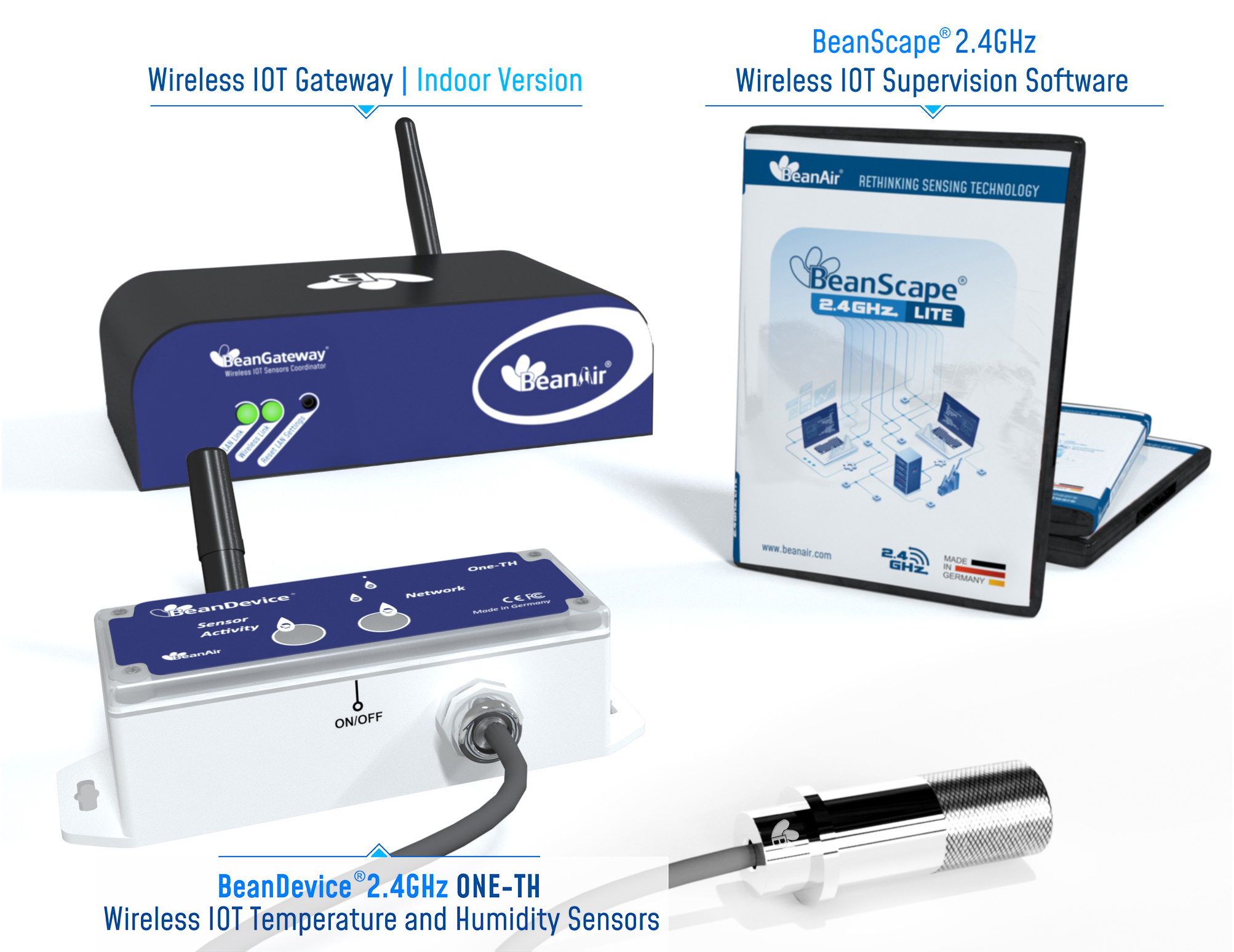

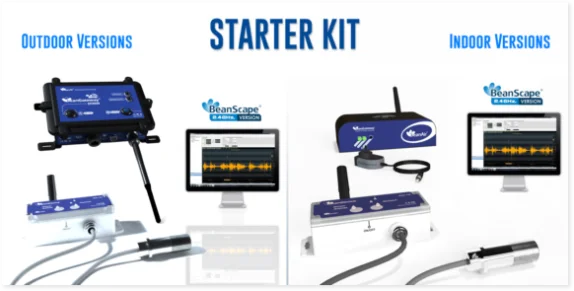

STARTERKIT

Certifications & Approvals
	FCC CERTIFICATE SMARTSENSOR

	2.4GHz CE CERTIFICATION

	Limited warranty certificate

	REACH Regulation Declaration

	Beanair® ROHS

PRODUCT REFERENCE
BND-2.4GHz-ONE-TH-CL
CL—Sensor Cable length CL : Cable length in cm (minimum cable length 20 cm, maximum cable length 150 cm)

Stock Status : Available
Where to Buy ?

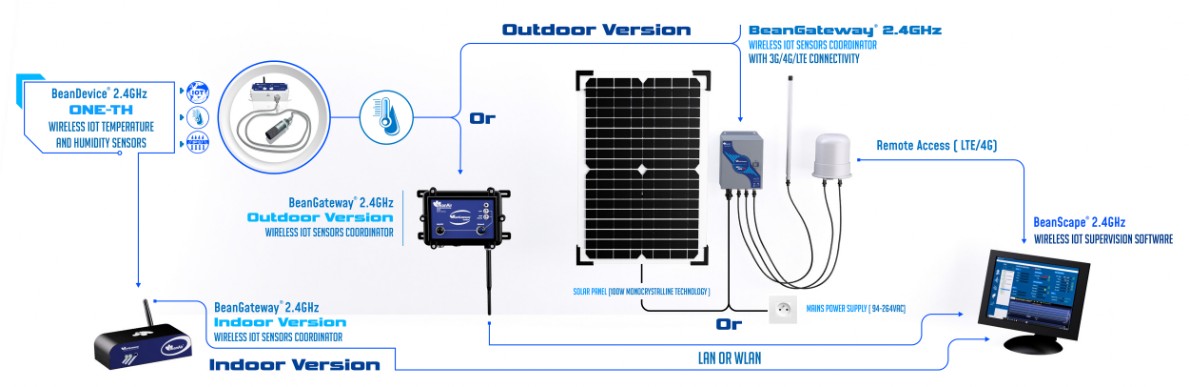

Enable a quick and reliable remote access thanks to our BeanGateway® With 4G Connectivity

« ONE TH Wireless temperature and humidity sensors »

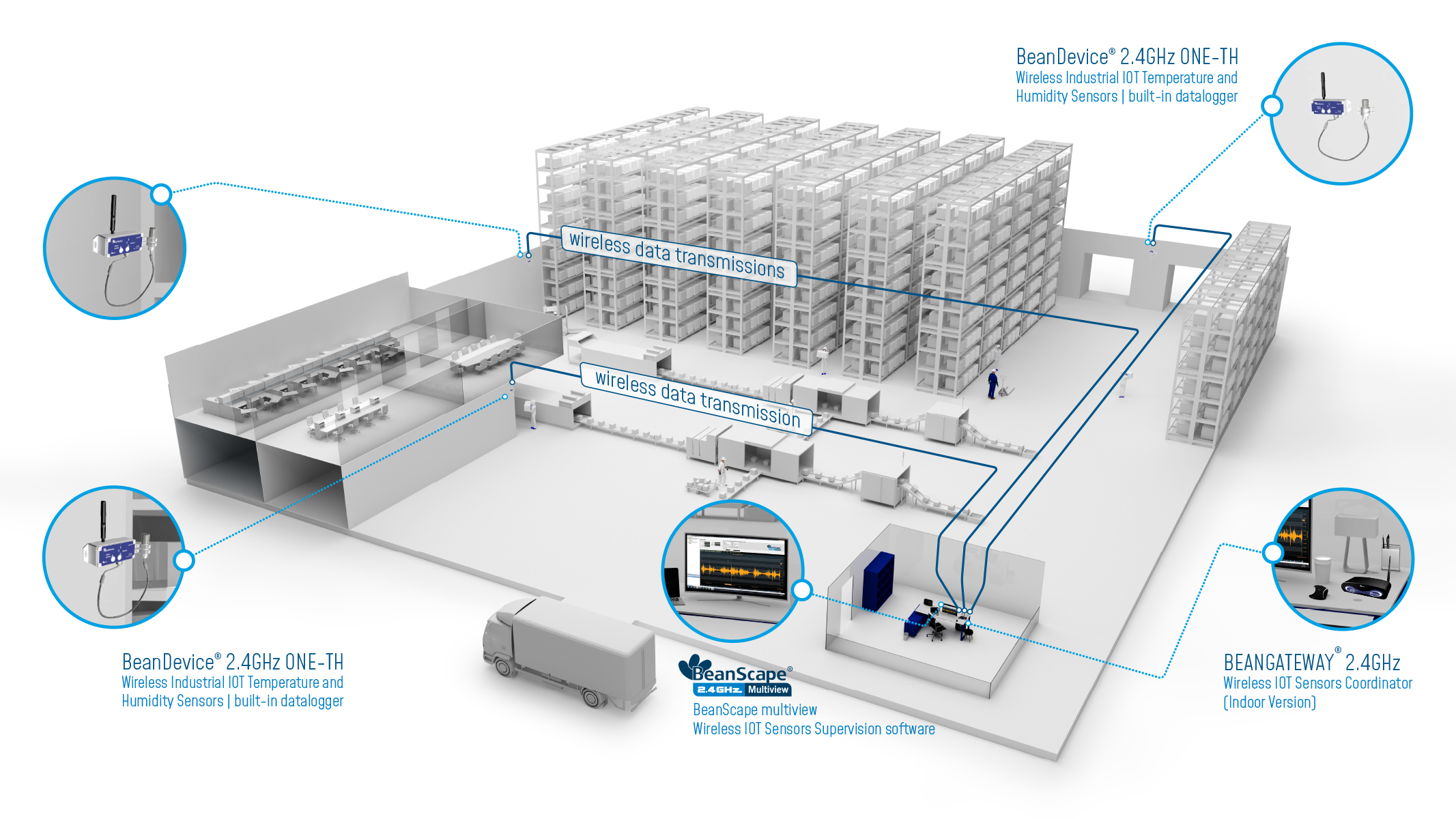

Real-Time Temperature and Humidity Monitoring inside a COVID 19 Vaccine storage

« application ONE TH Wireless temperature and humidity sensors »

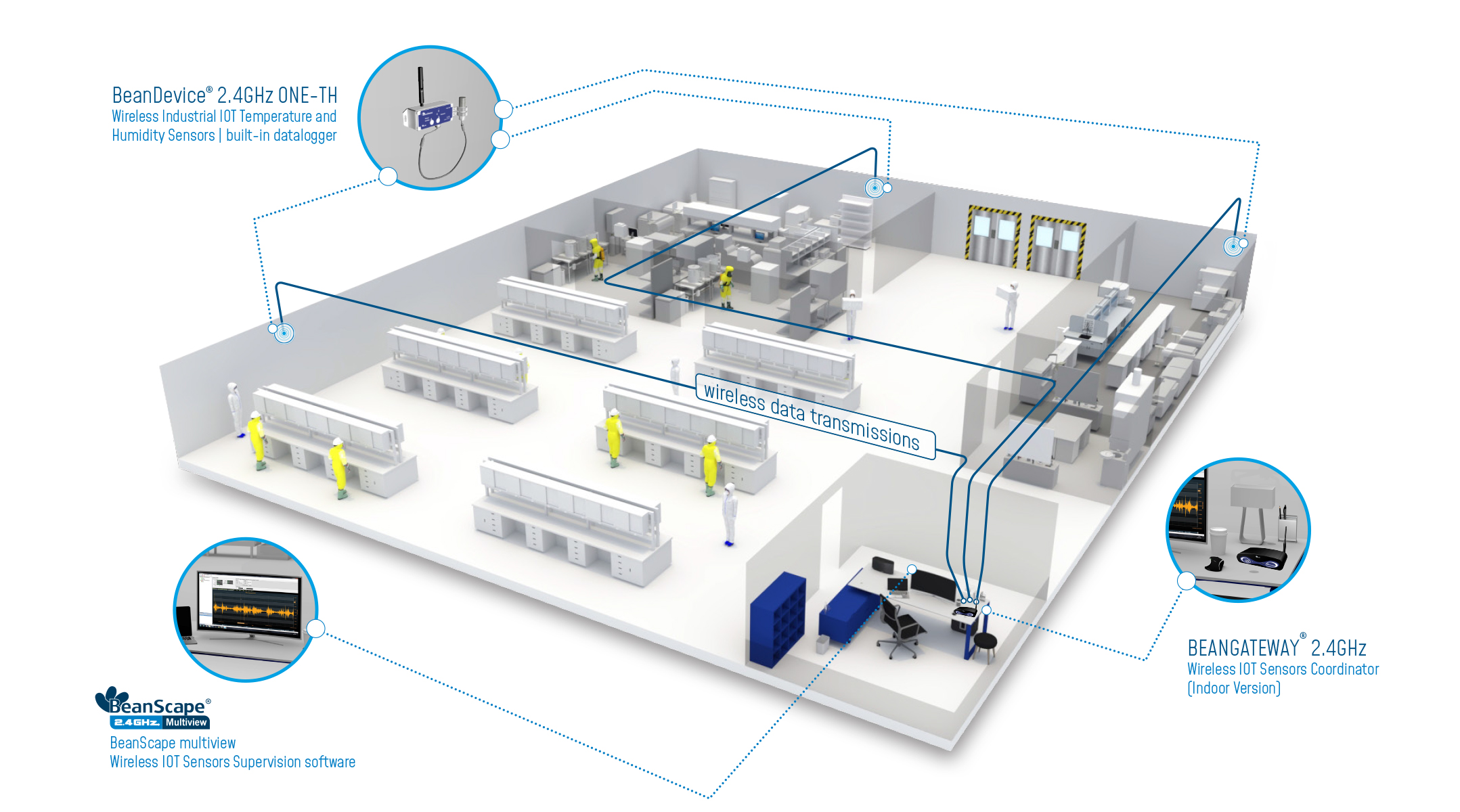

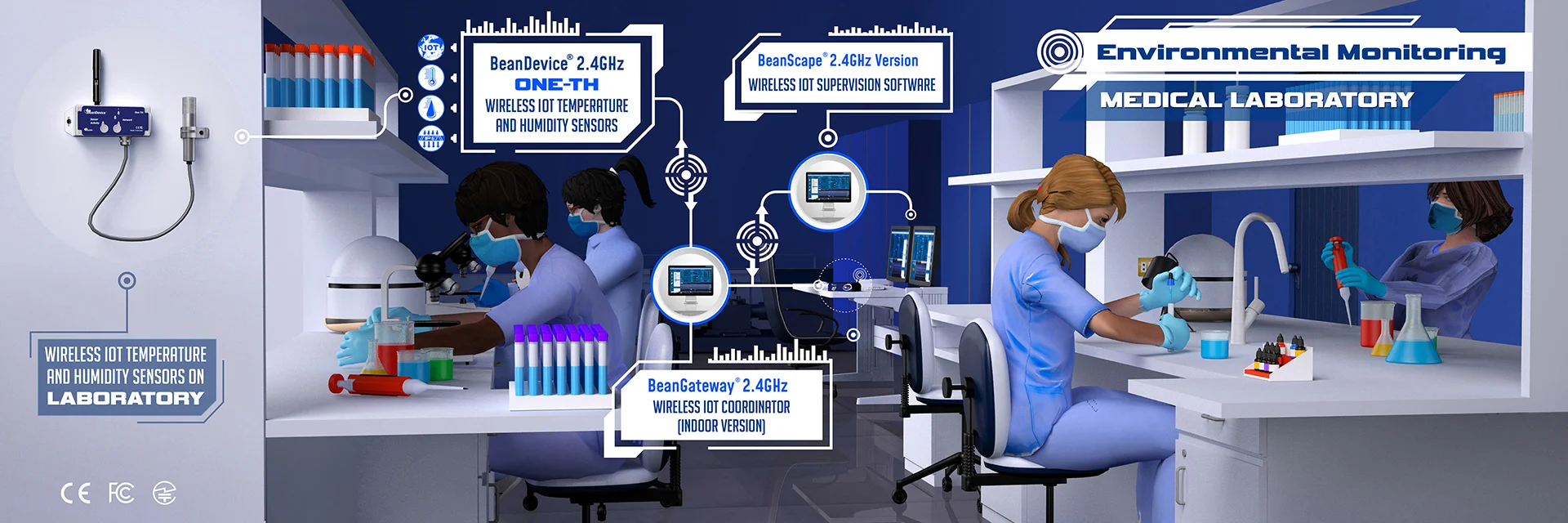

Real-Time Temperature and Humidity Monitoring inside a Medical Laboratory
