Digital Temperature sensor
High Accuracy -50/+150°C
MAIN FEATURES

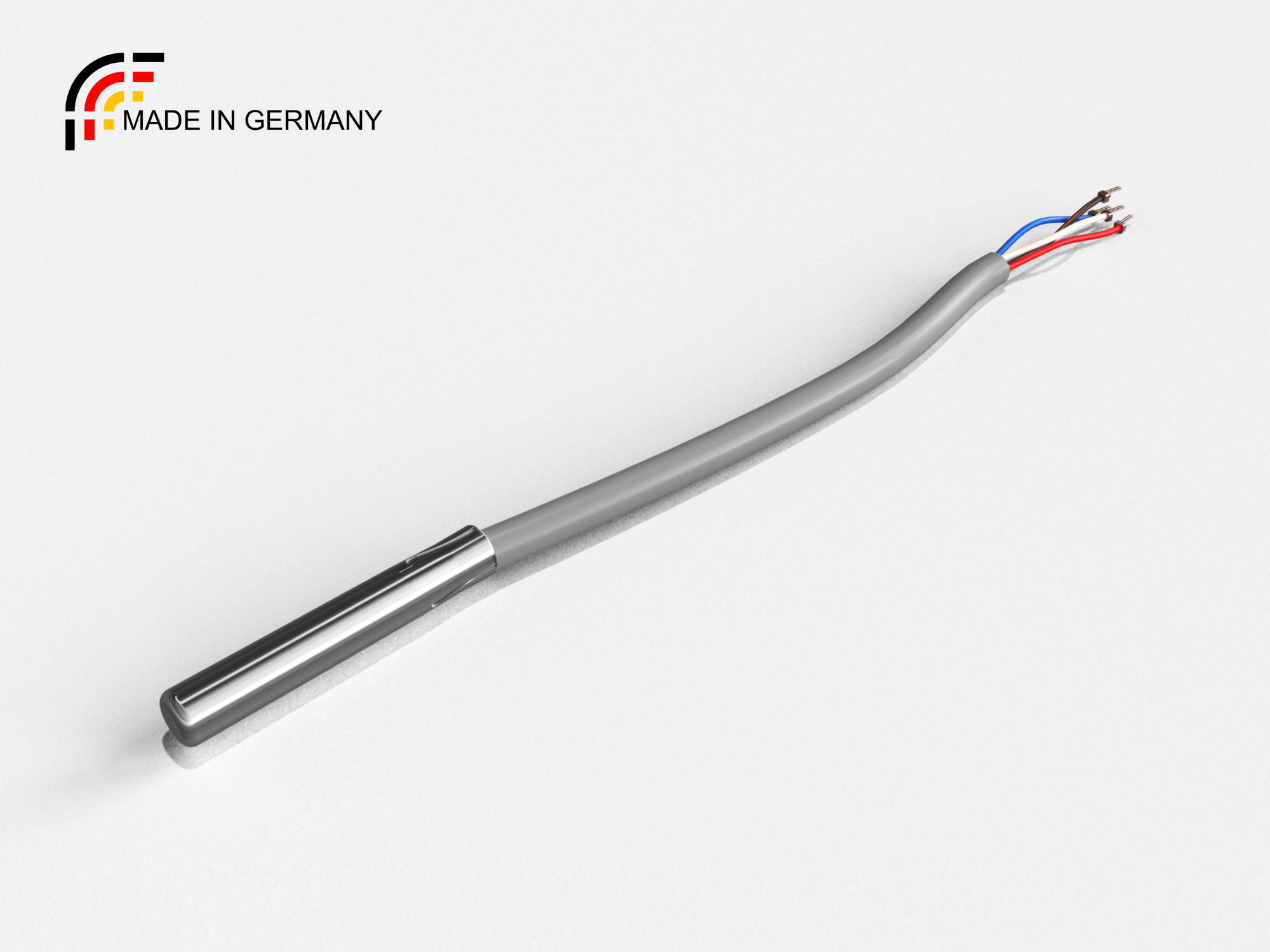

Sensor case
Material Case AISI304
Length case 40mm
Section case 6mm
Cable specs
Cable: Shielded Silicone

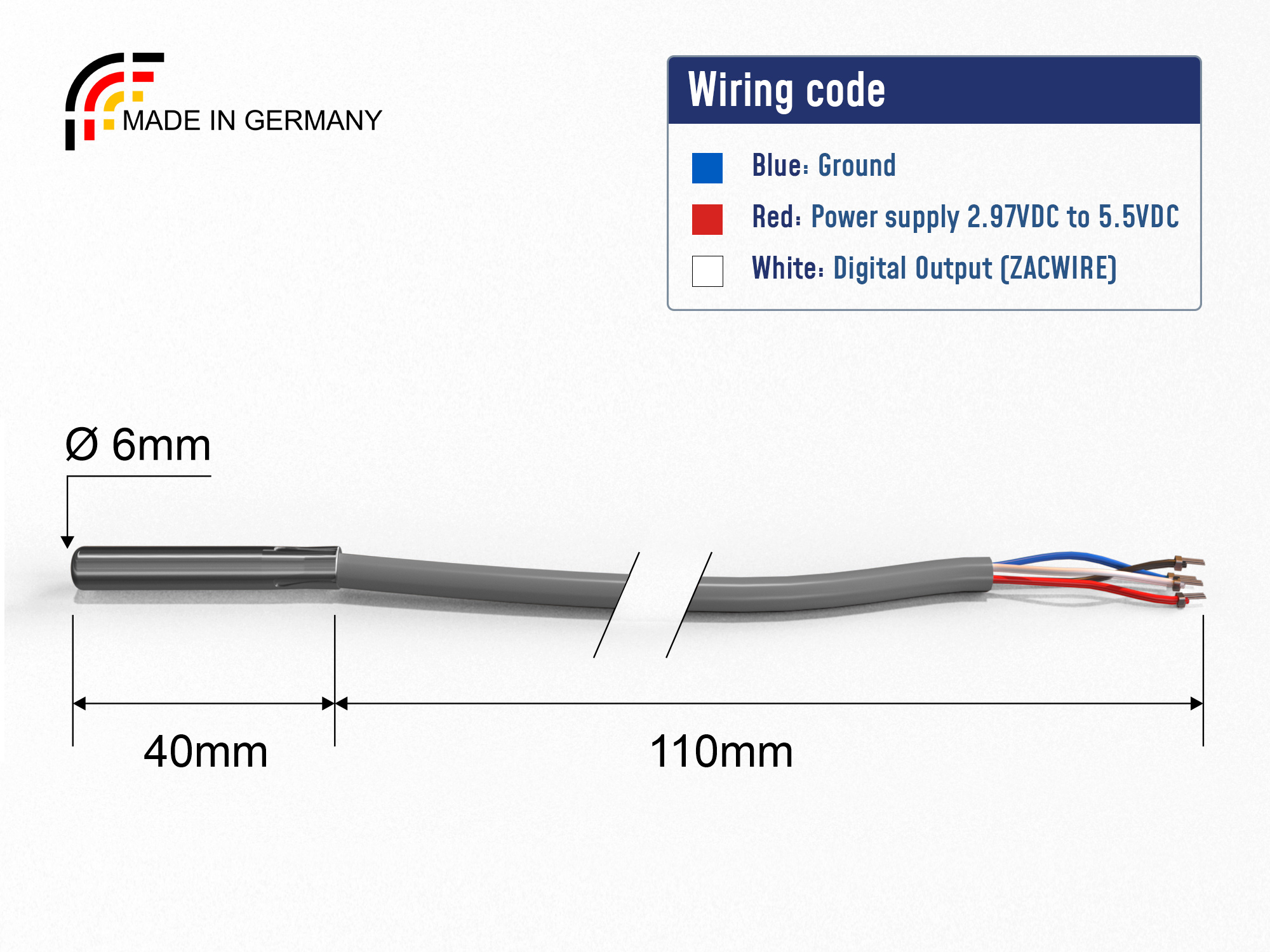

Cable length 110mm with sensor probe, see picture
Filling: Dippen siliconic resin
Integrated 100nF Capacitance betwen Vdd and Vcc to decrease the sensor noise

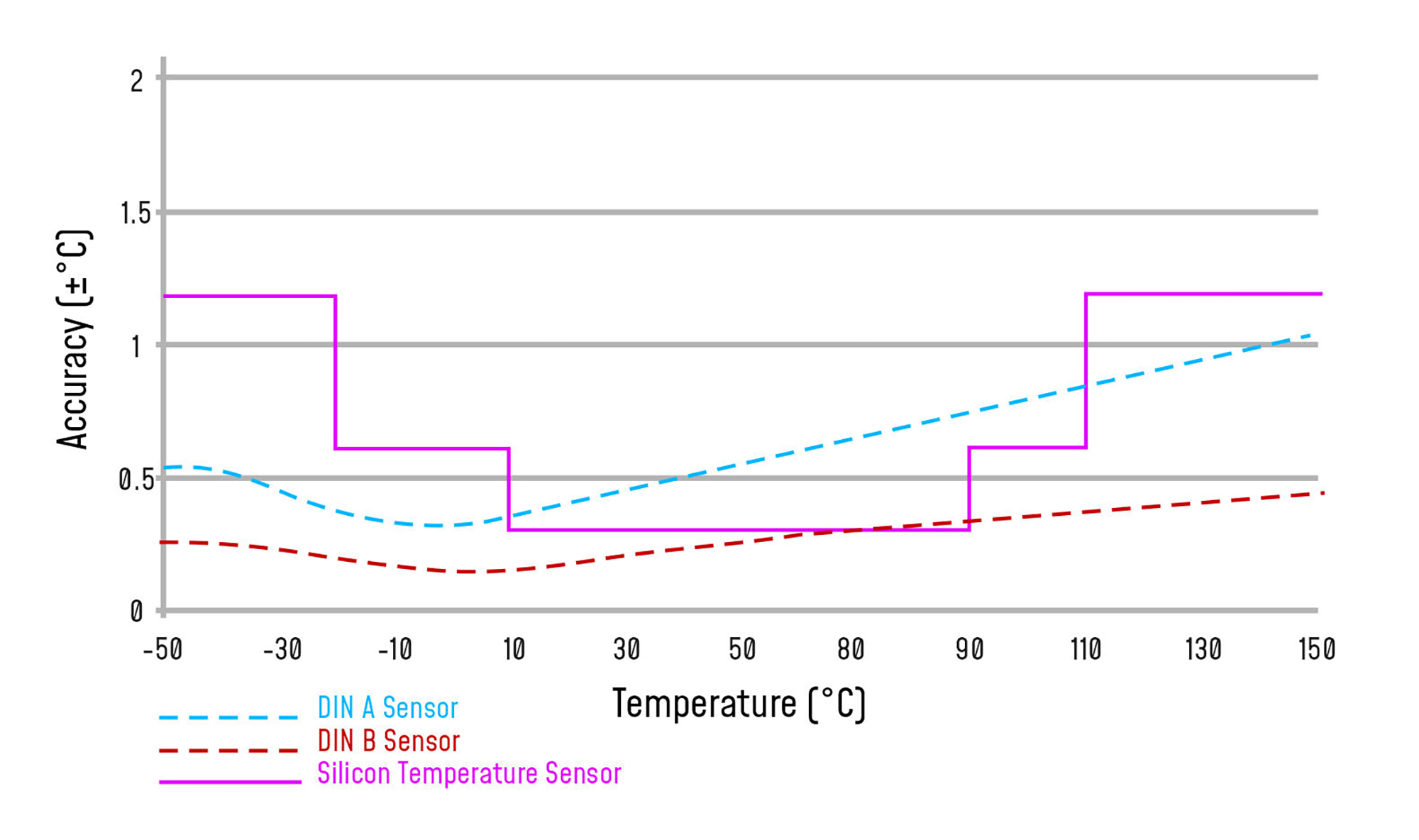

Sensor accuracy (More precise than Maxim Dallas Sensors)
±0.3 °C between -10 °C and +60 °C
±(0.3 + 0.012(T-60)) °C between +60 °C and +150 °C
± (0.3 - 0.012(T+10)) °C between -50 °C and -10 °C
Sensor tested and recalibrated on July 2022
Output : ZACWIRE Digital Output ( PWM)
Sensor technology TSIC306 from IST SENSOR AG ( Swiss Made) , fully calibrated and accurate low power temperature measurement
Recalibrated on July 2022
