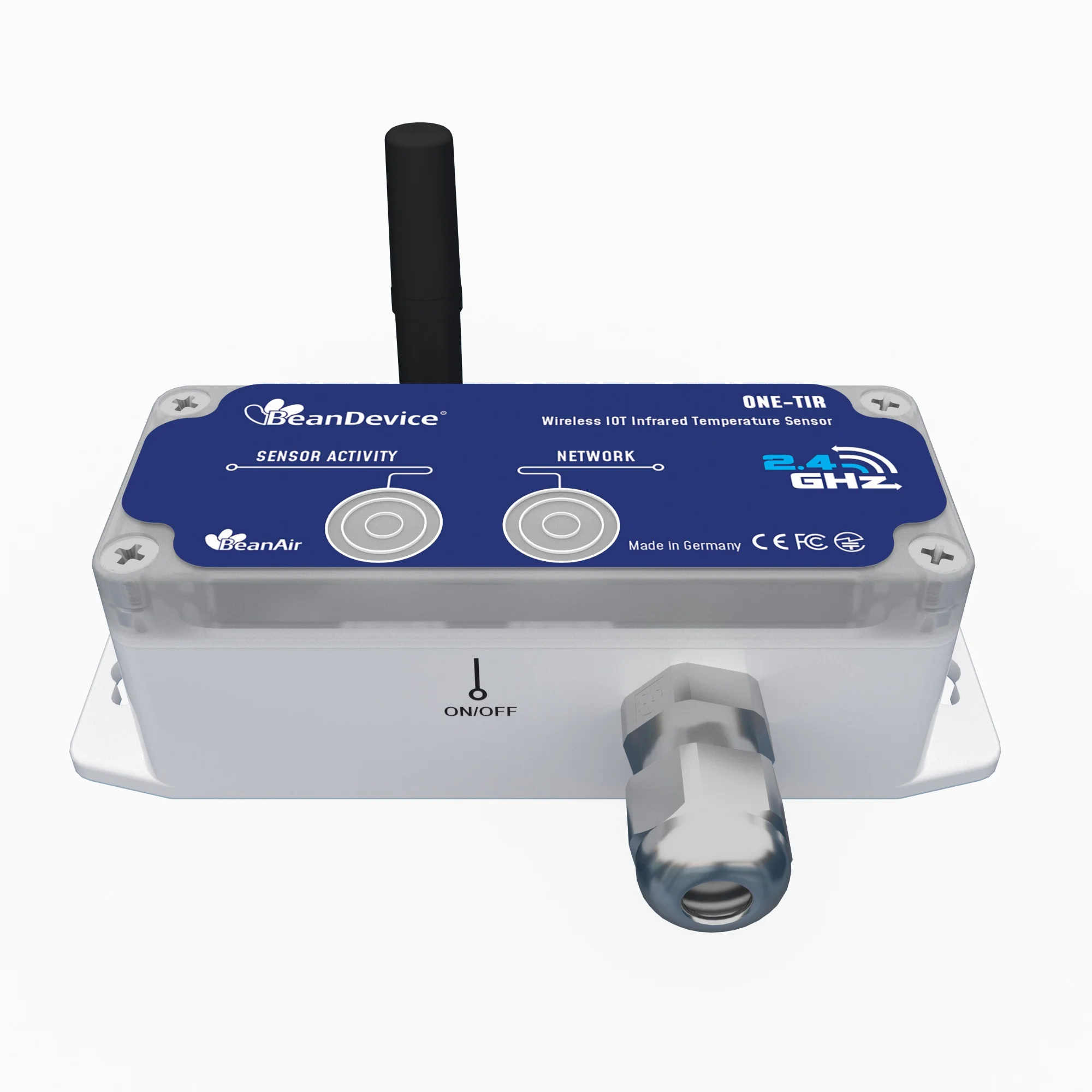

Wireless IR Temperature Sensor
BeanDevice® 2.4GHz ONE-TIR

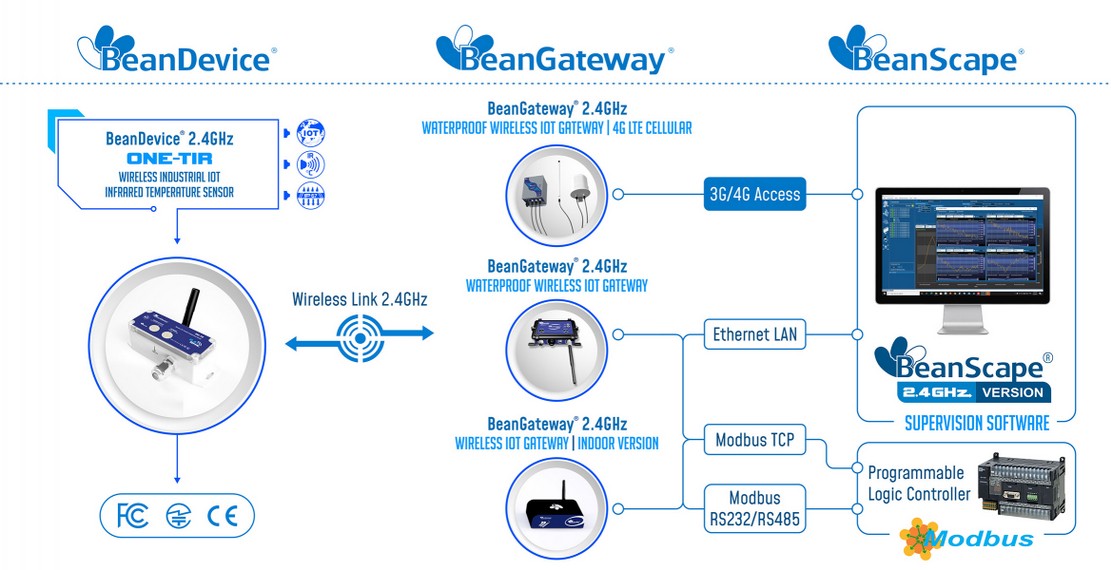

Discover the BeanDevice® ONE-TIR, an advanced wireless IR temperature sensor engineered for reliability and performance. With a robust built-in storage capacity of 1 million data points, it ensures comprehensive data logging. Designed for versatility, its small (119x35x35mm) and fully waterproof (IP67 | Nema 6) enclosure allows for discreet deployment in diverse environments. Experience unparalleled connectivity with its powerful radio, providing an impressive wireless range of 300 meters. Benefit from extended operation thanks to its ultra-low power wireless technology, offering an exceptional battery life of up to 7 years – perfect for long-term remote monitoring. Integration into your existing systems is effortless: choose between ModBus TCP protocol via our BeanGateway® for quick and easy third-party software compatibility. The BeanDevice® ONE-TIR is the ideal solution for critical contactless temperature monitoring in applications such as: The BeanDevice® ONE-TIR is suitable for the following applications: • Railway temperature control • Test and Measuerement • Automotive diagnosis • Electrical Systems & equipment monitoring | |||
 | • Included Free Software | ||
 | • Ambient Temperature (Ta) • -40°C to +85°C | |
 | • Wireless Protocol: • 2.4GHz radio Technology | |
| • Object Temperature (To) • -70°C to +380°C | |
 | • Enclosure: • Waterproof ( IP67 / NEMA 6 ) | |
Technical Specifications
Main Features | ||
 | Wireless IR temperature sensor with built-in data logger | |
 | Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) | |
 | Maximum wireless range: 300 m (L.O.S) | |
 | High precision temperature sensor: ● range: -40°C to +85°C ● precision: ±0.2°C | |
 | Embedded data logger: up to 1 million data points | |
 | High capacity primary cell (AA size: 1.8Ah, Lithium-thionyl Chloride), enables a battery life of 7 years maximum | |
 | Waterproof IP67 polycarbonate casing | |

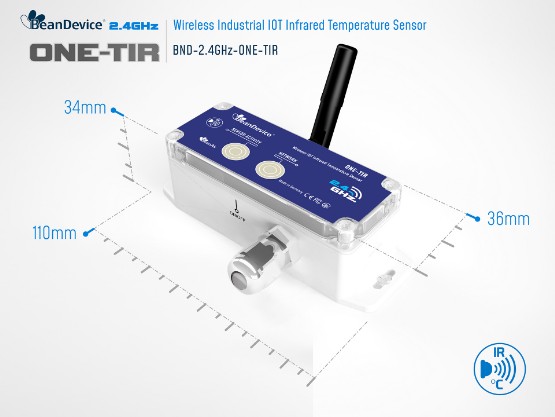

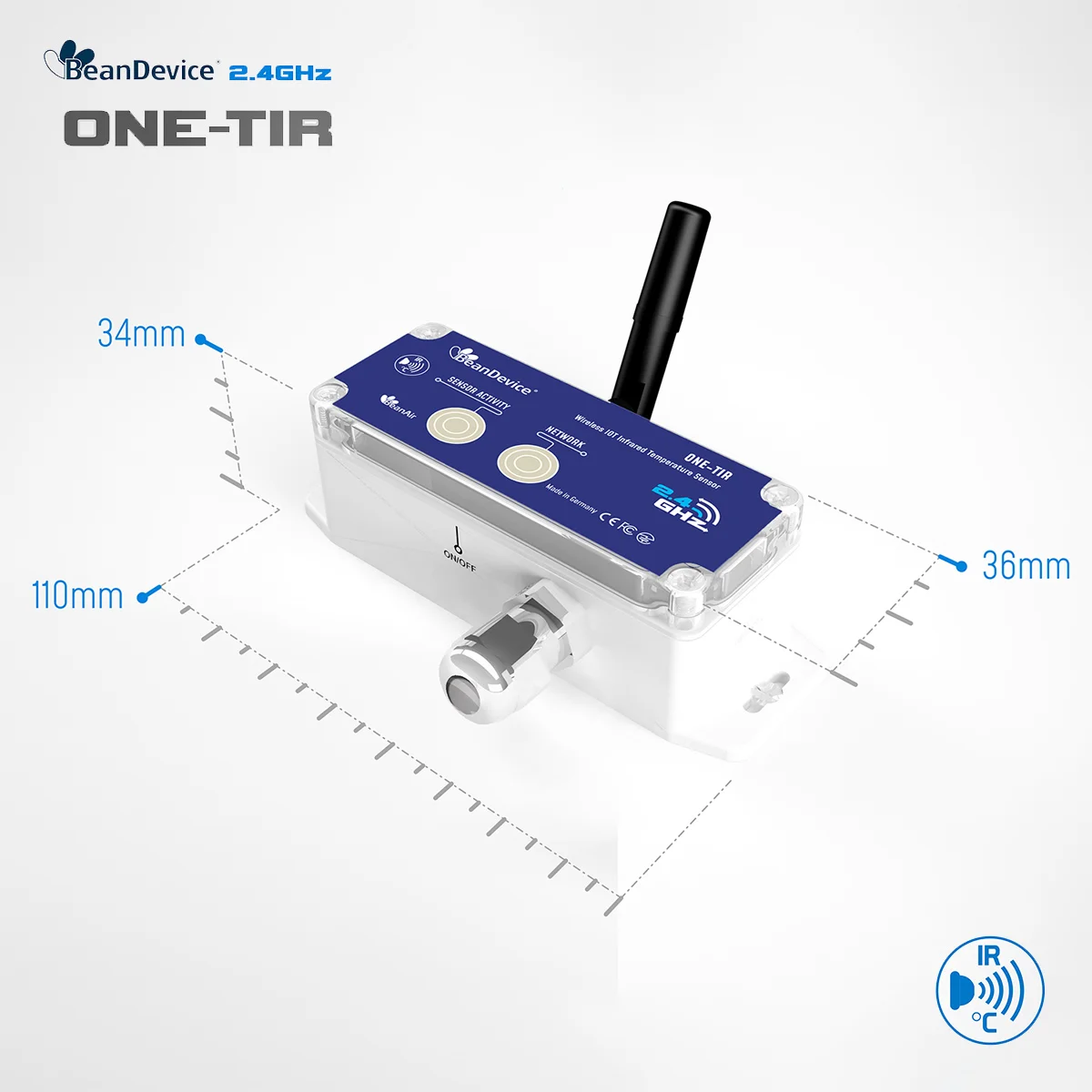

 | Weight: 120g, Size(Lxlxh): 119x35x35mm | |
Applications
The BeanDevice® ONE-TIR is suitable for the following applications:
• Railway temperature control
• Test and Measuerement
• Automotive diagnosis
• Electrical Systems & equipment monitoring
