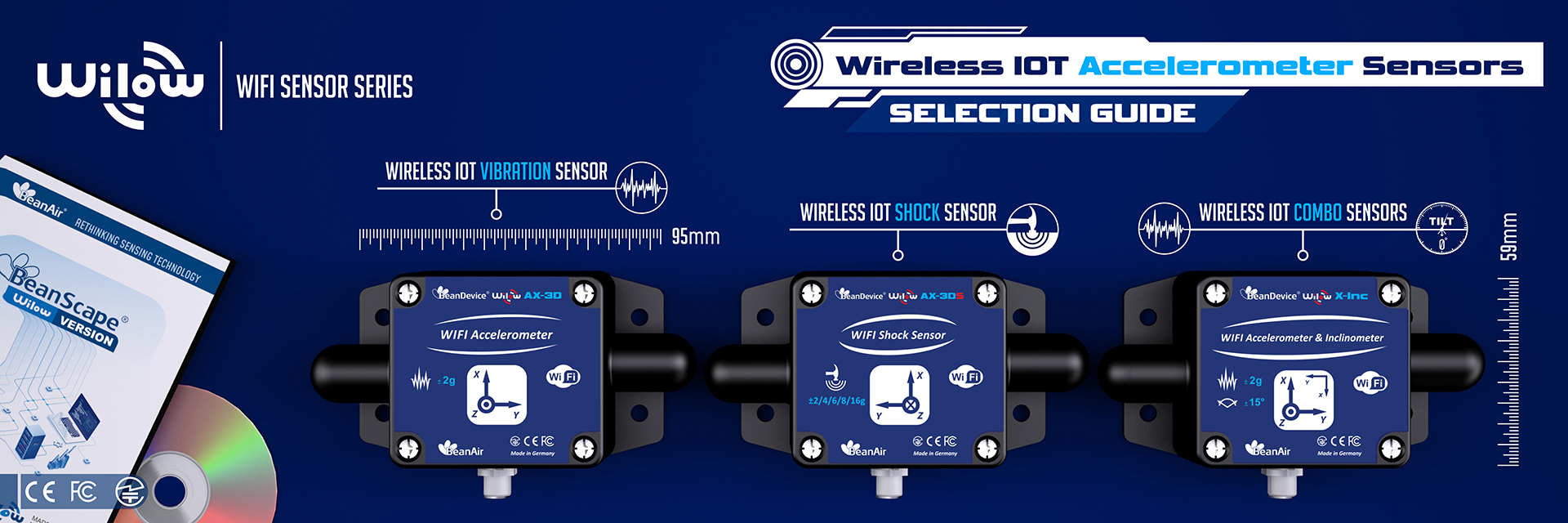

SELECTION GUIDE
BeanDevice® WIFI | Wilow® Wireless IOT Accelerometer Sensors
Wireless IOT Vibration Sensor | Acceleration

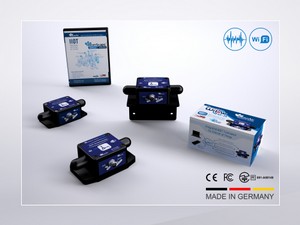

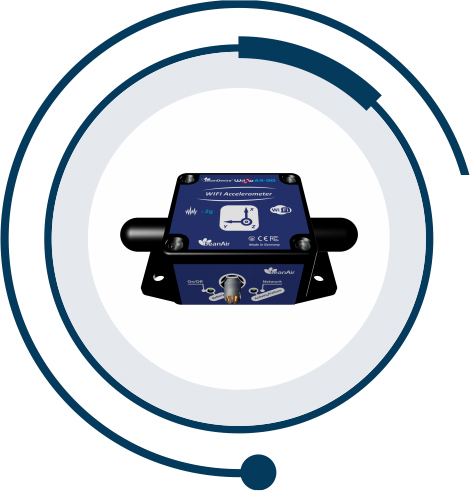

BeanDevice® WIFI | Wilow® AX-3D
 | Reference & Measurement Range | BND-WILOW-AX-3D-2G |
 | Measurement Range | ±2g |
 | Sensor Technology | Tri-axial MEMS accelerometer |
 | Applications | Vibration, Peak Particle Velocity, (PPV) and Amplitude |
 | Spectral Noise Density @ BW 10Hz | 45μg/√Hz |
 | Maximum sampling rate per axis (SPS—sample per second) | 2000 SPS |
Wireless IOT Shock and Impact Monitoring

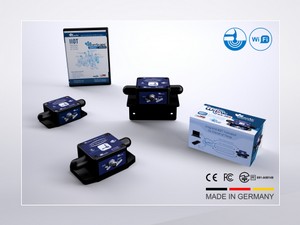

BeanDevice® WIFI | Wilow® AX-3DS
 | Reference & Measurement Range | BND-WILOW-AX-3DS-16G |
 | Measurement Range | ±2/4/8/16g |
| Sensor Technology | Tri-axial MEMS accelerometer |
| Applications | Mechanical Shock Monitoring |
| Spectral Noise Density @ BW 10Hz | 150 μg/ √Hz |
| Maximum sampling rate per axis (SPS—sample per second) | 1600 SPS |
Wireless IOT Accelerometer and Inclinometer sensors

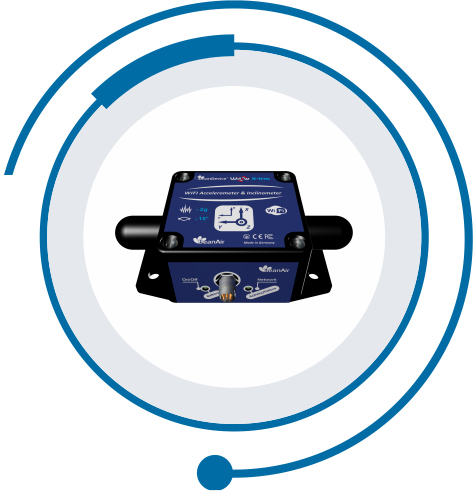

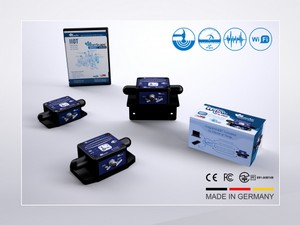

BeanDevice® WIFI | Wilow® X-INC
| Reference & Measurement Range | BND-WILOW-WIFI- X-INC-2G-15B | BND-WILOW-WIFI- X-INC-2G-30B | BND-WILOW-WIFI- X-INC-10G-15B | BND-WILOW-WIFI- X-INC-10G-30B |
 | Accelerometer | Measurement Range | 2G | 2G | 10G | 10G |
 | Inclinometer | Measurement Range | 15B | 30B | 15B | 30B |
| Sensor Technology | Triaxial MEMS accelerometer Biaxial MEMS inclinometer |
| Applications | Accelerometer and Inclinometer sensors |
| Accelerometer | Spectral Noise Density @ BW 10Hz | ±2g Version : 45μg/√Hz | ±10g version: 100μg/√Hz |
| Inclinometer | Spectral Noise Density DC to 100 Hz | 0.0004 °/√Hz |
COMMON SPECIFICATIONS
BeanDevice® WIFI | Wilow®
OPEN-STANDARD, WIFI SENSORS FOR INDUSTRIAL INTERNET OF THINGS
 | Maximum wireless Range (L.O.S.) | 200 m, can be extended by adding WIFI Repeater/Bridge |
 | Internal Battery/ External Power Supply | • Internal Rechargeable Lithium-Ion 780 mAh • External Power supply: • USB power supply (5VDC) • Option for auxiliary power supply : 6-24VDC compatible with solar energy harvesting (add the extension –EHR) |

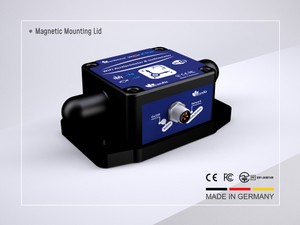

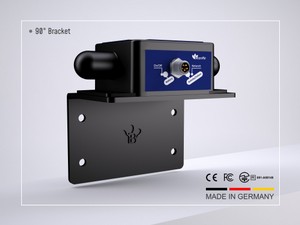

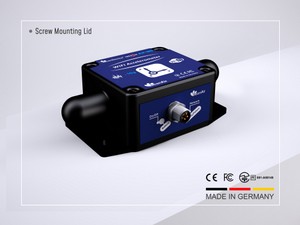

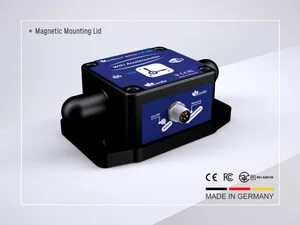

 | Mounting techniques | Screw mounting by default, options: 90 degree bracket (add the extension –BR) or magnetic mounting (add the extension -M) |
 | Casing | Waterproof IP67/NEMA 6 aluminum enclosure |
