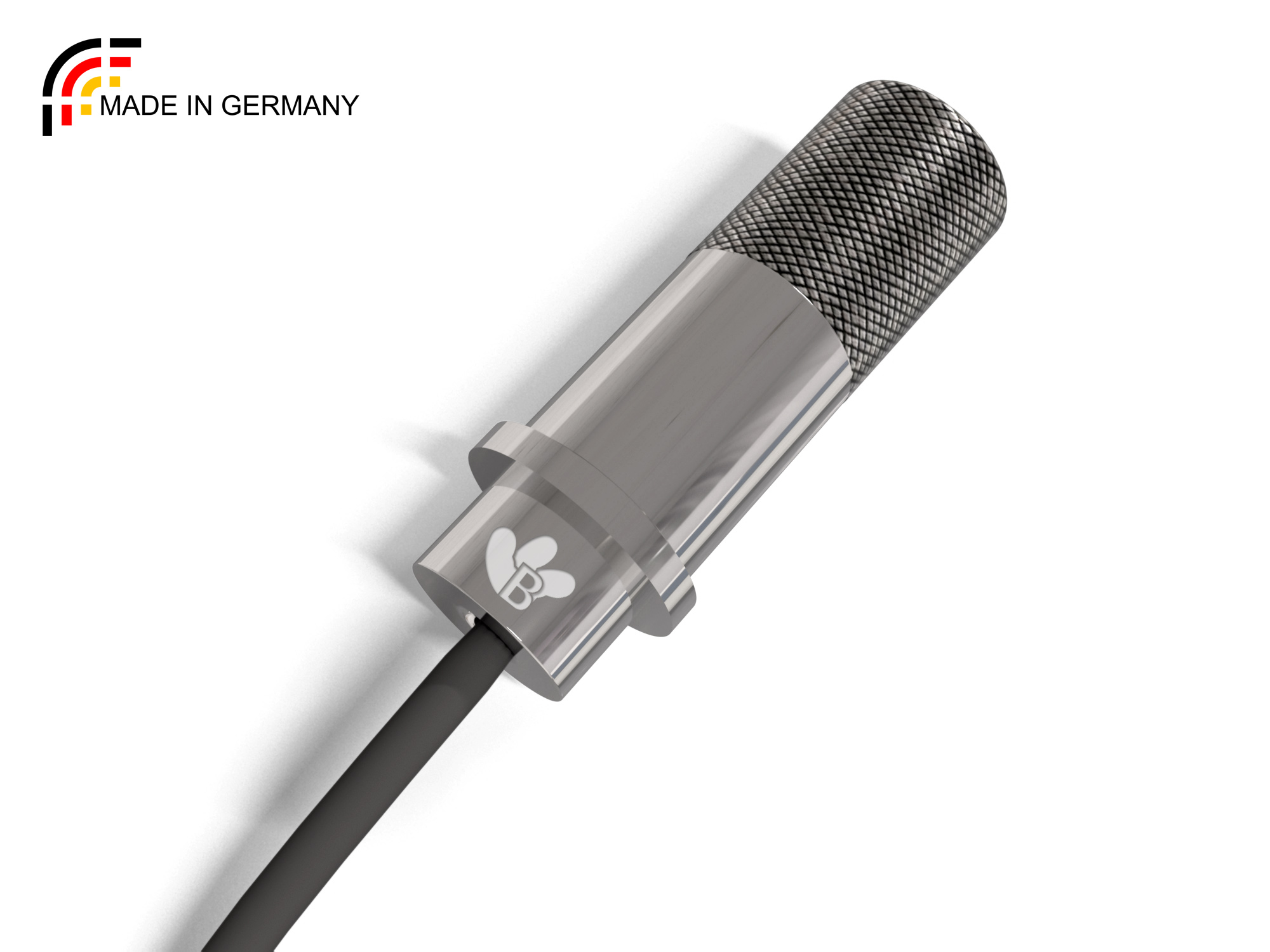

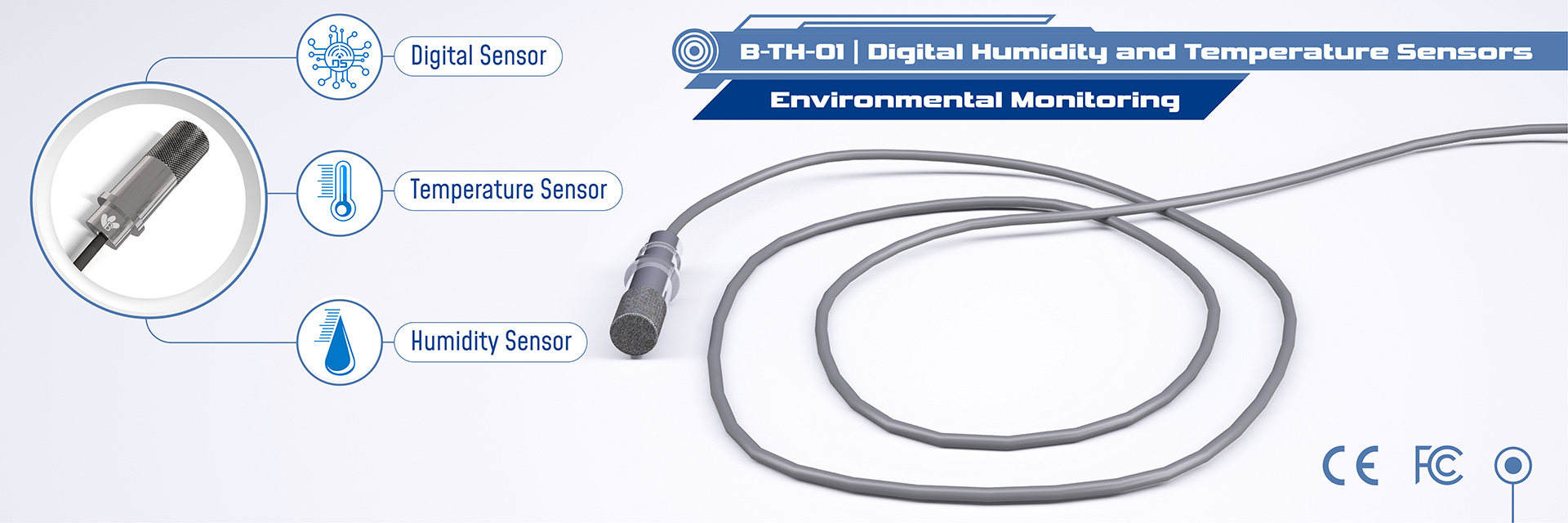

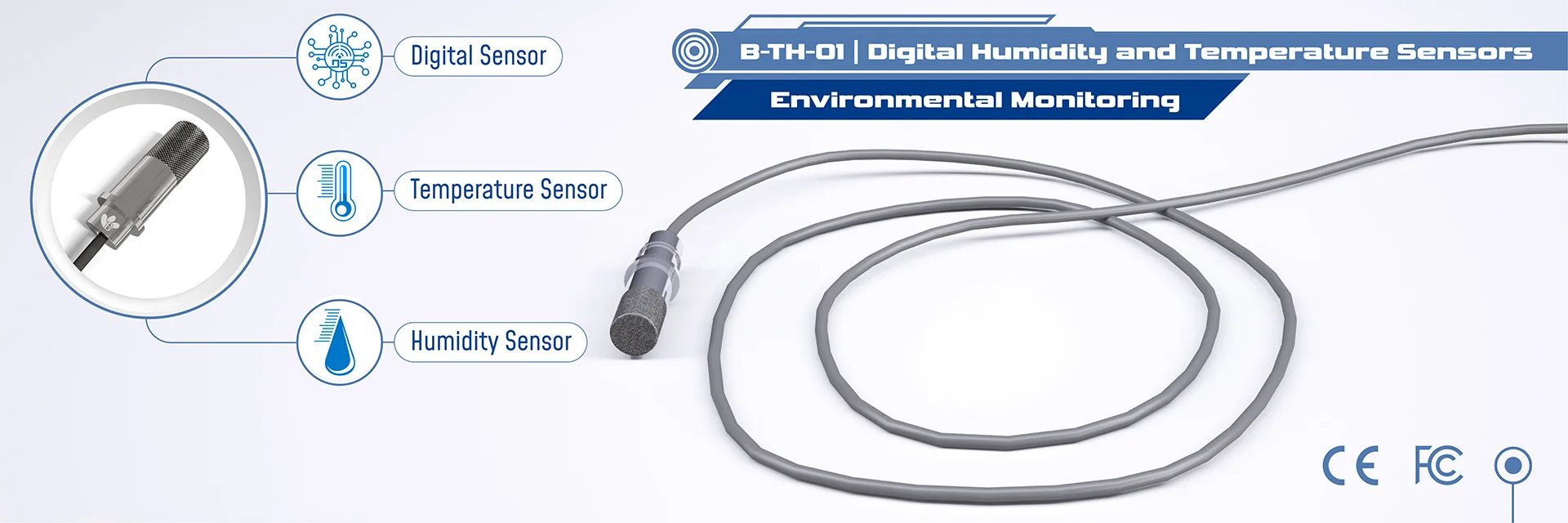

B-TH-01
Digital Humidity and Temperature Sensors
The Digital T/H Sensor B-TH-01 is dedicated to Temperature and Air Humidity Measurement for dusty environment.
It comes with digital I2C output, and ESD +15kV protection.
Main Features
>> MAIN FEATURES :
- Fully calibrated, linearized, and temperature compensated digital output
- Wide supply voltage range, from 2.15 V to 5.5 V
- I2C Interface with communication speeds up to 1 MHz and two user selectable addresses
- Typical accuracy of ±1.5 %RH and ±0.1 °C
- Very fast start-up and measurement time
- Sensor Housing : Waterproof (IP66) stainless steel with 30-45μm of pore size, Diameter 18 mm, Length: 57 mm
