SELECTION GUIDE

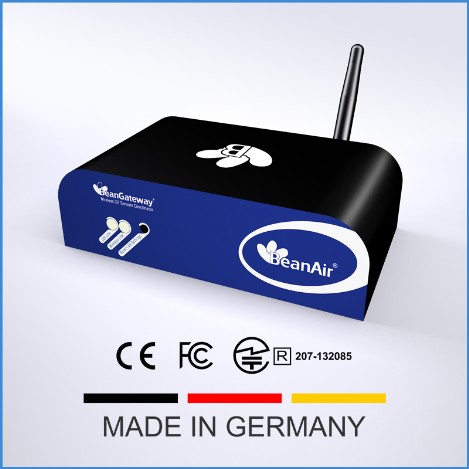

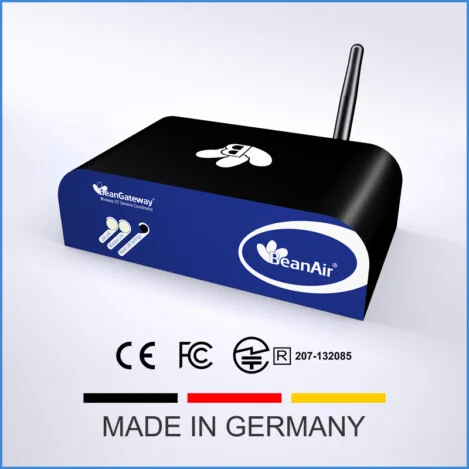

BeanGateway® 2.4GHz | Wireless IOT Sensors Coordinator
 | Reference | BGTW-2.4GHz-ETH-IND |
 | Wireless technology | Ultra-Low-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) |
 | Measurement Range | 1 km (Line of Sight) , 70-150m (Non Line of Sight) |
 | Data link protocol | Ethernet / Fast Ethernet with auto-uplink (MDI/MDI-X auto) -IEE 802.3x |
 | Raw Data rate | 250 Kbits/s |
 | RF Characteristics | ISM 2.4GHz – 16 Channels. |
| RF Transmit Power | +18 dBm |
 | Receiver Sensitivity | -104 dBm |
 | Built-in Wireless IOT Sensors Diagnostic tool | - Energy Scan for choosing a suitable RF Channel - BeanDevice® PER (Packet Error Rate) calculation - LQI (Link Quality Indicator) between the BeanGateway® and the BeanDevice® - RF channels Blacklist |
 | External power supply | 8-28 VDC , integrated Lithium-Ion battery charger with high-precision battery monitoring |
 | Casing | Enclosure/Finish: Aluminum alloy casing Dimensions (L x l x h): 155.4 mm x 87 mm x 46.4 mm Weight: 420g IP Ratings: IP40 |

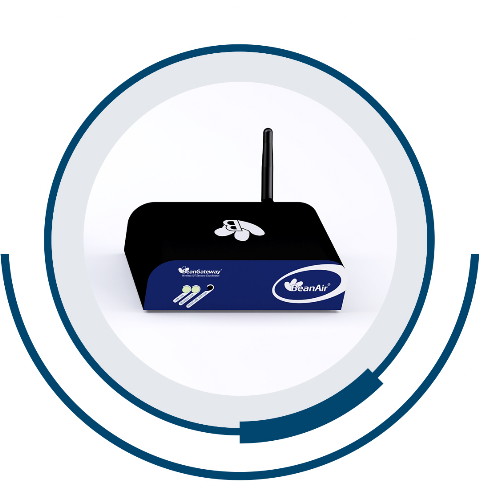

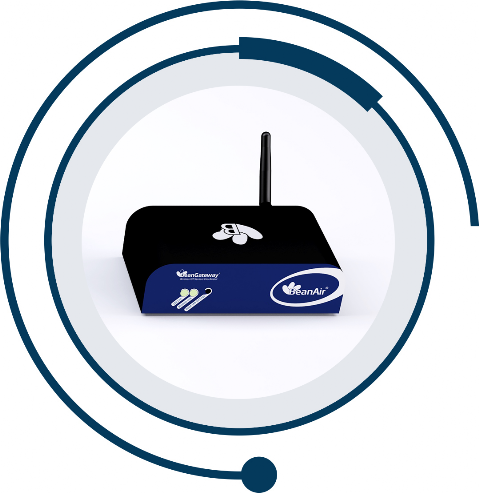

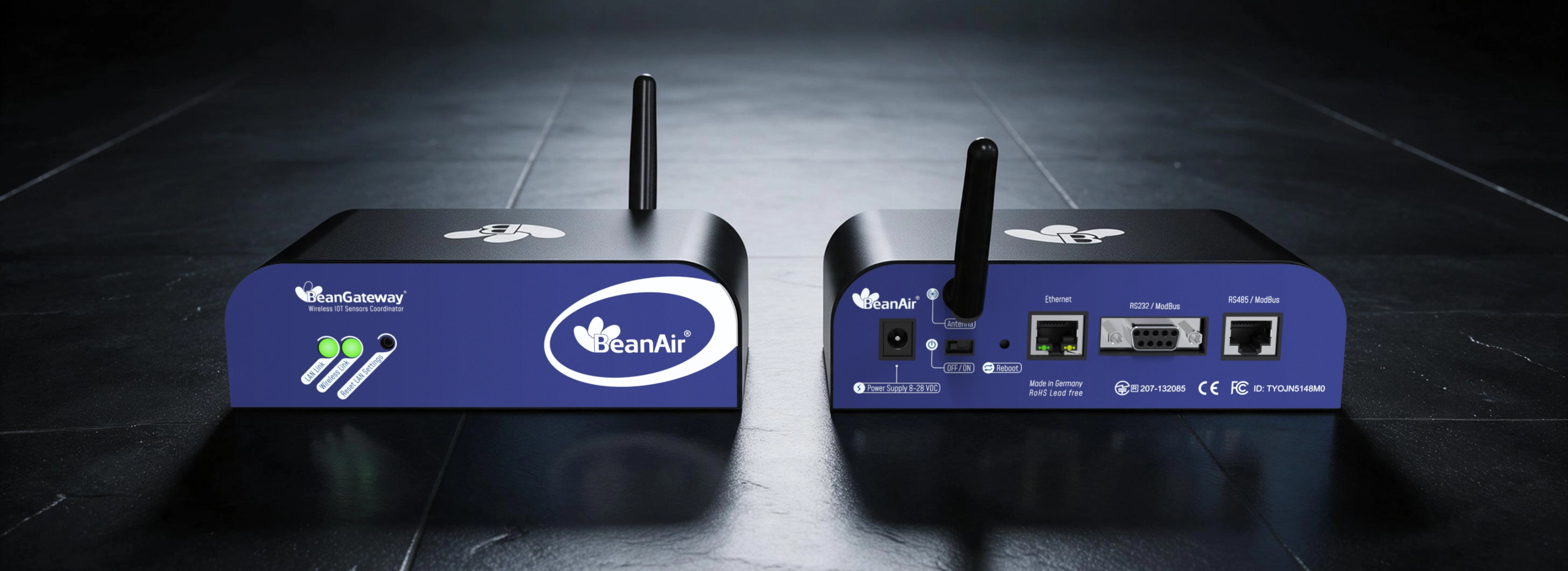

 | Reference | BGTW-2.4GHz-ETH-IND | BGTW-2.4GHz-ETH-MODRS485-IND | BGTW-2.4GHz-ETH-MODSERIAL-IND |
| Specifications | BeanGateway Ethernet & Modbus TCP/IP | BeanGateway Ethernet, Modbus TCP/IP and Modbus ASCII/RTU over RS485 | BeanGateway Ethernet, Modbus TCP/IP and Modbus ASCII/RTU over RS485 & RS232 |
| Wireless technology | Ultra-Low-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) |
 | Measurement Range | 1 km (Line of Sight) , 70-150m (Non Line of Sight) |
 | Data link protocol | Ethernet / Fast Ethernet with auto-uplink (MDI/MDI-X auto) -IEE 802.3x |
 | ModBus over RS232 | Slave, RTU/ASCII, Baudrate: Between 4800 bauds to 115200 bauds |
| Modbus over RS485 | - Slave, RTU/ASCII, Baudrate: Between 4800 bauds to 115200 bauds - Logic selectable 120ohm termination |
| Raw Data rate | 250 Kbits/s |
| RF Characteristics | ISM 2.4GHz – 16 Channels. |
| RF Transmit Power | +18 dBm |
| Receiver Sensitivity | -104 dBm |
| Built-in Wireless IOT Sensors Diagnostic tool | - Energy Scan for choosing a suitable RF Channel - BeanDevice® PER (Packet Error Rate) calculation - LQI (Link Quality Indicator) between the BeanGateway® and the BeanDevice® - RF channels Blacklist |
| External power supply | 8-28 VDC , integrated Lithium-Ion battery charger with high-precision battery monitoring |
| Casing | Enclosure/Finish: Aluminum alloy casing Dimensions (L x l x h): 155.4 mm x 87 mm x 46.4 mm Weight: 420g IP Ratings: IP40 |

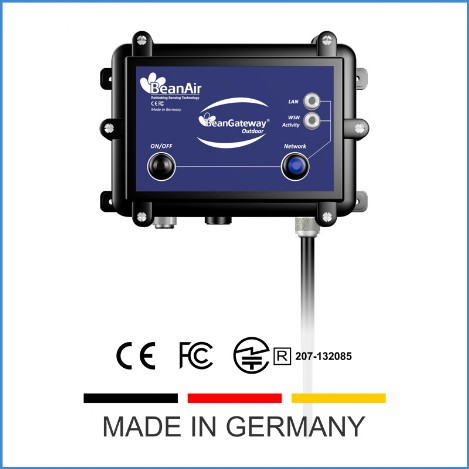

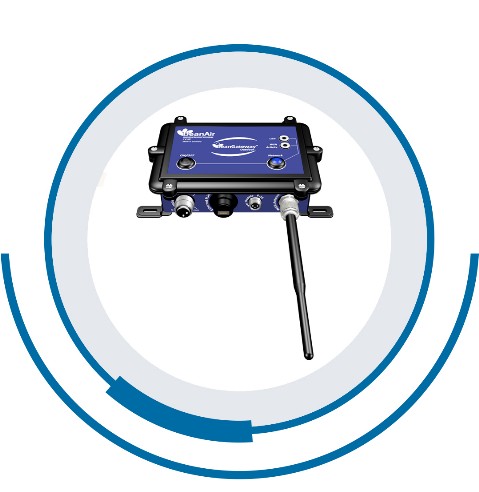

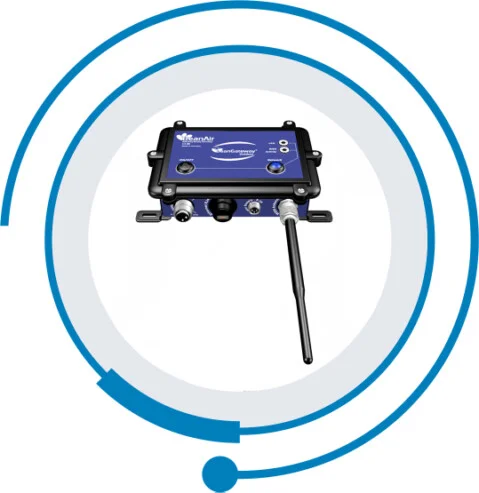

| Reference | BGTW-2.4GHz-ETH-OUT |
| Data link protocol | Ethernet / Fast Ethernet with auto-uplink (MDI/MDI-X auto) -IEE 802.3x |
 | Wireless technology | Ultra-Low-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) |
 | Measurement Range | 1 km (Line of Sight) , 70-150m (Non Line of Sight) |
 | Network/Transport Protocol | Client TCP/IP, UDP, DNS, DHCP |
| IP Adressing | Dynamic (DHCP) or static |
| IP Configuration | LAN parameters (DNS, DHCP, Keep Alive…) are configurable from the BeanScape® (UDP/Ethernet Interface). |
| External power supply | 8-28 VDC , integrated Lithium-Ion battery charger with high-precision battery monitoring |
 | Casing | Enclosure/Finish: · Aluminium alloy ADC12 black finish · Wall mounting holes (outside the sealing area) Dimensions (L x l x h): 202 mm x142 mm x 55 mm Weight: 1220g IP Ratings: IP67 |

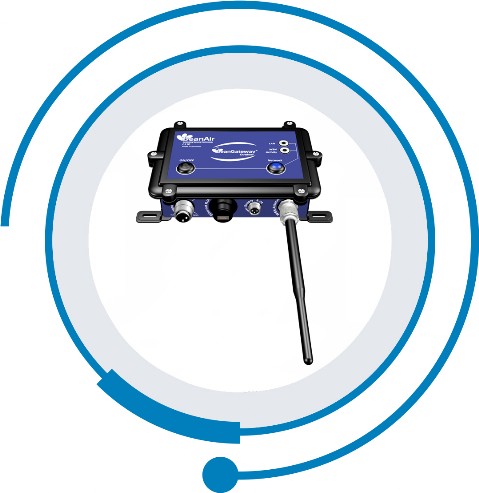

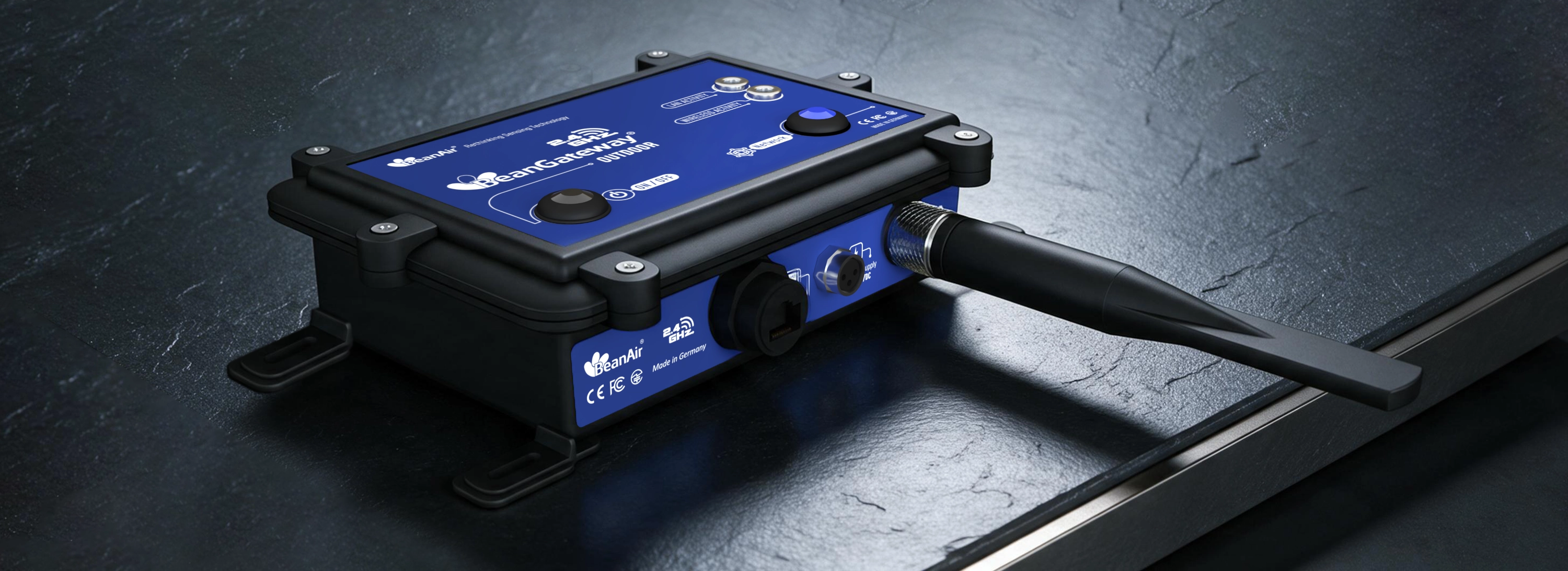

| Reference | BGTW-2.4GHz-ETH-MODIP-OUT | BGTW-2.4GHz-ETH-MODRS485-OUT |
| Specifications | BeanGateway Ethernet & Modbus TCP/IP | BeanGateway Ethernet, Modbus TCP/IP a Modbus ASCII/RTU over RS485 |
| Wireless technology | Ultra-Low-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) |
| Measurement Range | 1 km (Line of Sight) , 70-150m (Non Line of Sight) |
| Data link protocol | Ethernet / Fast Ethernet with auto-uplink (MDI/MDI-X auto) -IEE 802.3x |
| Modbus over RS485 | - Slave, RTU/ASCII, Baudrate: Between 4800 bauds to 115200 bauds - Logic selectable 120ohm termination |
| Wireless IOT Sensors Topology | Peer-to-peer/ Star |
| Raw Data rate | 250 Kbits/s |
| RF Characteristics | ISM 2.4GHz – 16 Channels. |
| RF Transmit Power | +18 dBm |
| Receiver Sensitivity | -104 dBm |
| Wireless IOT Sensors Diagnostic tool | - Energy Scan for choosing a suitable RF Channel - BeanDevice® PER (Packet Error Rate) calculation - LQI (Link Quality Indicator) between the BeanGateway® and the BeanDevice® - RF channels Blacklist |
| External power supply | 8-28 VDC , integrated Lithium-Ion battery charger with high-precision battery monitoring |
| Casing | Enclosure/Finish: · Aluminium alloy ADC12 black finish · Wall mounting holes (outside the sealing area) Dimensions (L x l x h): 202 mm x142 mm x 55 mm Weight: 1220g IP Ratings: IP67 |

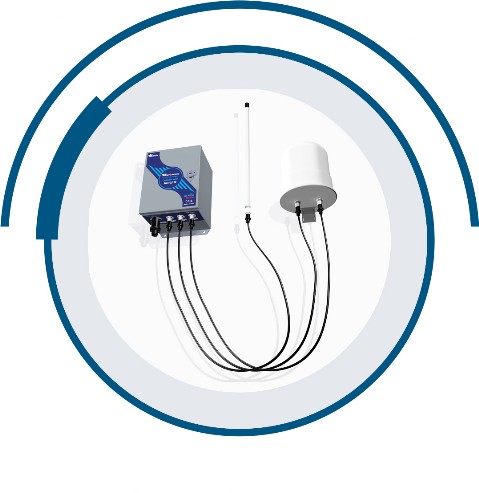

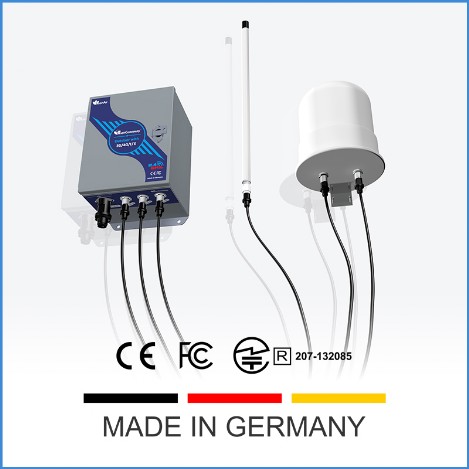

 | Reference | BGTW-4G-SOLAR-OUT | BGTW-4G-MPWR-OUT |
| Specifications | BeanGateway Outoor with 3G/4G/LTE connectivity, Power supplied from solar panel | BeanGateway Outoor with 3G/4G/LTE connectivity, Mains Power Supply |
| Wireless technology | Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) |
| Measurement Range | 1 km (Line of Sight) , 70-150m (Non Line of Sight) |
| Wireless IOT Sensors Topology | Peer-to-peer/ Star |
| Raw Data rate | 250 Kbits/s |
| RF Characteristics | ISM 2.4GHz – 16 Channels. |
| RF Transmit Power | +18 dBm |
| Receiver Sensitivity | -104 dBm |
| Wireless IOT Sensors Diagnostic tool | - Energy Scan for choosing a suitable RF Channel - BeanDevice® PER (Packet Error Rate) calculation - LQI (Link Quality Indicator) between the BeanGateway® and the BeanDevice® - RF channels Blacklist |
 | LTE | · LTE FDD: B1/B3/B5/B7/B8/B20 · LTE TDD: B38/B40/B41 · LTE CAT4 up to 70 Mbps DL · LTE CAT4 up to 50 Mbps UL · Class 3 (23dBm±2dB) for LTE FDD · Class 3 (23dBm±2dB) for LTE TDD |
| Omnidirectionnal 4G Antenna | Omnidirectional 4G Antenna (2x2 MIMO) Weather-resistant and UV-resistant plastic / PVC enclosure VSWR < 1.8 Impendance: 50 Ohm Beamwidth: 360° Horizontal - 20° Vertical Gain : 8dBi @ 800 MHz 12dBi @ 1800MHz 12dBi @ 2600MHz Frequency: 791-862 MHz (2G, 4G) 1700 - 2100 MHz (3G, 4G) 2500 - 2700 (4G) Connectors: 2 x N female Mounting Kit: U-clamp for 30-50mm diameter handles |
 | Mounting Process | Screw mounting |
| Casing | · Steel enclosure with padlock adapter, Light gray color Dimensions (L x l x h): 25.4 cm x 20.3 cm x 15.24 cm Weight: 9.3 kg IP Ratings: IP66 | Nema 6 |
Solar Panel power supply with UPS Battery
(Ref: BGTW-4G-SOLAR-OUT)
 | Battery | Valve Regulated Lead-Acid (VRLA) Capacity 12Ah |
 | Solar panel technology | Monocristalline 50W, anodized aluminum frame. Surface protection with ESG solarglass. Dimensions (LxWxH): 650mm x 505mm x 30mm |
