Waterproof Wireless IOT Gateway | 4G LTE Cellular

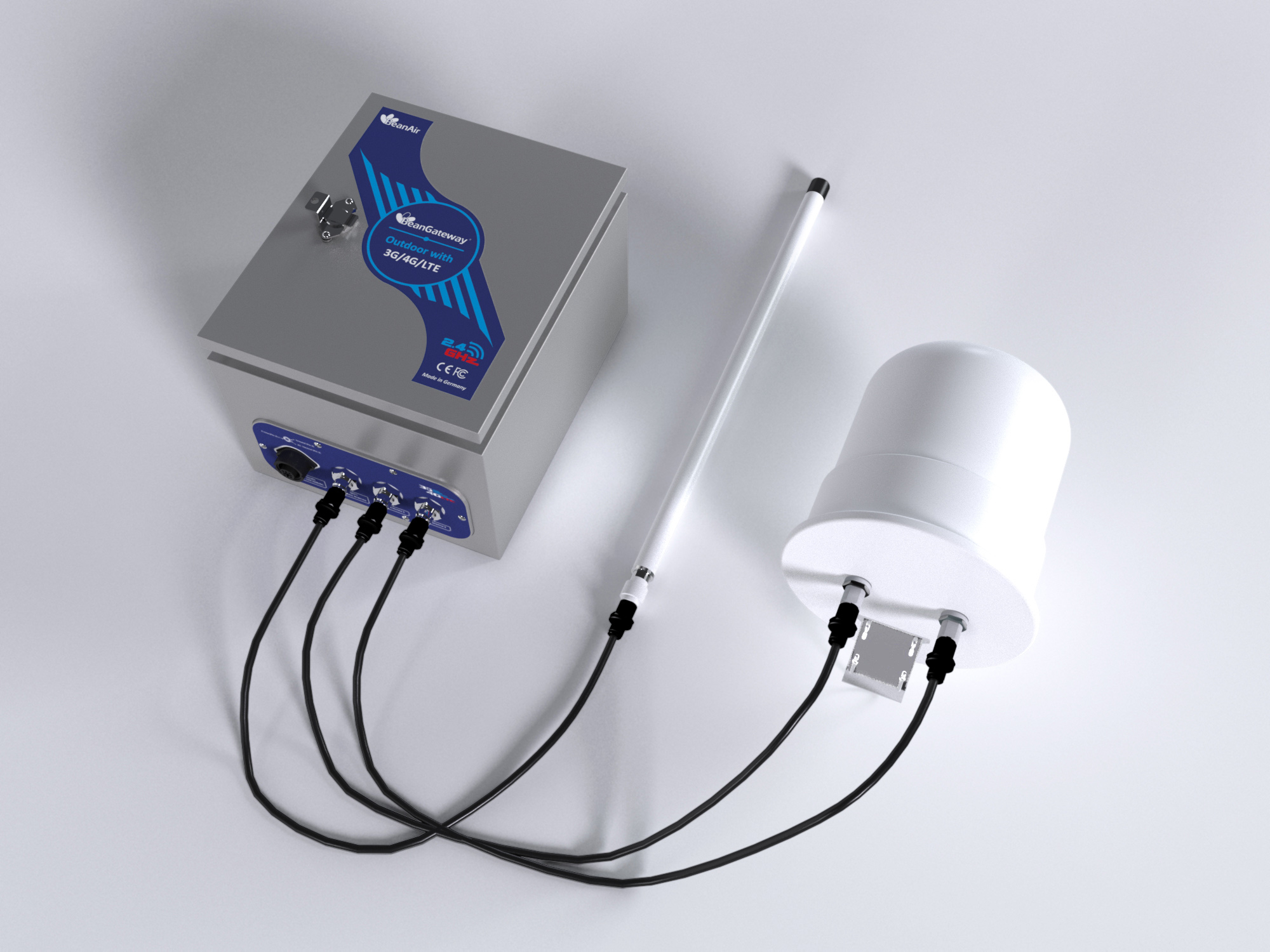

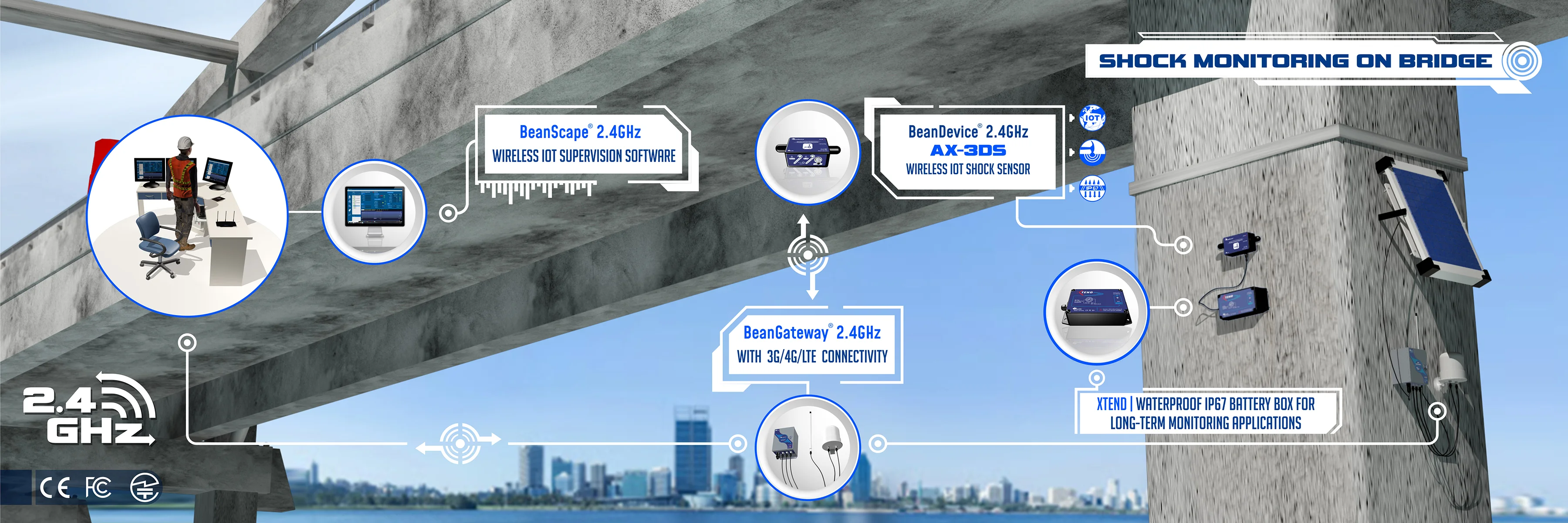

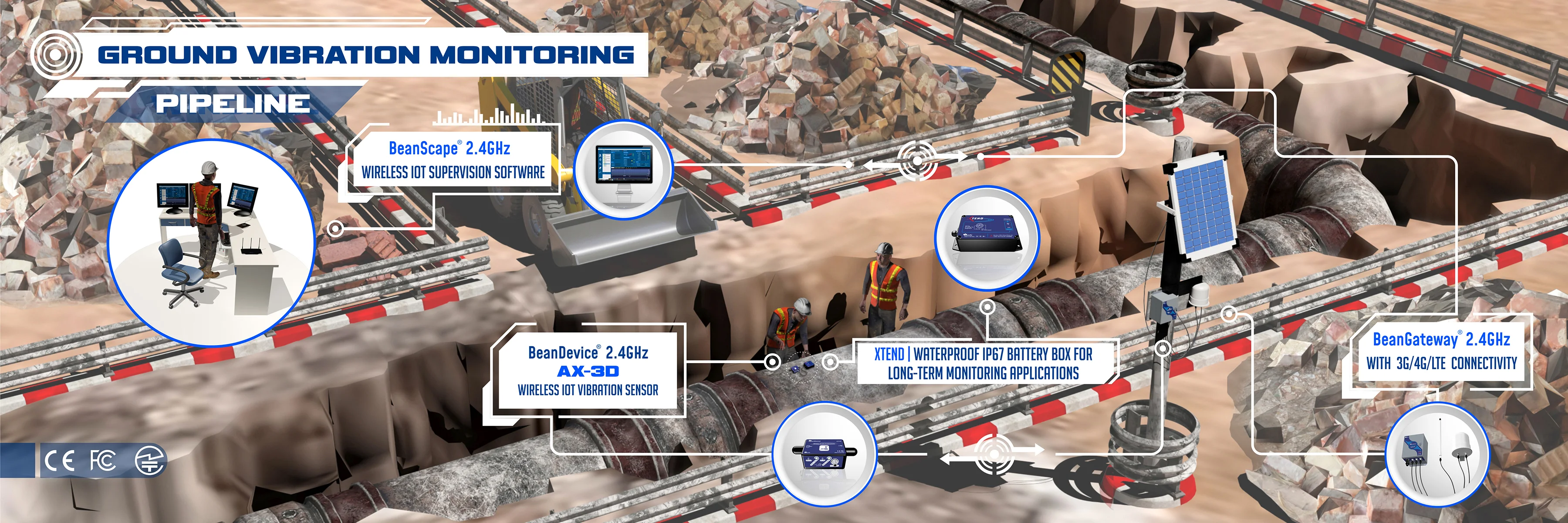

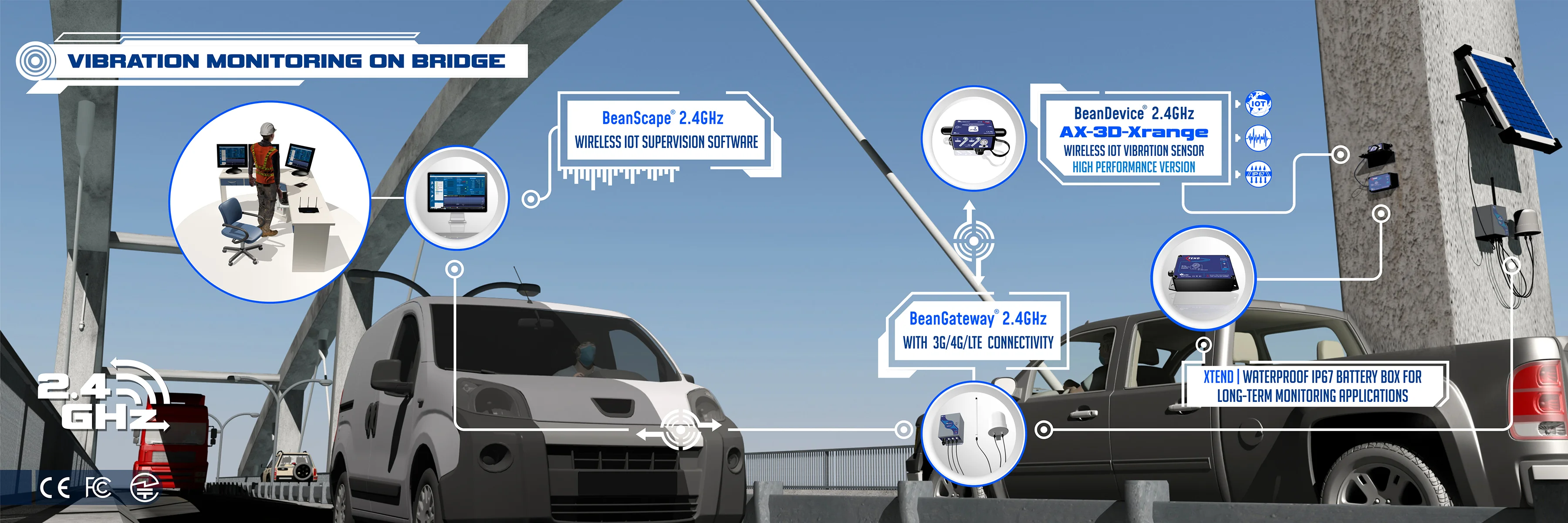

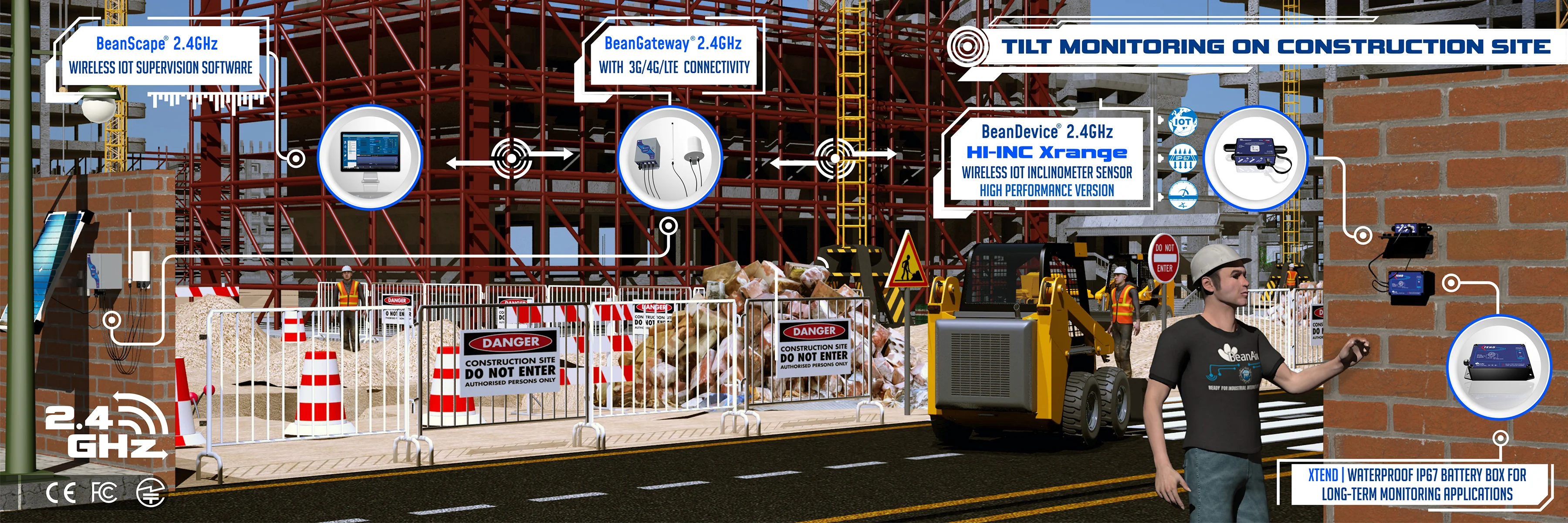

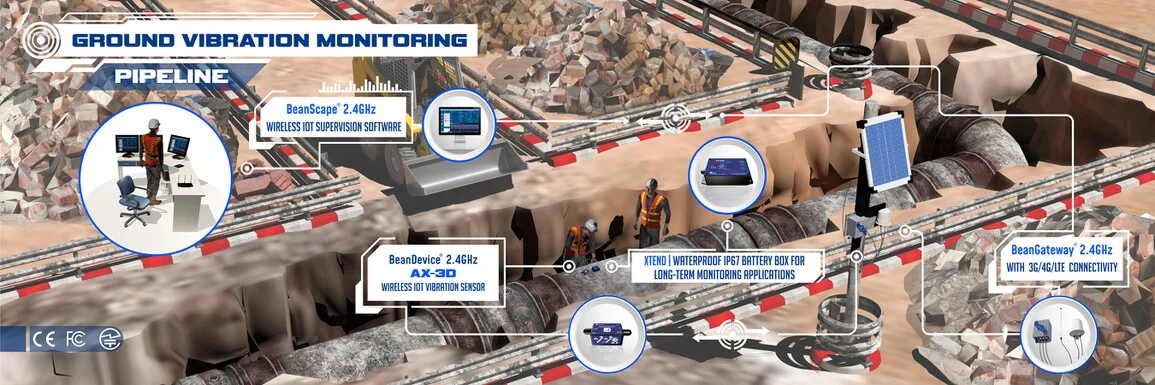

The BeanGateway® 2.4GHz / 4G is a ruggedized outdoor wireless coordinator (IP66) designed for Structural Health Monitoring, Ground vibration monitoring and Land Surveying applications.

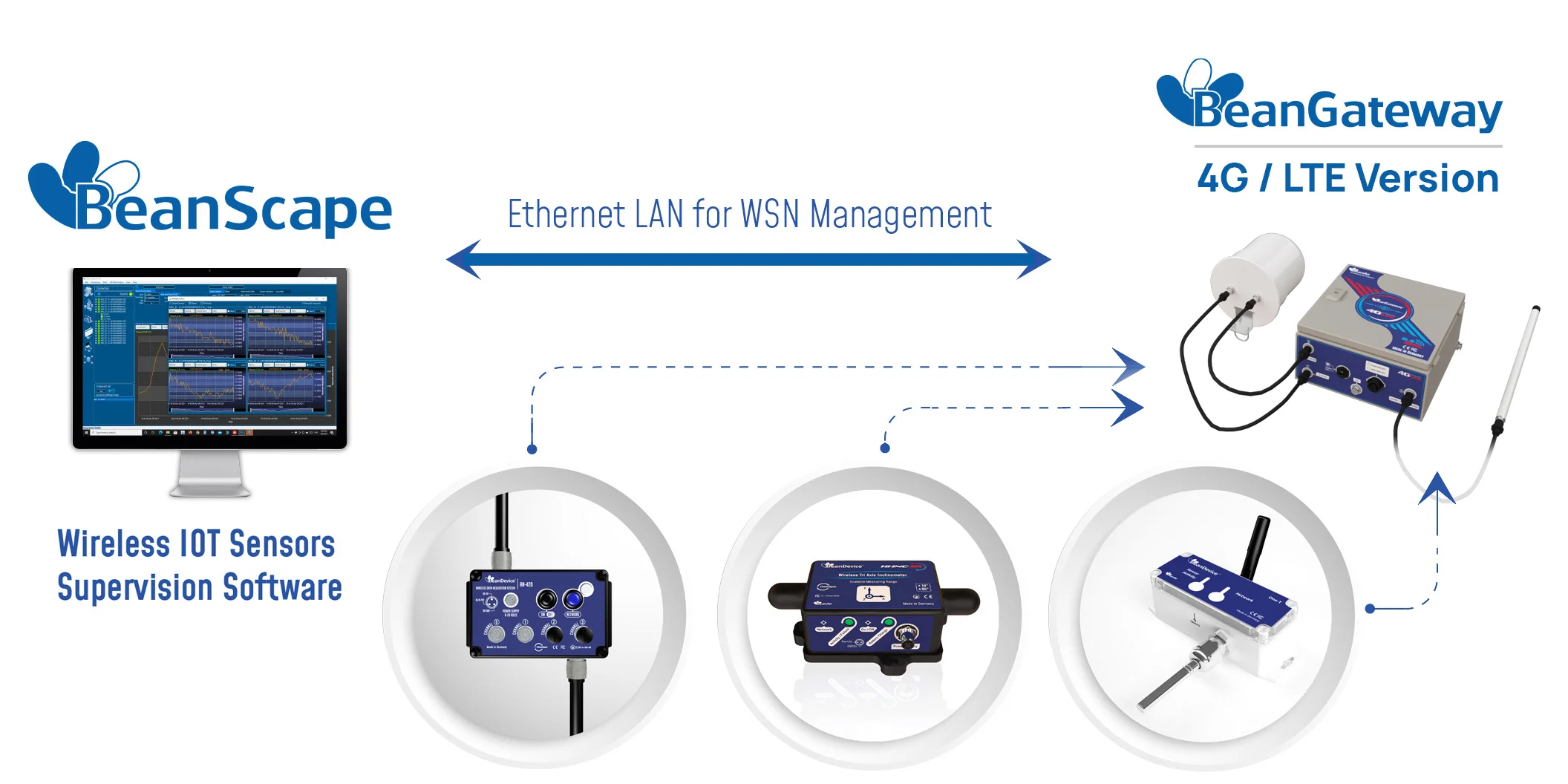

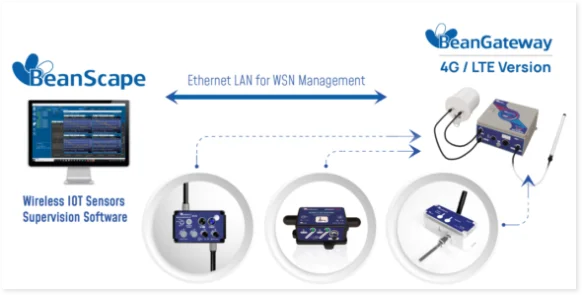

Integrating both 2.4GHz and 3G/4G/LTE wireless protocols, it is used build and manage Beanair® wireless sensor network.
The BeanGateway® 2.4GHz / 4G comes with two power supply versions:

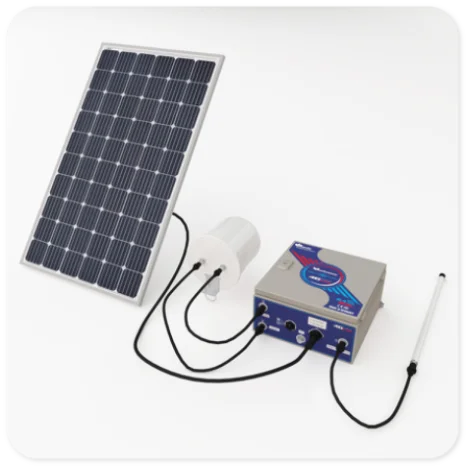

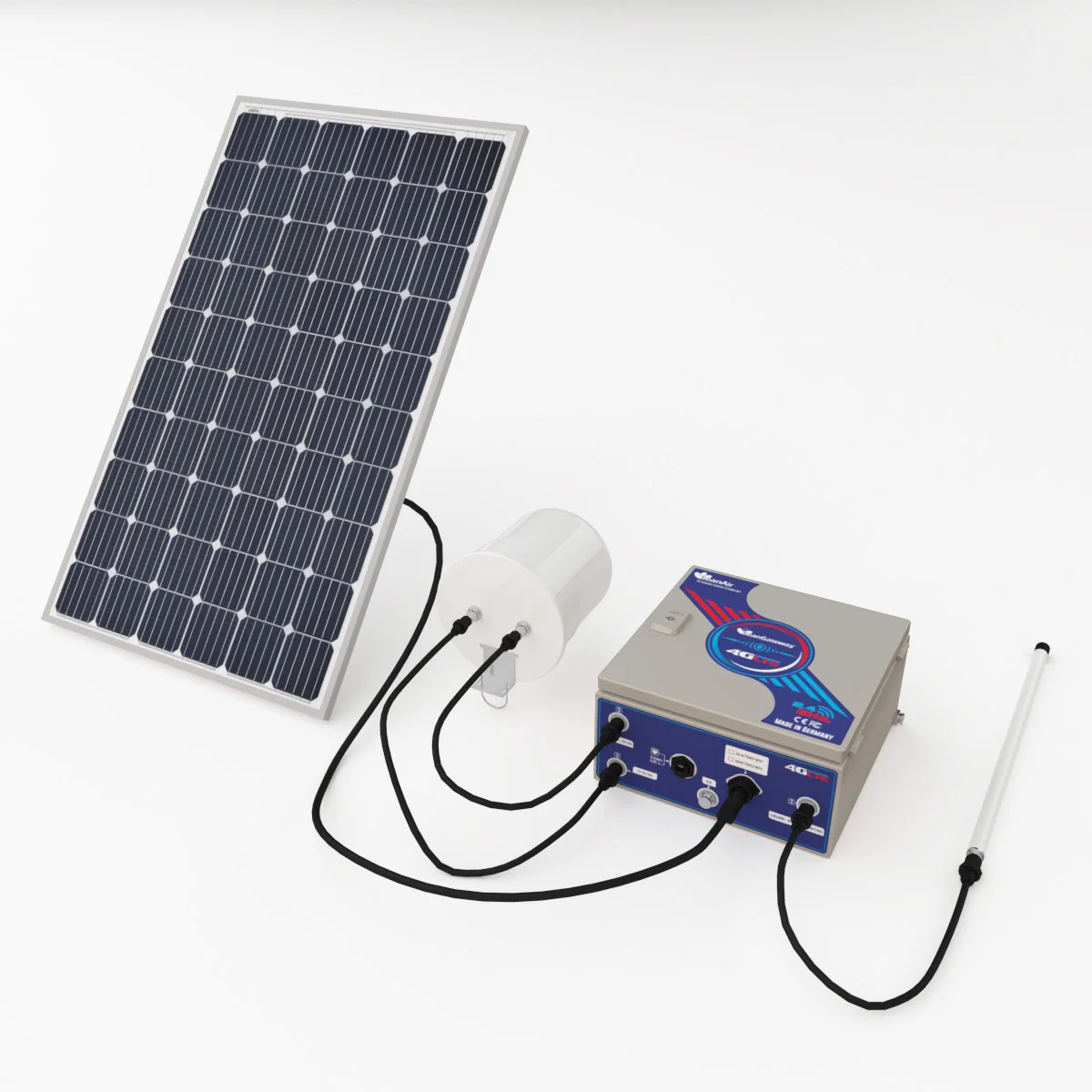

• Solar Panel (50W Monocrystalline Technology)
• Mains power supply (94-264VAC)
An integrated rechargeable Lead-acid battery with a capacity of 12Ah is used as an UPS battery (uninterruptible power supply). It provides instantaneous protection from external power supply interruption; the wireless sensor networks & 3G/4G/LTE activities are maintained during this time.
Users looking for a safe deployment on a remote site will appreciate our powerful WSN (Wireless Sensor Networks) mapping management:
• Automatic backup on both flash memory and BeanScape® 2.4GHz software.
• Export/Import function on others BeanGateway® 2.4GHzThe BeanGateway IoT 4G LTE 2.4GHZ is only compatible with 2.4GHZ Sensor series, it will not work with Wilow and Satevis sensor series. Click here to understand more our different sensor series
Main Features
• Wireless IOT Sensor Coordinator
• Ultra-Low-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
• Remote access to monitoring site thanks to the integrated 3G/4G/LTE Router (4G Connectivity CAT4 up to 150 Mbps)
• Configuration and supervision of Beanair® Wireless sensors networks
• Advanced Wireless Sensor Networks diagnostic tool
• Data Organization from the various wireless sensors
• Data exchange with the BeanScape® (WSN supervision software)

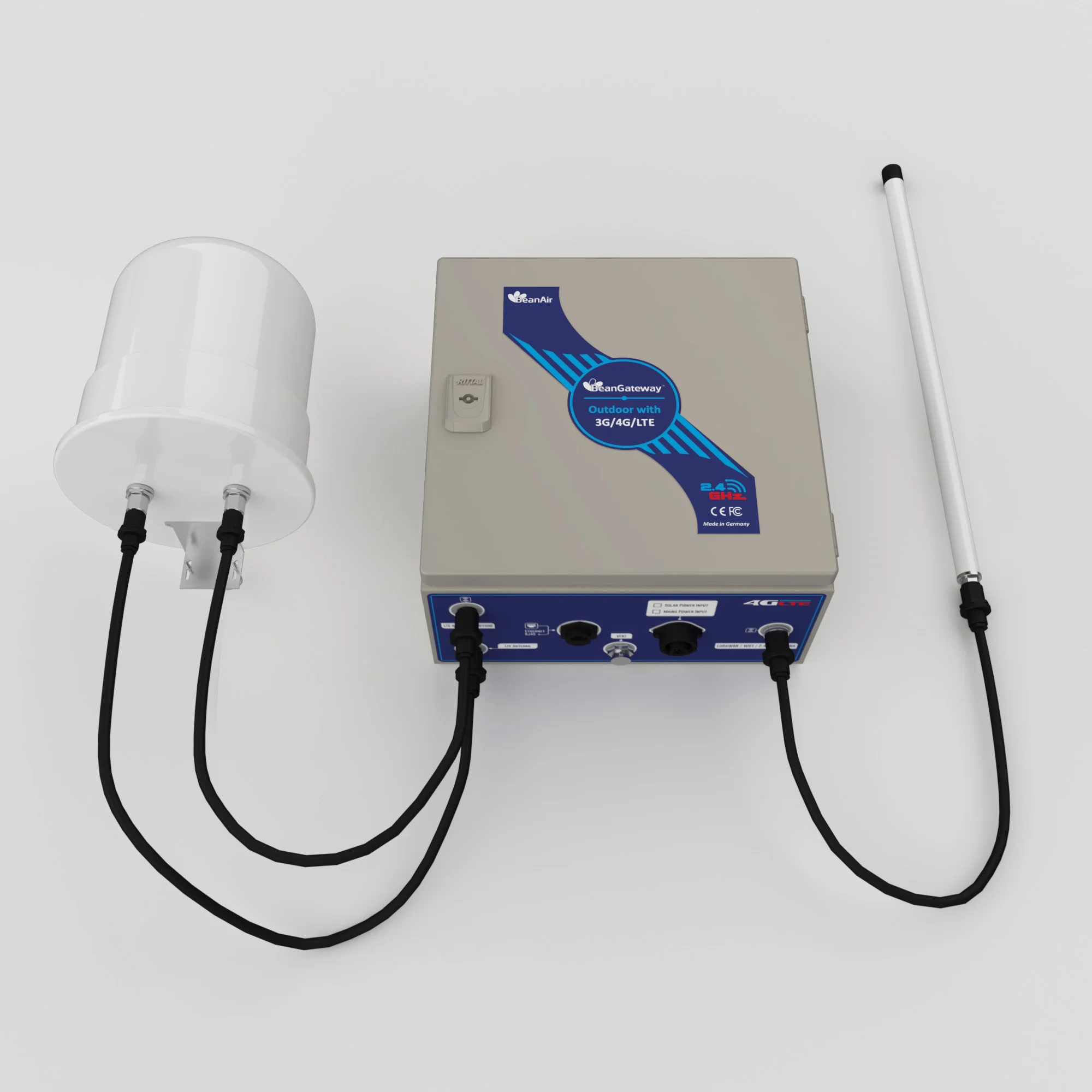

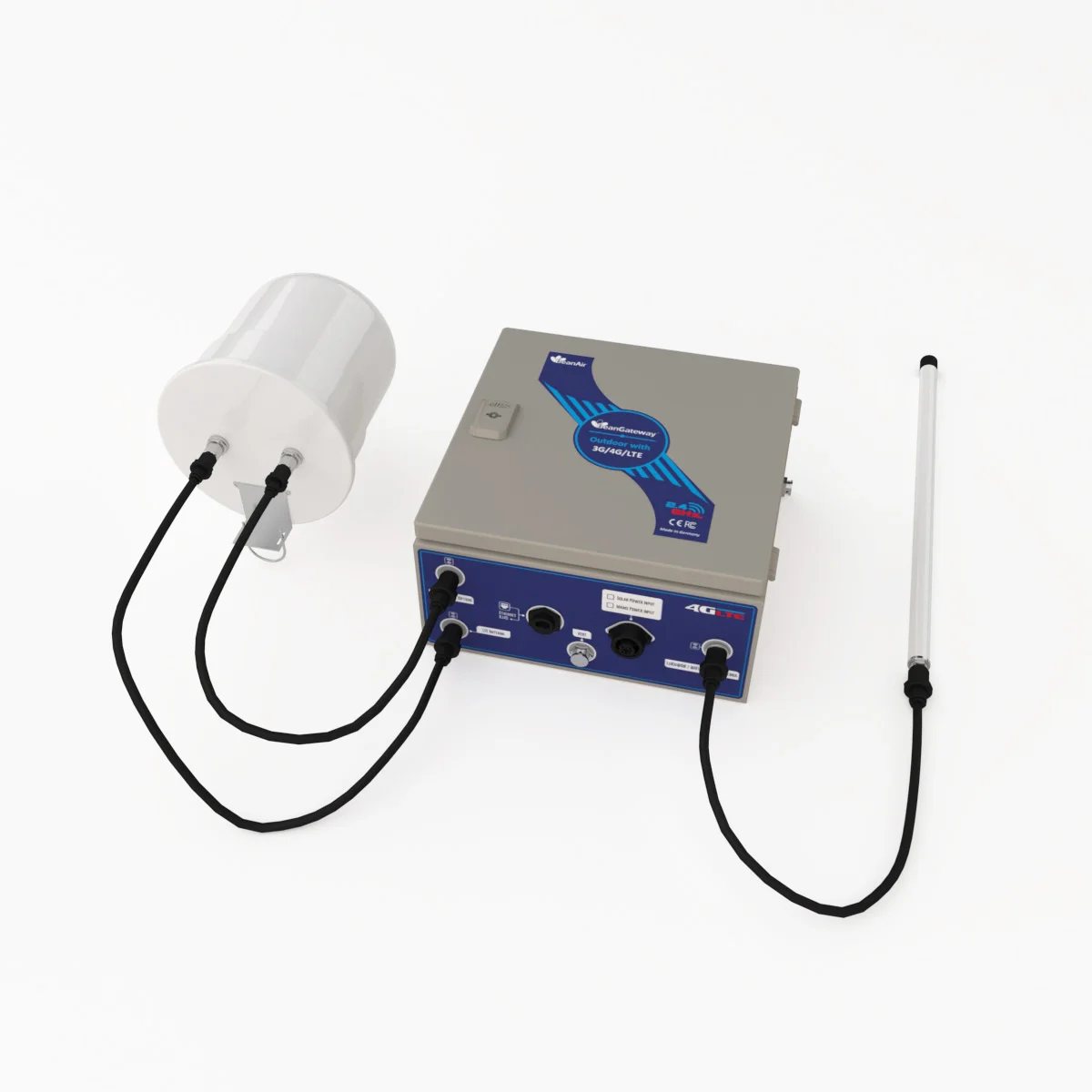

• Robust, Waterproof (IP67) and High Gain antennas:
• 3G/4G/LTE antenna (2x2 MIMO) with 12dBi of Gain
• 2.4GHz antenna with 9dBi of Gain
• Advanced UPS (Uninterruptible power supply) with lead-acid battery (capacity: 12Ah)

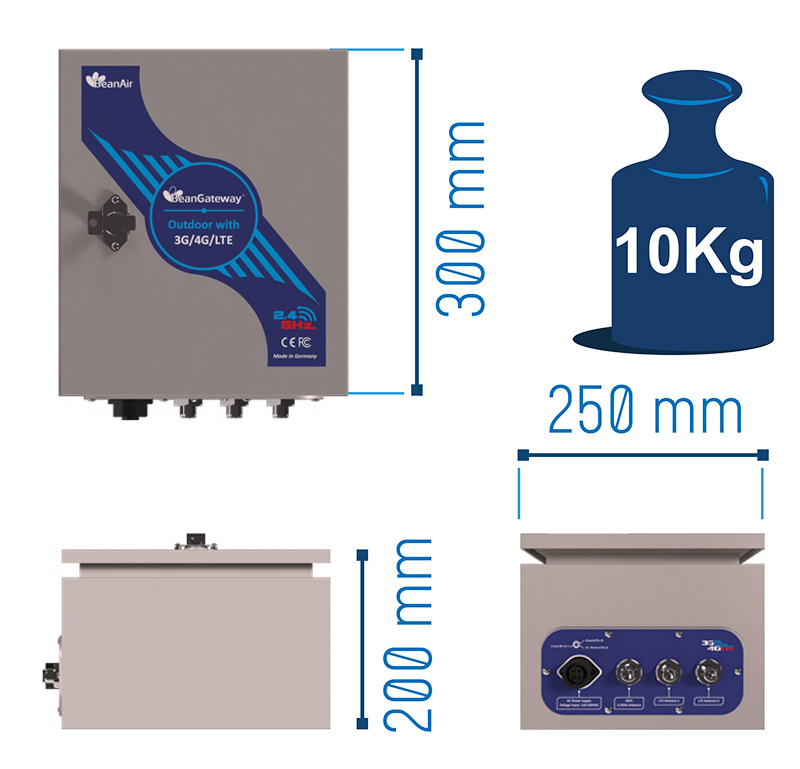

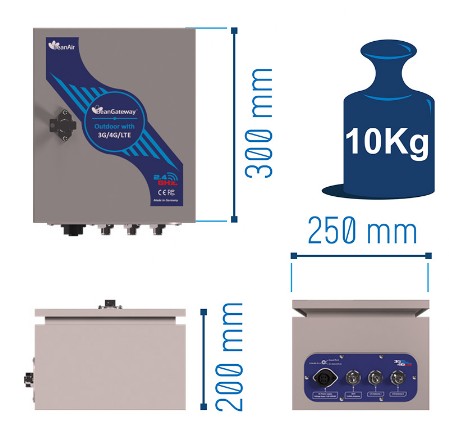

• Ruggedized and watertight (IP66 | Nema 4) steel casing (LxWxh:30x25x20cm, 10 Kg) with anti-thief protection
• Industrial operating temperature (-15°C to +50°C)
• Two power-supply versions: Mains power supply and solar panel (50W)
