Wilow® Wifi | Power-Supply Options

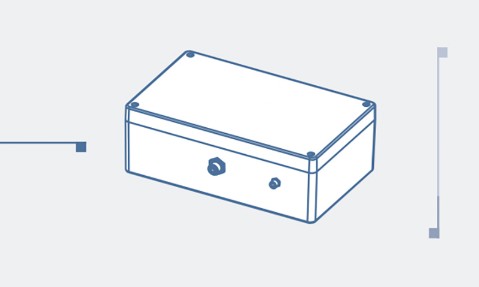

X-Solar 7AH for Wilow® sensor series
High efficiency Solar Panel with Solar Charging Controller and Lead-acid battery

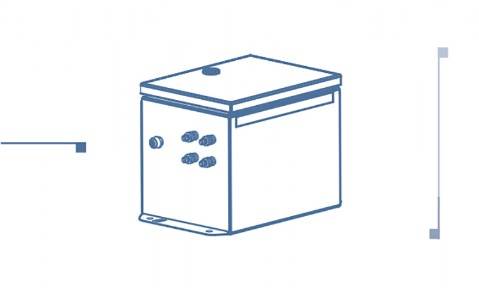

X-Solar 14AH for Wilow® sensor series
High efficiency Solar Panel with Solar Charging Controller and Lead-acid battery

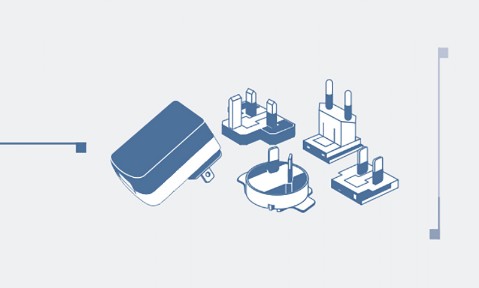

Power-supply
Wall plug-in, Switchmode power Supply 5V @ 1,25A with USB plug Provided with power adapter: North America / Japan / China or Europe or UK or Australia

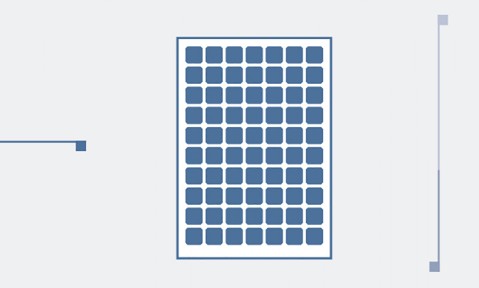

Solar Panel 5W
MonoCrystalline Solar Panel for BeanDevice® Wilow® power supply
( compatible with -EHR Power extension Only )
Maximum Power : 5W
Optimum operating Voltage: 12 VDC
Max Voltage = 17.8V
Max Current: 0.28A
Efficiency: 16%
Operating Temperature : -40°C to +85°C
Temperature Coeff. : -0.45%/°C
Dimensions : 250 x 185 x 25 mm
Weight: 0.7kg
Protection Frame: Aluminum Frame , Waterproof IP67
Cable Length : 2 meters ( REF: WL-SLP-5W-2M ) or 5 meters ( REF: WL-SLP-5W-2M ) with M8-6 Pins plug for a direct to connection to the BeanDevice® Wilow®
Can work with the following Data Acquisition mode: Low Duty Cycle, Alarm, Streaming with Burst Data Acquisition Mode with battery saver mode enabled

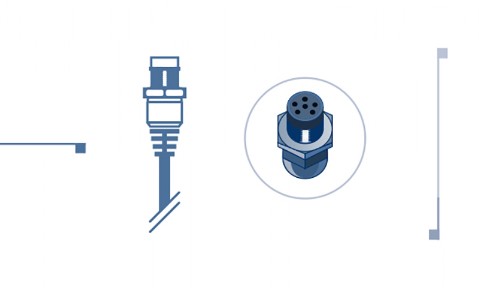

M8 Cable
M8-6Pins Cable, Waterproof ( IP67) and shielded cable.
Cable length :
- 2 meters. Ref: WL-CBL-M8-6P-2M
- 5 meters. Ref: WL-CBL-M8-6P-5M

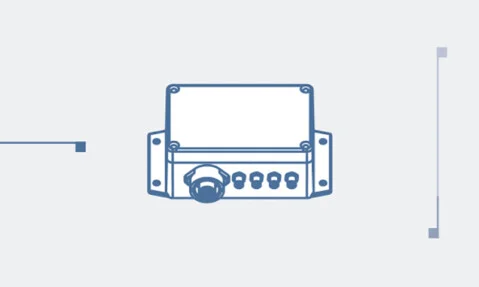

AC/DC Power Adapter for Wilow Sensors
• Waterproof aluminum casing (IP67)
• Input voltage: 85-264 VAC
• Output voltage : 5VDC
• Can power supply up to 4 BeanDevice® Wilow®
