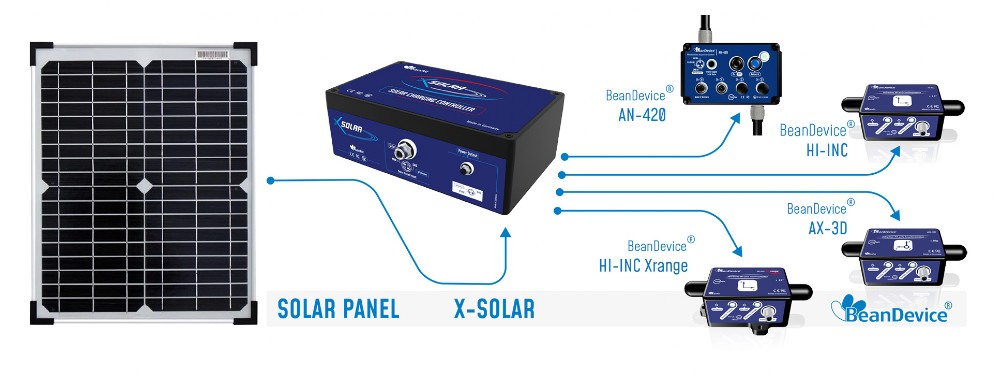

High efficiency Solar Panel with Solar Charging Controller and Lead-acid battery
Technical Documents
Certifications & Approvals
Technical Specifications
Product reference |
X-SOL-7AH-SLP-1CH-VOUT-CL |
SLP- Solar Panel Power 20W (adapted to countries with very High level of solar Irradiance: Africa/South Asia/South America) 50W (adapted to countries with High level of solar Irradiance: South of Europe/South USA) |
VOUT - Voltage Output 4VDC : 1 channel with 4VDC output (only for 2.4GHz sensor series with XT option) 12VDC: 1 channel with 12VDC output ( for 2.4GHz sensor series and Wilow Sensor series ) 5VDC: 1 channels with 12VDC output (only for Wilow sensor series ) |
CL– Cable length between X-solar box and solar panel 5M : 5meters |
Example 1: X-SOL-7AH-20W-4V-5M: 20W Solar panel, 1 x Power Output with 4VDC and 5 meters cable (only for 2.4GHz sensor series with XT option) Example 2: X-SOL-7AH-20W-5V-5M: 20W Solar panel, 1 x Power Output with 5VDC and 5 meters cable (only for Wilow sensor series ) |
Solar panel specifications | |
Maximum Power (Pmax) | High effciency Monocrystalline solar cell technology |
Max Energy efficiency | 20,4% |
Maximum Power (Pmax) | 20W or 50W |
| Voltage at Pmax | 17.8VDC |
| Current at Pmax | 1.12A(20W), 2.8A(50W) |
| Operating Temperature | -40°C to +85°C |

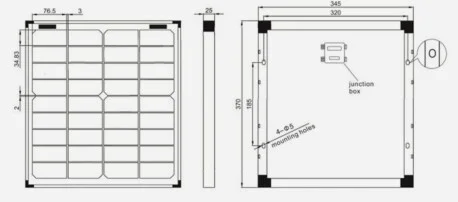

Dimensions and Weight (20W version) | 345mm x 370mm x 25mm, 2 kg weight |

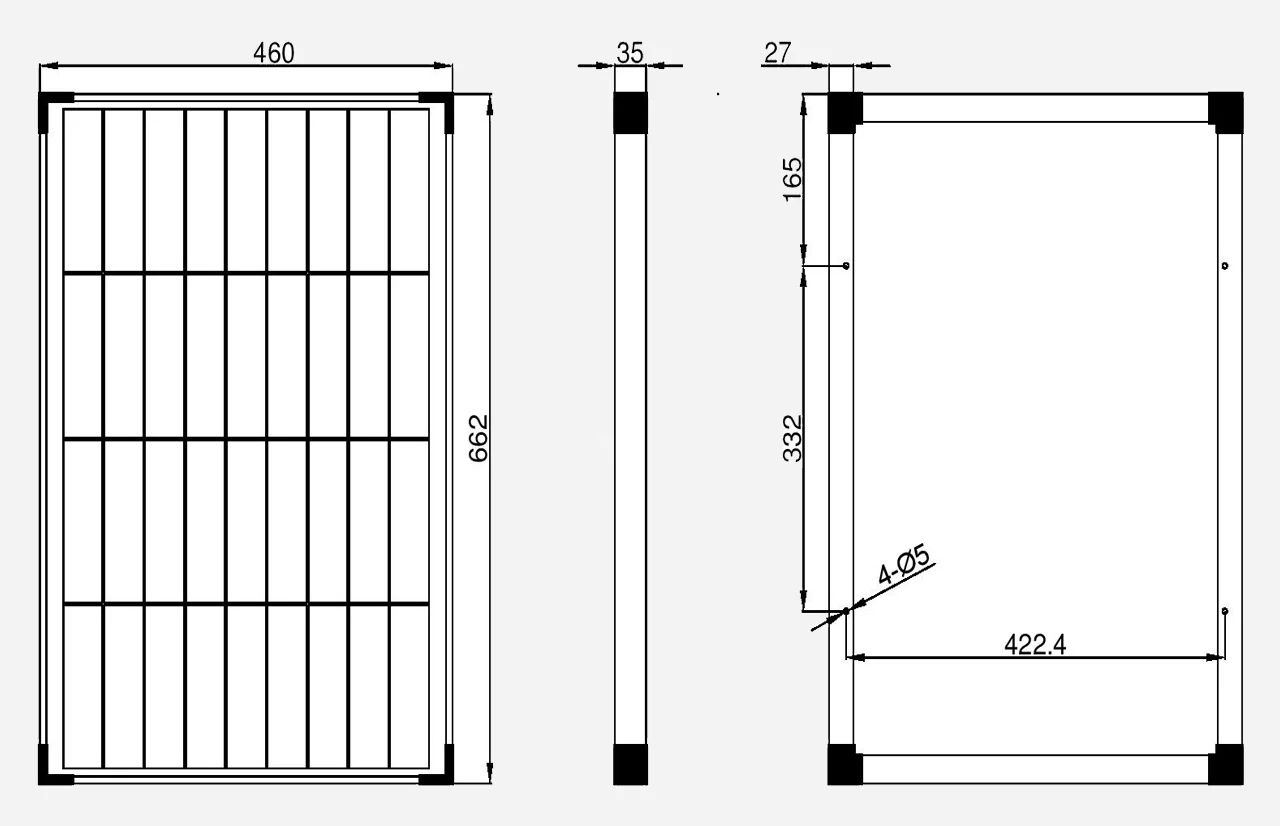

Dimensions and Weight (50W version) | 662 x 460 x 35mm, 4 kg weight |
| Connector Type | M12-4pins Male , A-Coding |
| IP Rating | Waterproof IP67|NEMA 6 |
| Cable length | 5 meters |
Mounting method | Screw mounting |
Charging controller box specifications | |
Charging controller type | Solar charging controller with Overvoltage/Undervoltage protection |
Input voltage solar cell panel | 14-30VDC |
Number of output voltage | 1 |
Connector Types | 1 x M8-3Pins Female A-Coding for sensors power 1 x M12-4Pins Female A-Coding for Solar panel |
| Max Input current | 10A |
| Power consumption | < 10mA , Led switch on |
| Battery Technology | Valve regulated lead acid battery |
| Battery Capacity | 7Ah |
Output Voltage | 4VDC (only for 2.4GHz sensor series with XT option ) 12VDC (only for 2.4GHz sensor series ) 5VDC (only for Wilow sensor series ) |
Led displays | Battery Full and Charging |
Dimensions | 260 mm x160 mm x 90 mm |
IP Rating | Waterproof IP67|NEMA 6 |
Weight | 4.5kg |
Operating Temperature | -15°C to +50°C |
Optional Accessories | |
For 2.4GHz sensor series | Molded Cable M8-3 pins to M8-3Pins for X-Solar Box Only, PVC Material 2.4GHZ-XSOLAR-CBL-2M for 2 meters of cable length 2.4GHZ-XSOLAR-CBL-5M for 5 meters of cable length 2.4GHZ-XSOLAR-CBL-10M for 10 meters of cable length |
For Wilow® sensor series | Molded Cable M8-6 pins to M8-3Pins for X-Solar Box Only, PVC Material WL-XSOLAR-CBL-2M for 2 meters of cable length WL-XSOLAR-CBL-5M for 5 meters of cable length WL-XSOLAR-CBL-10M for 10 meters of cable length |
M12 Plug to build your own power supply | M12-4Pins Plug to build your own power supply (screw mounting) Ref: XSOLAR-M12-4PIN |
M8 Plug For Xsolar connection | M8-3Pins Plug for connecting X-SOLAR Box (screw mounting) Ref: XSOLAR-M8-3P |
AC/DC power adapter | AC/DC power adapter to load the X-SOLAR battery at your office Ref: XSOLAR-AC-DC-PWR-12VDC |
List of Beandevice® compatible with X-Solar (4VDC) | |
All the Beandevice coming with -XT extension | Example: BND-2.4GHZ-HI-INC-15B-XT, BND-2.4GHZ-INC-30B-XT, |
List of Beandevice® compatible with X-Solar (12VDC) | |
All the Beandevice® 2.4Ghz coming with internal Rechargeable battery | Example: BND-2.4GHZ-AX3D-10G-RB , BND-2.4GHZ-HI-INC-15B-XR-RB-SCM |
List of Beandevice® compatible with X-Solar (5VDC) | |
All the Beandevice® Wilow® | Example: BND-WILOW-AX-3D-2G , BND-WILOW-AX-3D-10G, BND-WILOW-HI-INC-15B, BND-WILOW-X-INC-2G-15B |

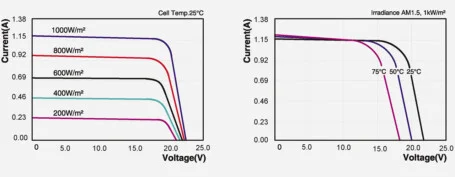

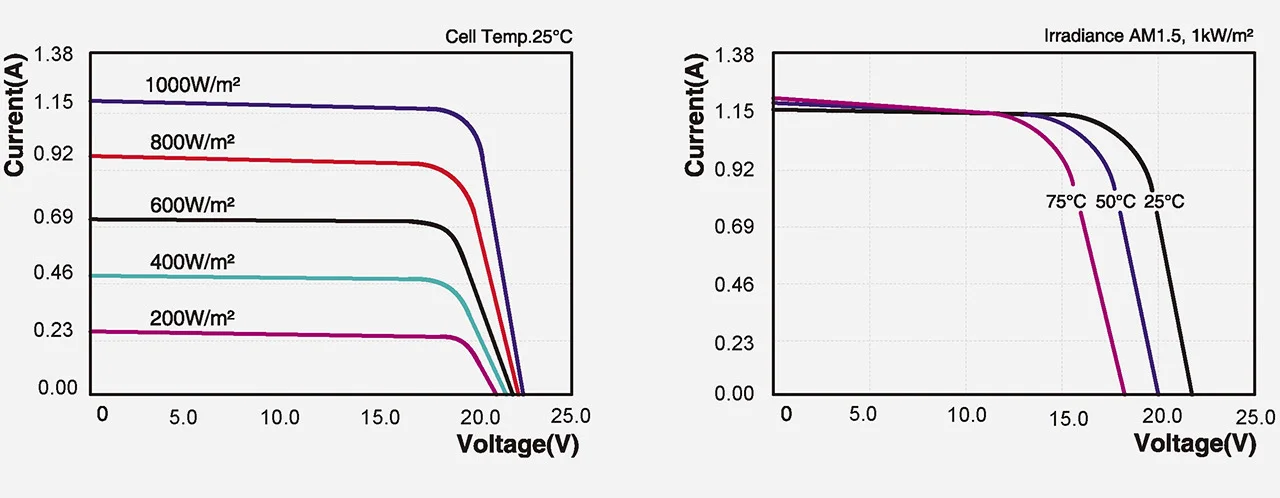

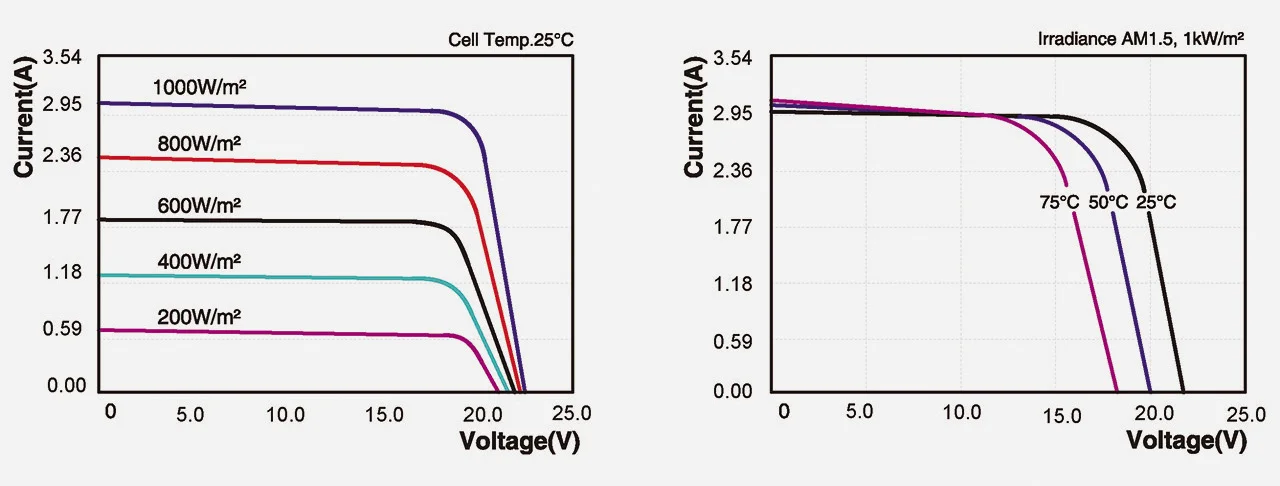

Solar Panel Characteristics
X-SOL-7AH-20W-1CH-4V-5M or X-SOL-7AH-20W-1CH-12V-5M
X-SOL-7AH-50W-1CH-4V-5M or X-SOL-7AH-50W-1CH-12V-5M
