Railway sleepers monitoring
Applications
Location: Paris, France
Site monitored since: 2010
overall tasks

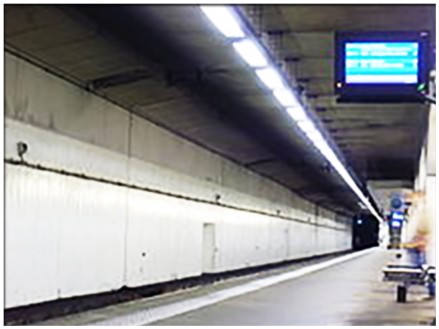

Caption 1 - Overview of Saint-Ouen (Paris Region) train station
During the extension of Paris suburb line RER-C, it was urgent to monitor railway sleepers due to construction works at several train stations in the North-West of Paris.
The main target was to monitor soil stability and to notify in real-time the field workers if deformation was observed on rails. The monitoring system was deployed between 2010 and 2014, a long battery life was required by the rail operator.
Wireless inclinometers were used with external primary cell for a longer battery life (Ref: Beandevice® HI-INC Xtend ).
OPERATION MODE :
• DAQ Mode: Survey mode with a notification cycle of 30 minutes
• Inclinometers accuracy: ±0.05°up to ±0.02° on the Full Scale
• Alarm thresholds: ±0.3°
• Remote access: 4G/LTE connectivity
• Battery life : 4 years with 6500 mAh Primary Cell
EQUIPMENT USED

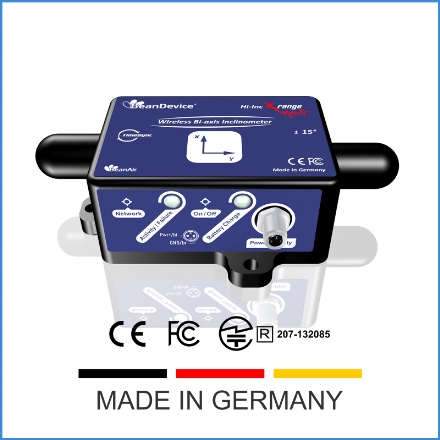

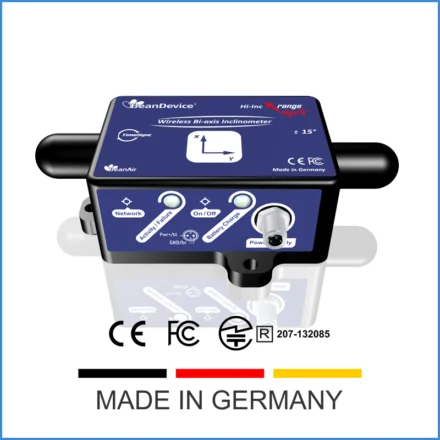

BeanDevice® 2.4GHz Hi-INC Xtend
Wireless Inclinometers

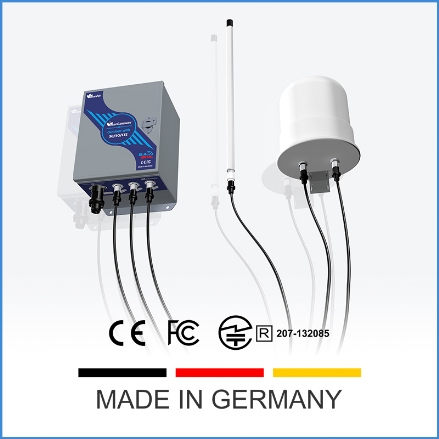

Wireless coordinator

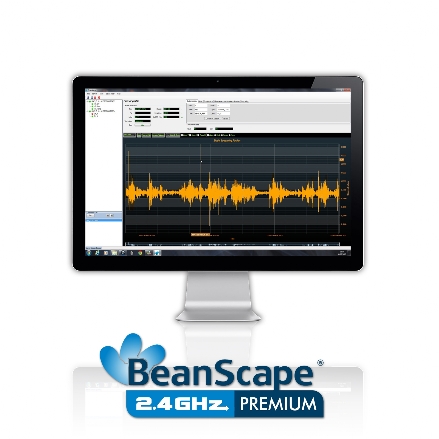

BeanScape® 2.4GHz Premium
Wireless IOT sensors supervision software

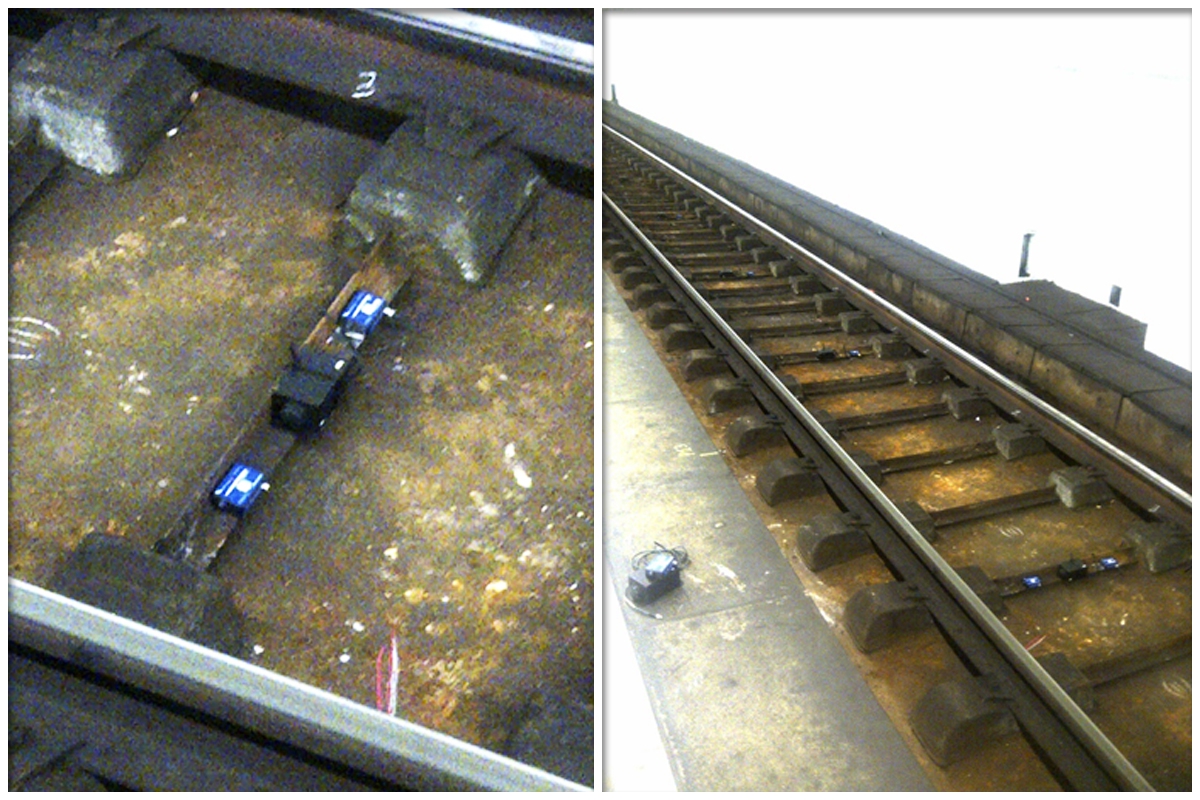

Caption 2 - Wireless inclinometers are sticked/screwed on rail sleepers

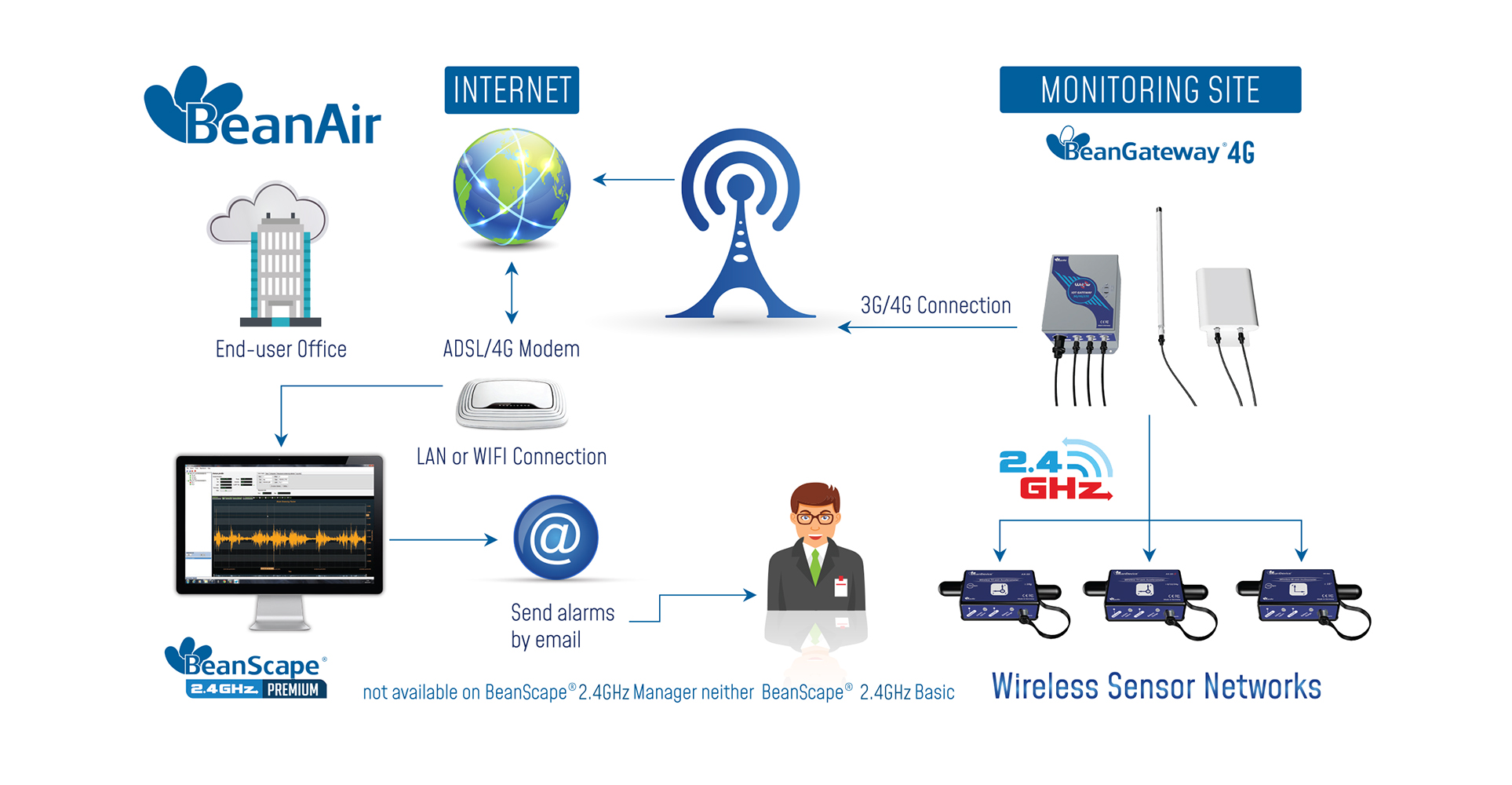

REMOTE MONITORING AND ALARM GENERATION BY EMAIL :
