Wireless IoT Inclinometer Sensor
- High Sampling Rate -

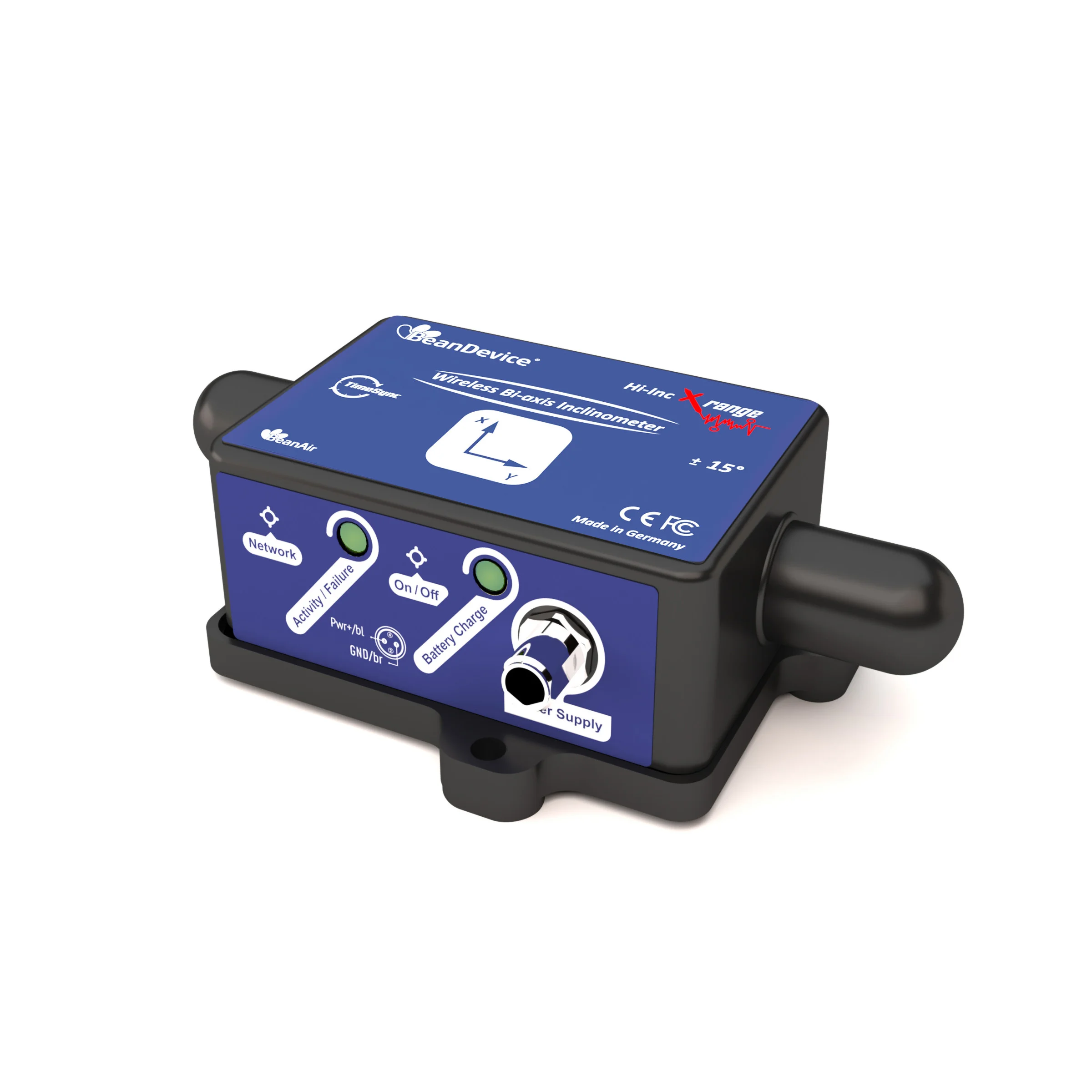

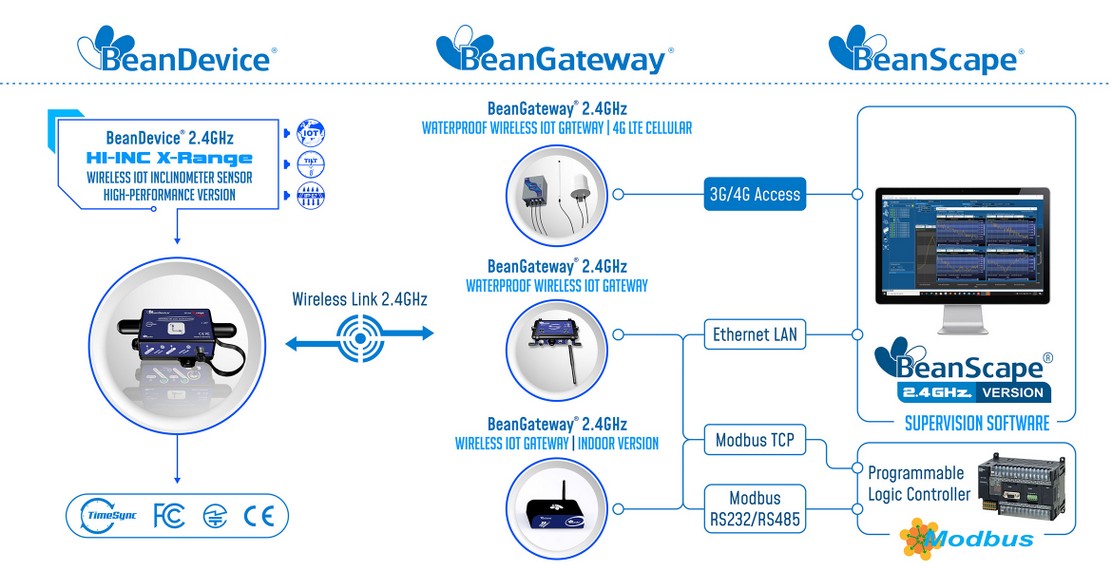

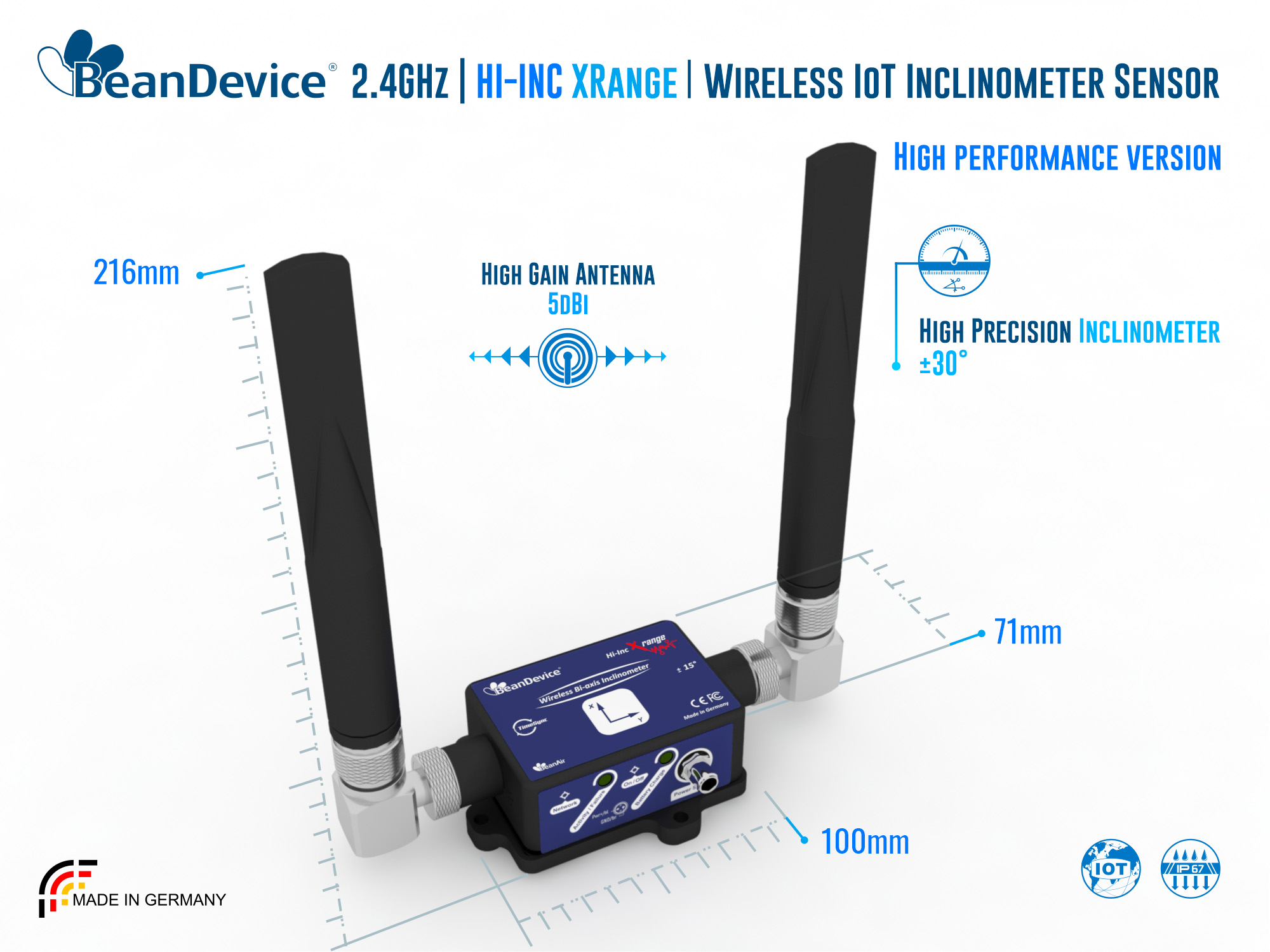

BeanDevice® 2.4GHz HI-INC Xrange

vailable in four versions (measurement range:  ±30° , screw/magnetic mounting), the BeanDevice® 2.4GHz HI-INC XRange is a wireless inclinometer with integrated data logger.
Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (100x71x38mm, 217g), an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 8 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless accelerometer is well suited for all types of industrial applications.
REQUEST PRICE

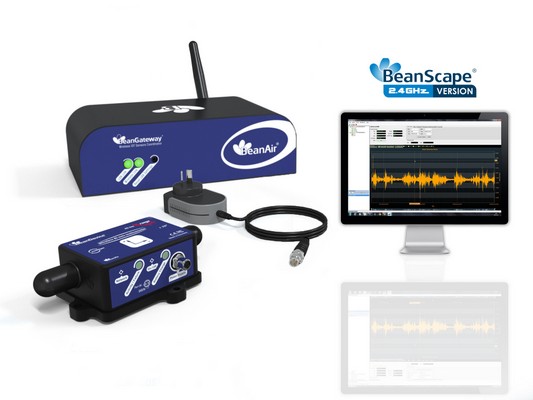

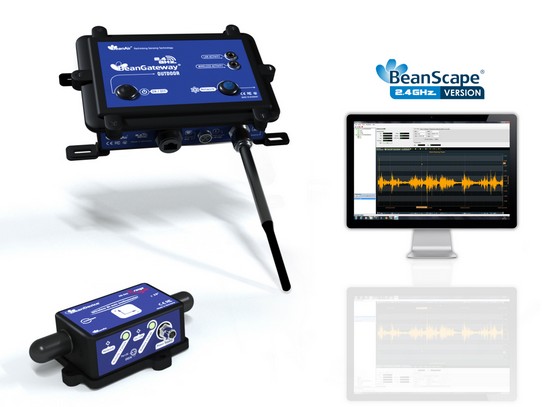

Included Free Software

Student and Education Discount
Please Contact us (sales@beanair.com)
«Anti-Aliasing Filter Icon »

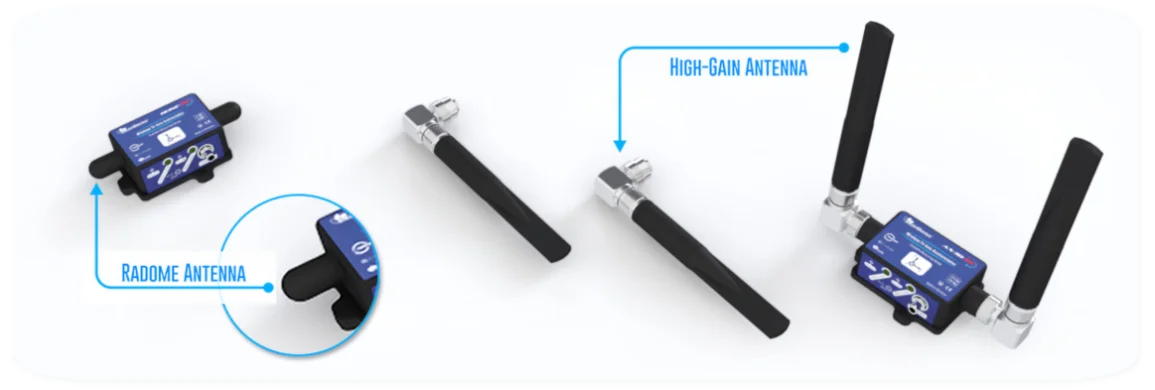

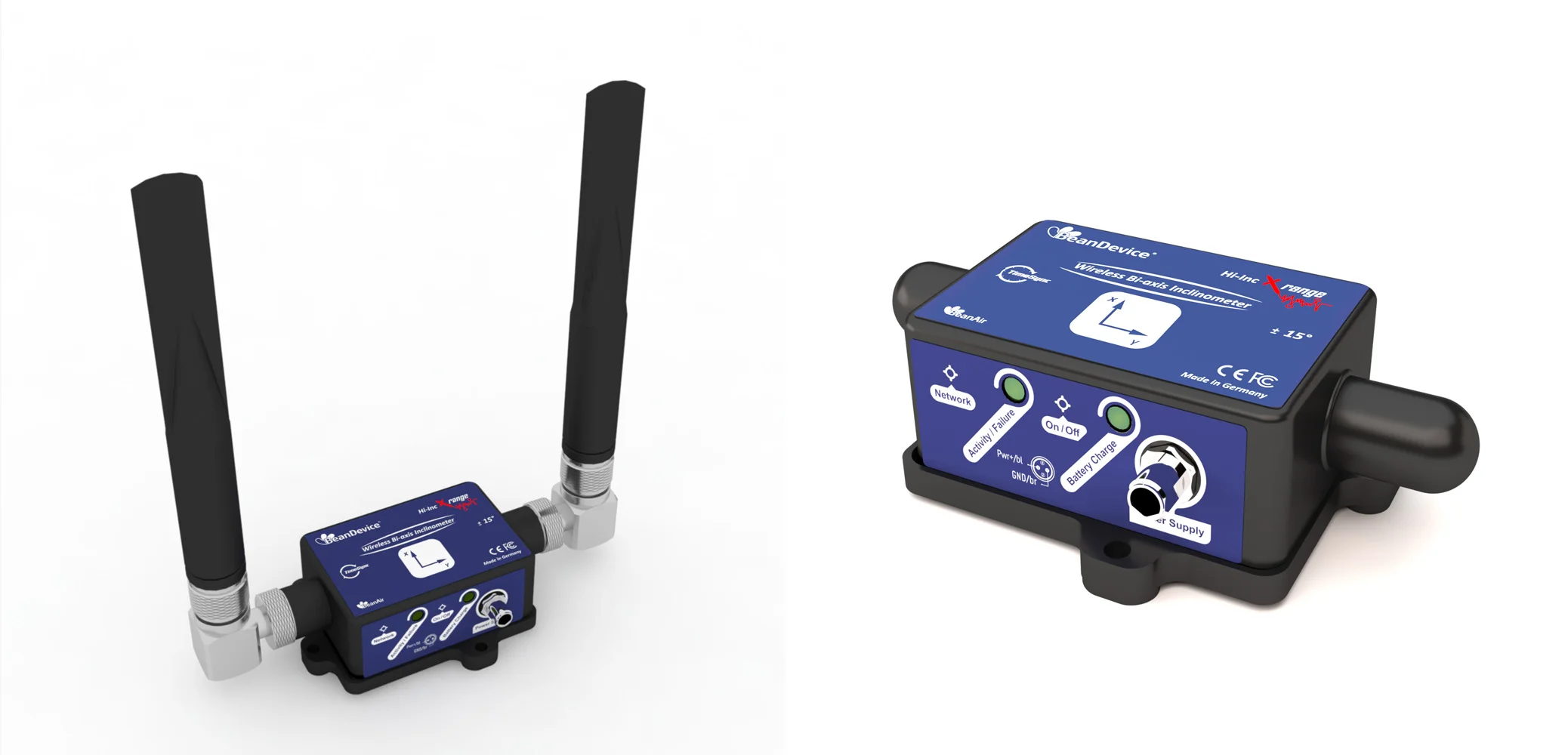

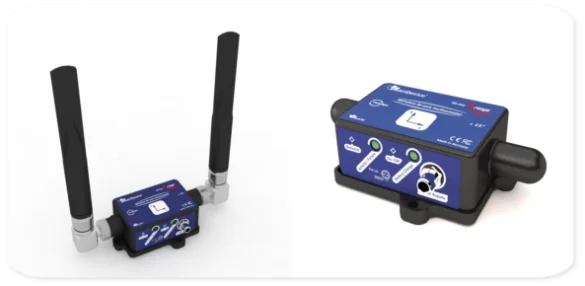

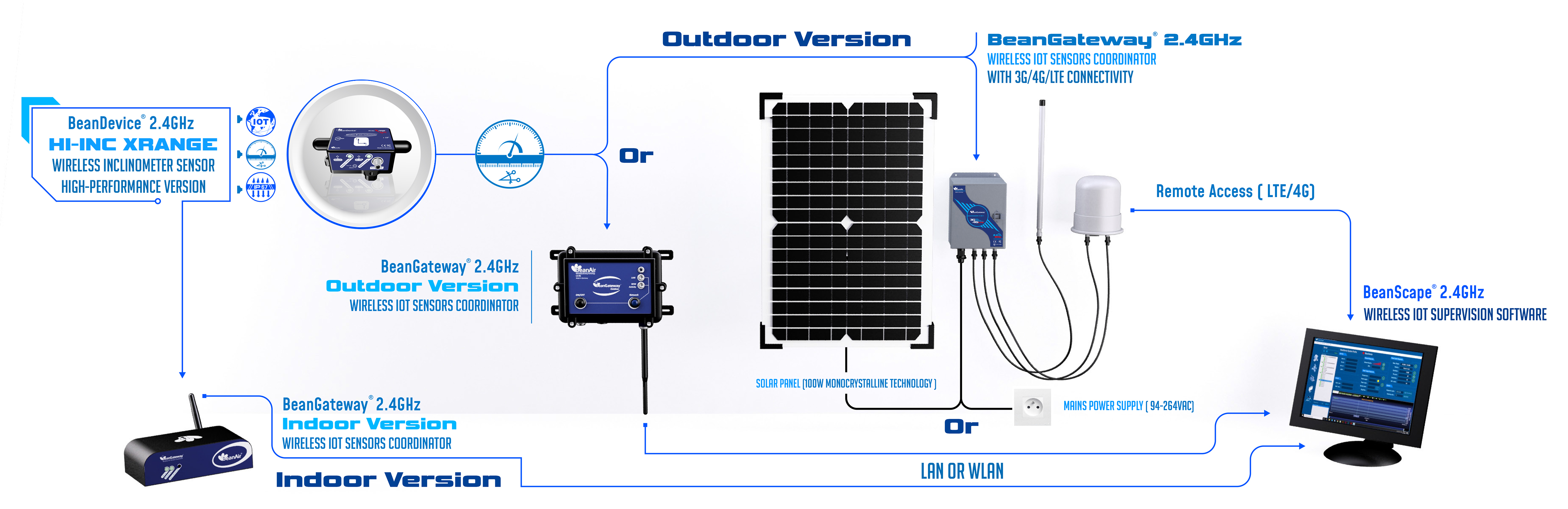

Antenna Options for Different Applications
«Blue line »
• Radome Antenna - Ideal for space-constrained applications.
• High-Gain Antenna - Optimized for long-range wireless communication.
«Antenna options»
«Technical Specification Icon»
Technical Specifications
«Blue line »
Main Features Ordering Sensor Specifications Temp. Sensor Software RF Specifications Data logger TimeSync Mechanical Power supply Accessories

Wireless inclinometer based on MEMS technology with a high precision

Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)

Wireless range :
-High Gain Antenna : 400m max LOS* , 60-120m (N.L.O.S.)
-Integrated Low-profile Antenna : 150m max** , 30-60m (N.L.O.S.)

Measurement range: bi-axial ±30°

MEMS Inclinometer with a high resolution 0.001° and a  (±0.057° for the version ±15°)

Maximum sampling rate: 60 samples per second

Non-contact actuation for faster and safer installation

Embedded Data Logger: up to 8 million data points (with events dating)

Integrated Lithium-Polymer rechargeable battery with industrial battery charger (8-28VDC)

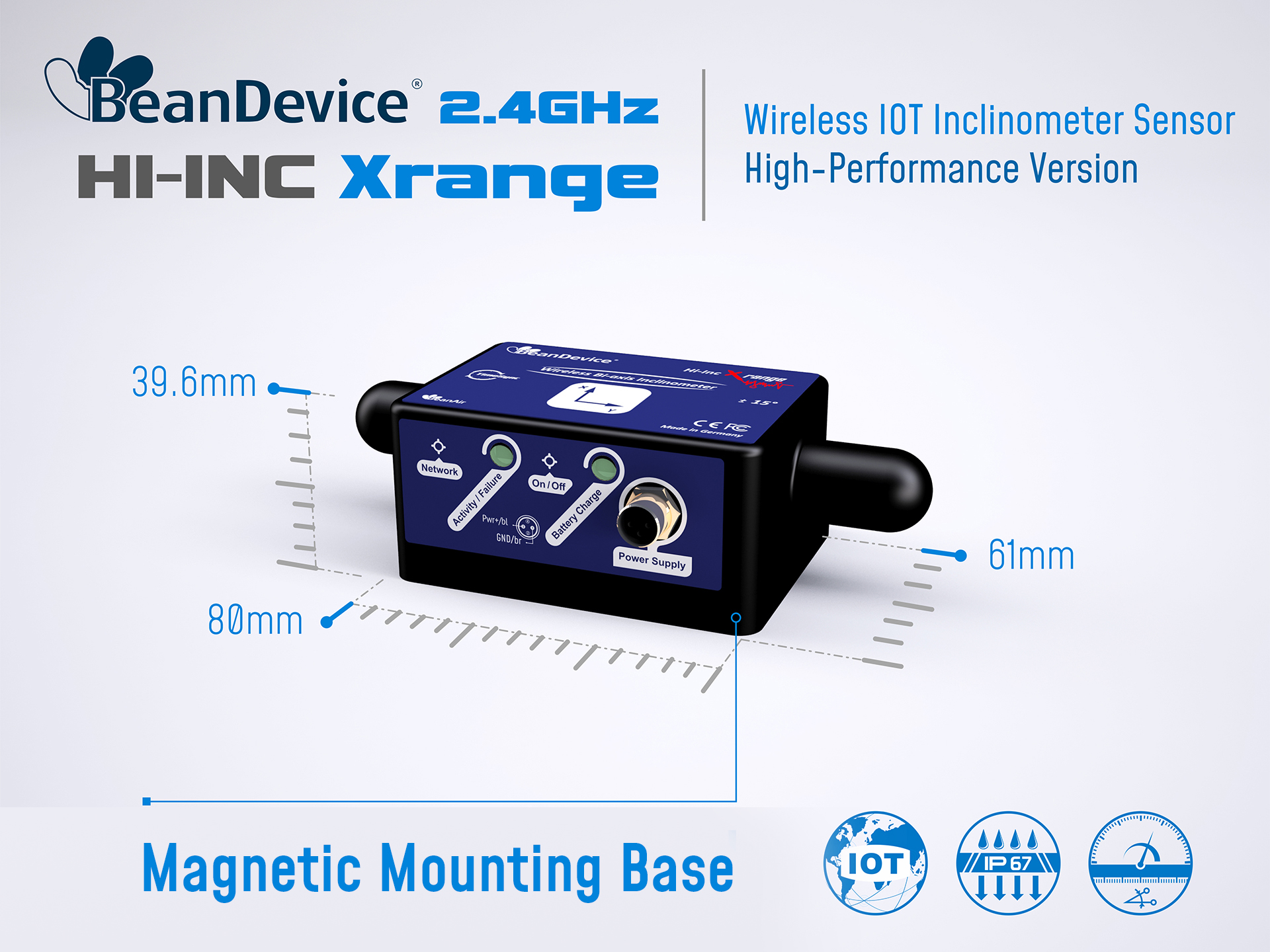

Waterproof (IP67 | Nema 6) aluminum casing (dimensions Lxlxh: 100x71x38 mm)

Mounting process: screw mounting or magnetic mounting

TimSync function: Time-synchronization over the Wireless Sensor Networks with a precision of ±2.5 ms
*High Gain Antenna Pointing to Vertical position, BeanGateway® Installed on a mast 10 meters height with 9dBi Antenna
**Low Profile Antenna Pointing to Vertical position, BeanGateway® Installed on a mast 10 meters height with 9dBi Antenna
PRODUCT REFERENCE
BND-2.4GHz-HI-INC-MR-XR-PS-MO-HG
MR – Measurement Range:
- 30B : bi-axis ±30°
PS - Power supply :
- RB : Internal rechargeable battery
- XT : External Primary cell
MO - Mounting Option
SCM - Screw Mounting base
MM - Magnetic Mounting base
HG: High Gain External Antenna 5dBi
If this field is left blank,Integrated Radome Antenna will be provided
Example 1: BND-2.4GHZ-HI-INC-30B-XR-RB-SCM,
High performance wireless Bi-axis inclinometer with ±30° measurement range, internal rechargeable battery, Screw mounting , radome Antenna
Example 2: BND-2.4GHZ-HI-INC-30B-XR-RB-SCM-HG,
High performance wireless Bi-axis inclinometer with ±30° measurement range, internal rechargeable battery, Screw mounting , High Gain Antenna
 Stock Status : Available
Sensor specifications
Inclinometer technology
Accurate and low power MEMS technology
Measurement resolution (Bandwidth 10 Hz)
0,001°
Noise density
0.0004 °/√Hz
Sensor Precision (full scale, @ 25°C, Static Measurement Mode every 2s)
±0.006° for bi-axis ±30° version
Long term stability (@23°C)
< 0.004 °
Offset temperature dependency (temperature range –25°C to +85°C)
±0.002 °/°C
Sensitivity temperature dependency (temperature range –25°C to +85°C)
±0.005 %/°C with temperature compensation
Analog to Digital converter
16-bits, SAR architecture (Successive Approximation Register) with temperature compensation
Sensor frequency Response (-3 dB)
DC to 28 Hz
Noise spectral density
DC to 100 Hz
0.0004 °/ √Hz
Anti-aliasing Hardware filter
Butterworth 5th order filter – cut-off frequency : 1 Hz to 100 Hz remotely programmable (BeanScape®)
Integrated Temperature sensor
Temperature Range
-40°C to +60°C
Measurement resolution
±0.06°C
Sensor Precision
±1°C
Configurable settings from the BeanScape® 2.4GHz software
Data Acquisition mode
(SPS = sample per second)
Static Data Acquisition: Low Duty Cycle Data Acquisition (LDCDA) and Alarm Mode (based on alarm thresholds) .
Measurement heartbeat 1s to 24 hour
Dynamic data acquisition(not available on devices with ref. extension XT ): Streaming and S.E.T. (Streaming with Event Trigger) Mode
Alarm Threshold
Three-level alarms : Alert < Action < Alarm
Sampling Rate (in streaming and S.E.T mode)
Minimum: 1 SPS
Maximum: 100 SPS on each axis
Programmable cut-off frequency  (Anti-aliasing filter)
1-100Hz
Power Mode
Battery saver mode & Active power mode (Active Power Mode is not available on -XT version)
RF Specifications
Wireless Protocol Stack
Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
WSN Topology
Point-to-Point / Star
Data rate
250 Kbits/s
RF Characteristics
ISM 2.4GHz – 16 Channels. Antenna diversity architecture designed by BeanAir®
TX Power
+18 dBm
Receiver Sensitivity
-104 dBm
Maximum Radio Range
High Gain Antenna : 400m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 60-120m (N.L.O.S.)

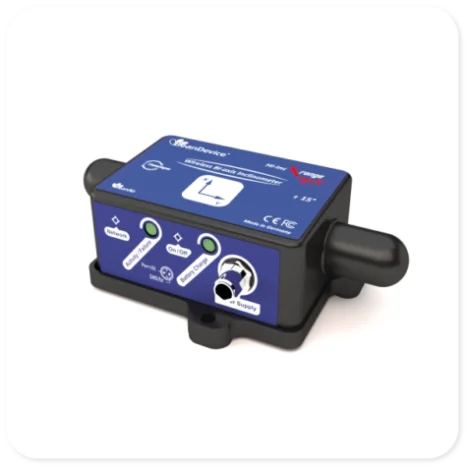

Integrated Radome Antenna : 150m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 30-60m (N.L.O.S.)
Antenna
Antenna diversity :
High Gain Antenna version: 2 x N-Type Antenna 5dBi , IP67
Radome Antenna version: 2 x Antenna 1.9 dBi , IP67
Embedded Data logger
Storage Capacity
up to 8 million data points
Wireless data downloading
20 minutes to download the full memory (average time)
TimeSync function : Clock synchronization over the Wireless Sensor Networks (WSN)
Clock synchronization accuracy
±2.5 ms (at 25°C)
Crystal specifications
Tolerance ±10ppm, stability ±10ppm
Environmental and Mechanical
Casing
• Aluminum AL6061 & Waterpoof casing
• Dimensions in mm (LxWxH): 100 x 71 x 38 (without Radome antennas, with  mounting eyelet)
• Weight (with internal battery & Radome Antenna) :
-240g (screw mounting)
-265g (magnetic mounting)
• Weight (with internal battery & High Gain Antenna) :
-440g (screw mounting)
-465g (magnetic mounting)
Shocks resistance
150g during 50 ms
Operating Temperature
RB : Internal rechargeable battery
-40°C to +60°C
XT : External Power Supply
-40°C to +75°C during battery discharge
A sunshield must be used if the sensor is exposed to direct sun radiation
Maximum  Humidity
90 %RH
Norms & Radio certifications
• CE Labelling Directive R&TTE (Radio) ETSI EN 300 328
• FCC (North America)
• ARIB STD-T66 Ver 3.6
• ROHS - Directive 2002/95/EC
Base plate
• Aluminum black anodized AL 7075 with rugged three-point-mounting
• Screw Mounting Option: the device should be mounted on a flat and smooth surface with 3 screws, dimension M5. Mounting torque 5 ±1Nm
• Magnet Mounting Option: the device should be mounted on a steel surface.
IP|NEMA Rating
IP67 | Nema 6
Power supply
Integrated battery charger
Integrated Lithium-ion battery charger with high precision battery monitoring :
• Overvoltage/Overcurrent/Short-Circuit Protection/Undervoltage protection
• Battery Temperature monitoring
Current consumption @ 3.3V
• During data acquisition : 30 to 40 mA
• During Radio transmission : 80 mA  @ 18dBm
• During Battery Saver Mode : < 30 µA
External power supply
8-28VDC with reverse polarity protection
IEC-61000-4-2:  ESD 30kV(Air), 30kV (Contact)
Surge protection  > 28VDC  (600W during 10us max)
Rechargeable battery
2 Ah,  Lithium-Polymer battery
INCLUDED ACCESSORIES
1x Magnet to Power ON/Power OFF the device
1x M8 Cap for Power Supply
Optional Accessories and Services
External Power Supply
Wall plug-in, Switchmode power Supply 12V @ 1,25A with sealed M8 Plug (IP67/Nema   6)
Ref: M8-PWR-12V
Solar Panel Kit (compatible with External Power Supply version only)
Ref.: X-SOL-7AH-20W-4V-5M for XT version
Ref.: X-SOL-7AH-20W-12V-5M for RB version
Ref: X-SOL-14AH-20W-4CH-4V-5M for XT   version
Ref: X-SOL-14AH-20W-4CH-12V-5M for RB version
Ref: X-SOL-14AH-80W-4CH-4V-5M for XT version
Ref: X-SOL-14AH-80W-4CH-12V-5M  for   RB version
External Primary Cell in a Waterproof IP67 Casing
Waterproof IP67 battery box for long-term monitoring applications IP67 Battery Holder
Battery Pack with 3 x C size primary cell, Li-SOCL2 Lithium Primary cell 3.6VDC Type
Ref: PRIM-XTENDER
Bracket Mounting

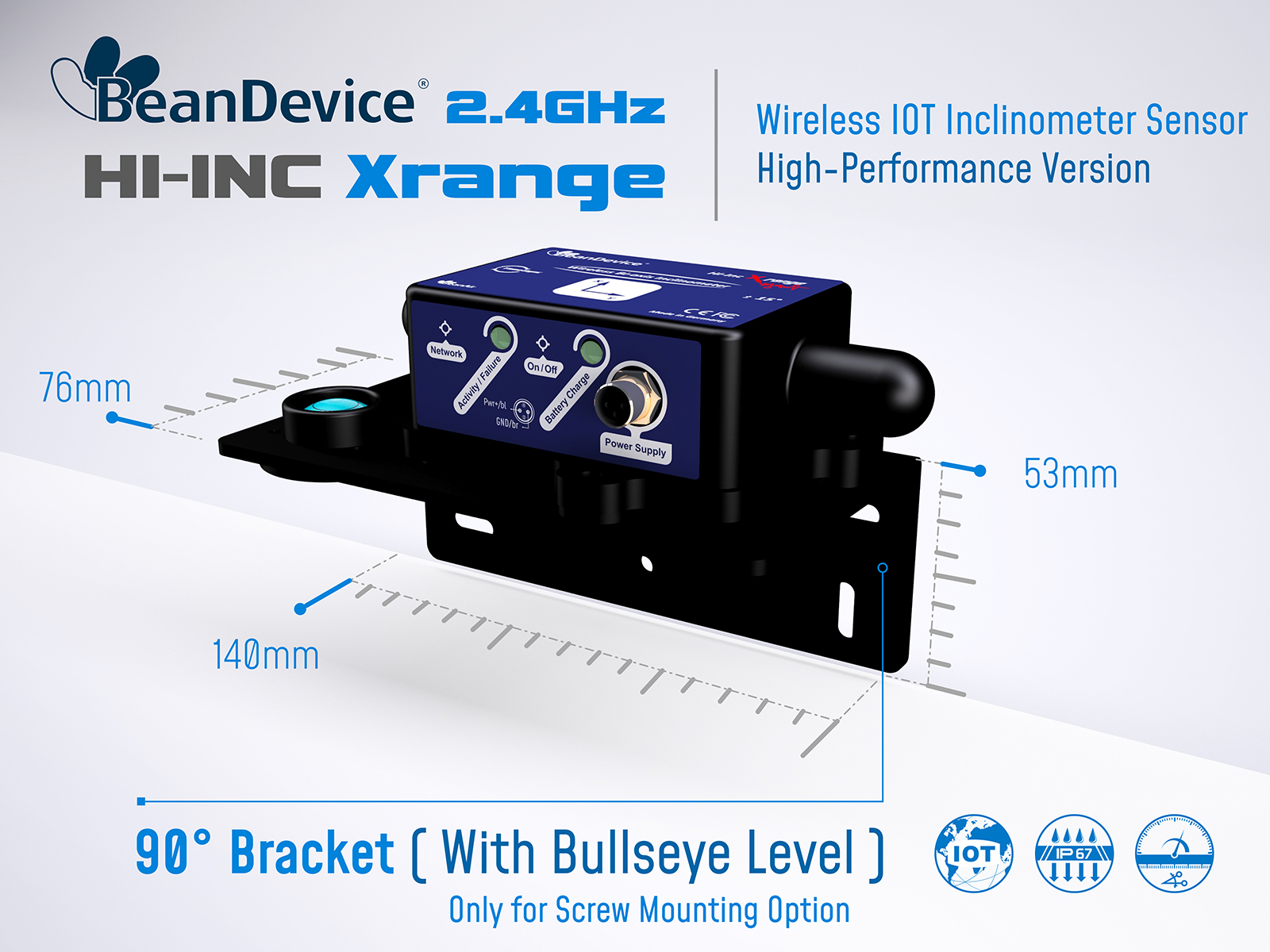

90° Bracket for BeanDevice
(Xrange smartsensor) with 4 x M5 screws + Locknut
Ref: SMART-BRACK-MNT

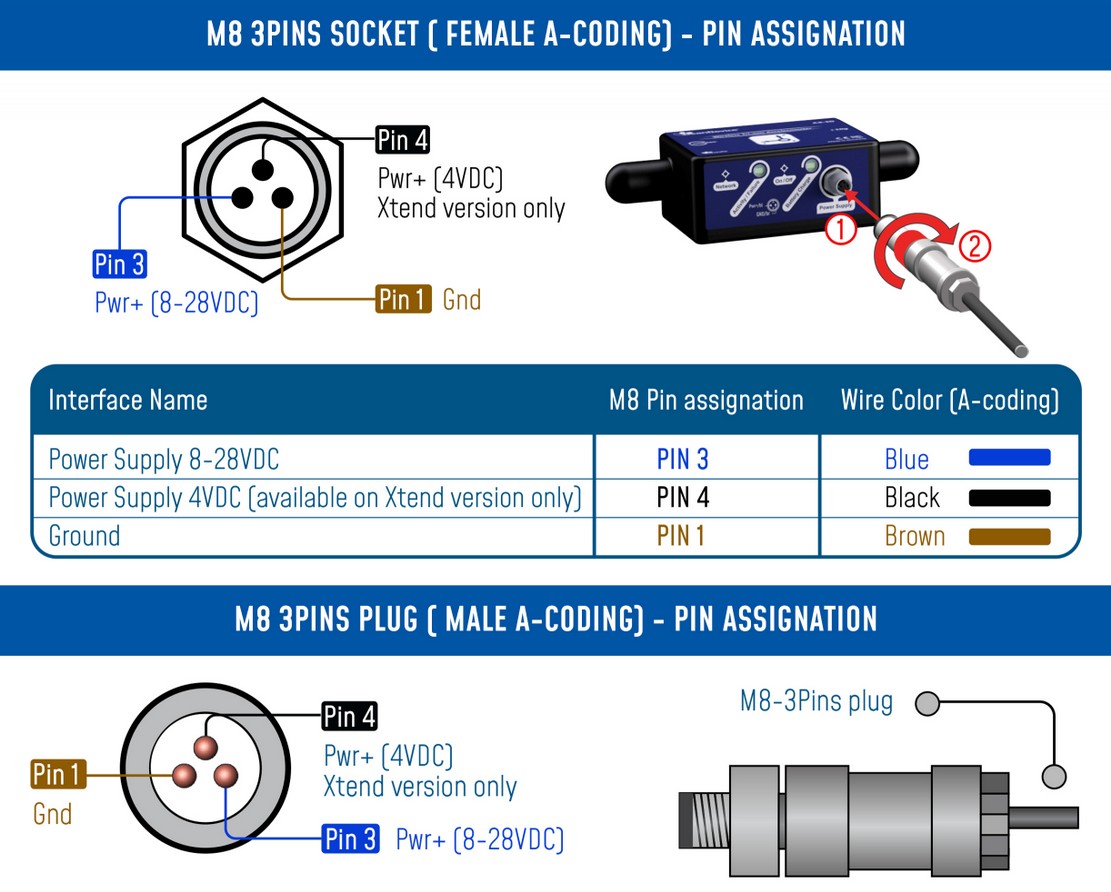

M8 extension cable for external power supply
Molded  cable with M8-3pins male plug
Material: PVC with shield protection
IP Rating : IP67 | Nema 6
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M
Calibration certificate
Calibration certificate provided by Beanair Sensors.
Important: This document should be requested during the sensor ordering.
A static calibration method is used on a granite surface plate DIN876
Ref: CERT-CAL-SMART
Applications
«Applications Icon »
«Blue line »

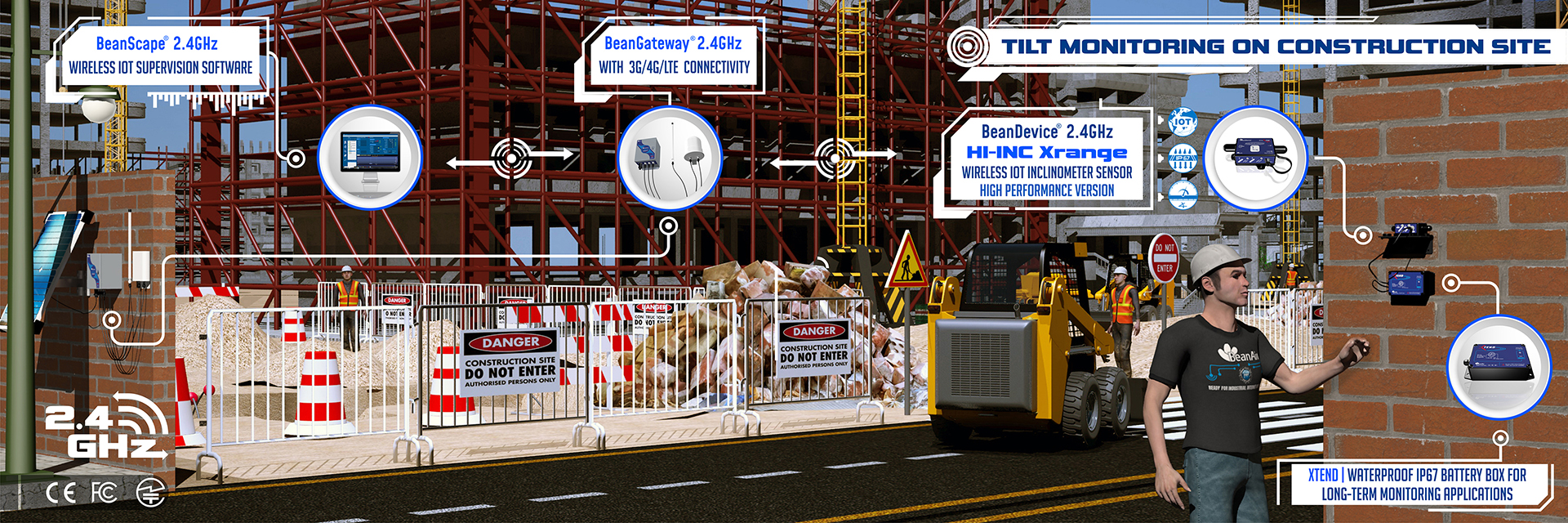

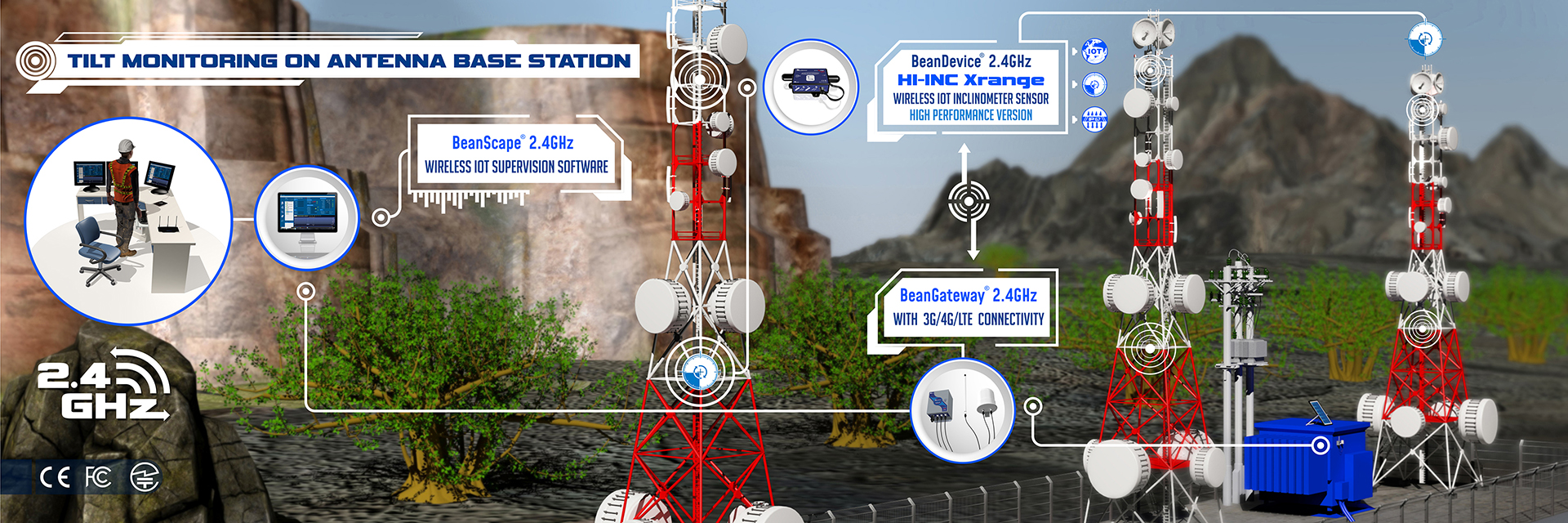

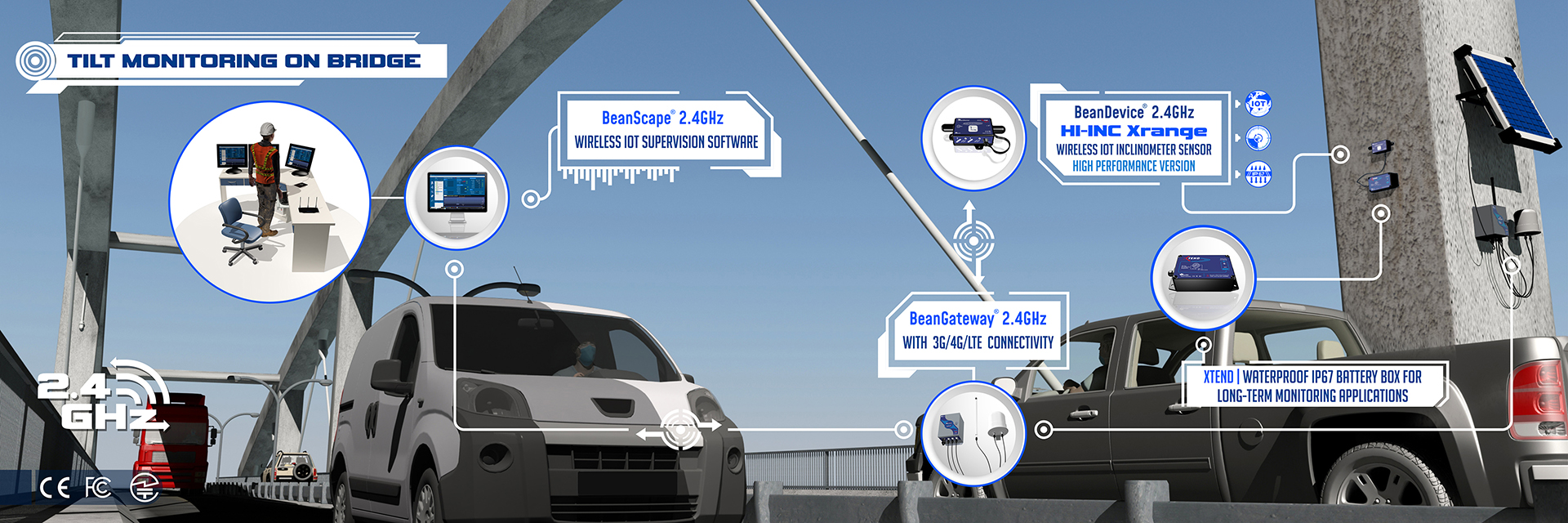

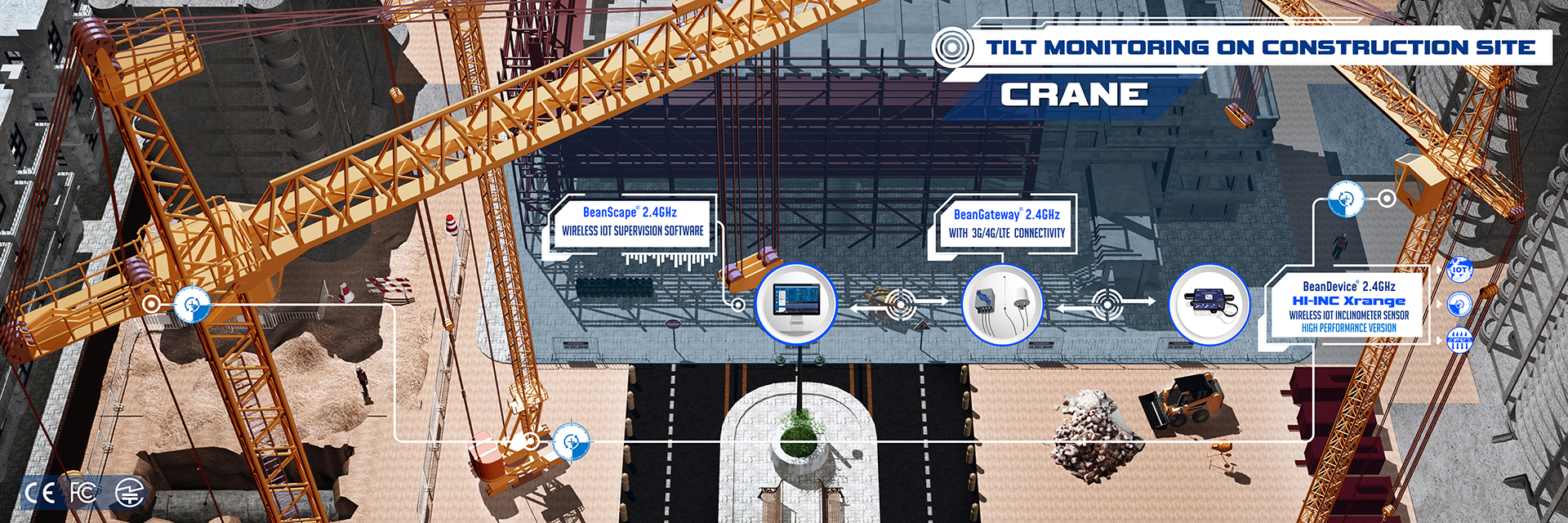

The BeanDevice® HI-INC XRange is suitable for a wide range of use cases, including:

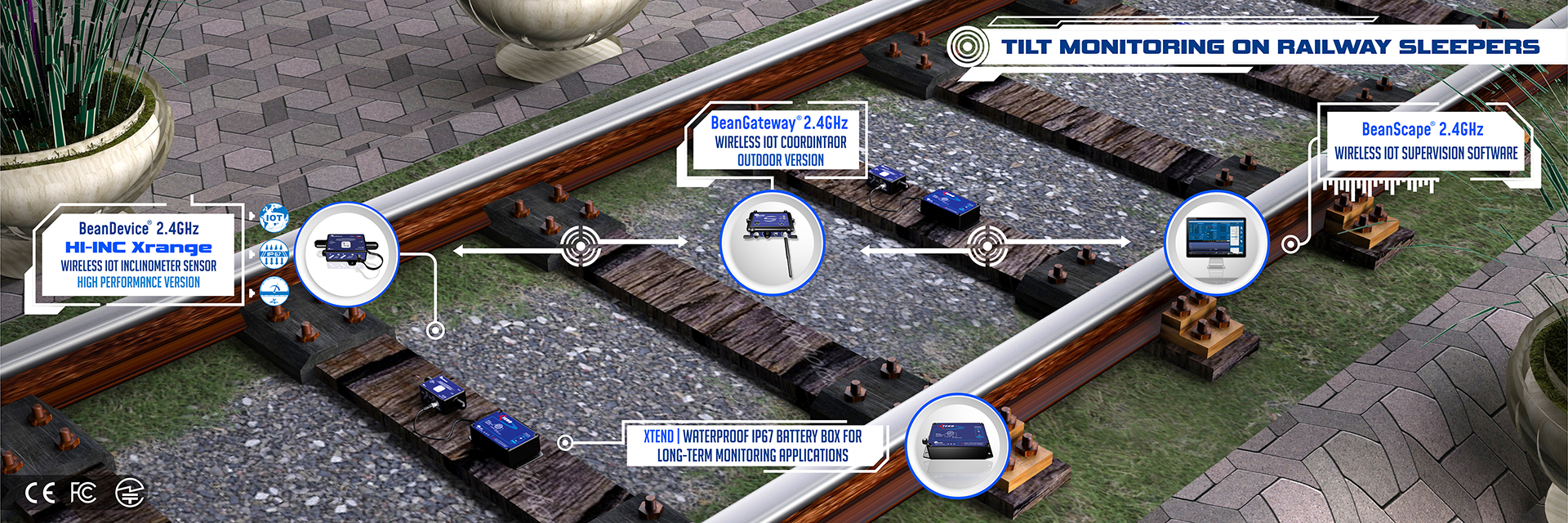

• Railway Sleeper Monitoring

«Video Icon »
Video
«Blue line »
Featured Video
First steps into BeanAir Industrial Internet of Things Sensors
WSN dedicated to Structural Health Monitoring
Product Video
Download Ressources
«Technical Documents Icon »
«Blue line »
«Anti-Aliasing Filter Icon »
Accessories
«Blue line »
INCLUDED ACCESSORIES

M8 plastic cap

1 x M8 Cap for Power Supply

Magnet for Power ON | Power OFF

1pcs Magnet.
OPTIONAL ACCESSORIES AND SERVICES
Standalone Solar System
High efficiency solar panel with Solar charging controller and Lead-acid battery
Ref: X-SOL-14AH-20W-4CH-4V-5M for XT version
Ref: X-SOL-14AH-20W-4CH-12V-5M for RB version
Ref: X-SOL-14AH-80W-4CH-4V-5M for XT version
Ref: X-SOL-14AH-80W-4CH-12V-5M  for RB version
Ref.: X-SOL-7AH-20W-4V-5M for XT version
Ref.: X-SOL-7AH-20W-12V-5M for RB version
More options and references are available on X-SOLAR datasheet

Molded Cable, M8 Male Plug to Bare wire
For sensor power supply (8-28VDC)
Material: PVC
IP Rating :  Waterproof-IP67 ( M8 Plug side in locked conditions )
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M

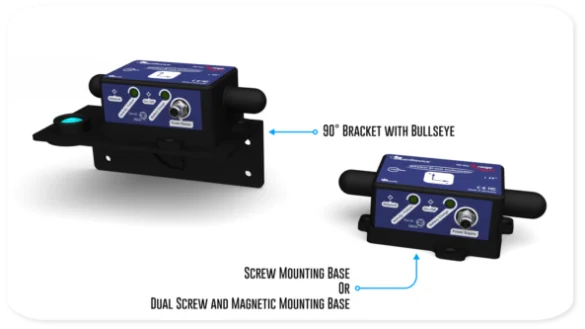

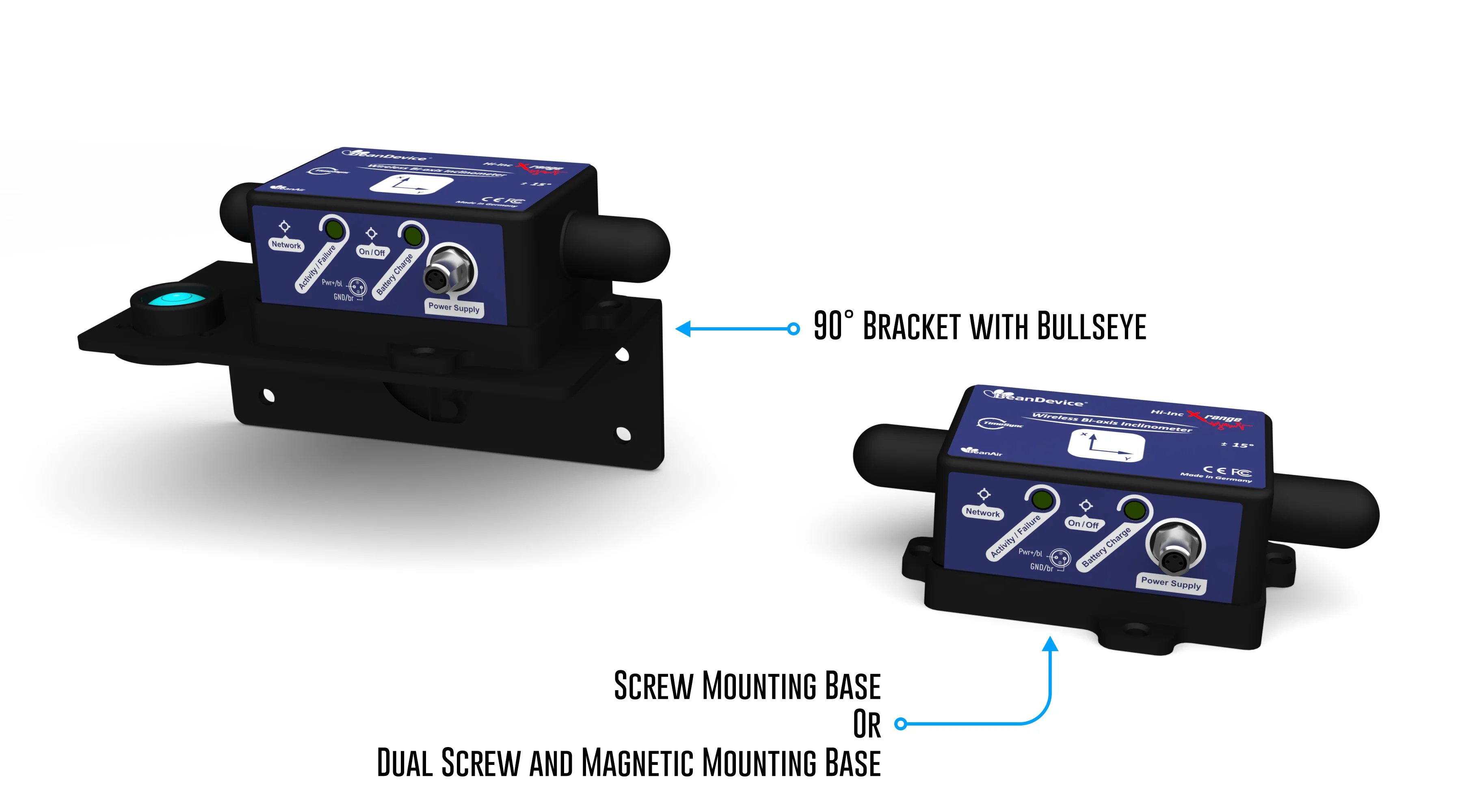

Mechanical Mounting Options

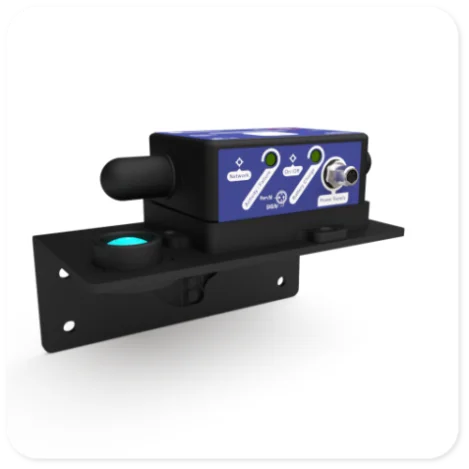

• 90° Bracket for BeanDevice
