MQTT Toolkit for IOT Sensors
INTRODUCTION
Ready for Industrial Internet of things (IOT) applications, WiLow® IOT sensors integrate natively MQTT (Message Queuing Telemetry Transport) data frame, a lightweight and open-source (OASIS & ISO/IEC 20922:2016 standards) Internet of Things protocol.
MQTT is designed to support wireless networks with varying levels of latency due occasional bandwidth constraints or unreliable connections. It is extremely easy to use and lightweight. The protocol uses a publish / subscribe architecture in contrast to HTTP with its request/response paradigm.
It is based on publish/subscribe paradigm, therefore user can easily connect, configure and manage several WiLow® sensors at the same time from a unique IOT software platform.
Users looking for a high level of security can enable TLS/SSL Encryption over MQTT, it will secure the communication link from the Wilow device to the IOT software.
No need to spend several months to develop a specific and complex supervision software, user can easily integrate WiLow® sensors in a third-party IOT software.
Non-developer users can still use the BeanScape® Wilow® software to setup a quick and affordable Wifi sensor network.
Visit MQTT Organization website: http://mqtt.org/
How is that working ?

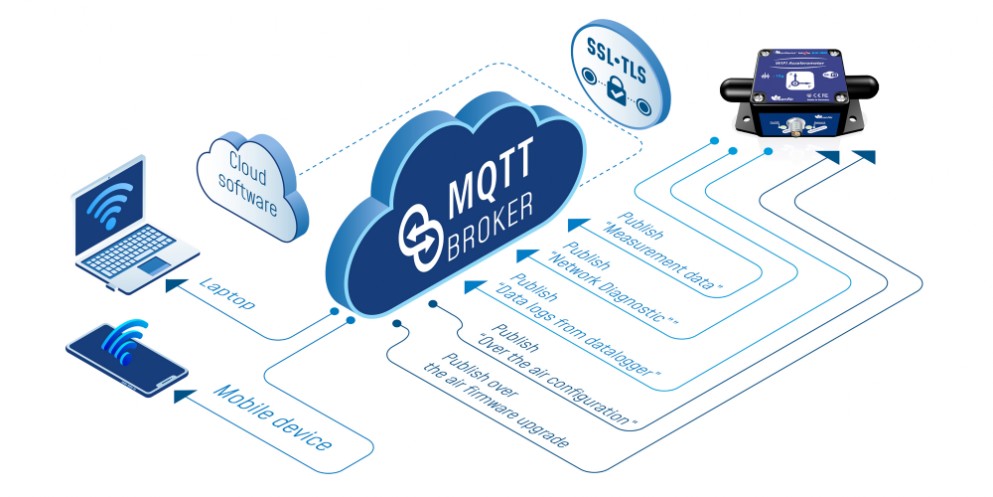

The Beandevice® Wilow® is hosting both a Publisher (Data Acquisition, Network Diagnostic) and a Subscriber (Over the air firmware upgrade, Over the air configuration). MQTT Broker will play an important role in data exchange:
Should the connection from a subscribing client (Laptop or Mobile device) to the broker get broken, the broker will buffer messages and push them out to the subscriber when it is back online.
Should the connection from the publishing client (BeanDevice® Wilow®) to the broker be disconnected without notice, the broker can close the connection and send subscribers a cached message with instructions from the publisher.
Discover our technical literature:
Read our technical note about MQTT communication protocol:
Download our examples of MQTT for Android/NodeRed/C#:
Read our User Guide about how to use our MQTT Toolkit built with C# :
Read our Guideline about how to use our MQTT Toolkit built with NodeRed :
Read our SSL TLS Encryption over MQTT for Wireless IOT Sensors
Read our MQTTT to FTP user guide
Read how to use MQTT with Labview
Download our MQTT examples for Labview, Android, Node-Red , C# and Python
Our source codes are available on GitHub
Examples SSL / TLS encryption over MQTT
Examples of MQTT Framework integration
GeoSupply ( Location: Taiwan)

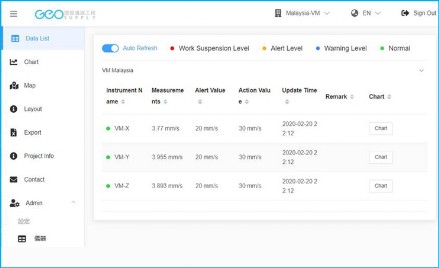

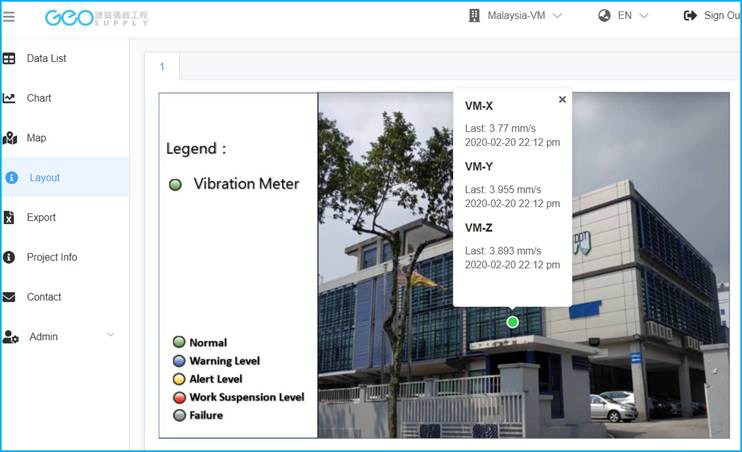

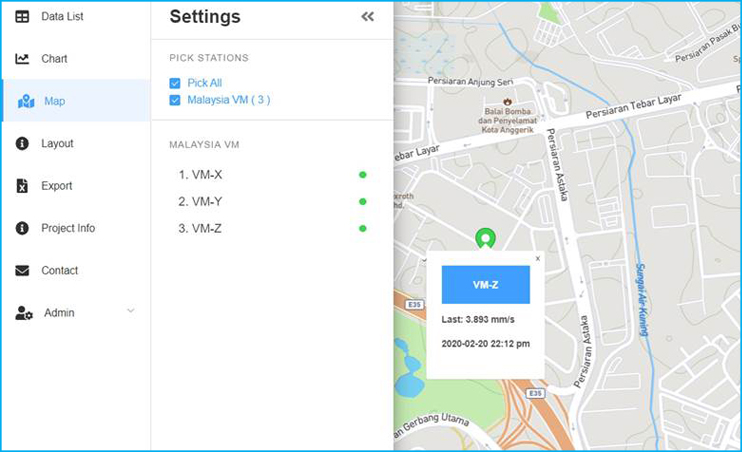

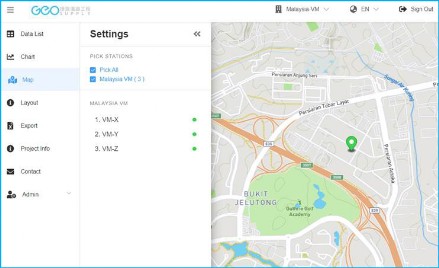

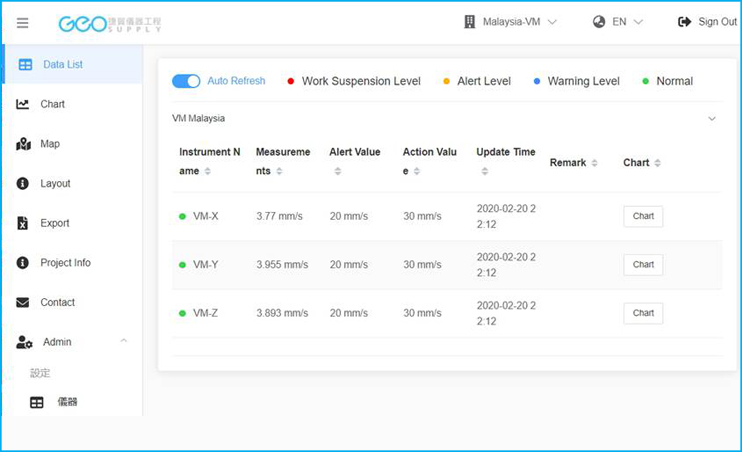

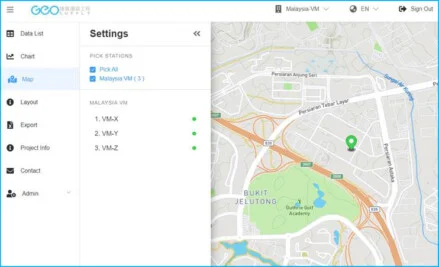

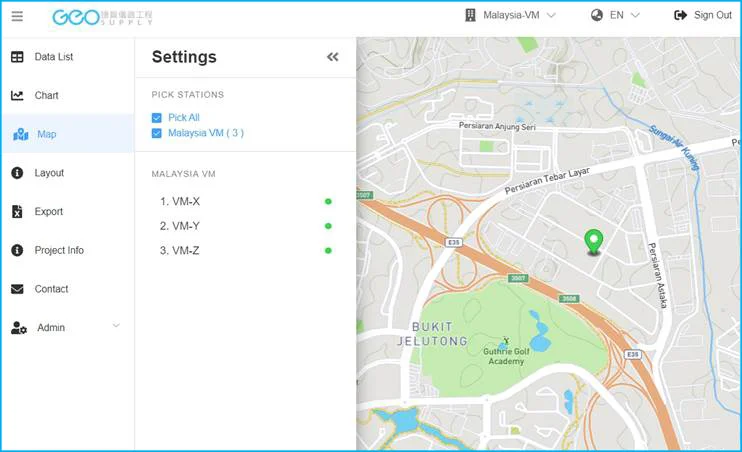

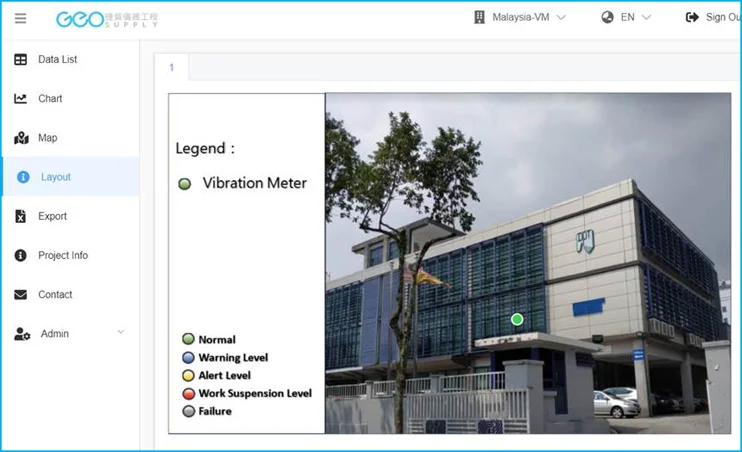

Description: Building Vibration Monitoring cloud software built with MQTT
Wireless IOT Sensor used : Beandevice Wilow AX-3D
Wireless IOT Sensor used : Beandevice Wilow AX-3D
More information about GeoSupply: https://www.geosupply.com.tw
VIDEO
Node-Red Toolkit
« How to use MQTT ToolKit node-Red on Wilow - WIFI IOT Sensors »
Labview
« How to use LabVIEW MQTT ToolKit on Wilow - WIFI IOT Sensors »
Python Toolkit
« How to use MQTT ToolKit Python on Wilow - WIFI IOT Sensors »
C# Toolkit
« How to use MQTT ToolKit C# on Wilow - WIFI IOT Sensors »
Android Toolkit
« How to use MQTT ToolKit Android on Wilow - WIFI IOT Sensors »
