Satevis® | Long-Range & Sensor fusion | LoRaWAN® Protocol
Satevis® Sensor Series Configuration

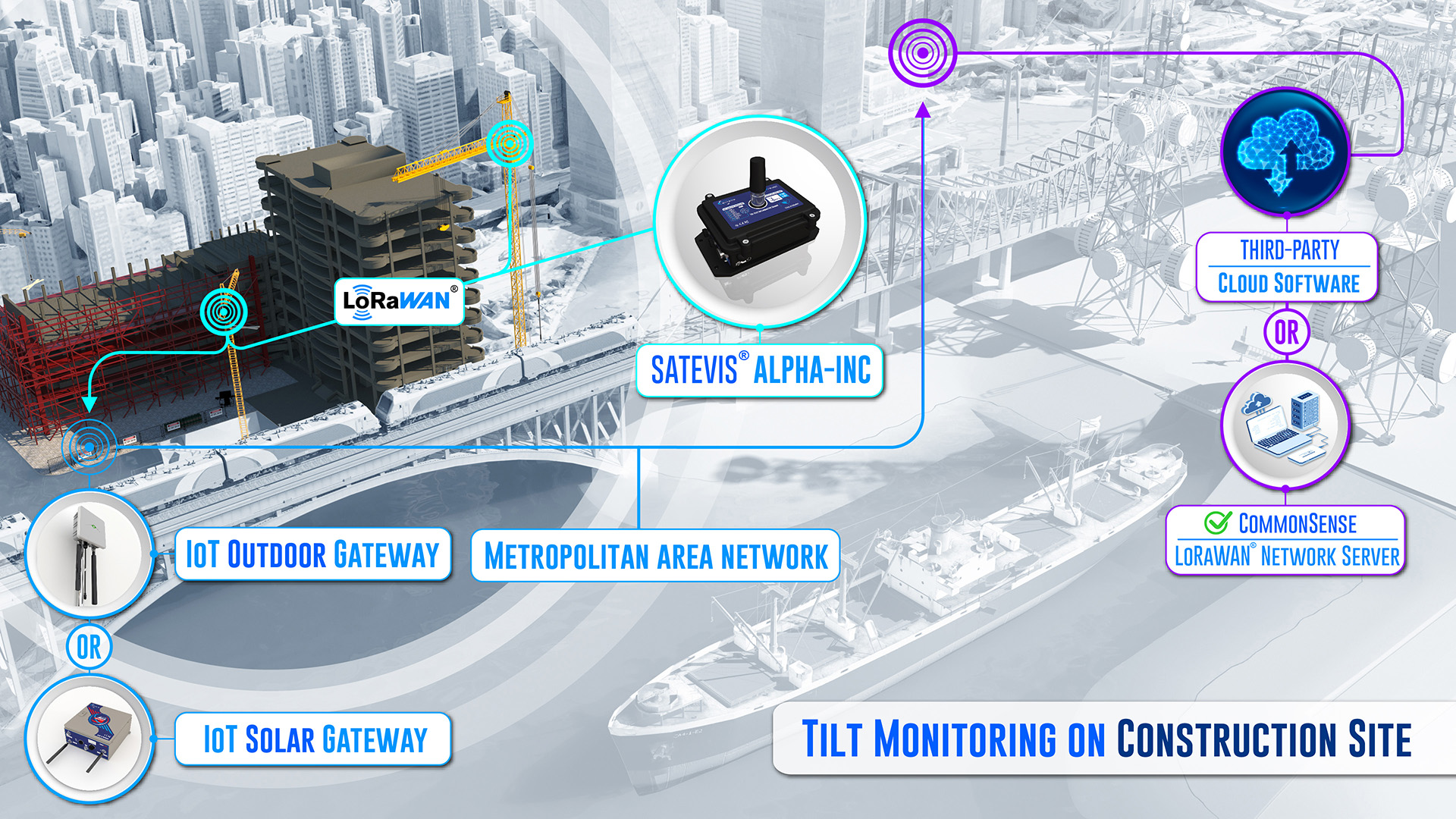

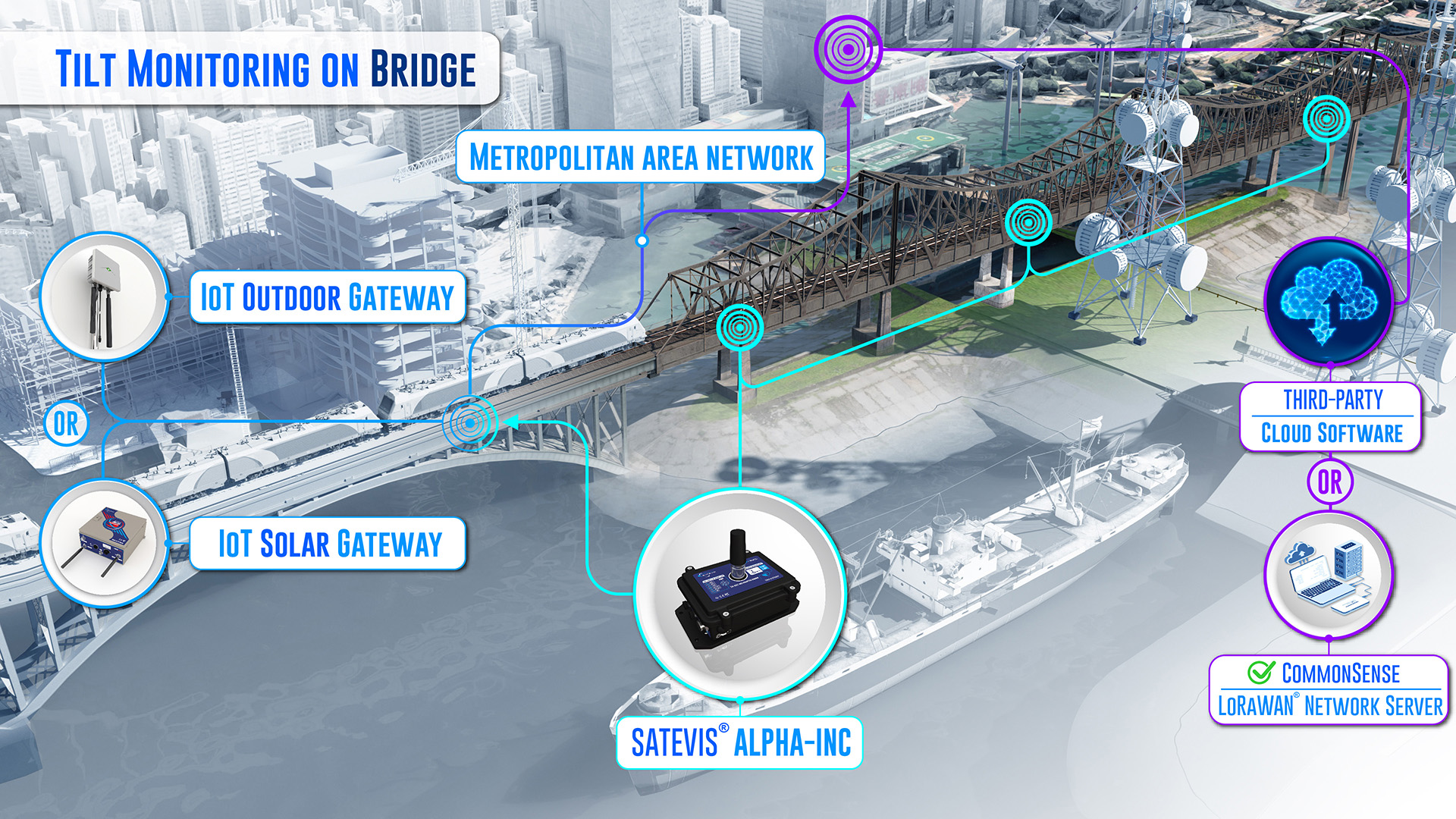

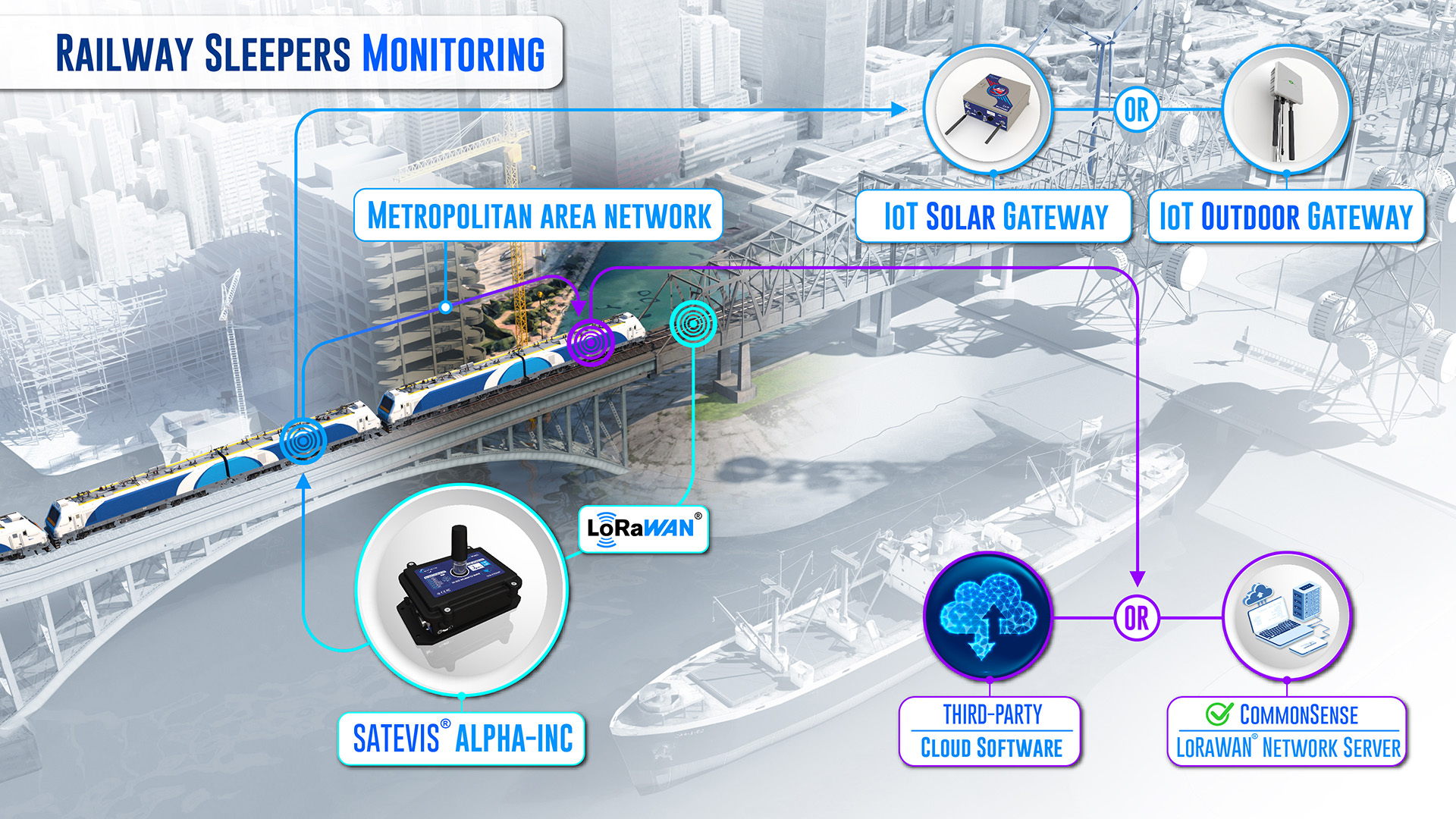

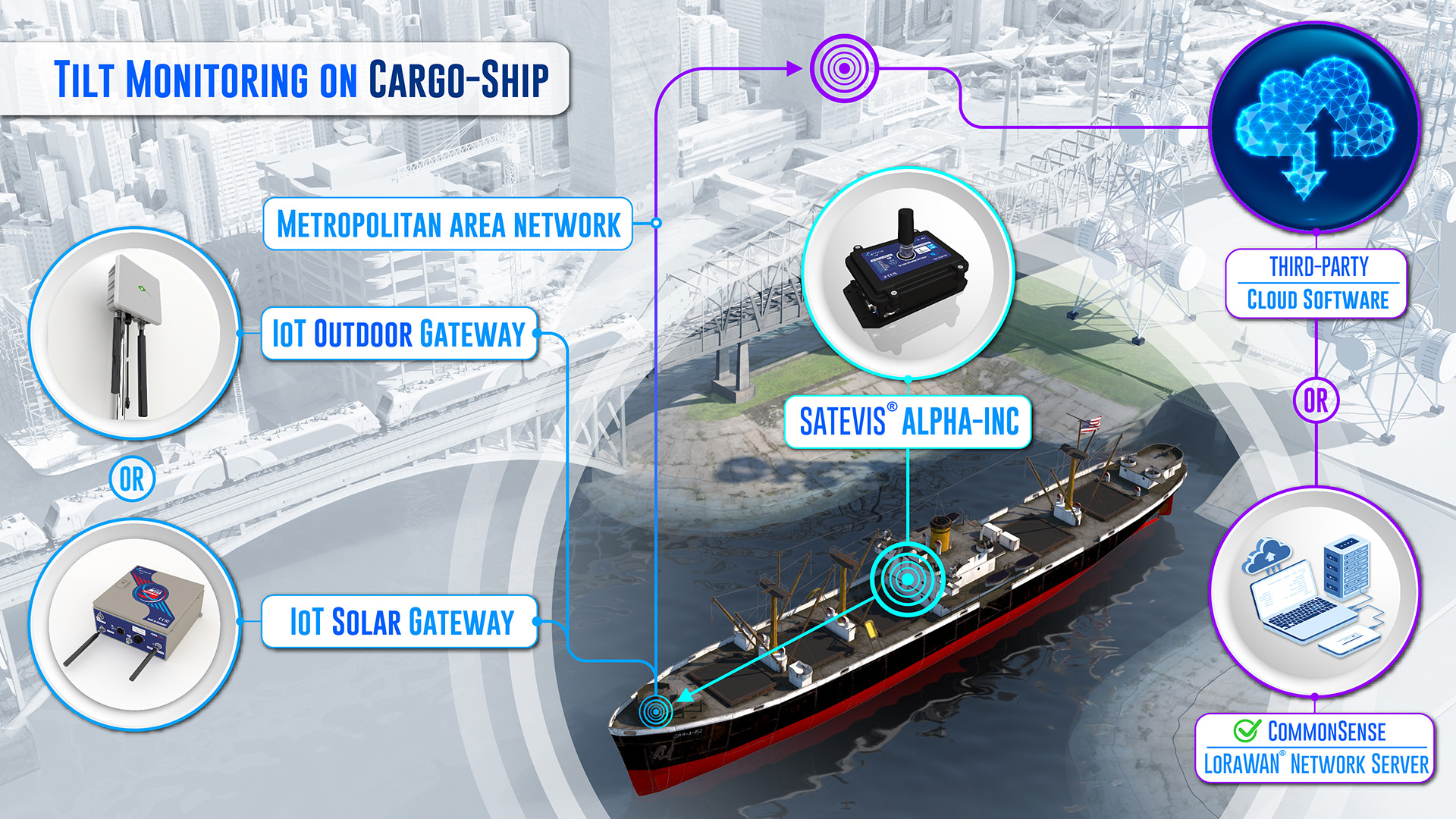

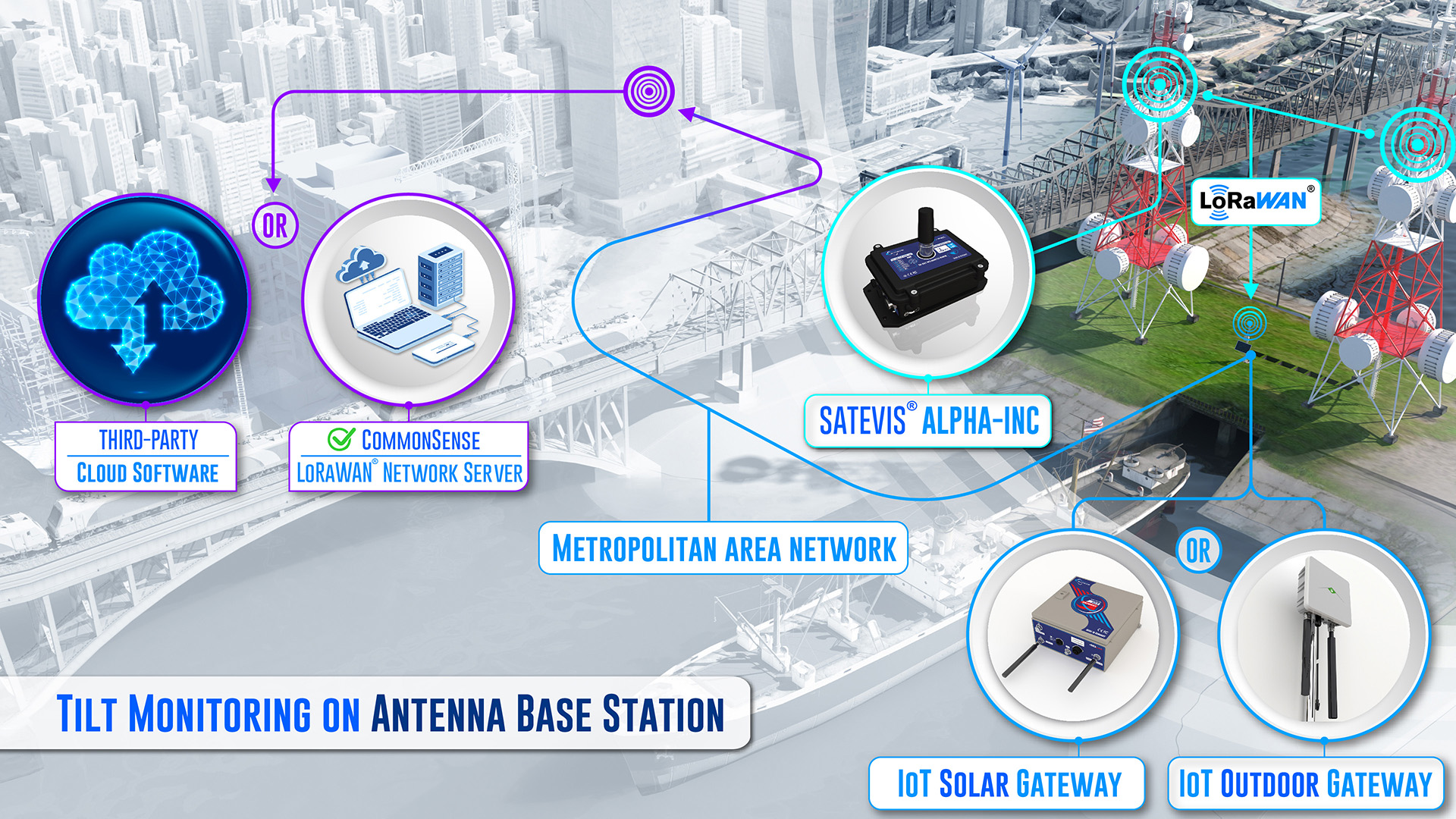

Satevis® Sensor Series Deployment
Wilow® | Open-Standard WIFI Sensors for Industrial Internet of Things

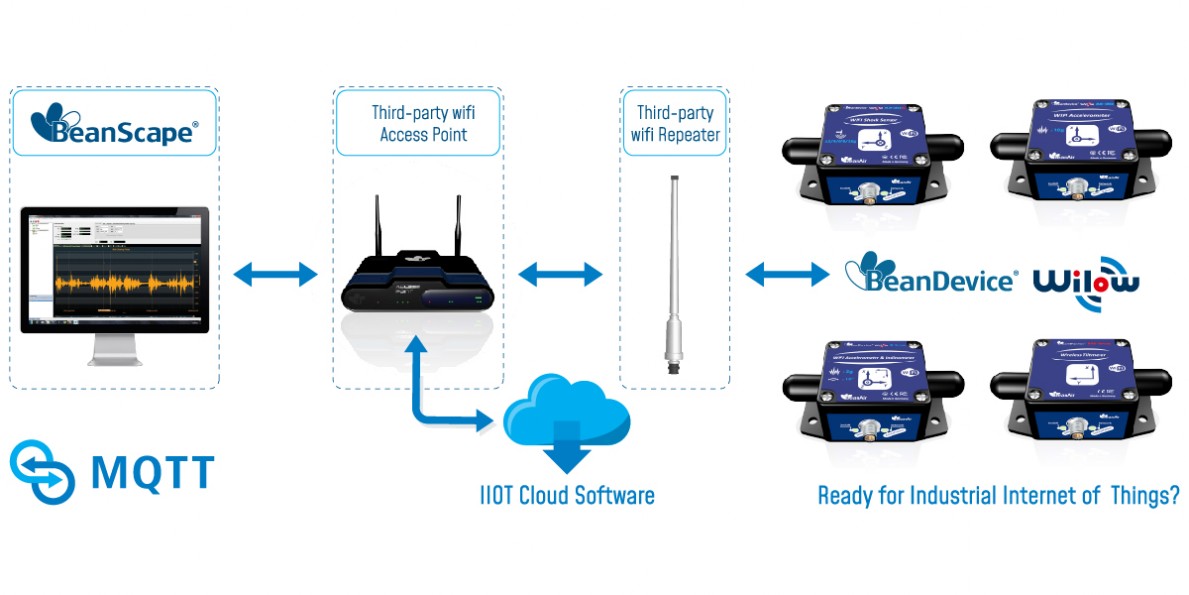

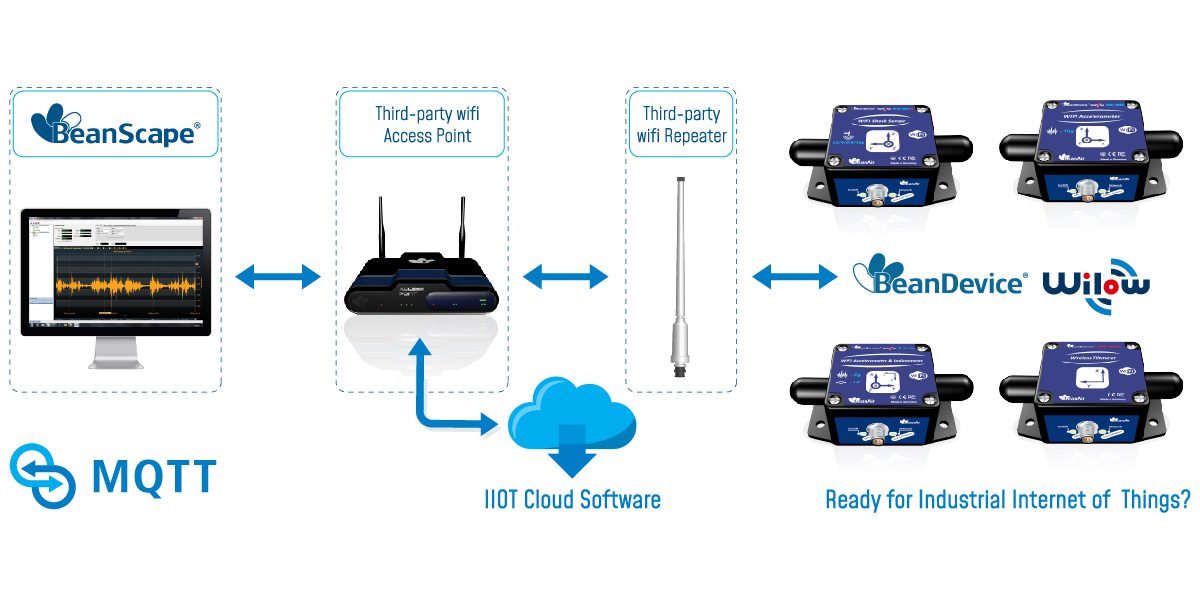

Wilow® Sensor Series Configuration

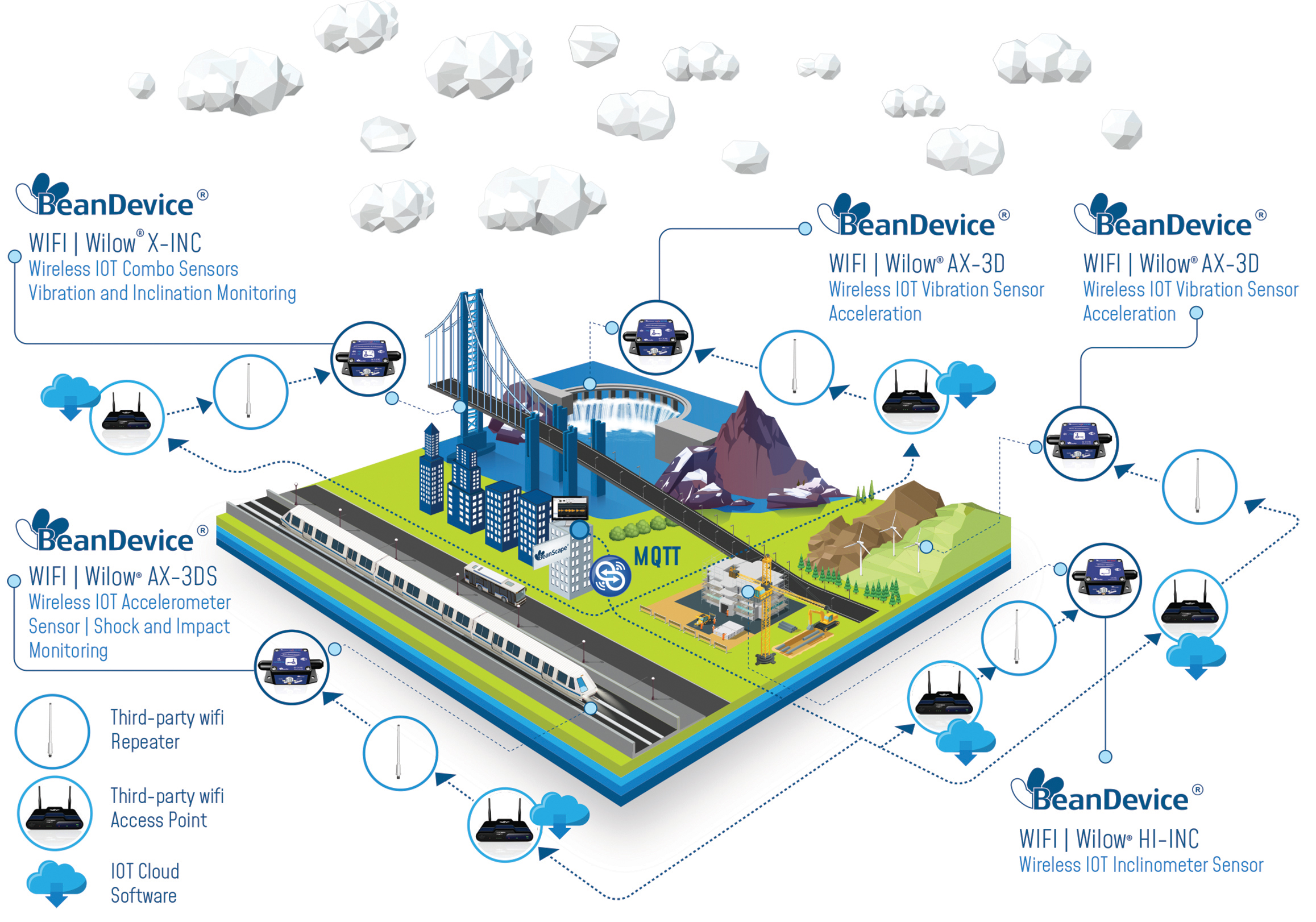

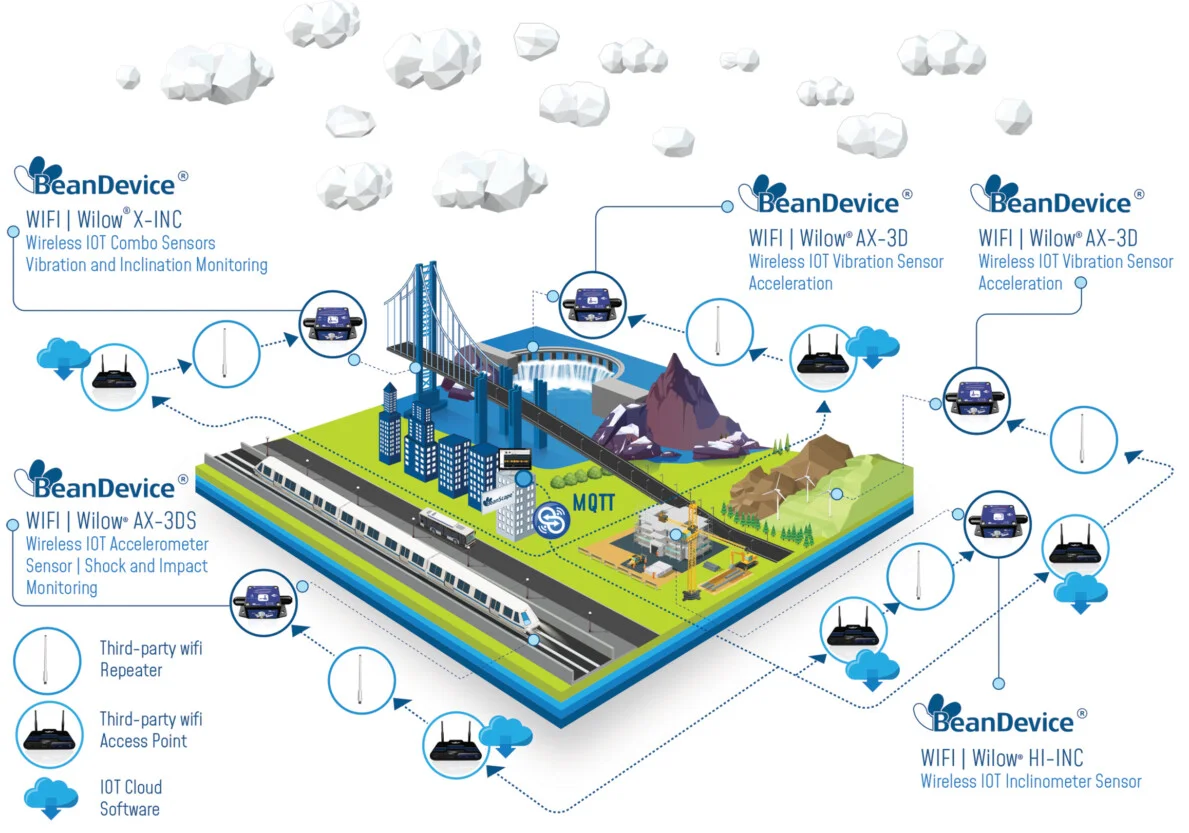

Wilow® Sensor Series Deployment
2.4GHz | Wireless IOT Sensors for Industrial Applications

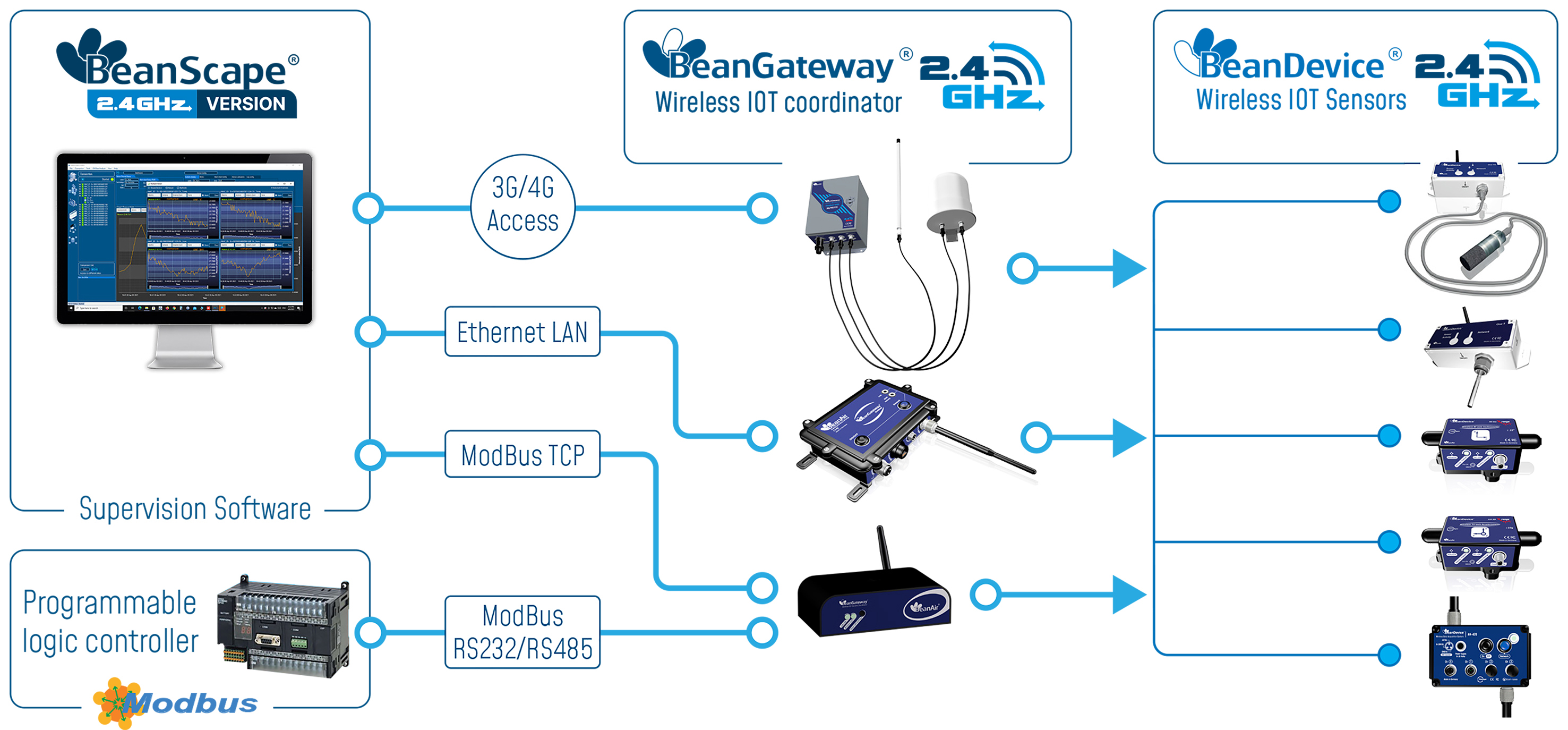

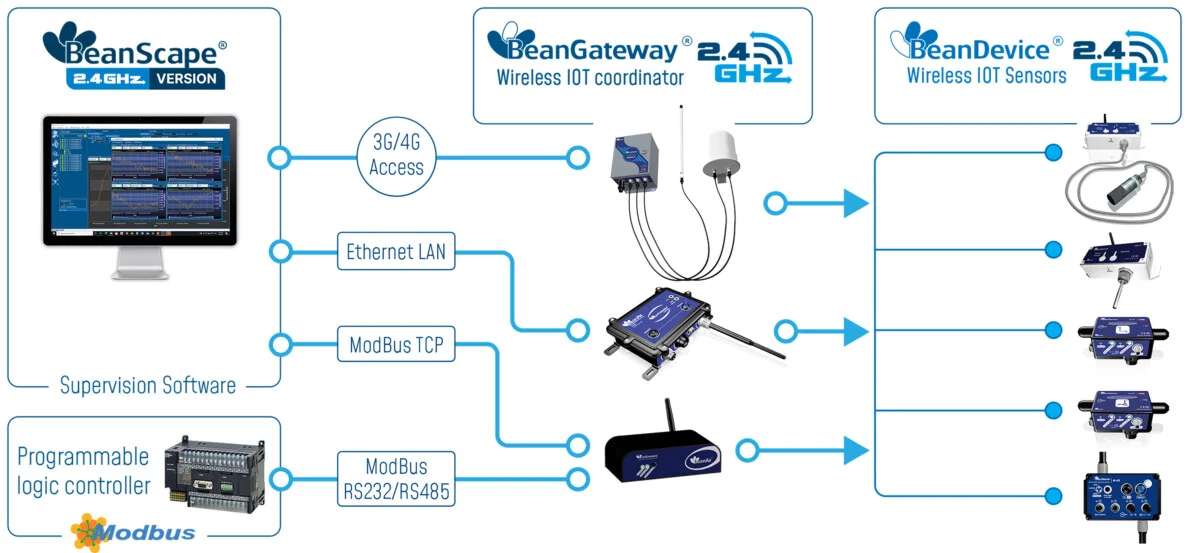

2.4GHz Sensor Series Configuration

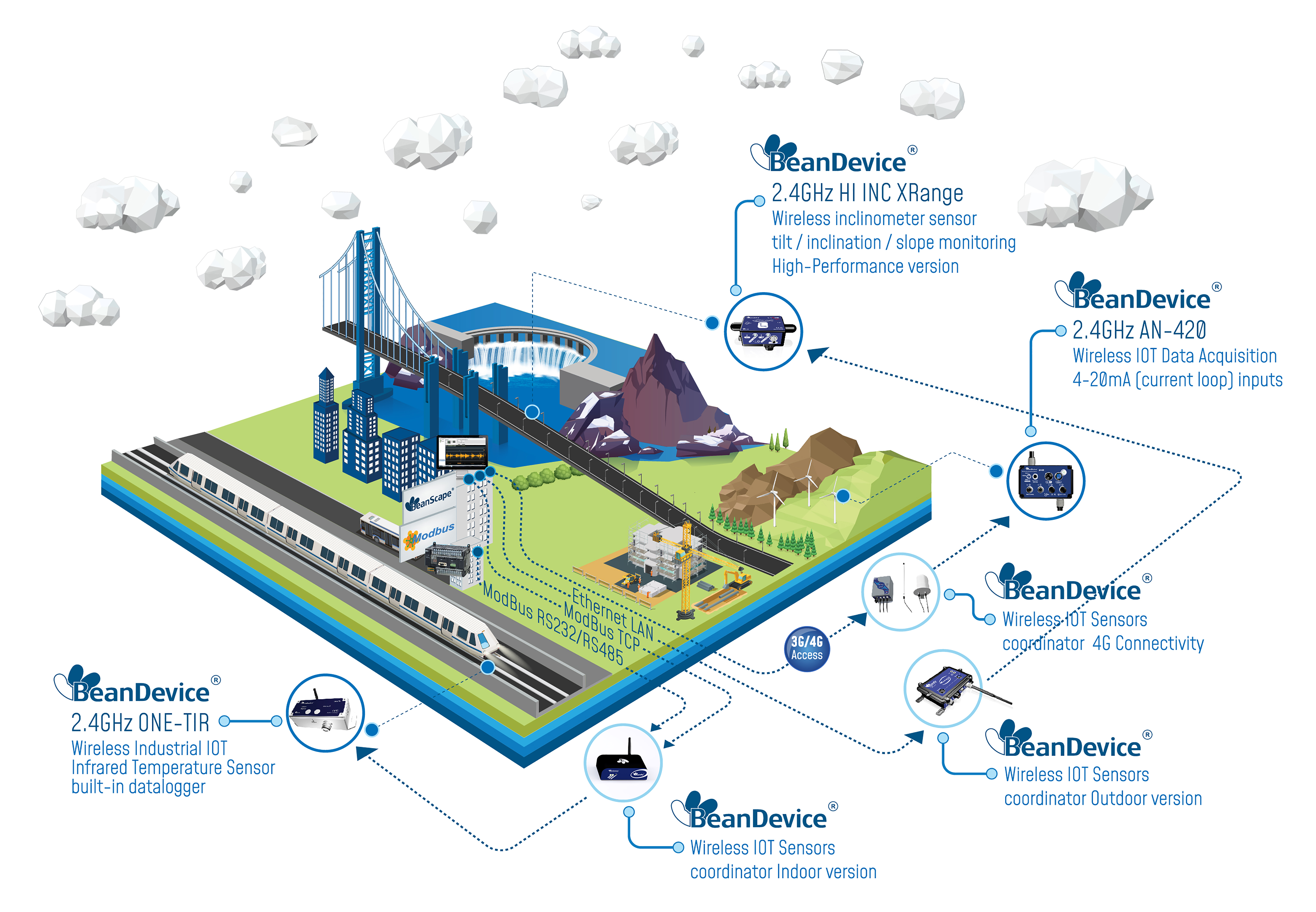

2.4GHz Sensor Series Deployment
Comparison Table
 |  |  | |
Wireless range in Line-of- Sight (L.O.S.) and Non Line-of-Sight (NLOS) | 15km max in Line of Sight (+22dBm transmission, 5dBi Antenna, Gateway installed on mast 25 meter Height) 1-2 km in Urban environment (density of Berlin city center) Ground to underground 200-500 meters max | With High Gain Antenna : 100-200m (L.O.S), 40-80m (N.L.O.S.) With Integarted Radome Antenna : 50-100m (L.O.S), 20-50m (N.L.O.S.) In both case Radio Range can be extended by adding Wifi Bridge/Repeater | High Gain Antenna : 400m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 60-120m (N.L.O.S.) Integrated Radome Antenna : 150m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 30-60m (N.L.O.S.) |
Wireless Technology | LoraWan® Protocol | IEEE 802.11 b/g/n @2.4GHz | 2.4GHz wireless based on IEEE 802.15.4E |
Open Standard or proprietary protocol | Open-Standard protocol | Open-Standard protocol | Proprietary Protocol |
Need a specific Wireless Network Coordinator (Gateway) ? | NO | NO | YES |
Low Power | ++++++ | ++ | ++++ |
Network Aggregation capacity | ✔✔✔ | ✔✔✔ | ✔ |
Available sensors/DAQ (Data Acquisition System) | Inclinometer combined with temperature/humidity, IR temperature, Displacement sensors | Vibration & Peak Particle Velocity, shock, Inclinometer | Temperature, IR temperature, humidity, dew point, Vibration & Peak Particle Velocity, shock, inclinometer, analog DAQ (4-20mA,±20 mV, ±5V, ±10V) |
IOT Ready | Yes, FREE JavaScript source codes for TTN, Uplink/Downlink fully documented | MQTT Framework. Free source codes available in C#, Labview, Android and NodeRed | NO |
Integrated Battery or Primary cell | High Density Lithium Thionyl Cell 19Ah or Lithium Thionyl cell pack 3x6.5Ah (Non-Rechargeable) | Rechargeable Lithium-Polymer battery 900mAh | -Rechargeable Lithium-Polymer battery 2000 mAh -Lithium thionyl cell 2Ah |
Energy Harvesting ( Solar power supply ) | NO | YES | NO |
USB Link | USB 2.0 | USB 2.0 | NO |
USB power supply | Only during configuration | YES | NO |
Easy Firmware update | Yes from USB | USB and Wifi | NO |
Store and Forward+ | Yes, available Q1 2025 | YES | NO |
Clock- synchronization | Yes, through Lorawan ±100 ms | ±30 ms | ±2.5 ms |
Encryption on Wireless Link | AES 256 | WEP, WAP, WAP2 | AES 128 |
Wakeup function | Timer | Timer | Timer |
