Wireless IOT Data Acquisition (DAQ) Instrument
2.4GHz Sensor Series

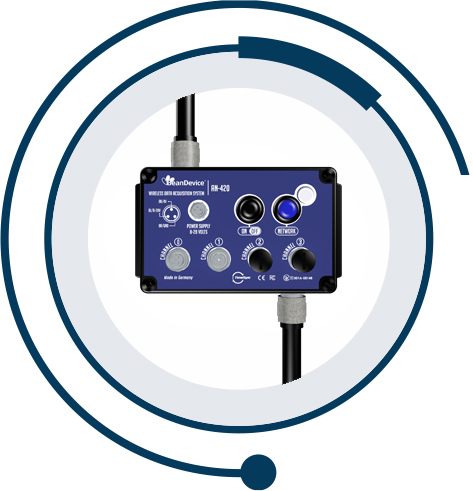

BeanDevice® 2.4GHz | AN-420
Wireless IOT Data Acquisition (DAQ) Instrument
4-20mA (current loop) inputs | built-in datalogger
 | Reference & Measurement Range | BND-2.4GHz-AN420-4CH |
 | Measurement Range | 4-20mA |
 | Sensors | Industrial sensors with 4-20mA output |
 | Measurement Repeatability (full scale, @ 25°C) | < ±0.01% |

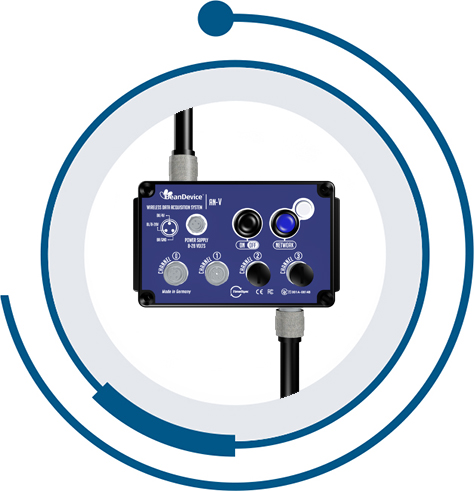

BeanDevice® 2.4GHz | AN-V
Wireless IOT Data Acquisition (DAQ) Instrument
Voltage inputs (±5V or ±10V) | built-in datalogger
| Reference & Measurement Range | BND-2.4GHz-AN-V-4CH-MR |
 | Measurement Range | ±5V or ±10V |
| Sensors | Sensors with single-end or differential voltage output |
| Measurement Repeatability (full scale, @ 25°C) | < ±0.01% |

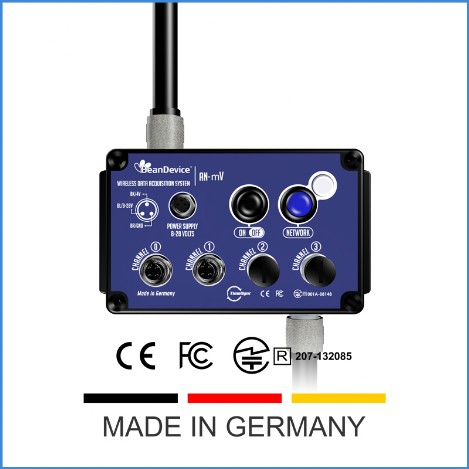

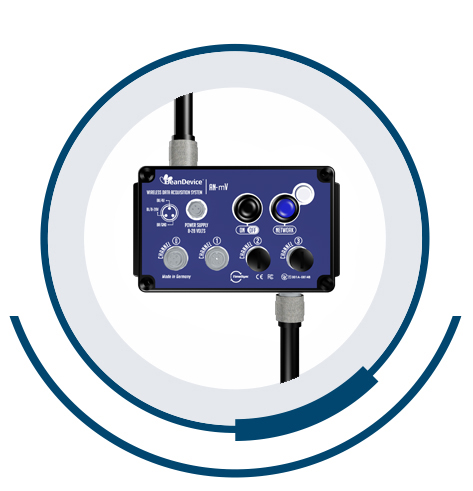

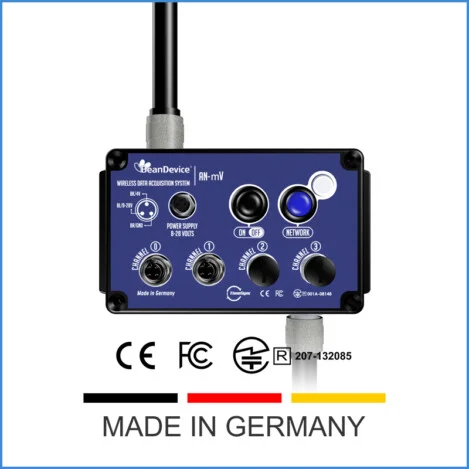

BeanDevice® 2.4GHz | AN-mV
Wireless IOT Data Acquisition (DAQ) Instrument
low voltage inputs (±20mV) | built-in datalogger
| Reference & Measurement Range | BND-2.4GHz-AN-mV-4CH |
 | Measurement Range | ±20mV |
| Sensors | Strain gage sensors (full bridge), Load Cell, Pressure sensor |
| Measurement Repeatability (full scale, @ 25°C) | < ±0.025% Static Measurement mode 2s < ±0.35% Dynamic Measurement mode 10Hz |
COMMON SPECIFICATIONS
BeanDevice® 2.4GHz
Wireless IOT Data Acquisition (DAQ) Instrument
 | Number of channels | 4 channels |
 | Maximum wireless Range (L.O.S.) | 650 meters (Line of Sight) , 30-100 meters (Non Line of Sight) |
 | Maximum sampling rate per channel | 400 Samples per second (16-bit ADC) |
 | Data Logger Size | 1 million data points |
 | Battery | Lithium-polymer Rechargeable battery with 2200 mAh of capacity |
 | Operating temperature | -40°C to +65°C |
 | Casing | Aluminum, Watertight IP67 | NEMA 4 casing dimensions (without antenna )L x w x h: 156mm x 82mm x 57mm Weight : 760g |
 | External sensor power supply | 4.5 to 20 volts, configurable from the BeanScape Software |
