Antenna Cables

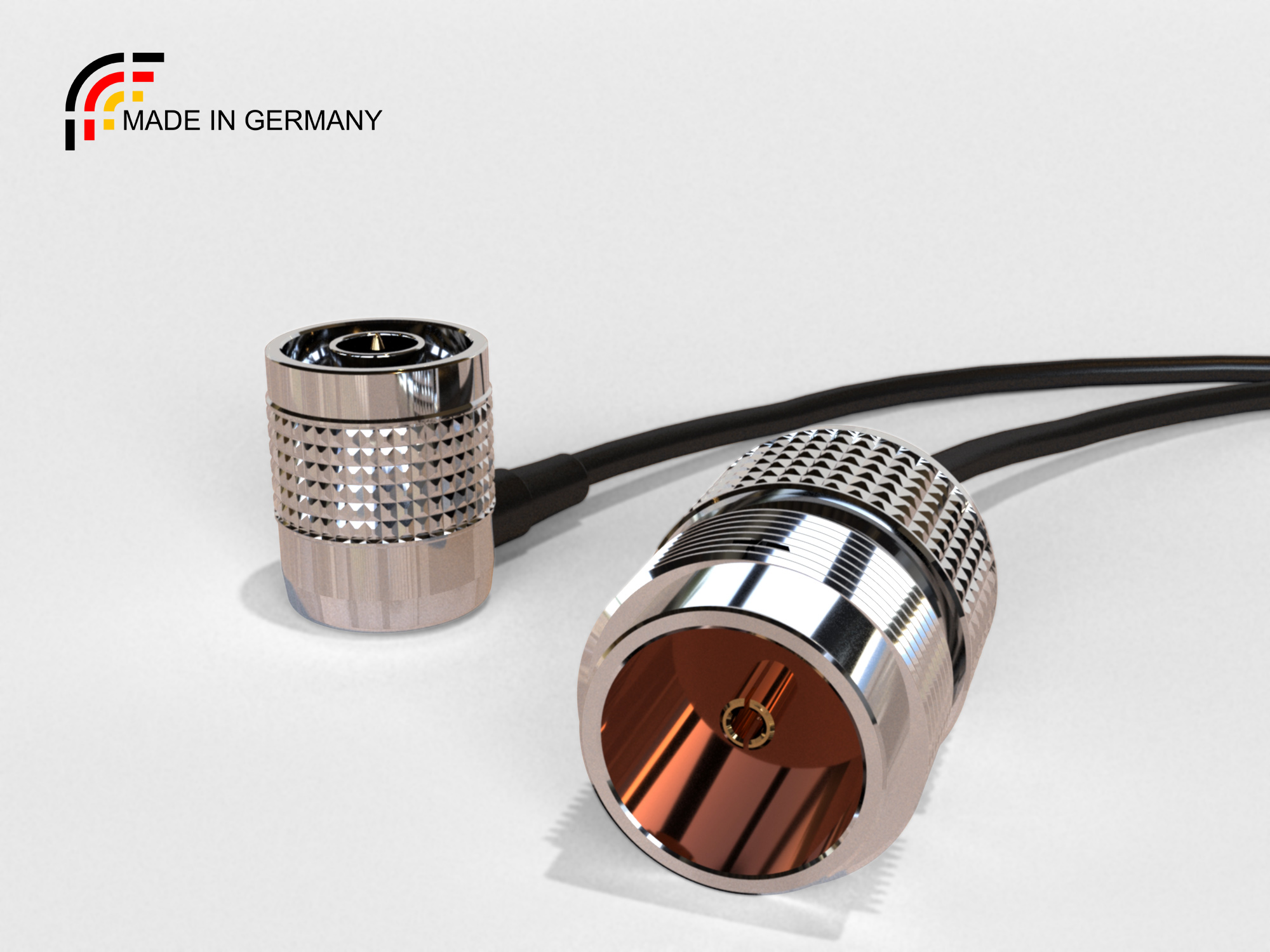

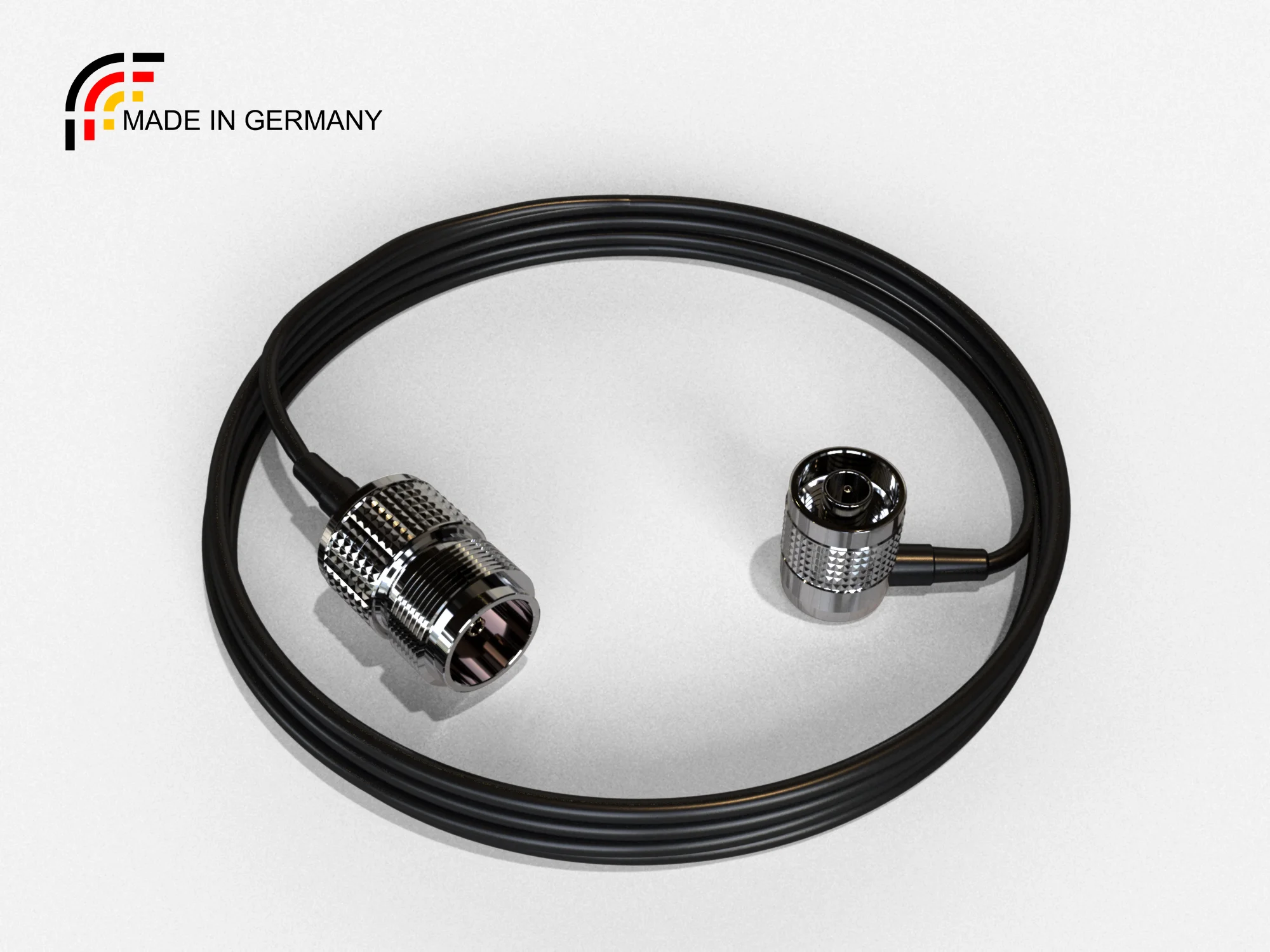

N-Type Right Angle male to N-Type straight female (2 meters H155 cable)
Reference Cable: CBL-ANT-2M-NTRAM-NTSF
Cable Type:
- H-155 with 6.1 mm diameter
- H 155 is a modern low loss coax cable within the 5 mm range, compared to RG58 it has less losses thanks to its double shielding with braid and foil.
Attenuation per 100m:
- 9.4 dB @ 100 MHz
- 19 dB @ 400 MHz
- 35 dB @ 1000 MHz
- 55 dB @ 2400 MHz
Capacitance: 100 pF/m
Velocity Ratio: 0.79
Impedance: 50 Ohm
Operating Temperature: -30°C bis +70°C
Environmental: RoHS konform / RoHS compliant / 2002 / 95 / EC

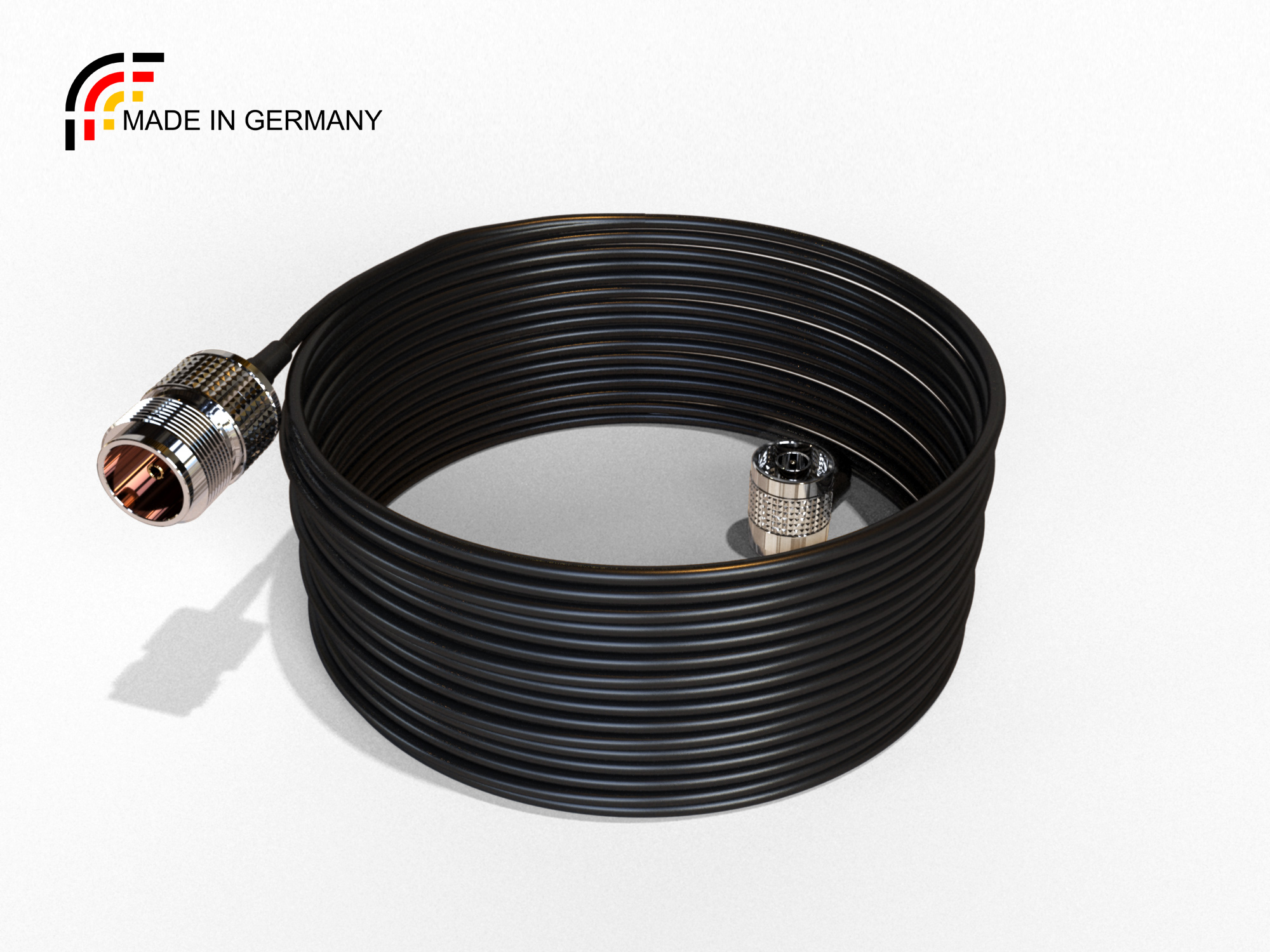

N-Type Right Angle male to N-Type straight female cable antenna, Cable length 10 meters H155 Cable
Reference Cable: CBL-ANT-10M-NTRAM-NTSF
Cable Type:
- H-155 with 6.1 mm diameter
- H 155 is a modern low loss coax cable within the 5 mm range, compared to RG58 it has less losses thanks to its double shielding with braid and foil.
Attenuation per 100m:
- 9.4 dB @ 100 MHz
- 19 dB @ 400 MHz
- 35 dB @ 1000 MHz
- 55 dB @ 2400 MHz
Capacitance: 100 pF/m
Velocity Ratio: 0.79
Impedance: 50 Ohm
Operating Temperature: -30°C bis +70°C
Environmental: RoHS konform / RoHS compliant / 2002 / 95 / EC

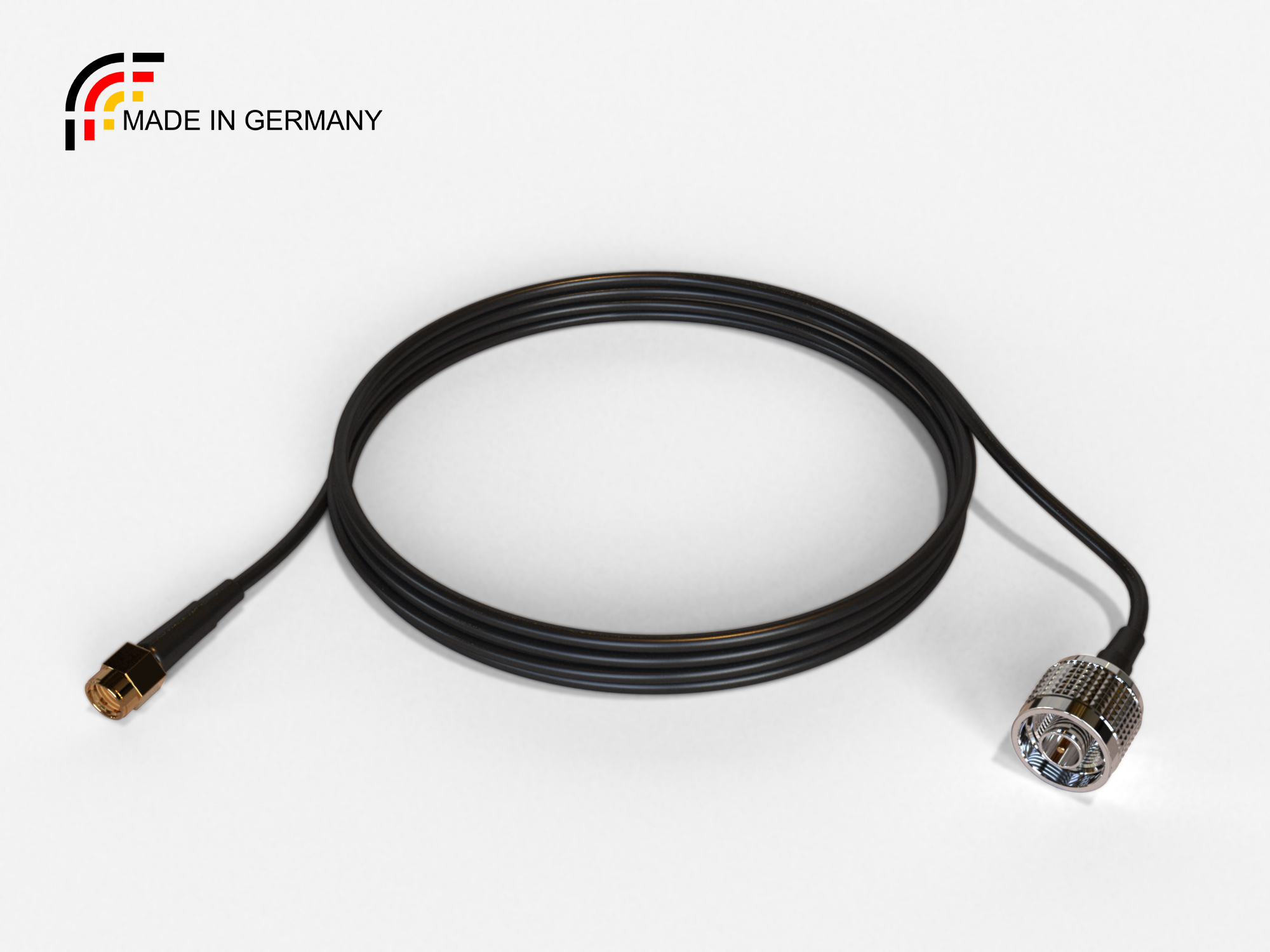

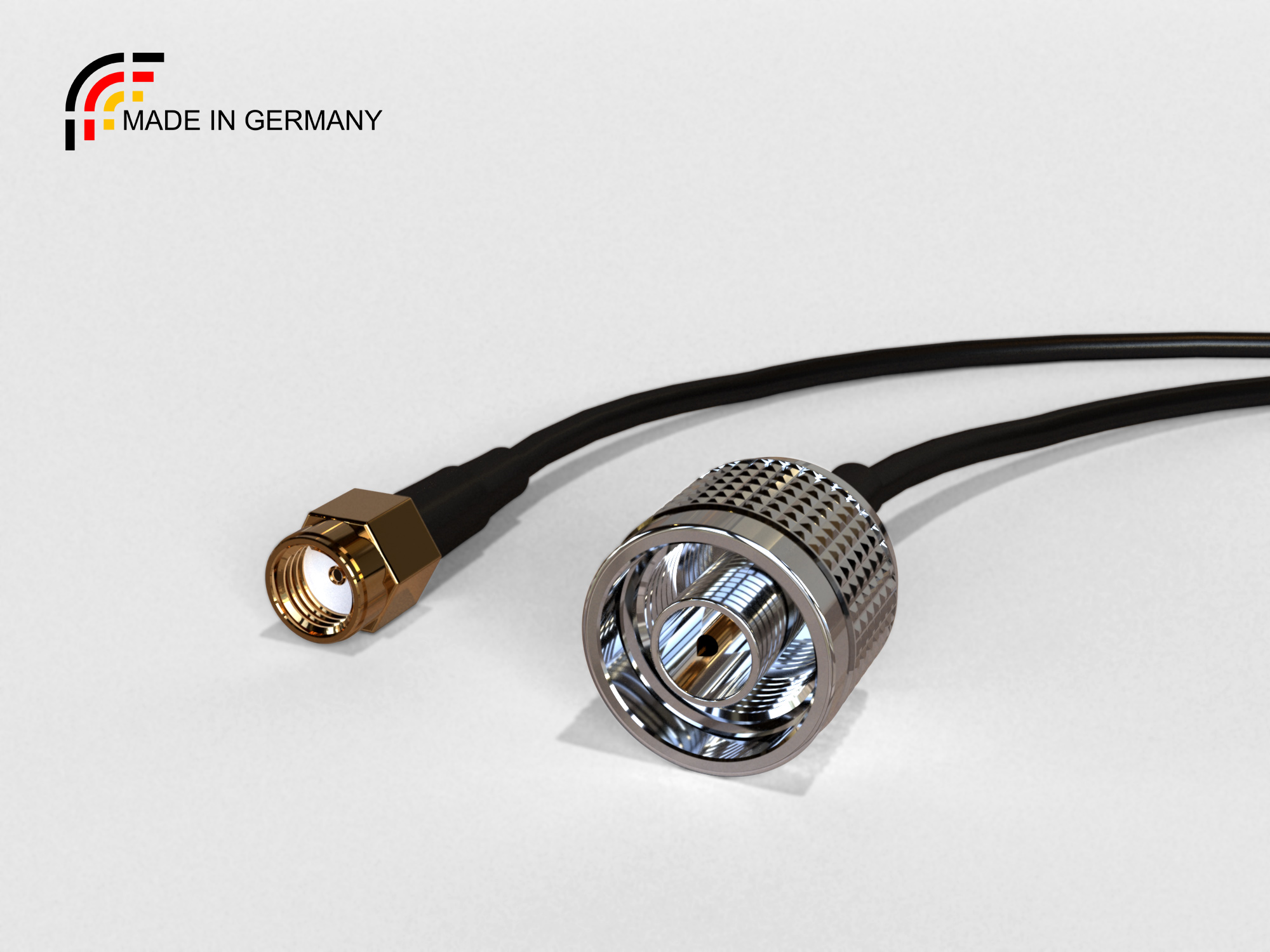

N-Type straight male to RPSMA straight male ( 2 meters RF5/H155 cable )
Reference Cable: CBL-ANT-2M-NTSM-RPSMASM
Cable Type:
- H-155 with 6.1 mm diameter
- H 155 is a modern low loss coax cable within the 5 mm range, compared to RG58 it has less losses thanks to its double shielding with braid and foil.
Attenuation per 100m:
- 9.4 dB @ 100 MHz
- 19 dB @ 400 MHz
- 35 dB @ 1000 MHz
- 55 dB @ 2400 MHz
Capacitance: 100 pF/m
Velocity Ratio: 0.79
Impedance: 50 Ohm
Operating Temperature: -30°C bis +70°C
Environmental: RoHS konform / RoHS compliant / 2002 / 95 / EC

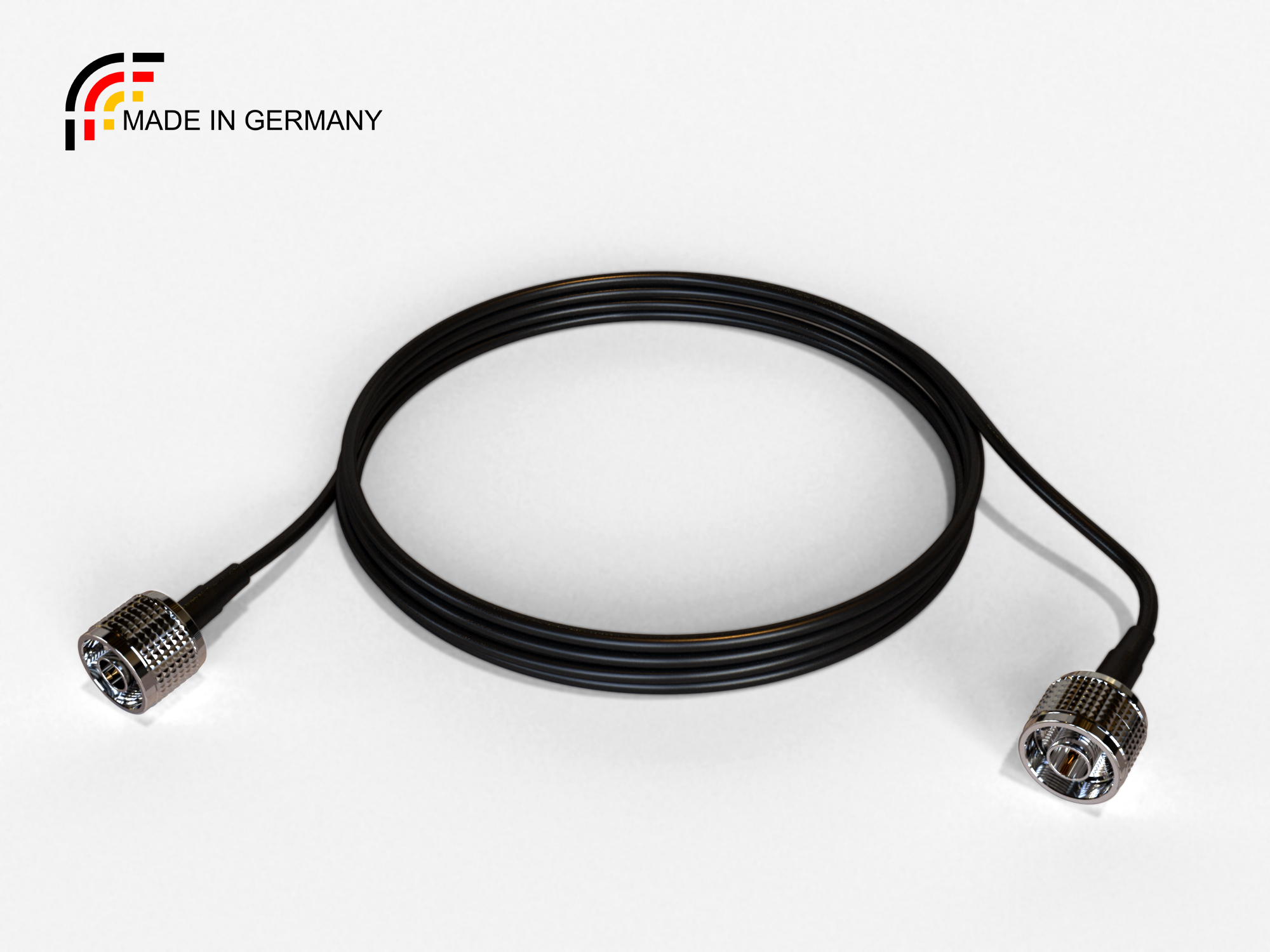

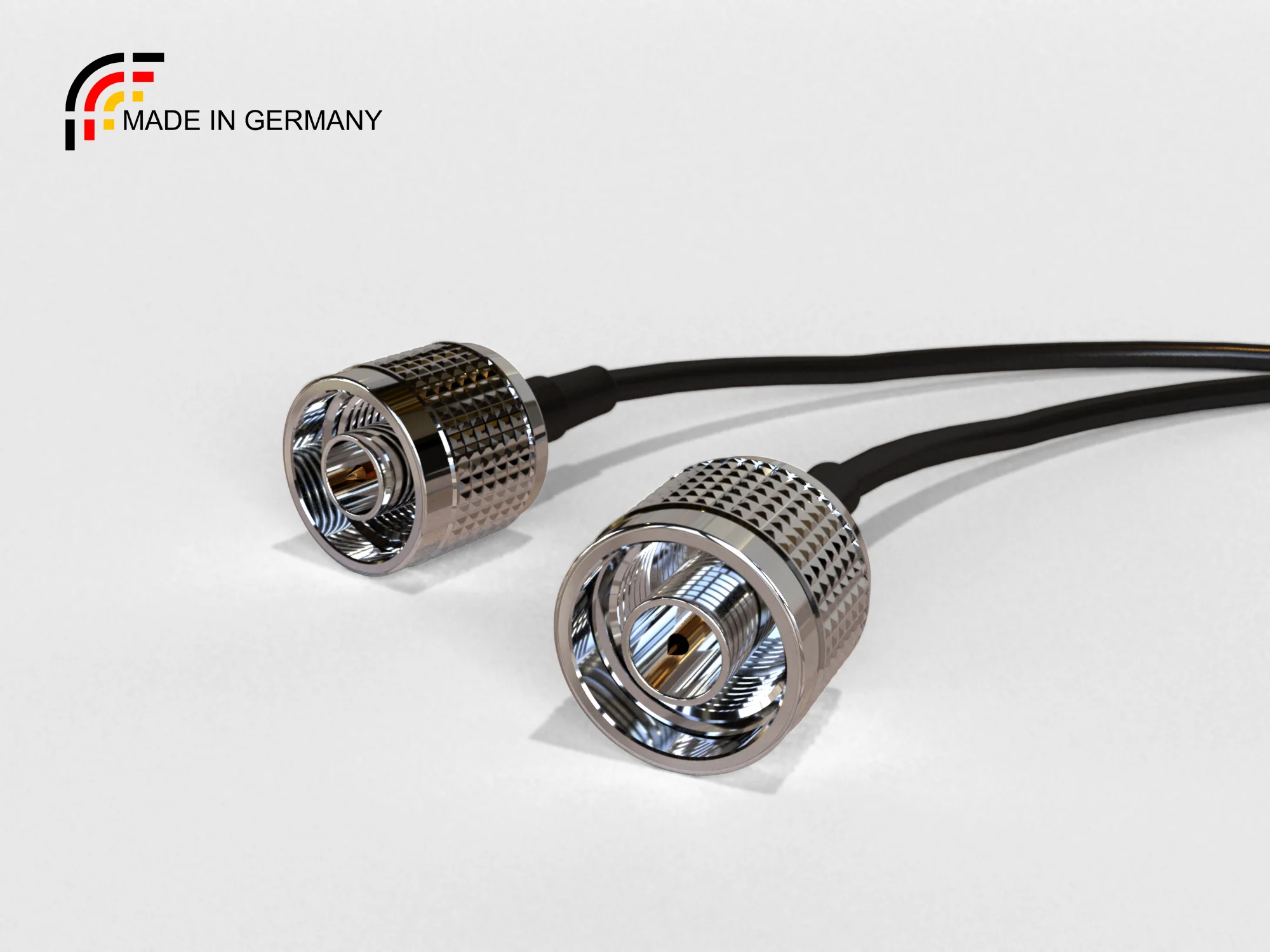

N-Type Straight Male to N-Type Straight Male Cable Antenna, Cable length ( 2 meters H155 Cable )
Reference Cable: CBL-ANT-2M-NTSM-NTSM
Cable Type:
- H-155 with 6.1 mm diameter
- H 155 is a modern low loss coax cable within the 5 mm range, compared to RG58 it has less losses thanks to its double shielding with braid and foil.
Attenuation per 100m:
- 9.4 dB @ 100 MHz
- 19 dB @ 400 MHz
- 35 dB @ 1000 MHz
- 55 dB @ 2400 MHz
Capacitance: 100 pF/m
Velocity Ratio: 0.79
Impedance: 50 Ohm
Operating Temperature: -30°C bis +70°C
Environmental: RoHS konform / RoHS compliant / 2002 / 95 / EC

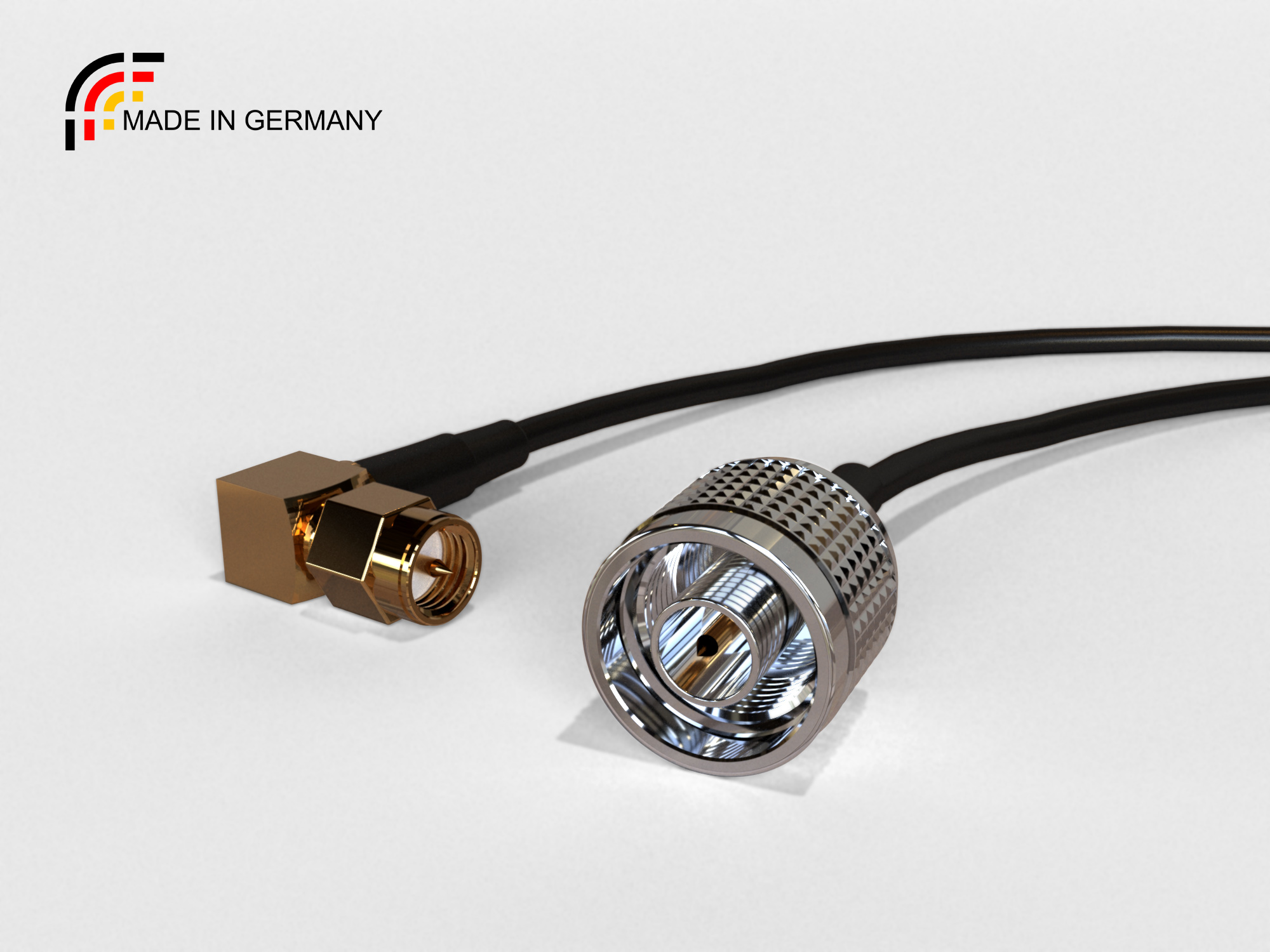

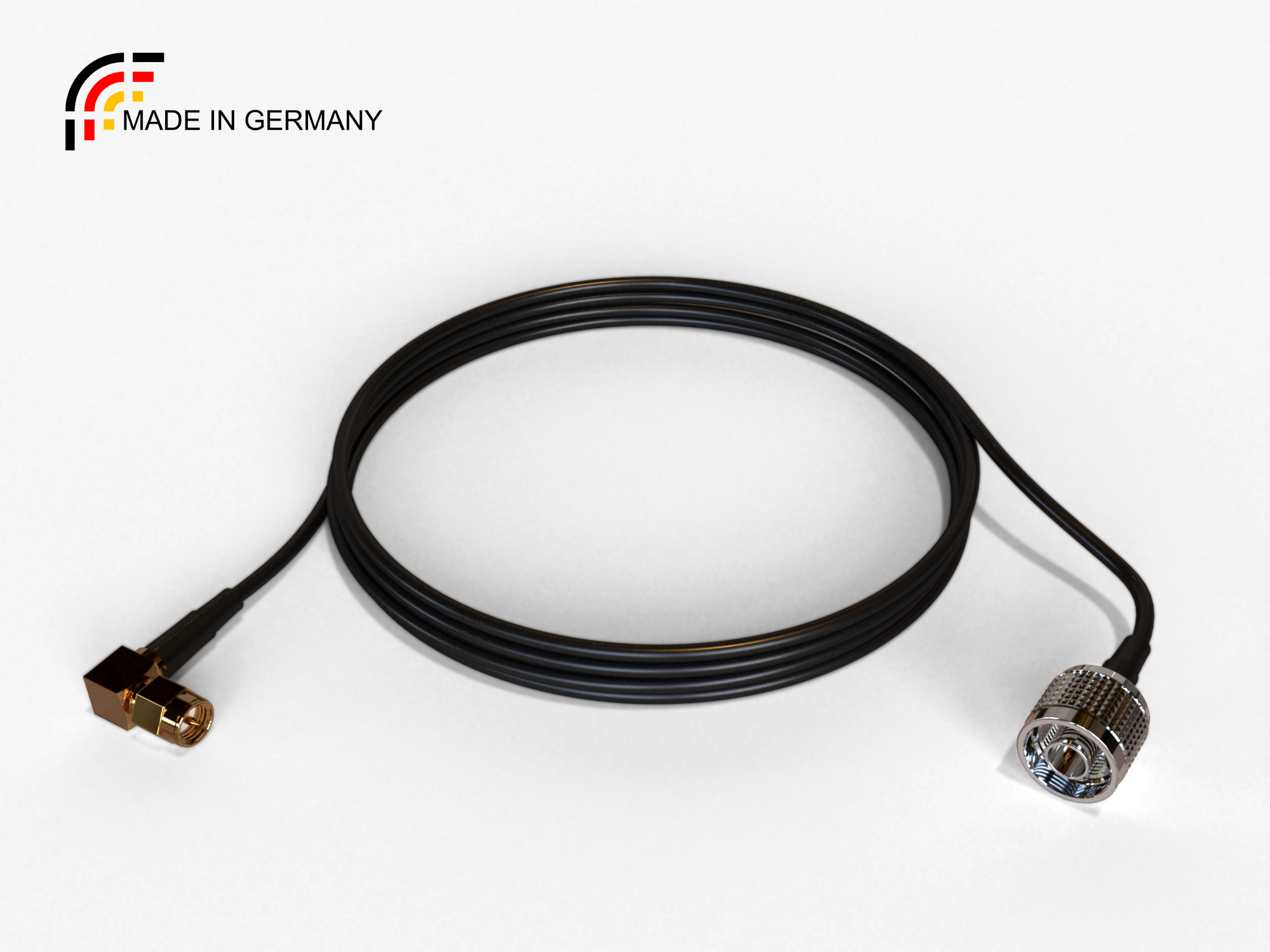

N-Type Straight Male to SMA Right Angle Male ( 2 meters RF5/H155 cable )
Reference Cable: CBL-ANT-2M-NTSM-SMARAM
Cable Type:
- H-155 with 6.1 mm diameter
- H 155 is a modern low loss coax cable within the 5 mm range, compared to RG58 it has less losses thanks to its double shielding with braid and foil.
Attenuation per 100m:
- 9.4 dB @ 100 MHz
- 19 dB @ 400 MHz
- 35 dB @ 1000 MHz
- 55 dB @ 2400 MHz
Capacitance: 100 pF/m
Velocity Ratio: 0.79
Impedance: 50 Ohm
Operating Temperature: -30°C bis +70°C
Environmental: RoHS konform / RoHS compliant / 2002 / 95 / EC
