XTEND
Waterproof IP67 battery box for long-term Monitoring Applications
Technical Documents
MAIN FEATURES
• Battery Pack with 3 x C size primary cell, Li-SOCL2 Lithium Primary cell 3.6VDC Type ( Ref : ER26500M )
• Suitable for BeanDevice® INC/HI-INC Xtender version ( -XT extension in product reference)
• Waterproof (IP67) aluminum casing with 4 x eyelets for screw mouting
• Waterproof M8 plug , cable length : 2 meters, 5 meters and 10 meters
• Dimensions (with eyelets) : 155 x 80 x 40 mm • Weight : 700 g
Product Reference:
• PRIM-XTEND-2M : 2 meters of cable lenght
• PRIM-XTEND-5M : 5 meters of cable lenght
• PRIM-XTEND-10M : 10 meters of cable lenght

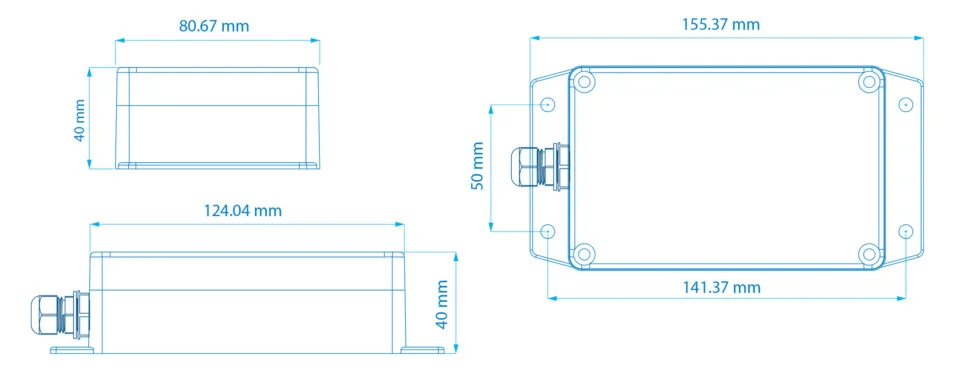

Drawing
