Wireless iot Inclinometer Sensor | 2.4GHz sensors

The BeanDevice HI-INC 15B version

is discontinued from the 03.05.2022

See replacement product :

Beandevice 2.4GHz HI-INC SR

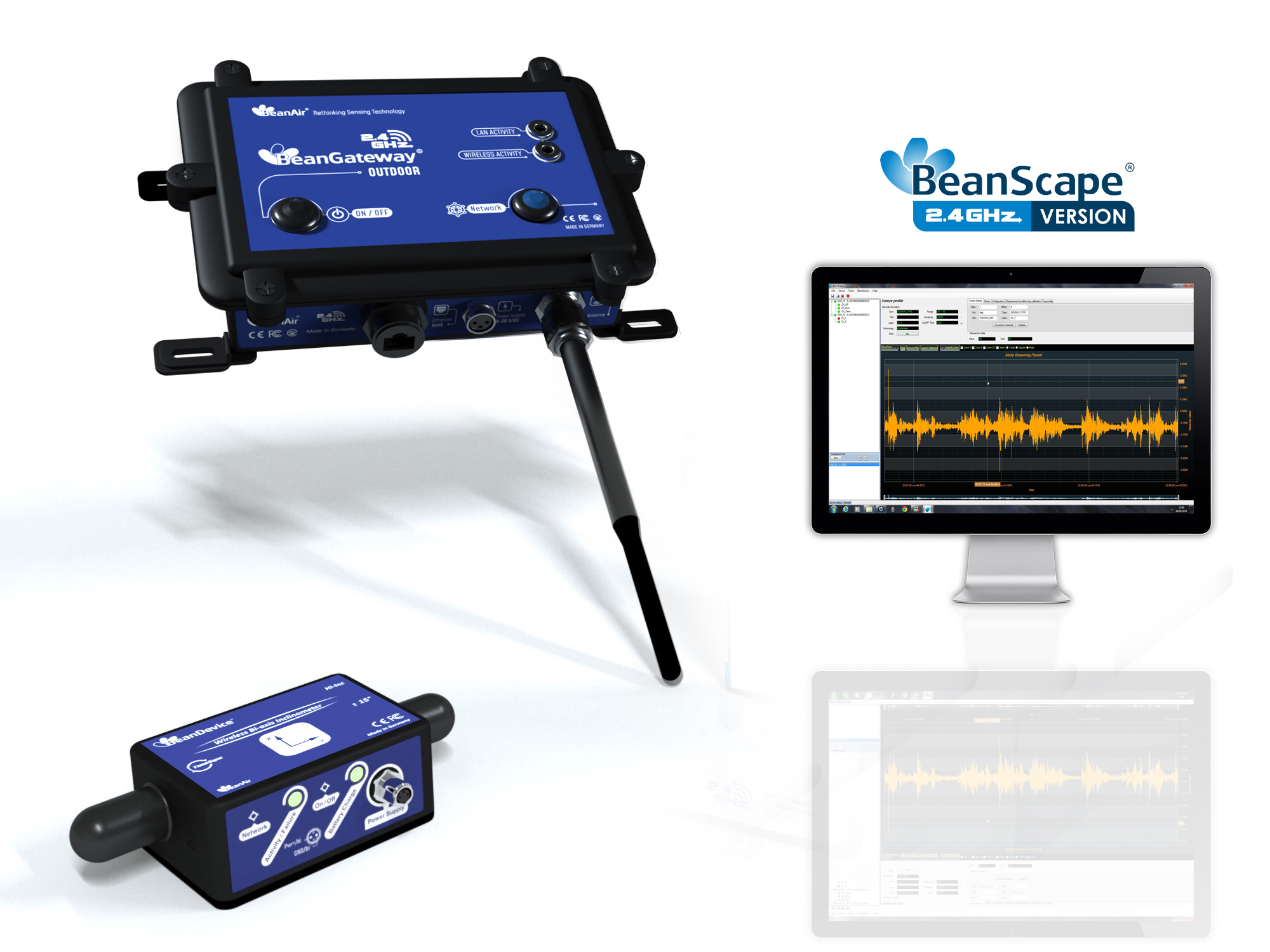

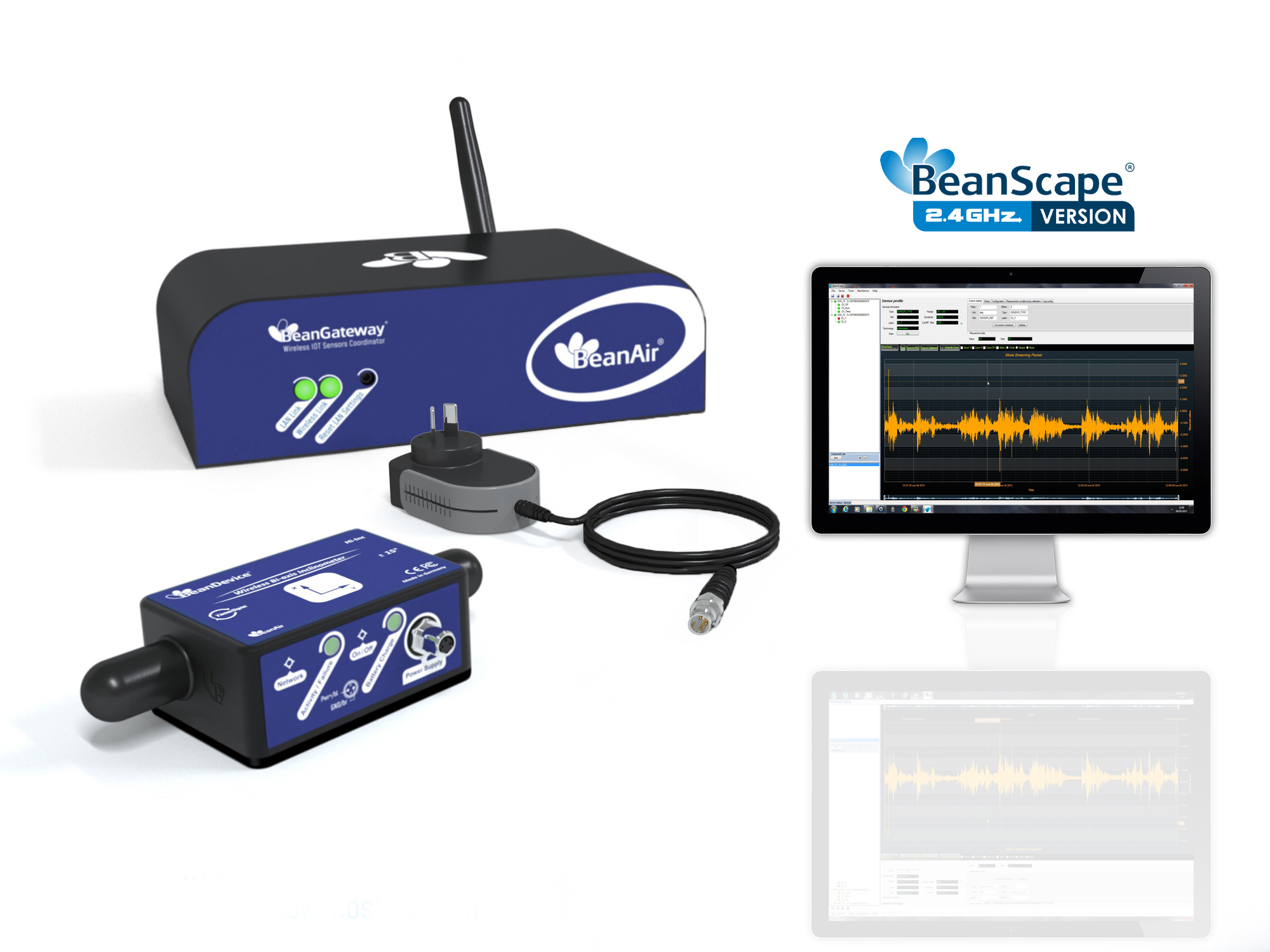

Included Free Software

BeanScape® 2.4GHz LITE®

BeanDevice® 2.4GHz HI-Inc

Wireless inclinometer Sensor | Tilt / inclination / Slope monitoring

Available in several versions (bi-axis ±30°), the BeanDevice® 2.4GHz HI-INC is a wireless inclinometer sensor with an integrated data logger.

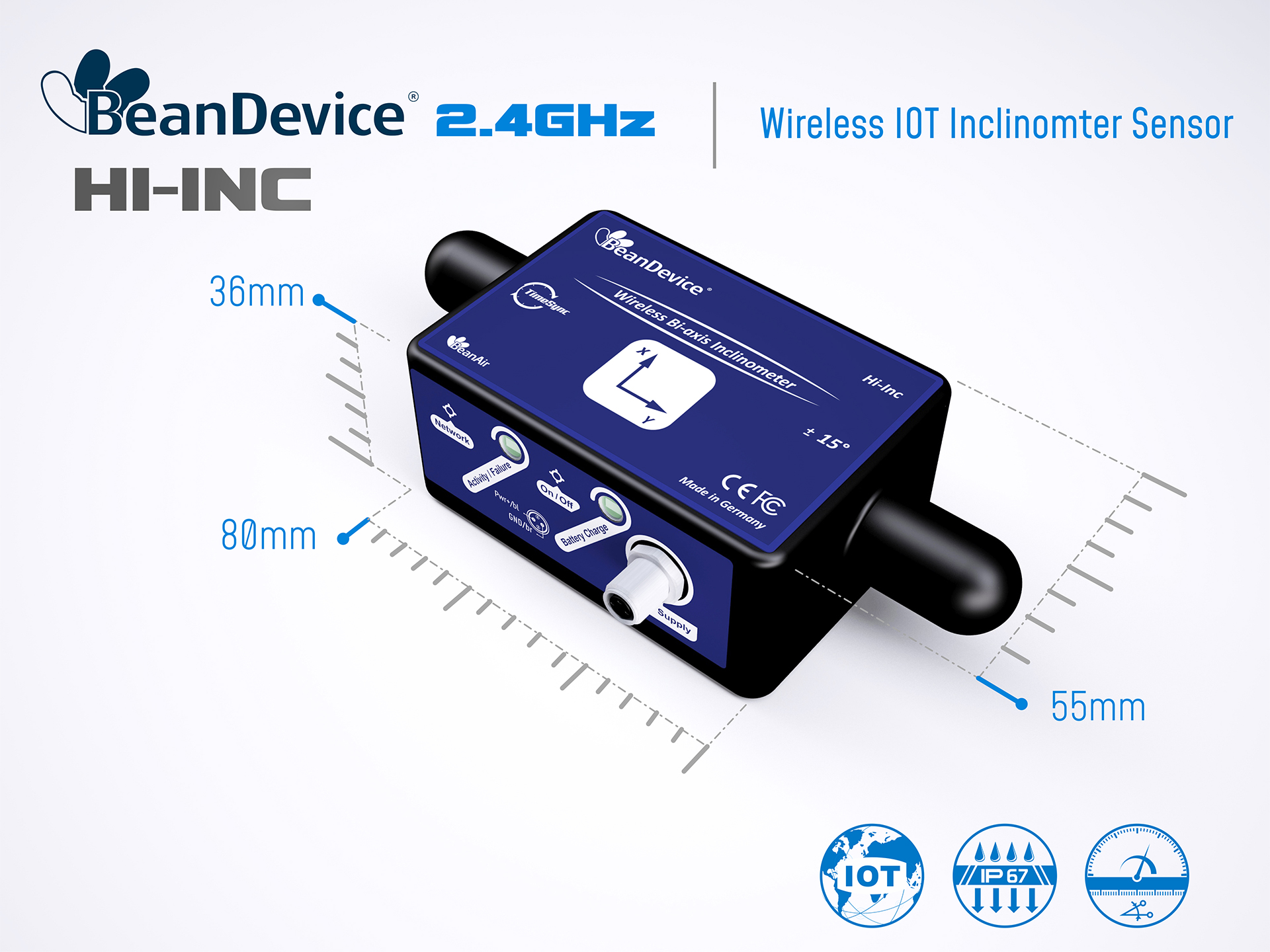

Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (80x55x36mm, 155g), an ultra-low-power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a tiny radome Omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless inclinometer is well suited for all types of industrial applications.

While the vast majority of wireless sensors are not suitable for harsh industrial environment, the BeanDevice® 2.4GHz HI-INC integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna Diversity improves both the quality and reliability of a wireless link by 30%.

The combination of a high-performance MEMS inclinometer and a 5^th order anti-aliasing filter (remotely programmable by the user) enables a great precision (±0.005° for ±15° version at 25°C).

Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.

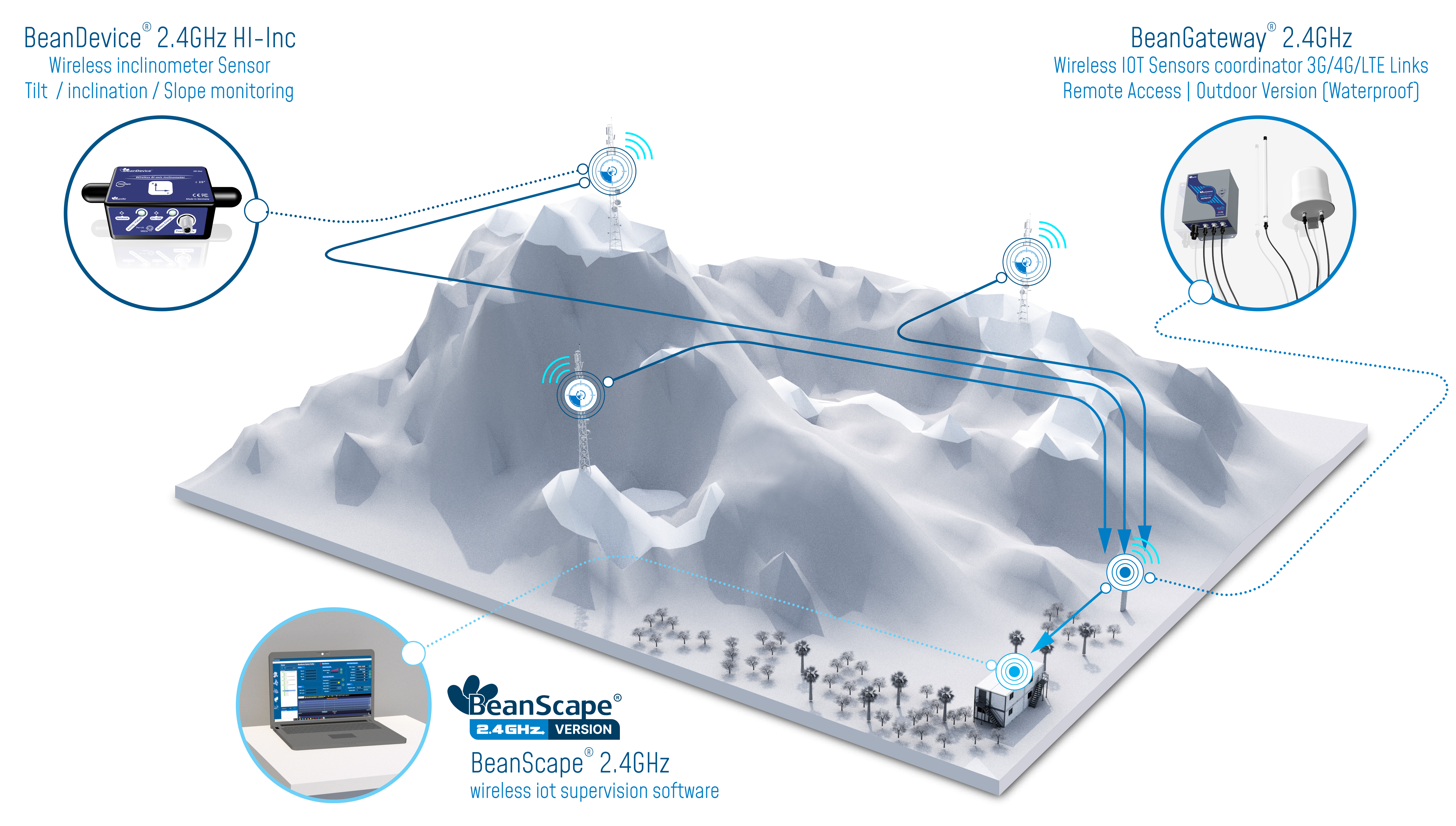

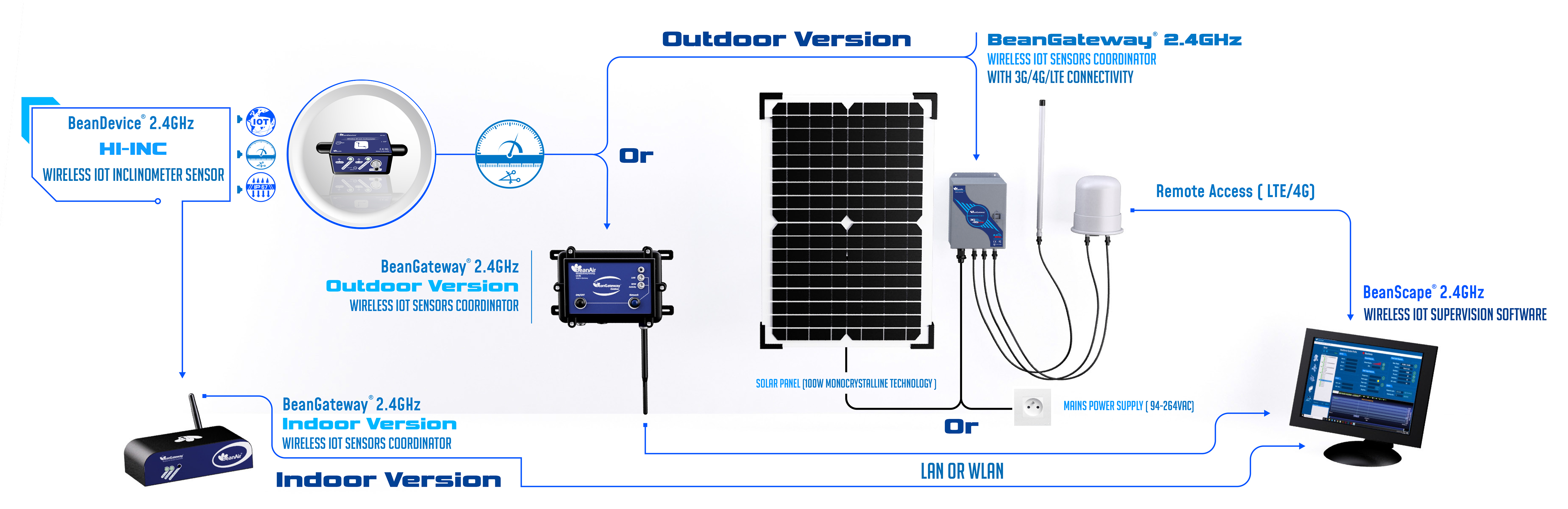

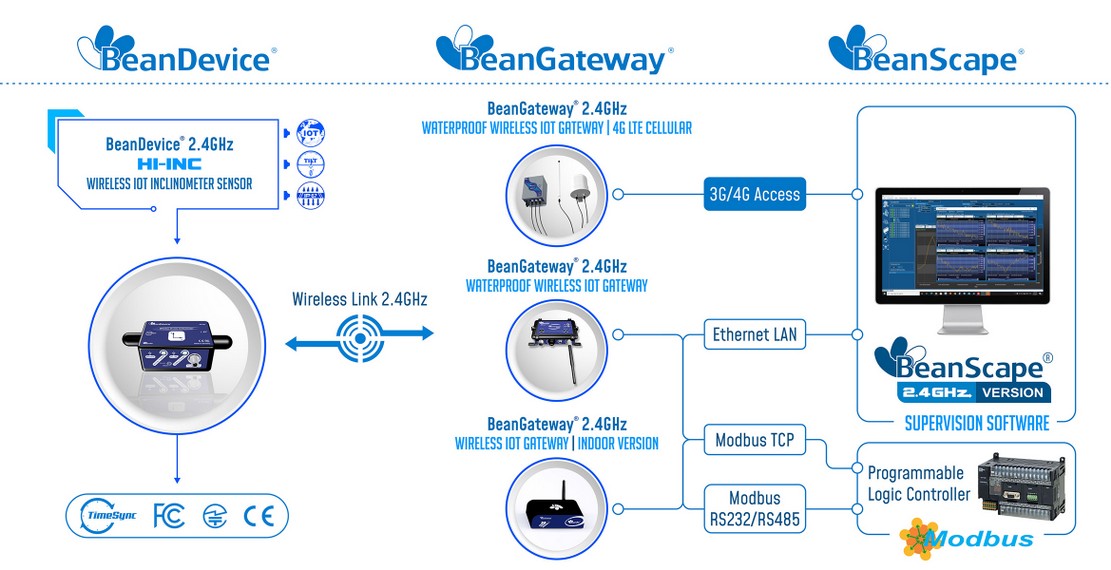

Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® 2.4GHz

The BeanDevice® HI-INC is suitable for the following applications:

• Platform Leveling and stabilization

• Built-in test equipment

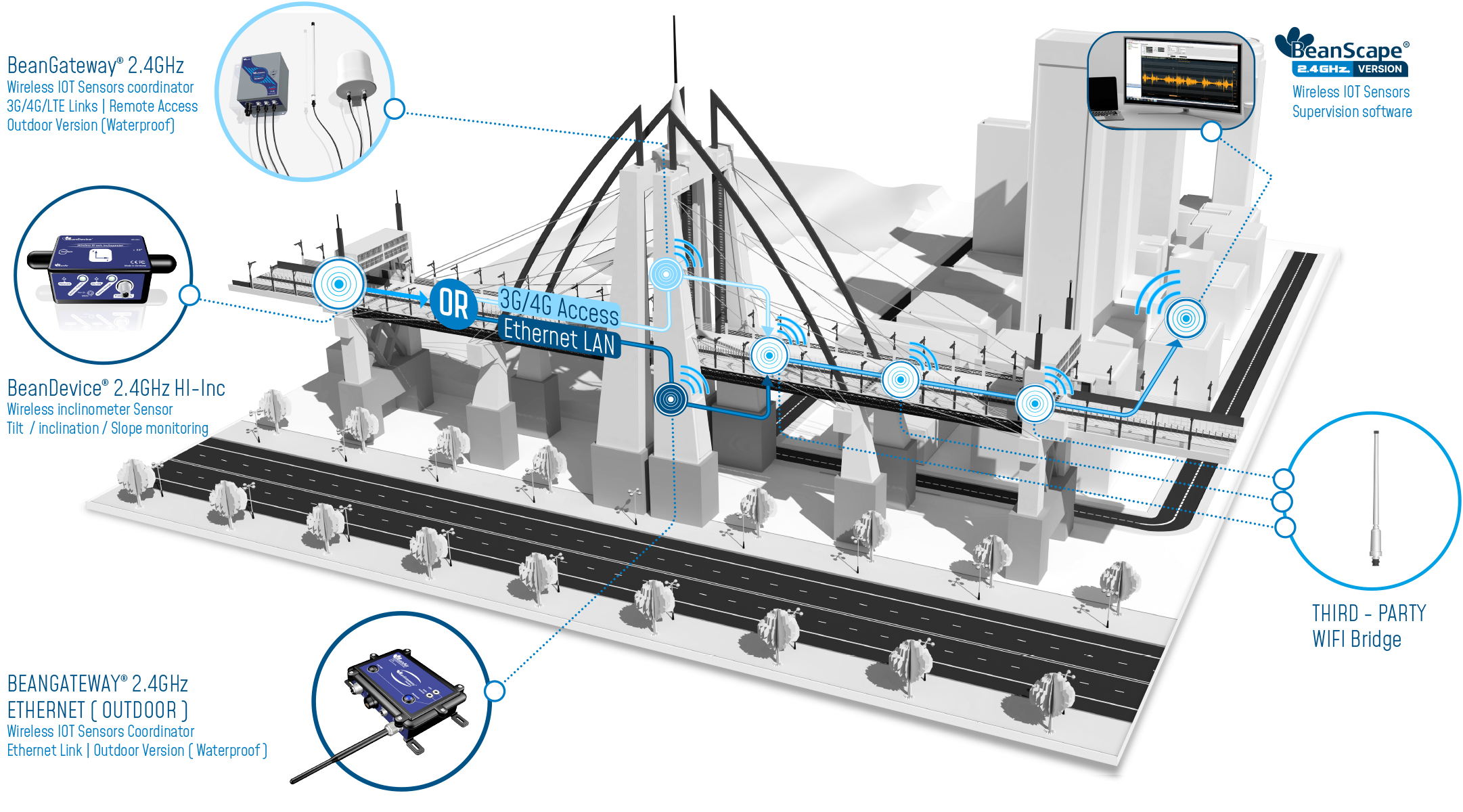

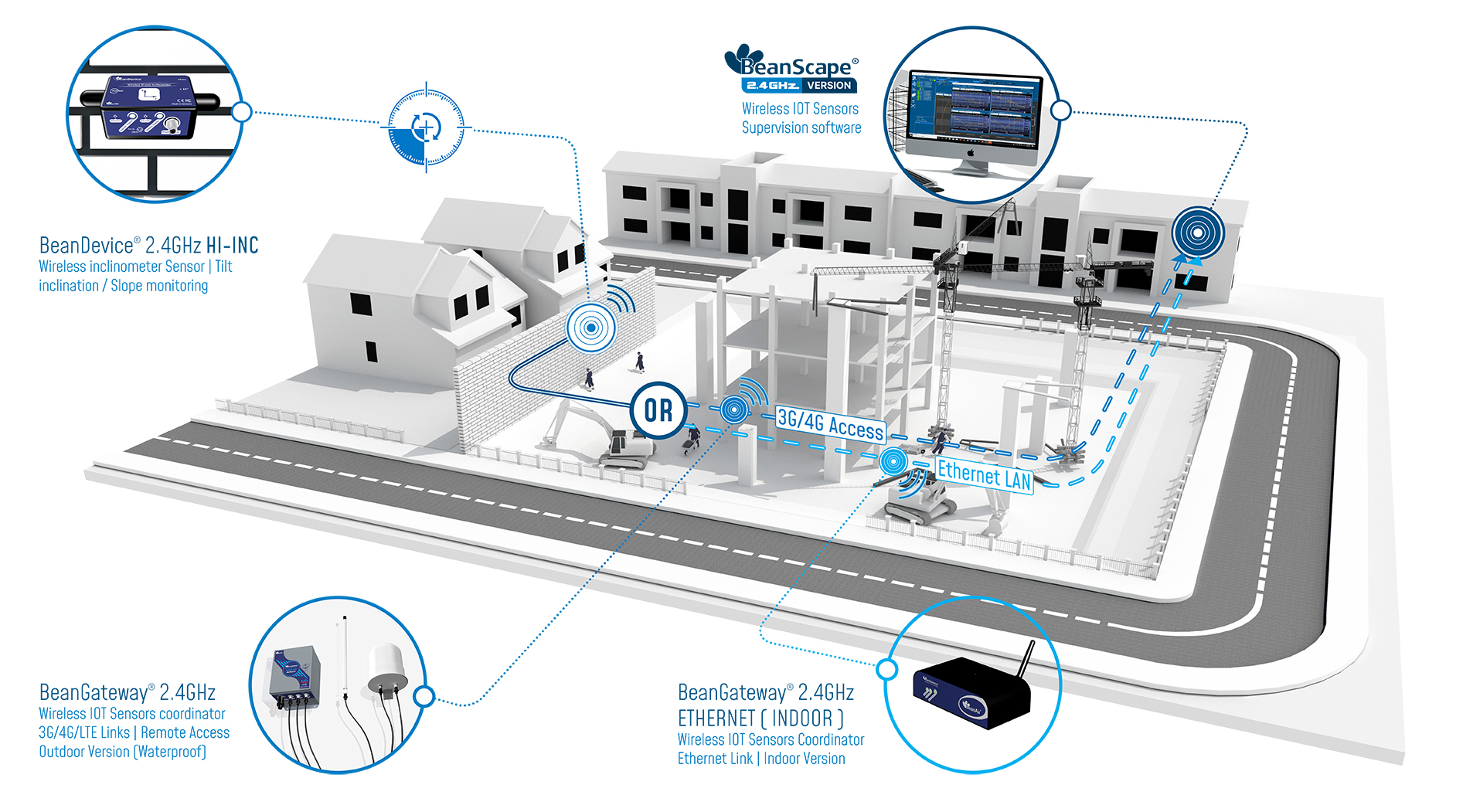

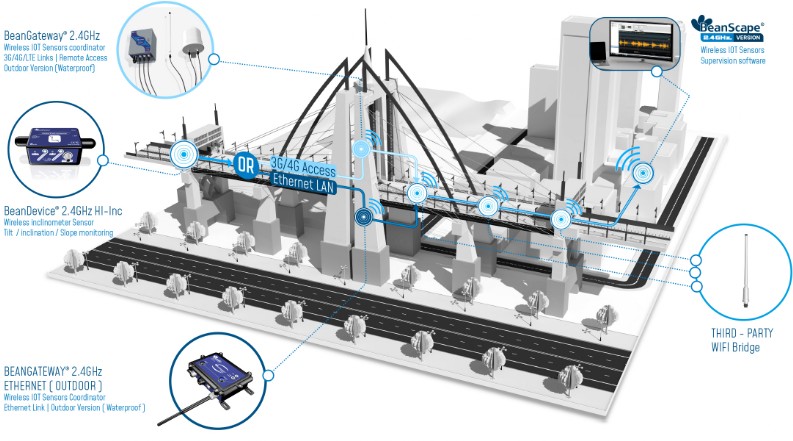

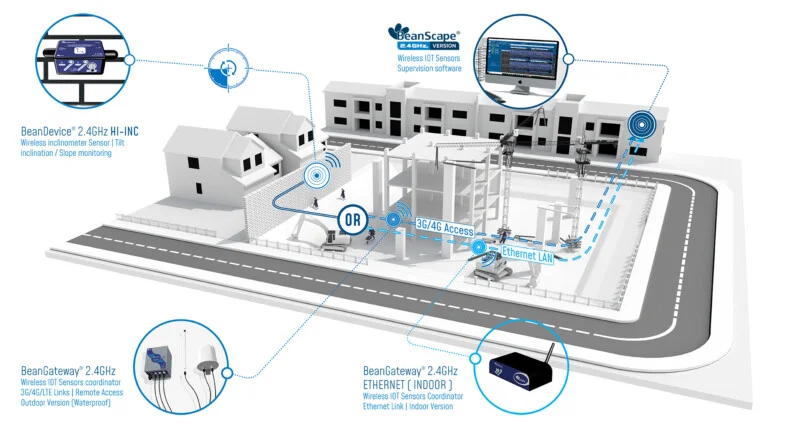

• Structural Health Monitoring (SHM)

• Oil drilling

• Axial rotor measurement

'Student and Education Discount' please contact us ( sales@beanair.com )

Main Features Ordering Sensor Specifications Temp. Sensor Software RF Specifications Data logger TimeSync Mechanical Power supply Accessories

		Wireless inclinometer based on MEMS technology with a high precision
		Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
		Maximum Radio Range: 500 m (L.O.S), 30-100m (Non Line of Sight)
		Measurement range: ±15° or ±30° mono-axial and bi-axial
		MEMS Inclinometer with a high resolution 0.001° and a very high precision (±0.057° for the version ±15°)
		Ultra Low Noise Density: 20 μg/√Hz (± 1.2G range), 32 μg/√Hz (± 2.4G range)
		Current consumption in sleep mode: < 35 uA @3.3V
		Maximum sampling rate: 60 samples per second
		Non-contact actuation for faster and safer installation
		Embedded Data Logger: up to 1 million data points (with events dating)
		Integrated Lithium-Polymer rechargeable battery with industrial battery charger (8-28VDC)
		Waterproof (IP67 \| Nema 6) aluminum casing (dimensions Lxlxh: 80x55x36 mm)
		Anti-aliasing Butterworth filter (5th order) with a programmable cut-off frequency 1 Hz to 2 KHz

PRODUCT REFERENCE
BND-2.4GHz-HI-INC-MR-PS-HG
MR – Measurement Range: 15B : bi-axis ±15° 30B : bi-axis ±30°	PS - Power supply : - RB : Internal rechargeable battery - XT : External Primary cell	HG: High Gain External Antenna 5dBi If this field is left blank,Integrated Radome Antenna will be provided
Example 1: BND-2.4GHZ-HI-INC-15B-RB-wireless bi-axial inclinometer with ±15° measurement range, internal rechargeable battery Example 2: BND-2.4GHZ-HI-INC-30B-XT-wireless bi-axial inclinometer with ±30° measurement range, external primary cell
Stock Status : Available
Where to Buy ?

Sensor specifications
Inclinometer technology	Accurate and low power MEMS technology
Measurement resolution (Bandwidth 10 Hz)	0,001°
Noise density	0.0004 °/√Hz
Sensor Precision (full scale, @ 25°C, Static Measurement Mode every 2s)	±0.006° for bi-axis ±30° version
Long term stability (@23°C)	< 0.004 °
Offset temperature dependency	±0.002 °/°C
Sensitivity temperature dependency	±0.005 %/°C
Analog to Digital converter	16-bits, SAR architecture (Successive Approximation Register) with temperature compensation
Sensor frequency Response (-3 dB)	DC to 28 Hz
Noise spectral density DC to 100 Hz	0.0004 °/ √Hz
Anti-aliasing Hardware filter	Butterworth 5th order filter – cut-off frequency : 1 Hz to 100 Hz remotely programmable (BeanScape®)

Integrated Temperature sensor
Temperature Range	-40°C to +60°C
Measurement resolution	±0.06°C
Sensor Precision	±1°C

Configurable settings from the BeanScape® 2.4GHz software
Data Acquisition mode (SPS = sample per second)	Static Data Acquisition: Low Duty Cycle Data Acquisition (LDCDA) and Alarm Mode (based on alarm thresholds) . Measurement heartbeat 1s to 24 hour Dynamic data acquisition(not available on devices with ref. extension XT ): Streaming and S.E.T. (Streaming with Event Trigger) Mode
Alarm Threshold	Three-level alarms : Alert < Action < Alarm
Sampling Rate (in streaming and S.E.T mode)	Minimum: 1 SPS Maximum: 100 SPS on each axis
Programmable cut-off frequency (Anti-aliasing filter)	1-100Hz
Power Mode	Battery saver mode & Active power mode (Active Power Mode is not available on -XT version)

RF Specifications
Wireless Protocol Stack	Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
WSN Topology	Point-to-Point / Star
Data rate	250 Kbits/s
RF Characteristics	ISM 2.4GHz – 16 Channels. Antenna diversity architecture designed by BeanAir®
TX Power	+18 dBm
Receiver Sensitivity	-104 dBm

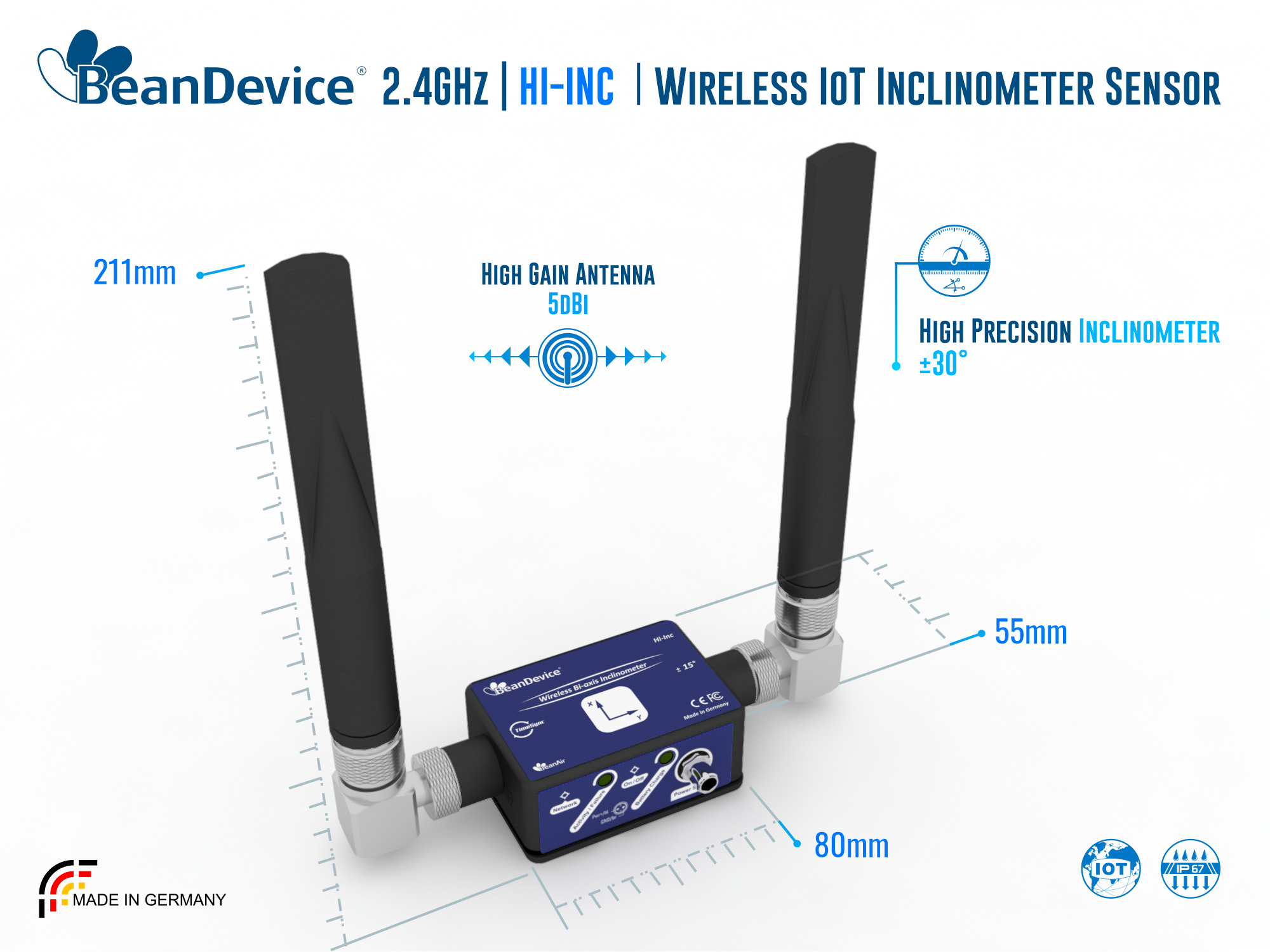

Maximum Radio Range	High Gain Antenna : 400m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 60-120m (N.L.O.S.) Integrated Radome Antenna : 150m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 30-60m (N.L.O.S.)
Antenna	Antenna diversity : High Gain Antenna : 2 x N-Type Antenna 5dBi , IP67 Radome Antenna : 2 x Antenna 1.9 dBi , IP67

Embedded Data logger
Storage Capacity	up to 1 million data points
Wireless data downloading	3 minutes to download the full memory (average time)

TimeSync function : Clock synchronization over the Wireless Sensor Networks (WSN)
Clock synchronization accuracy	±2.5 ms (at 25°C)
Crystal specifications	Tolerance ±10ppm, stability ±10ppm

Environmental and Mechanical
Casing	Aluminum AL6061 & Waterpoof casing Dimensions in mm (LxWxH) without Antenna: 80x55x36 mm Weight : 200g with Integrated Radome Antenna 400g with HG Antenna (antenna included)
Shocks resistance	100g during 50 ms
Operating Temperature	RB : Internal rechargeable battery -40 °C to +60 °C XT : External Power Supply -40 °C to +75 °C during battery discharge
Maximum Humidity	90 %RH
Norms & Radio certifications	• CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 • FCC (North America) • ARIB STD-T66 Ver 3.6 • ROHS - Directive 2002/95/EC
IP\|NEMA Rating	IP67 \| Nema 6

Power supply
Integrated battery charger	Integrated Lithium-ion battery charger with high precision battery monitoring : • Overvoltage/Overcurrent/Short-Circuit Protection/Undervoltage protection • Battery Temperature monitoring
Current consumption @ 3.3V	• During data acquisition : 30 to 40 mA • During Radio transmission : 80 mA @ 18dBm • During Battery Saver Mode : < 30 µA
External power supply	8-28VDC with reverse polarity protection IEC-61000-4-2: ESD 30kV(Air), 30kV (Contact) Surge protection > 28VDC (600W during 10us max)
Rechargeable battery	2 Ah, Lithium-Polymer battery

INCLUDED ACCESSORIES
1x Magnet to Power ON/Power OFF the device 1x M8 Cap for Power Supply
Optional Accessories and Services
External Power Supply	Wall plug-in, Switchmode power Supply 12V @ 1,25A with sealed M8 Plug (IP67/Nema 6) Ref: M8-PWR-12V
Solar Panel Kit (compatible with External Power Supply version only)	Ref.: X-SOL-7AH-20W-4V-5M for XT version Ref.: X-SOL-7AH-20W-12V-5M for RB version Ref: X-SOL-14AH-20W-4CH-4V-5M for XT version	Ref: X-SOL-14AH-20W-4CH-12V-5M for RB version Ref: X-SOL-14AH-80W-4CH-4V-5M for XT version Ref: X-SOL-14AH-80W-4CH-12V-5M for RB version
External Primary Cell in a Waterproof IP67 Casing	Waterproof IP67 battery box for long-term monitoring applications IP67 Battery Holder Battery Pack with 3 x C size primary cell, Li-SOCL2 Lithium Primary cell 3.6VDC Type Ref: PRIM-XTENDER
M8 extension cable for external power supply	Molded cable with M8-3pins male plug Material: PVC with shield protection IP Rating : IP67 \| Nema 6	Cable length: 2 meters , Ref: CBL-M8-2M Cable length : 5 meters, Ref: CBL-M8-5M Cable length: 10 meters, Ref: CBL-M8-10M
Calibration certificate	Calibration certificate provided by Beanair Sensors A static calibration method is used on a granite surface plate DIN876 Ref: CERT-CAL-SMART
