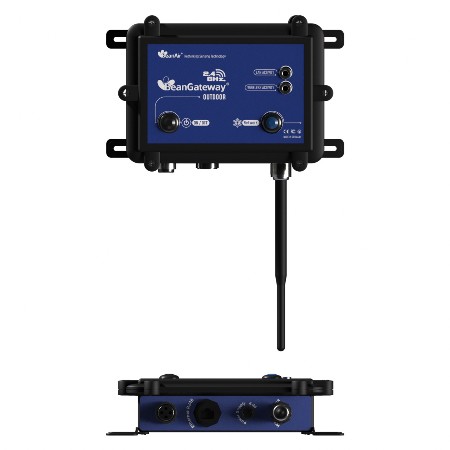

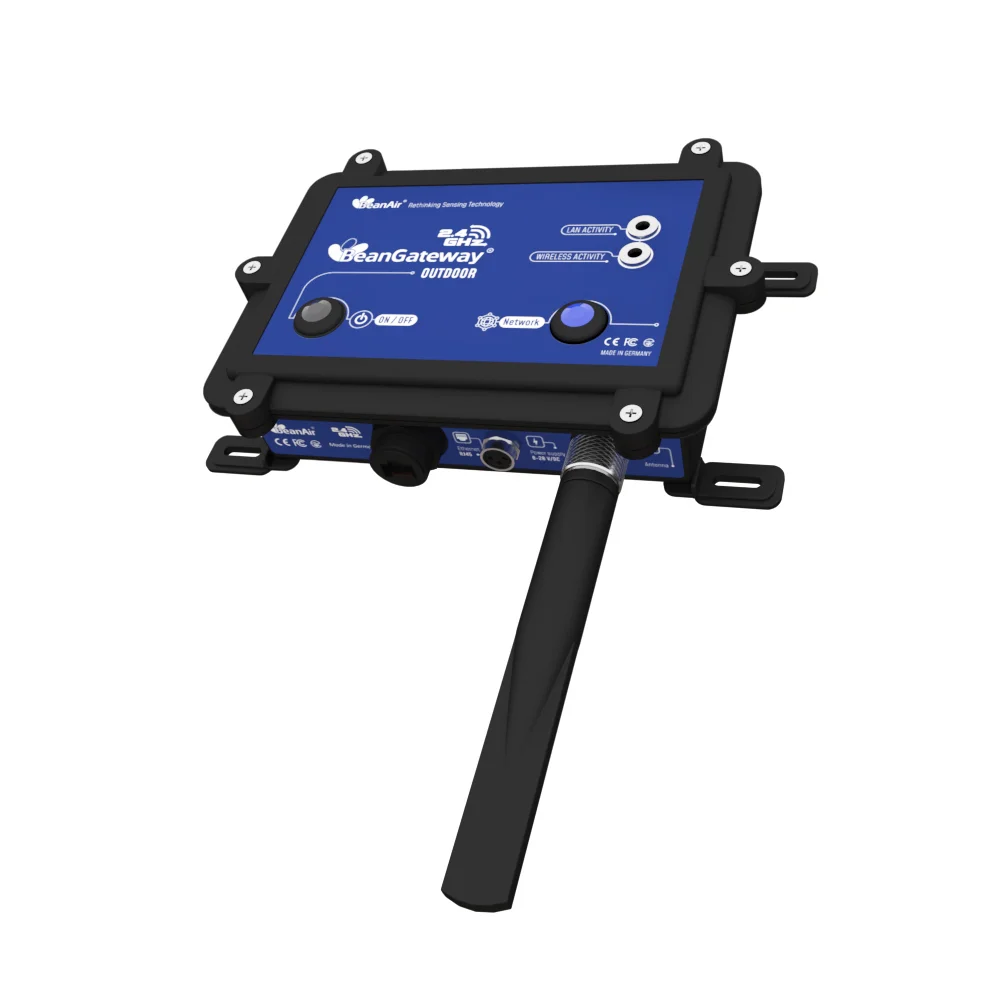

Wireless IoT Gateway | 2.4GHz Modbus & Ethernet Links | Outdoor Version | ||||
The BeanGateway® Outdoor ModBus TCP/IP is engineered as the central intelligence for your Beanair® wireless sensor network. It efficiently manages data queues, ensures highly secured external network access, and streamlines operations by handling data conversion, compression, and IP connectivity, significantly reducing maintenance and overall cost. For uninterrupted reliability, an integrated UPS battery provides instantaneous power backup, maintaining network and LAN activity during power outages. Ideal for remote deployments, its powerful WSN mapping management includes automatic backups to flash memory and BeanScape®, plus export/import functions for seamless scalability across multiple gateways. | ||||
 | Academic & Research Discount Primarily intended for university laboratories and funded research projects. Please contact us: sales@beanair.com | |||
Main Features
Unlock the full potential of your wireless sensor network with the BeanGateway®'s advanced capabilities:
• Centralized WSN Coordination: Acts as the intelligent hub for comprehensive network control and management.

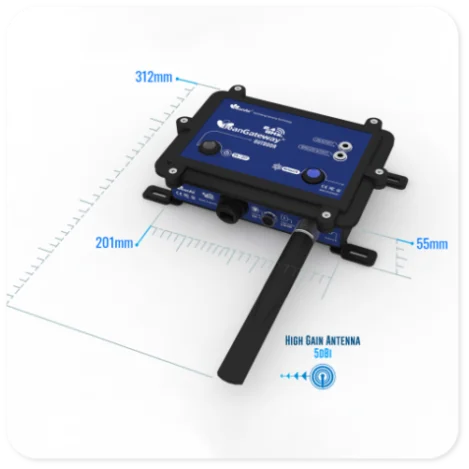

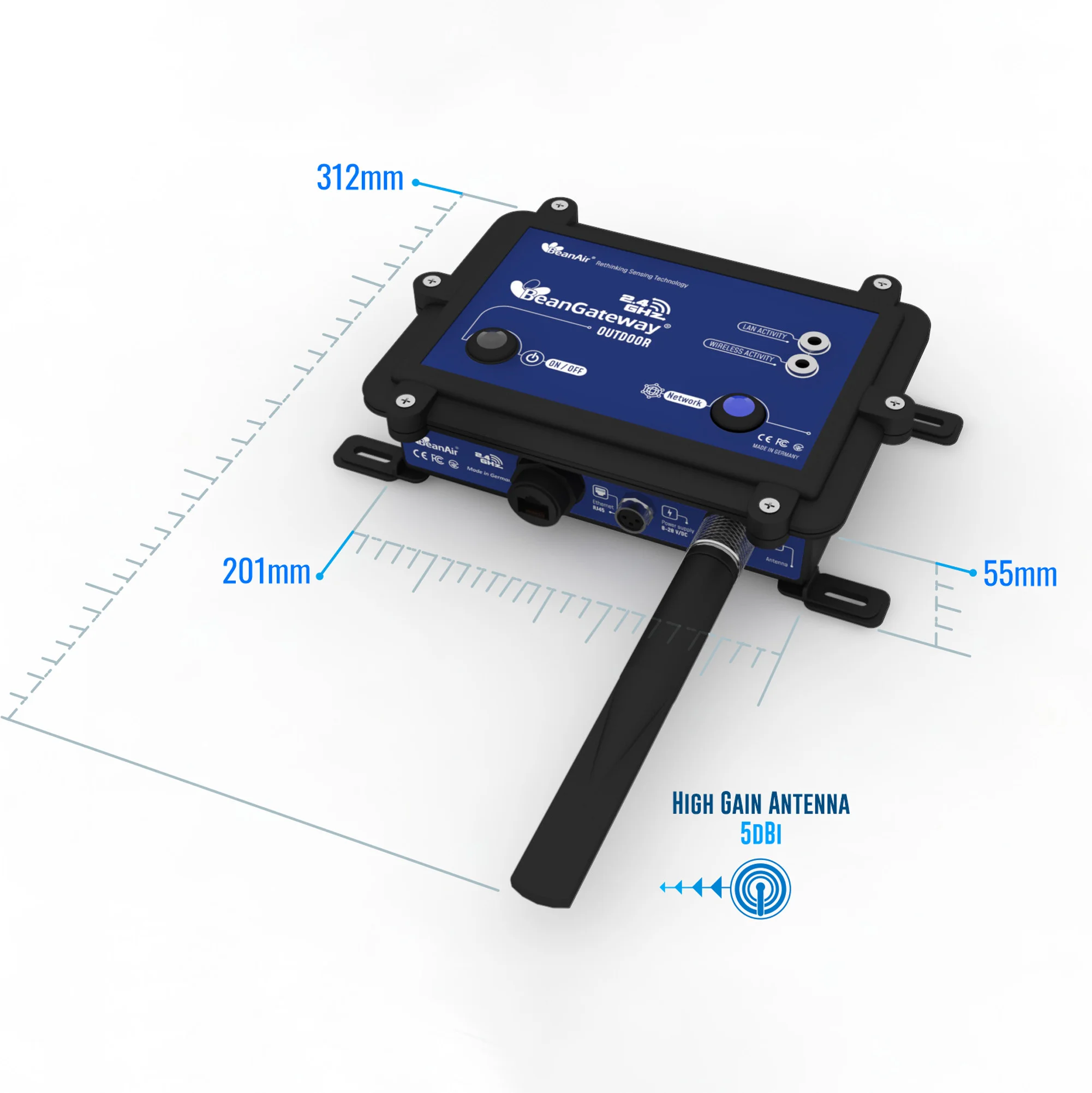

• Rugged, Waterproof Design: Features an IP67/NEMA 6 rated, robust aluminum casing for extreme environmental protection.
• Broad Protocol Compatibility: Supports industry-standard ModBus TCP/IP for seamless integration.
• Complete Network Oversight: Enables full configuration and real-time supervision of all Beanair wireless sensors.
• Intelligent Data Structuring: Organizes diverse sensor data for immediate usability and analysis.

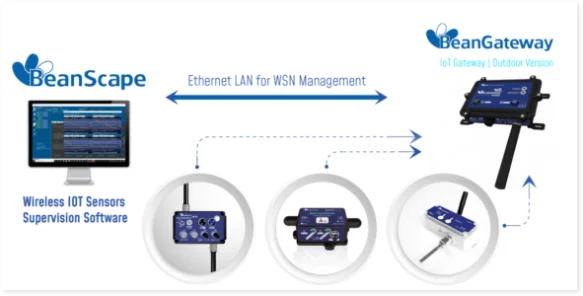

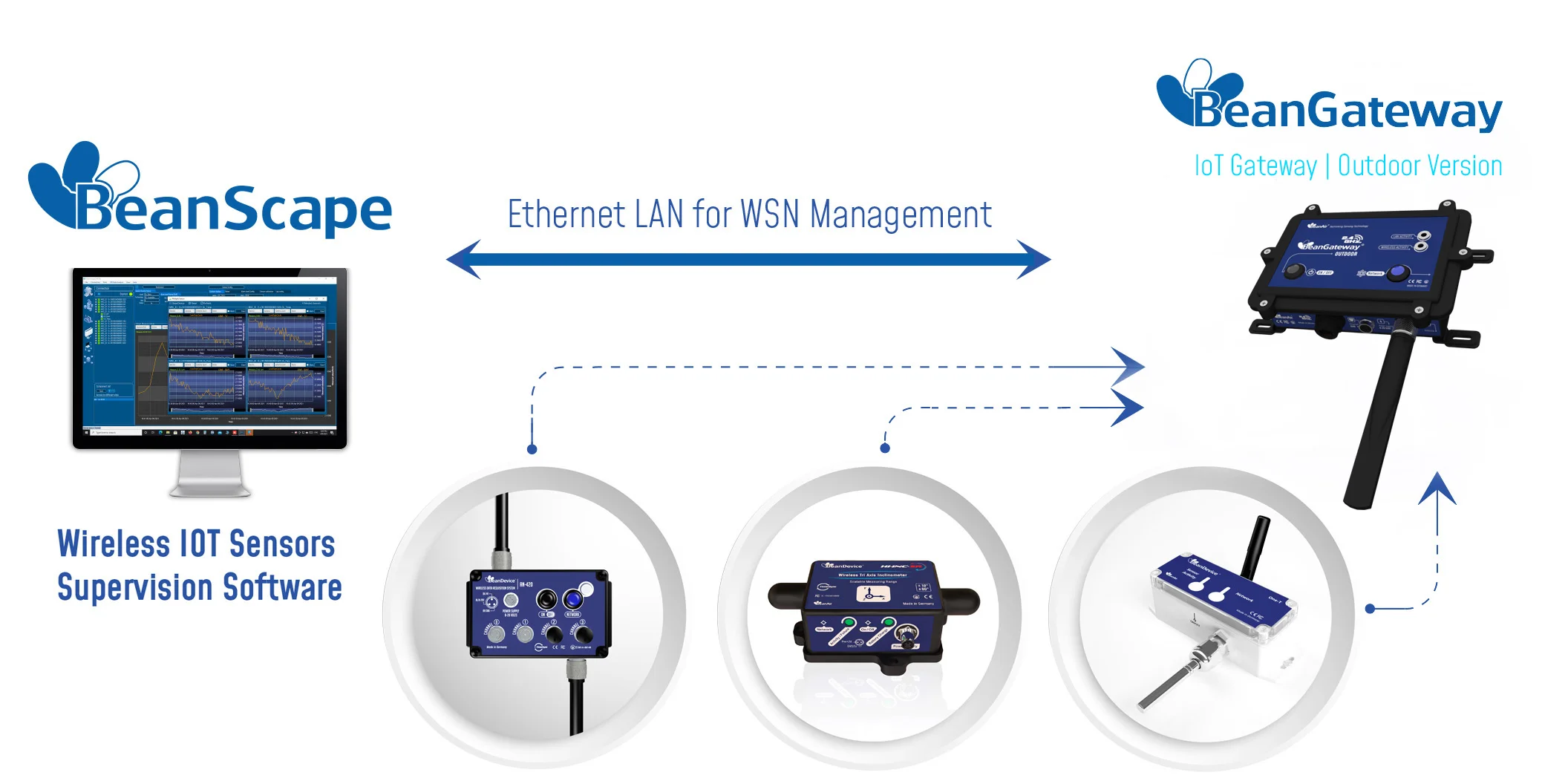

• Seamless BeanScape® Integration: Ensures efficient data exchange via Ethernet with the BeanScape® WSN supervision software.
• Enhanced Data Redundancy: Provides powerful WSN mapping recovery with safety backups on flash memory and BeanScape®.
• Uninterrupted Operation: Guarantees continuous information processing during power outages with an integrated 950 mAh UPS battery.
Technical Specifications
Product Reference | ||
BGTW-2.4GHz-ETH-MODIP-OUT | ||
Wireless IOT Sensors Coordinator | ||
Wireless Technology | Ultra-Low-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) | |
WSN Topology | Peer-to-peer/ Star | |
Raw Data rate | 250 Kbits/s | |
RF Characteristics | ISM 2.4GHz – 16 Channels. | |
RF Transmit Power | +18 dBm | |
Receiver Sensitivity | -104 dBm | |
Maximum Radio Range | 1 km (Line of Sight) , 70-150m (Non Line of Sight) | |
Built-in Wireless IIOT Sensors Diagnostic tool | - Energy Scan for choosing a suitable RF Channel - BeanDevice® PER (Packet Error Rate) calculation - LQI (Link Quality Indicator) between the BeanGateway® and the BeanDevice® - RF channels Blacklist | |
Applications
CONDITION MONITORING | |||
 |
Video
Featured Video
Product Video
Download Ressources
Accessories
INCLUDED ACCESSORIES | |
 | Waterproof 2.4 GHz Antenna · High gain antenna 5.5 dBi · V.S.W.R : 1.5 :1 · Connector : N-Type (Waterproof) |
 | Ethernet Cable · RJ45 Male waterproof connector (casing side only) · Cable length: 3 meters |
 | Connectors Cap M8-3P cap |
 | Wall mounting Wall mounting kit, 4 pcs - Ref: M8-PWR-12V |
 | Wall plug-in power supply Wall plug-in, Switchmode power Supply 12V @ 1.25A |
OPTIONAL ACCESSORIES AND SERVICES | |
 | Waterproof 2.4 GHz Antenna · High gain antenna 5.5 dBi · V.S.W.R : 1.5 :1 · Connector : N-Type (Waterproof) |
 | Ethernet Cable · RJ45 Male waterproof connector (casing side only) · Cable length: 3 meters |
 | High Gain Antenna option High Gain Omnidirectional antenna Frequency range 2400-2500MHz VSWR < 1.4, Impedance 50 Ohm, Polarization Vertical Vertical plane 24° (7dBi Gain version), 16°(9dBi Gain version), 6°(12dBi Gain version), Horizontal plane 360° Connector N female, Wind load (170km/h) 7.3N Included: N-Type cable (Male/Male), length: 1 meter Gain: 7dBi, Dimensions: 360mm x 23mm, Weight: 0.44 kg, >> datasheet Ref: HG-OMNI-OUT-7DBI Gain: 9dBi , Dimensions: 540x23 mm, Weight: 0.61 kg , >> datasheet Ref: HG-OMNI-OUT-9DBI Gain: 12dBi , Dimensions: 1125mm x 19 mm, Weight: 1.06 kg , >> datasheet Ref: HG-OMNI-OUT-12DBI |
