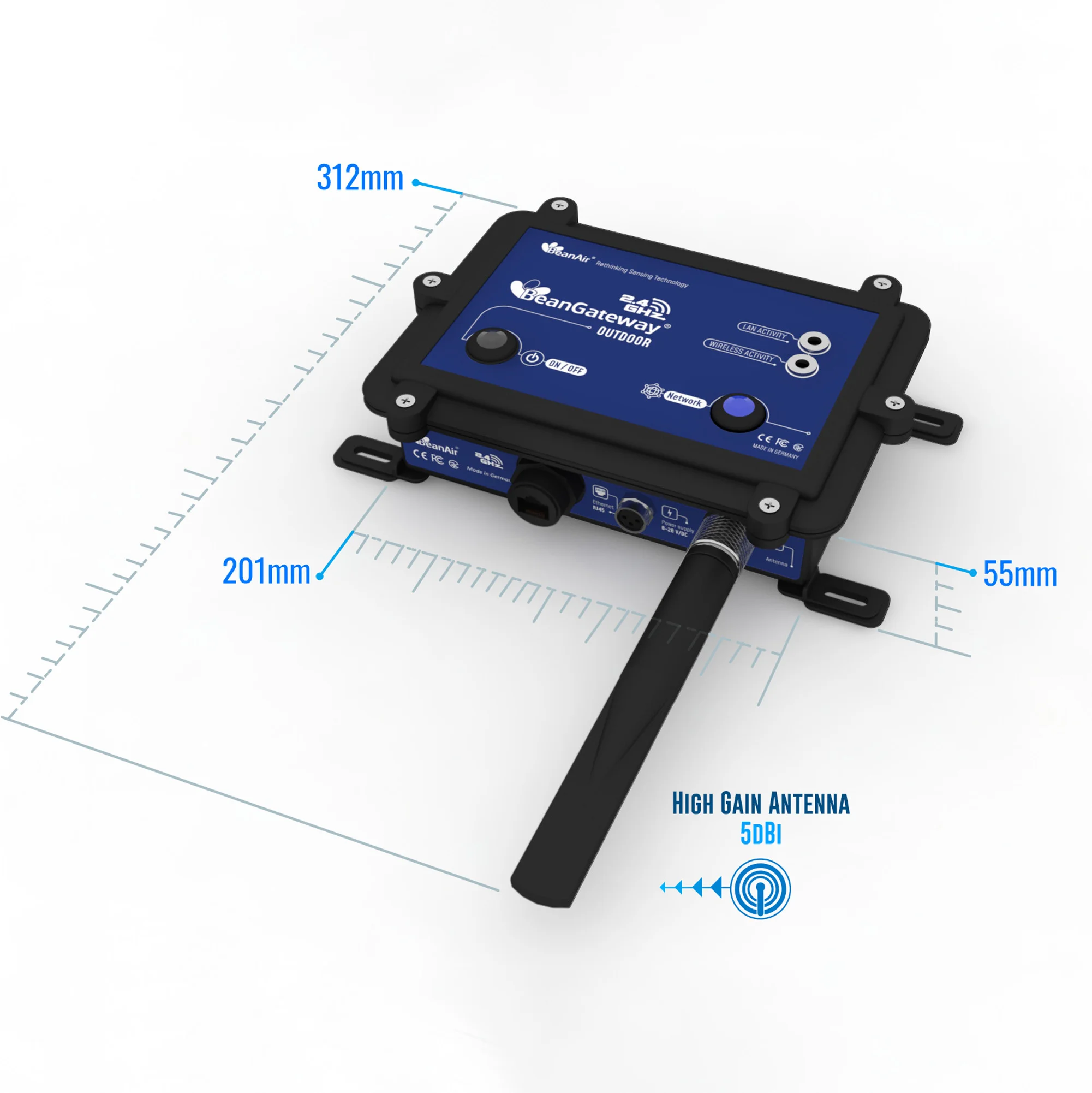

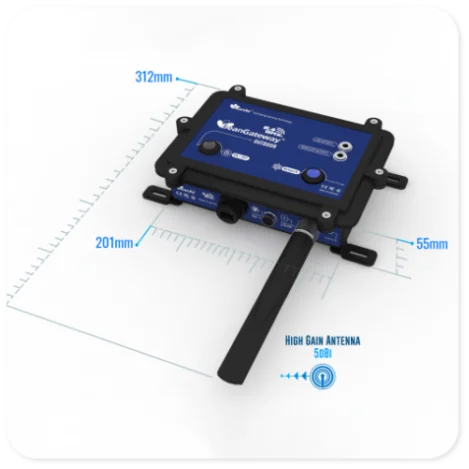

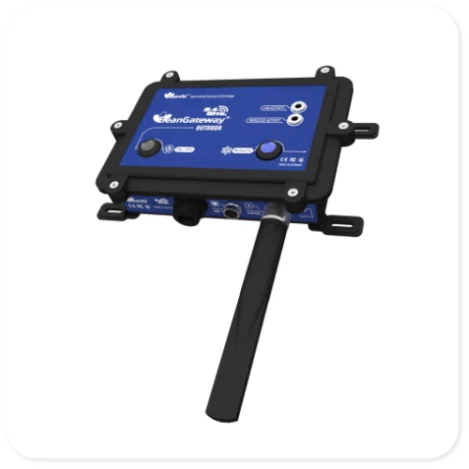

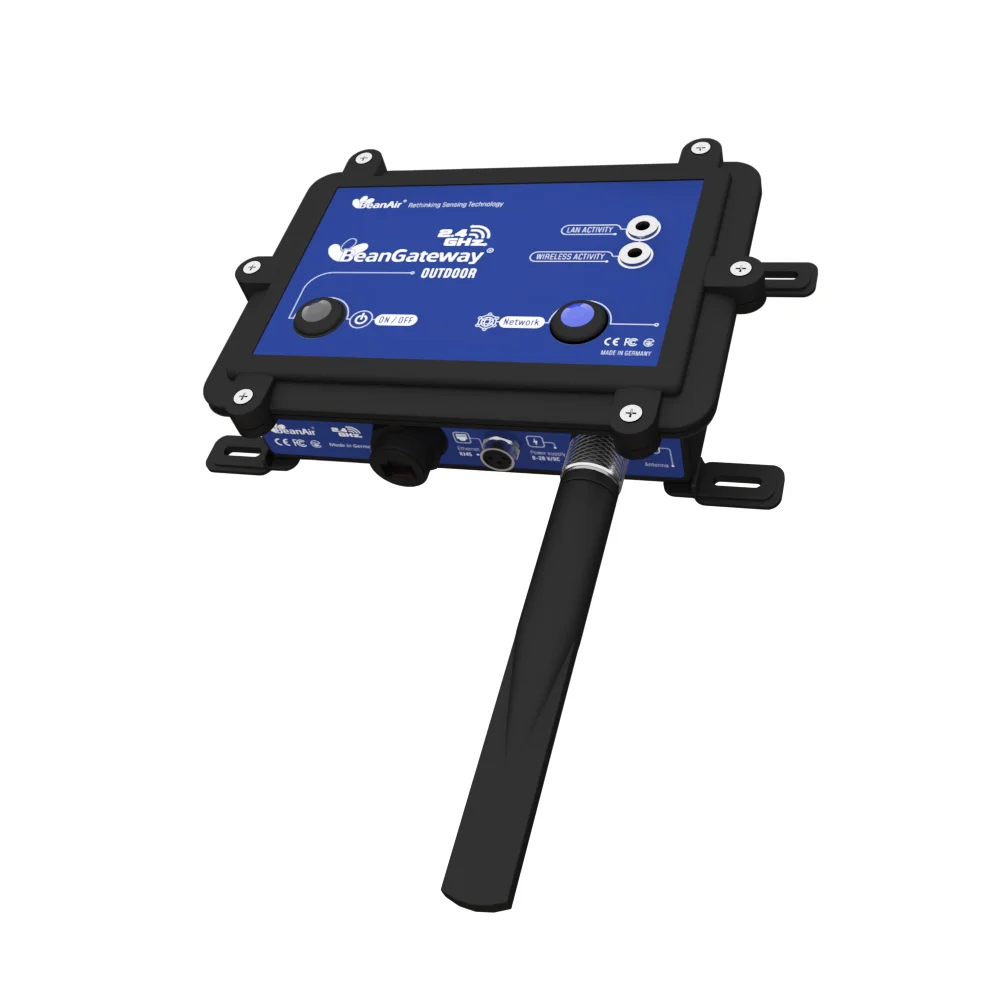

Wireless IoT Gateway | 2.4GHz Ethernet Link | Outdoor Version | ||||
Unleash the full potential of your Beanair® wireless sensor network with the BeanGateway® Ethernet (Outdoor version). Engineered for reliability, this intelligent gateway masterfully orchestrates communication and data flow for all your BeanDevice® sensors, ensuring peak performance. It fortifies your network with a highly robust authentication process, protecting sensitive data from unauthorized access. By intelligently managing data conversion, compression, and IP connectivity, the BeanGateway® simplifies your system architecture and drives down operational costs. Designed for the most demanding conditions, the BeanGateway® Ethernet features a durable IP67 waterproof aluminum casing, providing unwavering protection outdoors. It operates on a versatile DC 8-28V external power supply and incorporates a rechargeable battery for uninterrupted power. This integrated UPS functionality guarantees continuous operation of your wireless sensor network and Ethernet LAN, delivering uninterrupted data even through unexpected power outages. Confidently deploy in remote or harsh environments, leveraging our powerful Wireless Sensor Network (WSN) mapping management, which includes: • Automated Data Security: Your network configurations are automatically secured with redundant backups to both flash memory and the BeanScape® software. • Seamless Scalability: Effortlessly expand your network by easily exporting and importing configurations across multiple BeanGateway® units. | ||||
 | Academic & Research Discount Primarily intended for university laboratories and funded research projects. Please contact us: sales@beanair.com | |||
Main Features
Unlock the full potential of your wireless sensor network with the BeanGateway®'s advanced capabilities:
• Centralized Network Control: Effortlessly coordinates and manages your entire Beanair® wireless sensor network from a single point.
• Outdoor-Ready Durability: Protected by a robust IP67|Nema 6 waterproof aluminum casing, built to withstand harsh conditions.
• Simplified Sensor Management: Configure and supervise your Beanair wireless sensors with intuitive tools, ensuring optimal network performance.
• Streamlined Data Handling: Automatically organizes and processes data from diverse wireless sensors, making information readily usable.

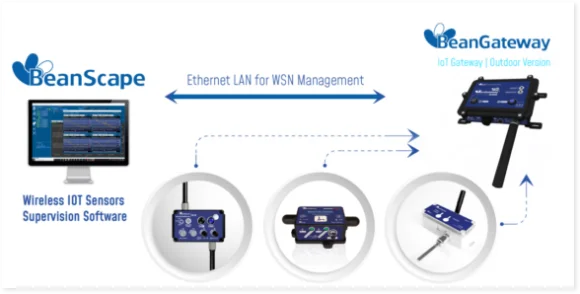

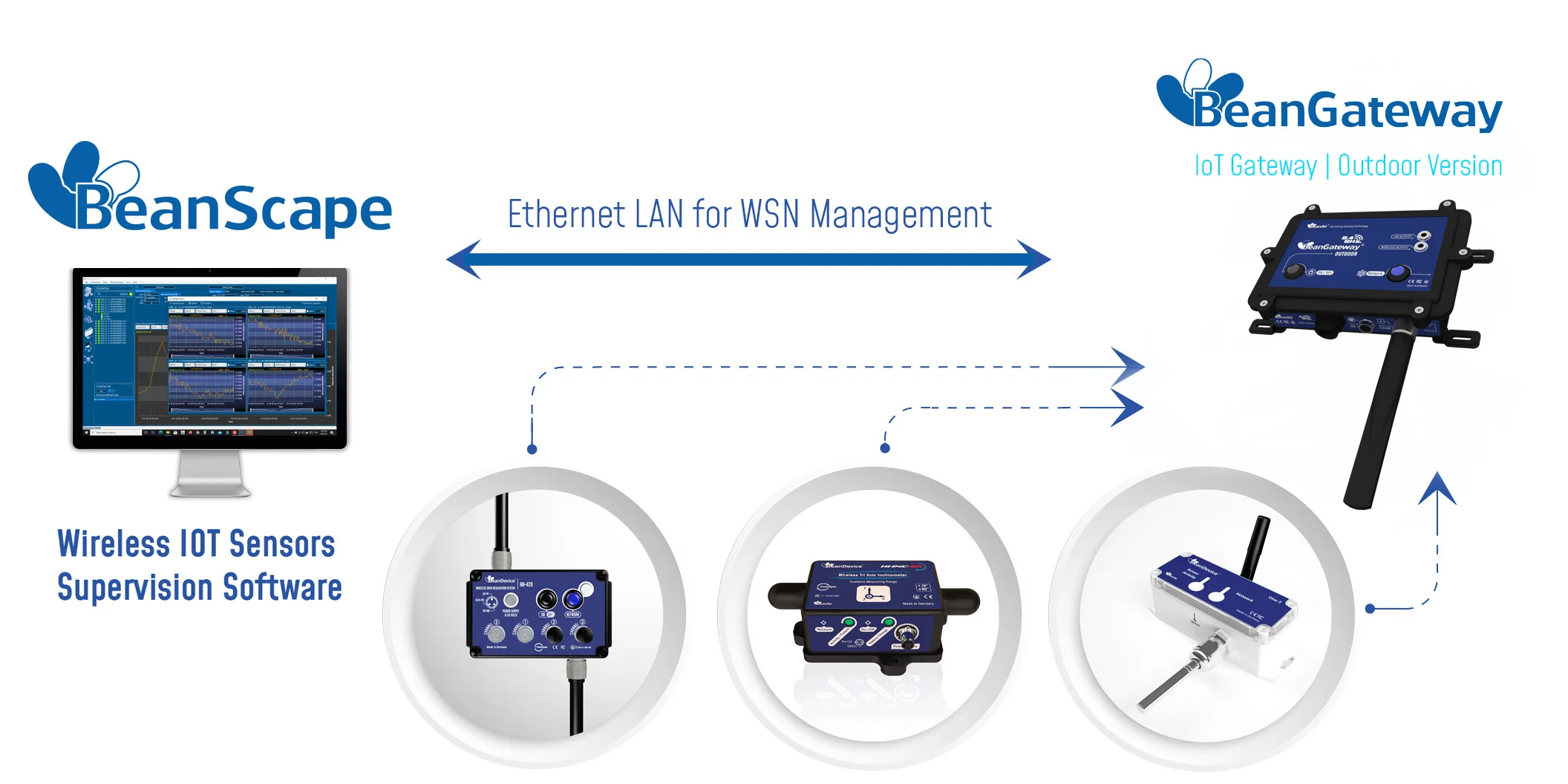

• Effortless Software Integration: Connects seamlessly with the BeanScape® WSN supervision software via Ethernet for comprehensive data access and analysis.
• Guaranteed Network Recovery: Protect your network configuration with powerful WSN mapping recovery, featuring automatic backups to both flash memory and BeanScape®.
• Continuous Operation: Maintain uninterrupted data processing and network activity during power fluctuations, supported by a 950 mAh UPS battery.
Technical Specifications
Product Reference | ||
BGTW-2.4GHz-ETH-OUT | ||
Wireless IOT Sensors Coordinator | ||
Wireless Technology | Ultra-Low-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) | |
WSN Topology | Peer-to-peer/ Star | |
Raw Data rate | 250 Kbits/s | |
RF Characteristics | ISM 2.4GHz – 16 Channels. | |
RF Transmit Power | +18 dBm | |
Receiver Sensitivity | -104 dBm | |
Maximum Radio Range | 1 km (Line of Sight) , 70-150m (Non Line of Sight) | |
Built-in Wireless IIOT Sensors Diagnostic tool | - Energy Scan for choosing a suitable RF Channel - BeanDevice® PER (Packet Error Rate) calculation - LQI (Link Quality Indicator) between the BeanGateway® and the BeanDevice® - RF channels Blacklist | |
Applications

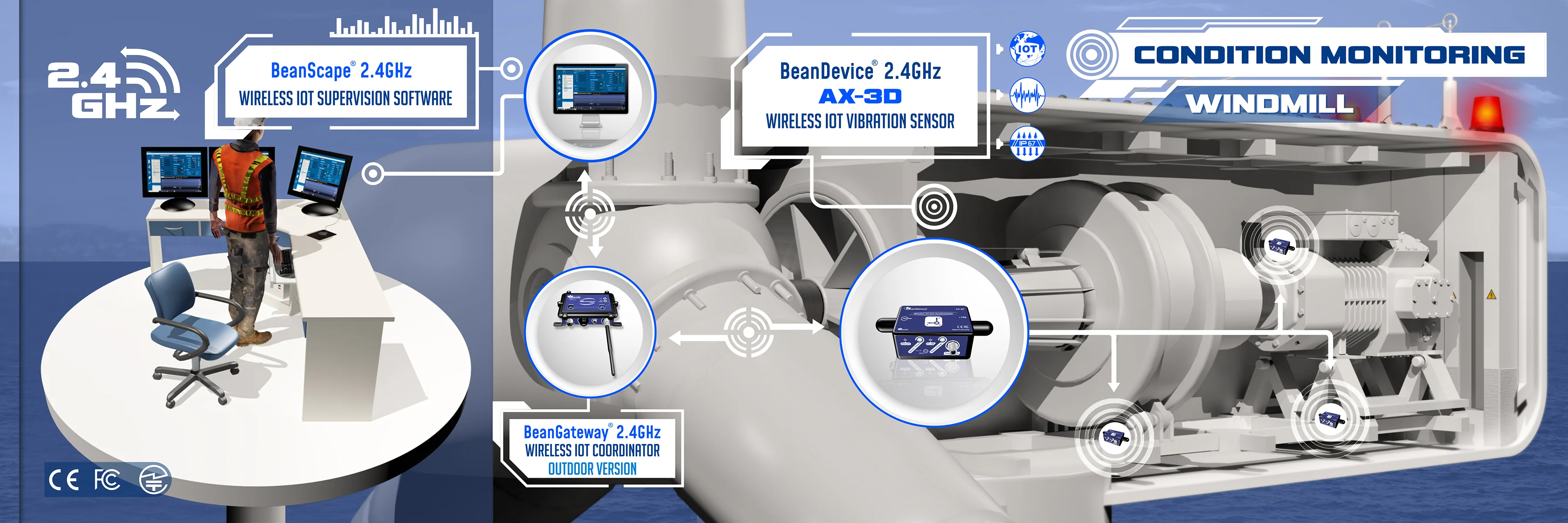

CONDITION MONITORING | |||
 |
Video
Product Video
Featured Video
Download Ressources
Accessories
INCLUDED ACCESSORIES | |
 | Waterproof 2.4 GHz Antenna · High gain antenna 5.5 dBi · V.S.W.R : 1.5 :1 · Connector : N-Type (Waterproof) |
 | Ethernet Cable · RJ45 Male waterproof connector (casing side only) · Cable length: 3 meters |
 | Connectors Cap M8-3P cap |
 | Wall mounting Wall mounting kit, 4 pcs - Ref: M8-PWR-12V |
 | Wall plug-in power supply Wall plug-in, Switchmode power Supply 12V @ 1.25A |
OPTIONAL ACCESSORIES AND SERVICES | |
 | Waterproof 2.4 GHz Antenna · High gain antenna 5.5 dBi · V.S.W.R : 1.5 :1 · Connector : N-Type (Waterproof) |
 | Ethernet Cable · RJ45 Male waterproof connector (casing side only) · Cable length: 3 meters |
 | High Gain Antenna option High Gain Omnidirectional antenna Frequency range 2400-2500MHz VSWR < 1.4, Impedance 50 Ohm, Polarization Vertical Vertical plane 24° (7dBi Gain version), 16°(9dBi Gain version), 6°(12dBi Gain version), Horizontal plane 360° Connector N female, Wind load (170km/h) 7.3N Included: N-Type cable (Male/Male), length: 1 meter Gain: 7dBi, Dimensions: 360mm x 23mm, Weight: 0.44 kg, >> datasheet Ref: HG-OMNI-OUT-7DBI Gain: 9dBi , Dimensions: 540x23 mm, Weight: 0.61 kg , >> datasheet Ref: HG-OMNI-OUT-9DBI Gain: 12dBi , Dimensions: 1125mm x 19 mm, Weight: 1.06 kg , >> datasheet Ref: HG-OMNI-OUT-12DBI |
