ACCESSORIES
Satevis® Sensors Options

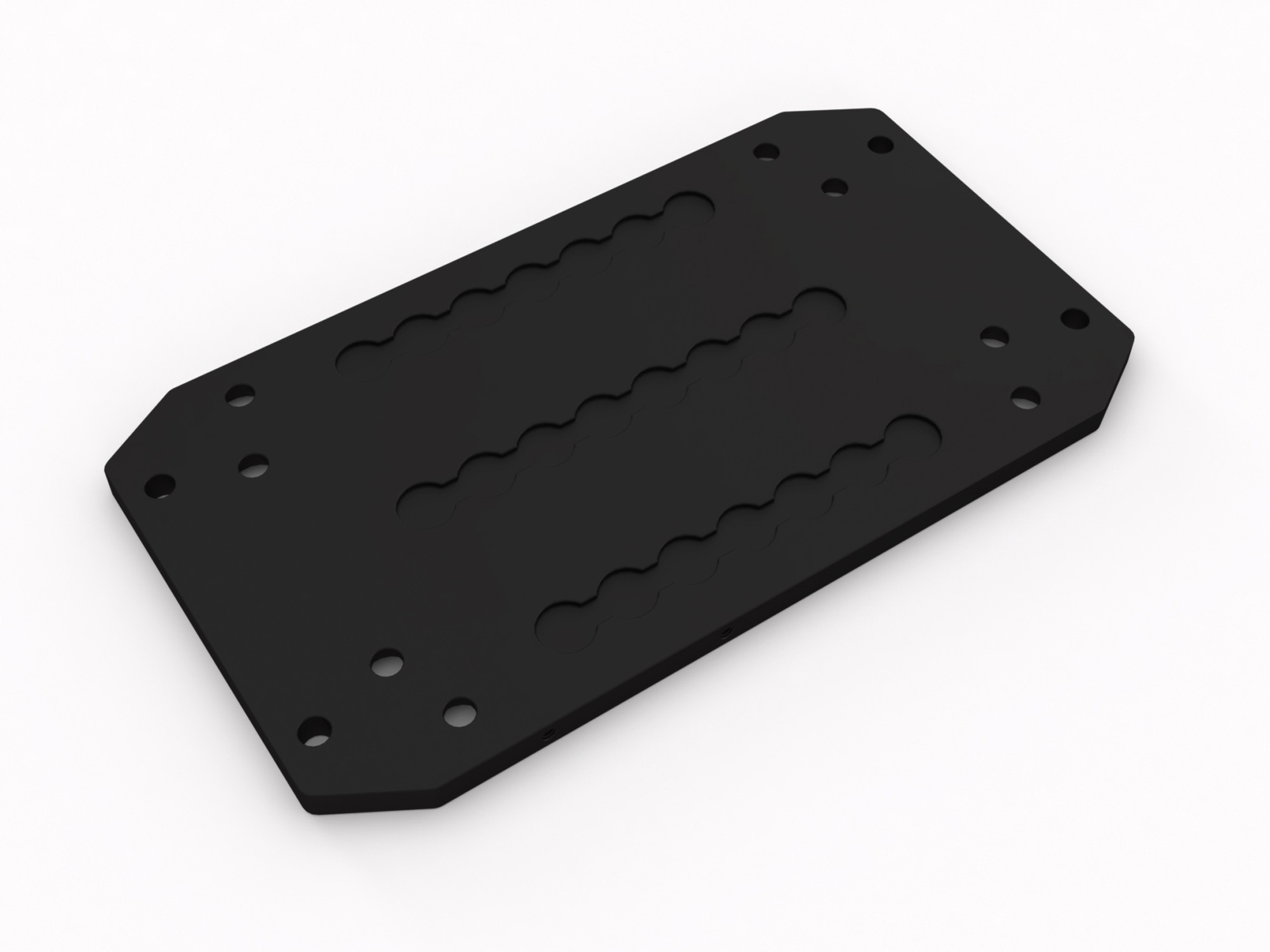

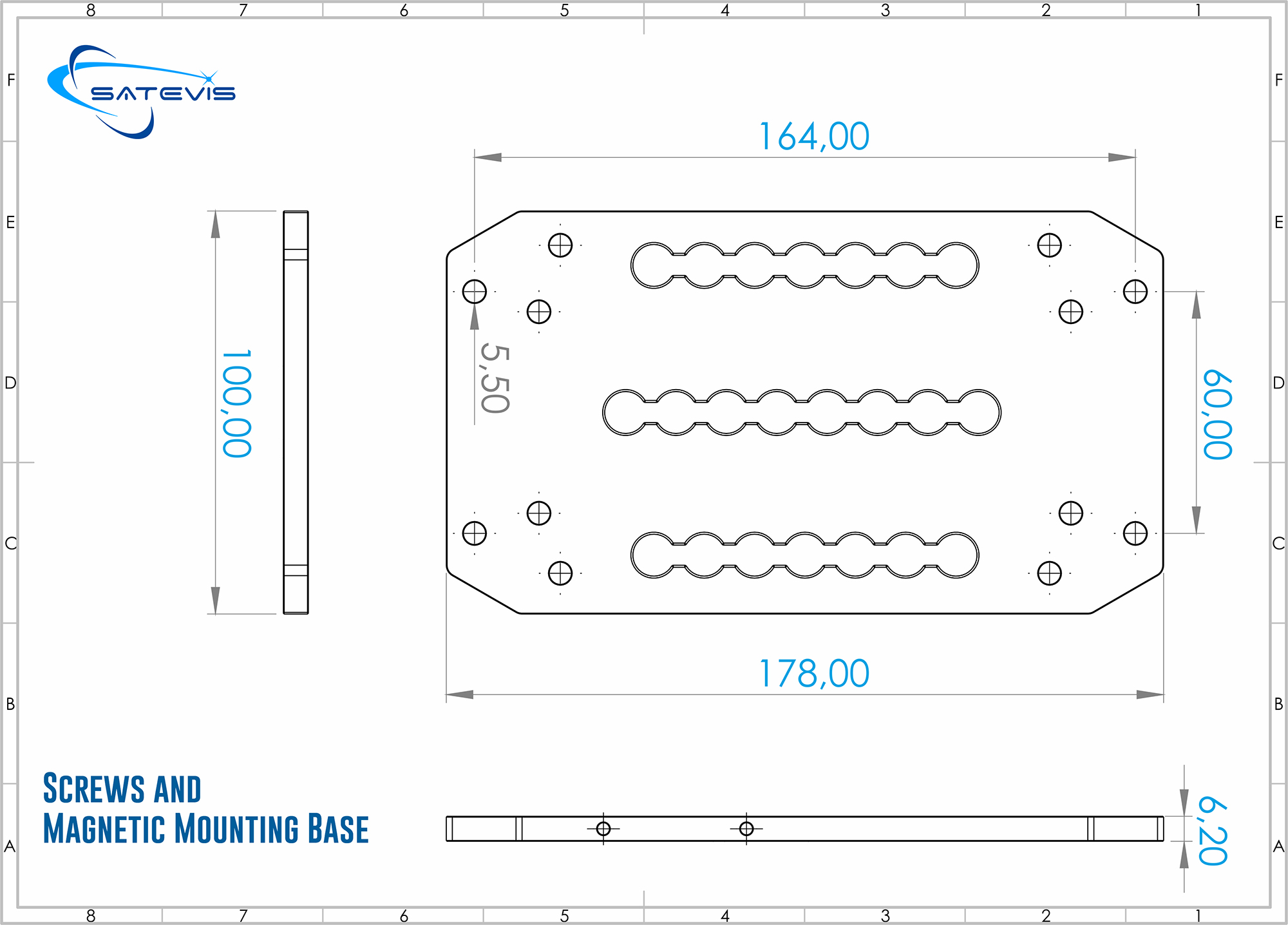

Screws and Magnetic Mounting Base

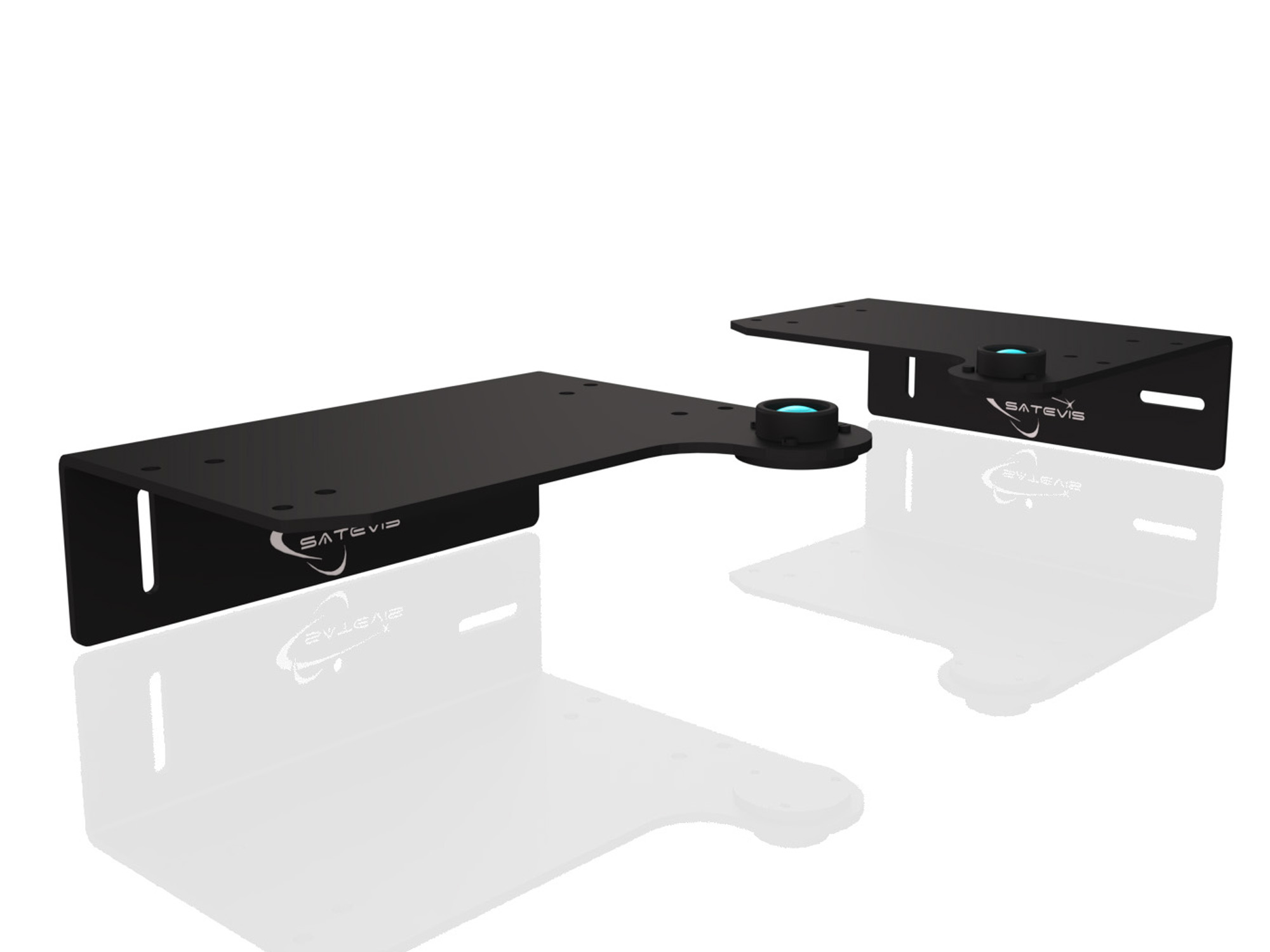

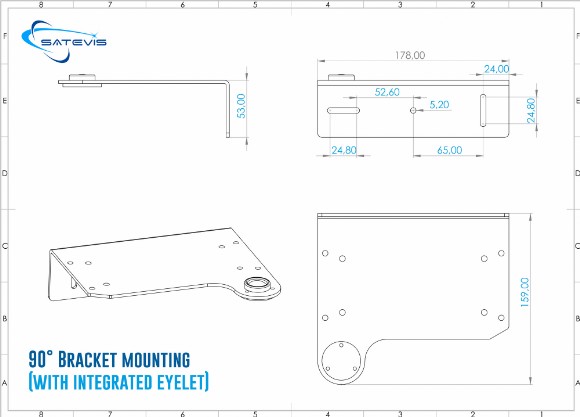

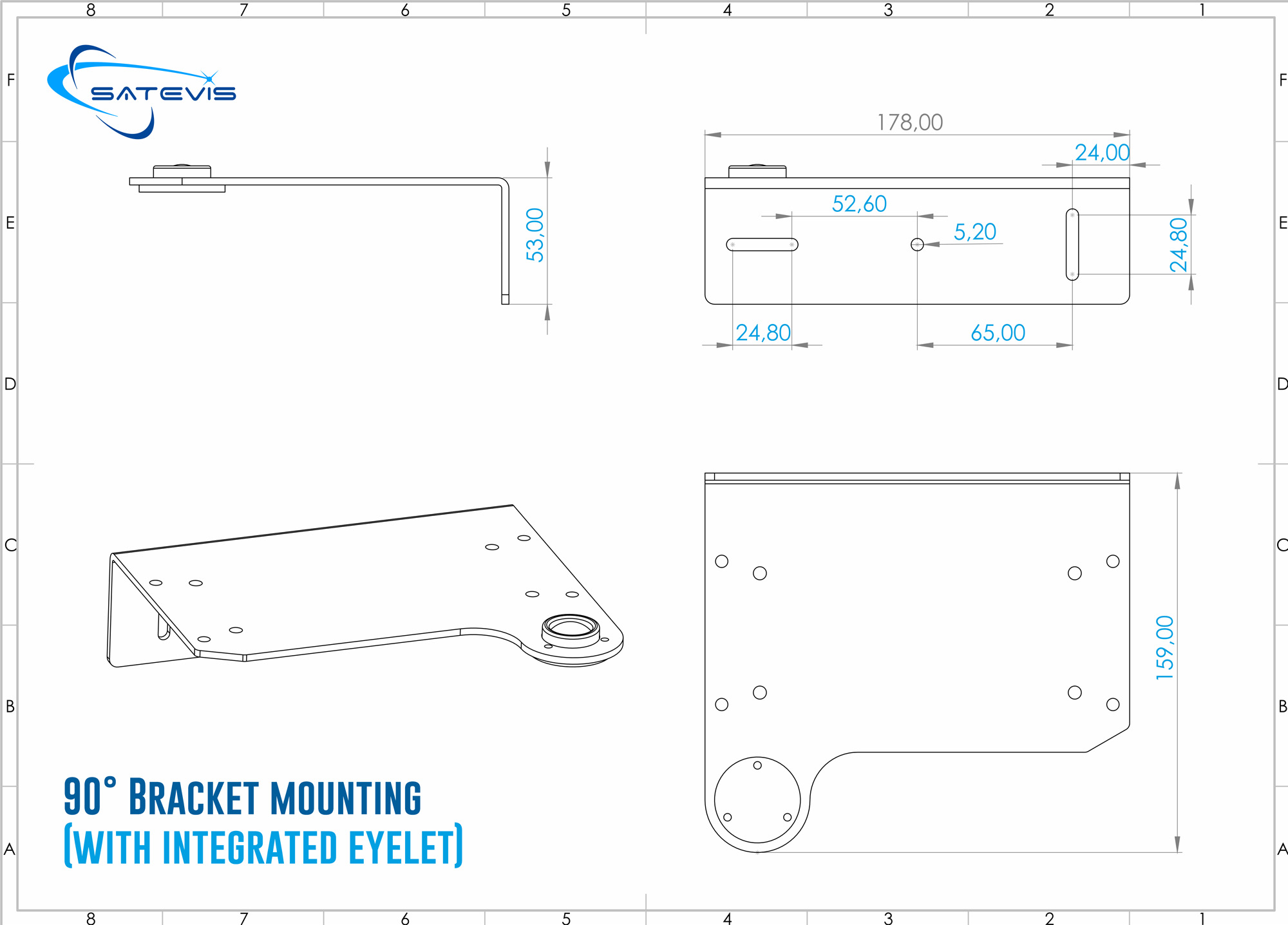

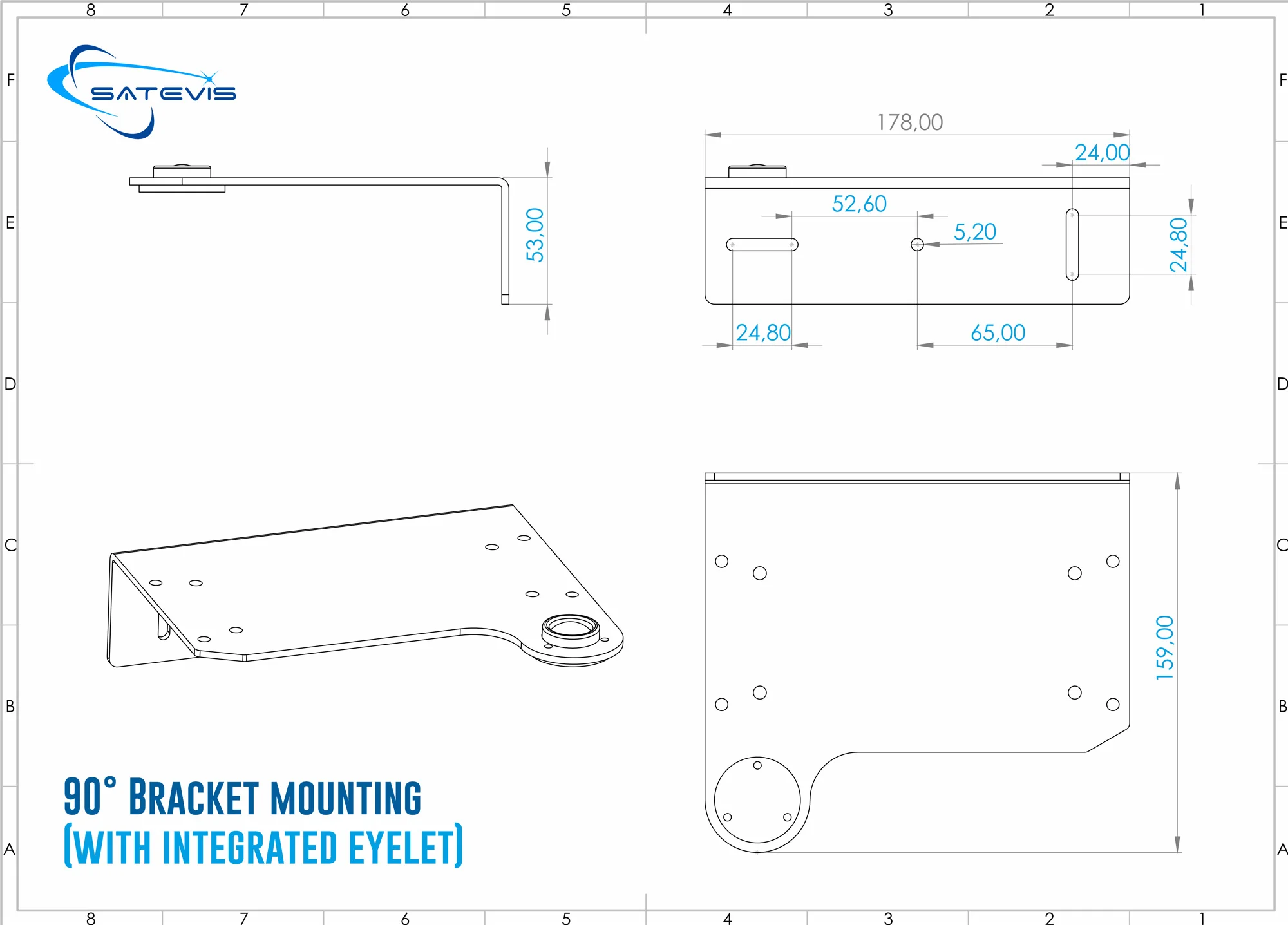

90° Bracket mounting ( with integrated eyelet )
Satevis® Solar Gateway | Solar Panel Options

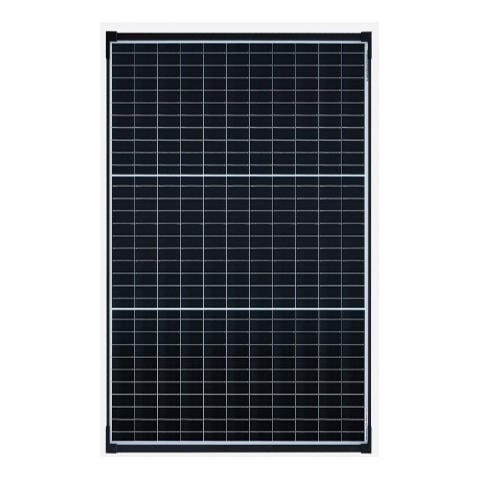

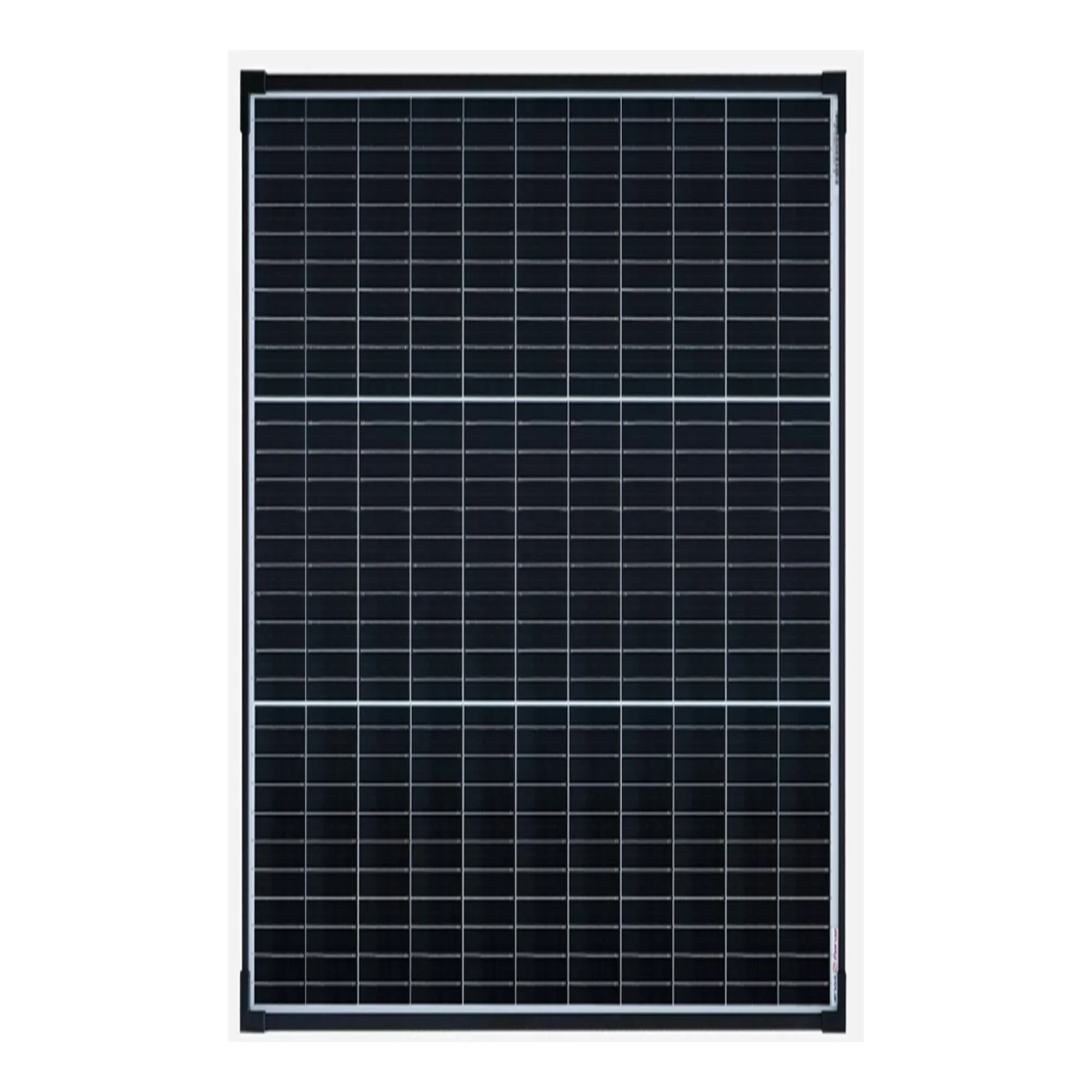

SATEVIS-GTW-SP-100W-5M
PERC Monocrystalline Solar panel, 182mm solar cells, 10Busbars, 100W 12V
► Construction with 182mm monocrystalline PERC cells
► With 10 multi-busbars, less resistance, and more stability
► Increased cell efficiency above 23.1%
► Less gaps between the solar cells and thinner busbar design
► Integrated bypass diode
► Surface made of hardened ESG solar glass with weatherproof coating
► Unique, extra robust frame made of anodized aluminum
► TÜV certified according to standards IEC61215, IEC61730
Provided with 5 meters cable and Hirschmann Plug
Module dimension: 925 * 580 * 35 mm
Module weight: 6.3 kg

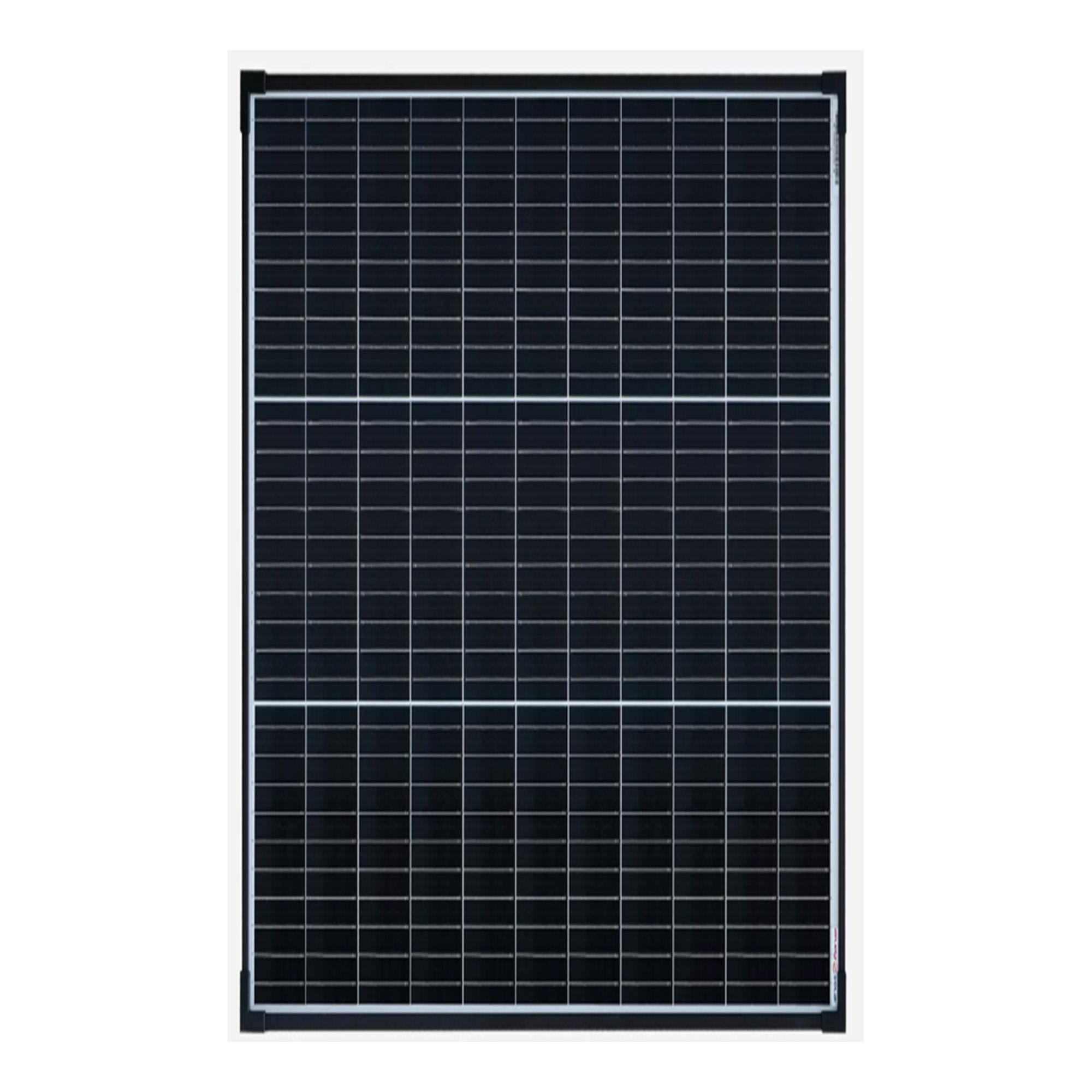

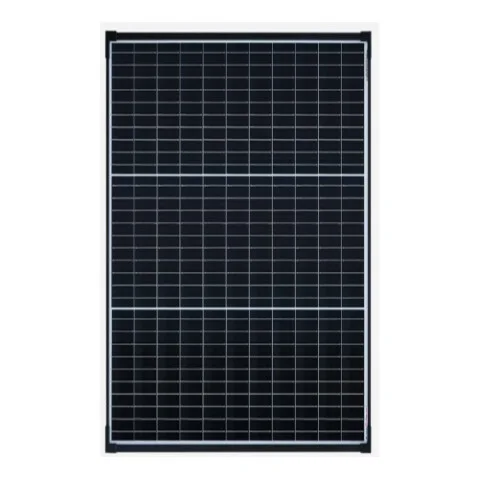

SATEVIS-GTW-SP-100W-10M
PERC Monocrystalline Solar panel, 182mm solar cells, 10Busbars, 100W 12V
► Construction with 182mm monocrystalline PERC cells
► With 10 multi-busbars, less resistance, and more stability
► Increased cell efficiency above 23.1%
► Less gaps between the solar cells and thinner busbar design
► Integrated bypass diode
► Surface made of hardened ESG solar glass with weatherproof coating
► Unique, extra robust frame made of anodized aluminum
► TÜV certified according to standards IEC61215, IEC61730
Provided with 10 meters cable and Hirschmann Plug
Module dimension: 925 * 580 * 35 mm
Module weight: 6.3 kg

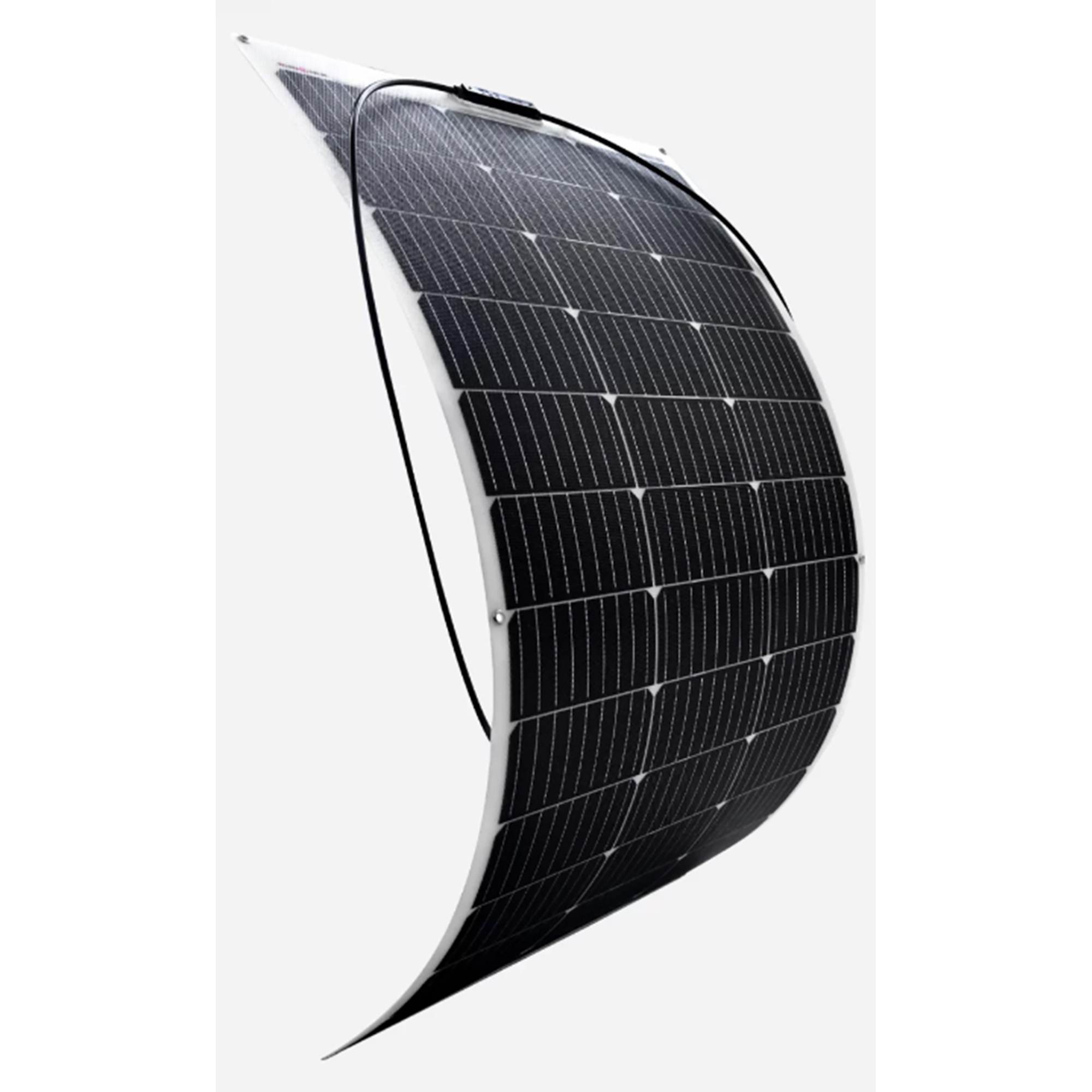

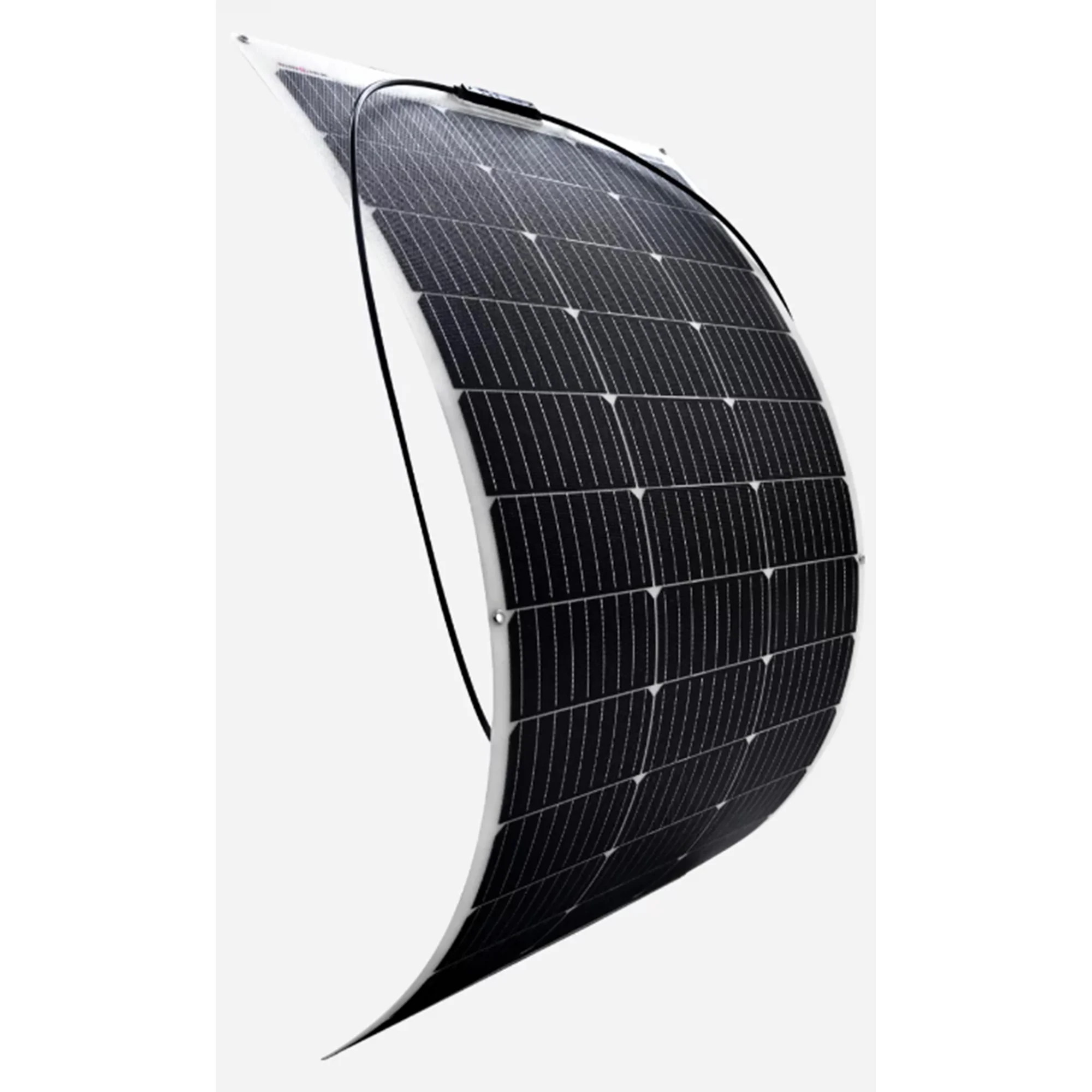

SATEVIS-GTW-SPFLEX-110W-5M
ETFE Marine semi-flexible solar panel 166*166mm 9 Busbars PERC Cells, 110W /12V
► Increased cell efficiency up to 22.62%.
► Structure with 166mm*166mm monocrystalline solar cells
► With 9 multi-busbars, less resistance and more stability
► Bendability: max. 50°
► ETFE coating with high elasticity and durability
► Waterproof junction box with injected silicone
► High resistance to salt water, rain, hail and wind
► Lighter weight and easy installation
Provided with 5meters cable and Hirschmann Plug
Module dimension: 1080 * 540 * 2mm
Module weight: 2.1 kg
SATEVIS-GTW-SPFLEX-110W-10M
ETFE Marine semi-flexible solar panel 166*166mm 9 Busbars PERC Cells, 110W /12V
► Increased cell efficiency up to 22.62%.
► Structure with 166mm*166mm monocrystalline solar cells
► With 9 multi-busbars, less resistance and more stability
► Bendability: max. 50°
► ETFE coating with high elasticity and durability
► Waterproof junction box with injected silicone
► High resistance to salt water, rain, hail and wind
► Lighter weight and easy installation
Provided with 10meters cable and Hirschmann Plug
Module dimension: 1080 * 540 * 2mm
Module weight: 2.1 kg
Mechanical Mounting Options for Satevis® Solar Gateway

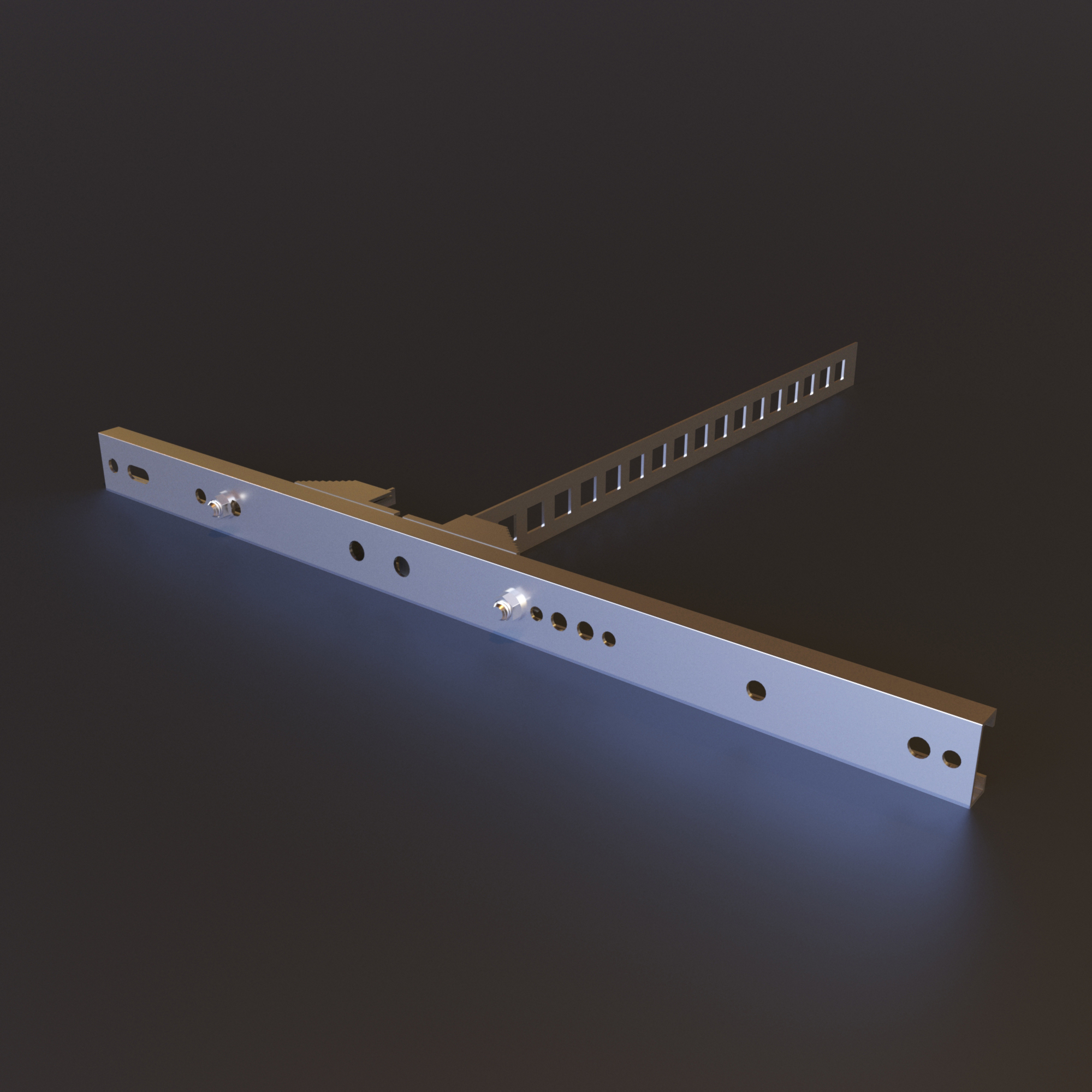

SATEVIS-GTW-SOLAR-MAST
Pole Clamp, for reliable, convenient fastening to round or square poles.
►For pole diameter: Ø from 40 to 170 mm
►For pole size: from 50 to 150 m
►Material Profle rails, clamping section: Carbon steel
►Clamping strap: Stainless steel 1.4301 (AISI 304)
►2 profile rails, 600 mm long
►4 clamping sections
►2 clamping straps
►4 clamping brackets
►4 self-threading M10 screws for mounting on the enclosure
►Gross Weight: 2kg
