Wilow® HI-INC | WiFi | Wireless IoT Inclinometer Sensor
Wireless WIFI Tilt Sensor for Industrial IoT
Real-Time Monitoring & Easy IOT integration | |||

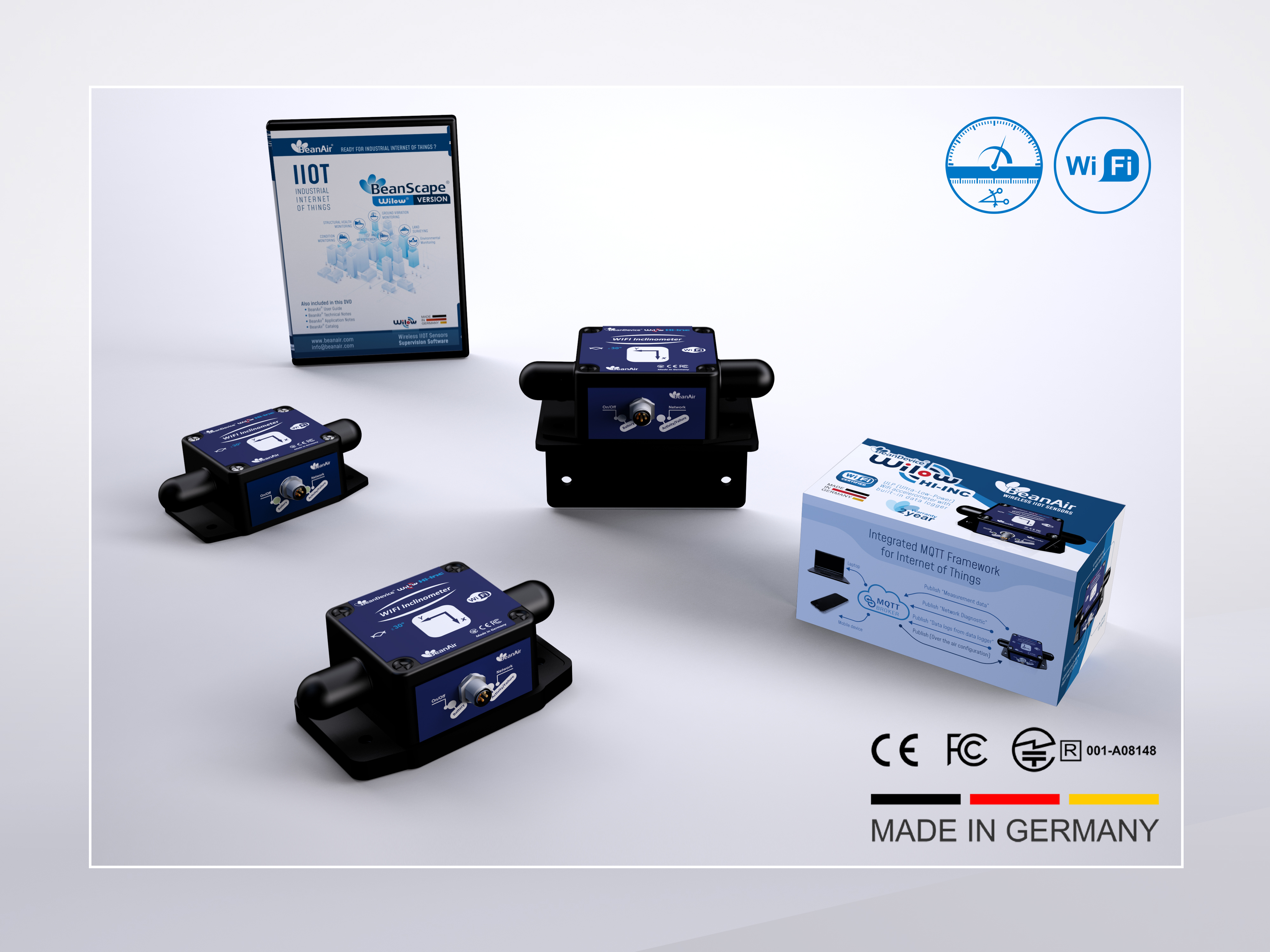

The BeanDevice® WiLow® HI-INC is an ultra-low-power (ULP), bi-axis Wi-Fi inclinometer engineered for high-precision tilt monitoring. It is available in two measurement ranges (±15° or ±30°) and features an integrated data logger to ensure reliable performance in demanding IoT applications. This robust sensor offers versatile mounting (screw or magnetic) and antenna configurations (embedded or high-gain) to suit various deployment needs. With solar energy harvesting capabilities, the WiLow® HI-INC enables autonomous, maintenance-free operation, making it the ideal solution for continuous structural and industrial tilt monitoring. | |||
 | • Included Free Software |  | |
 | • Wireless Protocol: • ULP Wi‑Fi, IEEE 802.11 b/g/n | |
 | • Bi-Axis Range: • ±15° or ±30° (high‑resolution) | |
 | • Enclosure: • Waterproof ( IP67 / NEMA 6 ) | |
 | • Integrated data logger: • up to 1.15 million logs | |
Technical Specifications
Integrating the latest ULP (Ultra Low Power) WIFI technology, the BeanDevice® WiLow® HI-INC comes with outstanding features: | ||
 | ULP (Ultra Low Power) WIFI Inclinometer: • Measurement range: ±15° or ±30° bi-axis • High resolution 0.001°, great level of repeatability ±0.003° (full scale at 25°C for ±15B version) • Maximum sampling rate: 2 KSPS per axis • Stable measurements due to vibrations | |
 | Open standard, low power and reliable WIFI technology: • IEEE 802.11 b/g/n (2.4Ghz frequency band) • Radio range : -With High Gain Antenna : 100-200m (L.O.S), 40-80m (N.L.O.S.) -With Integarted Radome Antenna : 50-100m (L.O.S), 20-50m (N.L.O.S.) -In both case Radio Range can be extended by adding Wifi Bridge/Repeater • IOT Ready: integrates MQTT data exchange, an open-source Internet of Things (IOT) protocol | |
 | • Integrated data logger supports up to 1.15 million logs per sensor channel | |
| • Integrated Rechargeable Battery: built-in 900mAh rechargeable battery, • USB 5VDC Power Supply: Compatible with any IOT-dedicated USB power bank • Solar Panel Connectivity 8-24VDC (EHR option) for a renewable energy source. | |
 | OTA : Over the air Firmware upgrade via WIFI | |
 | Industrial operating temperature (-40°C to +60°C) | |
 | Waterproof (IP67 | Nema 6) and Rugged aluminum casing (LxWxh: 65x59x35mm, 220g) | |
 | USB 2.0 for device configuration and 5VDC power supply | |

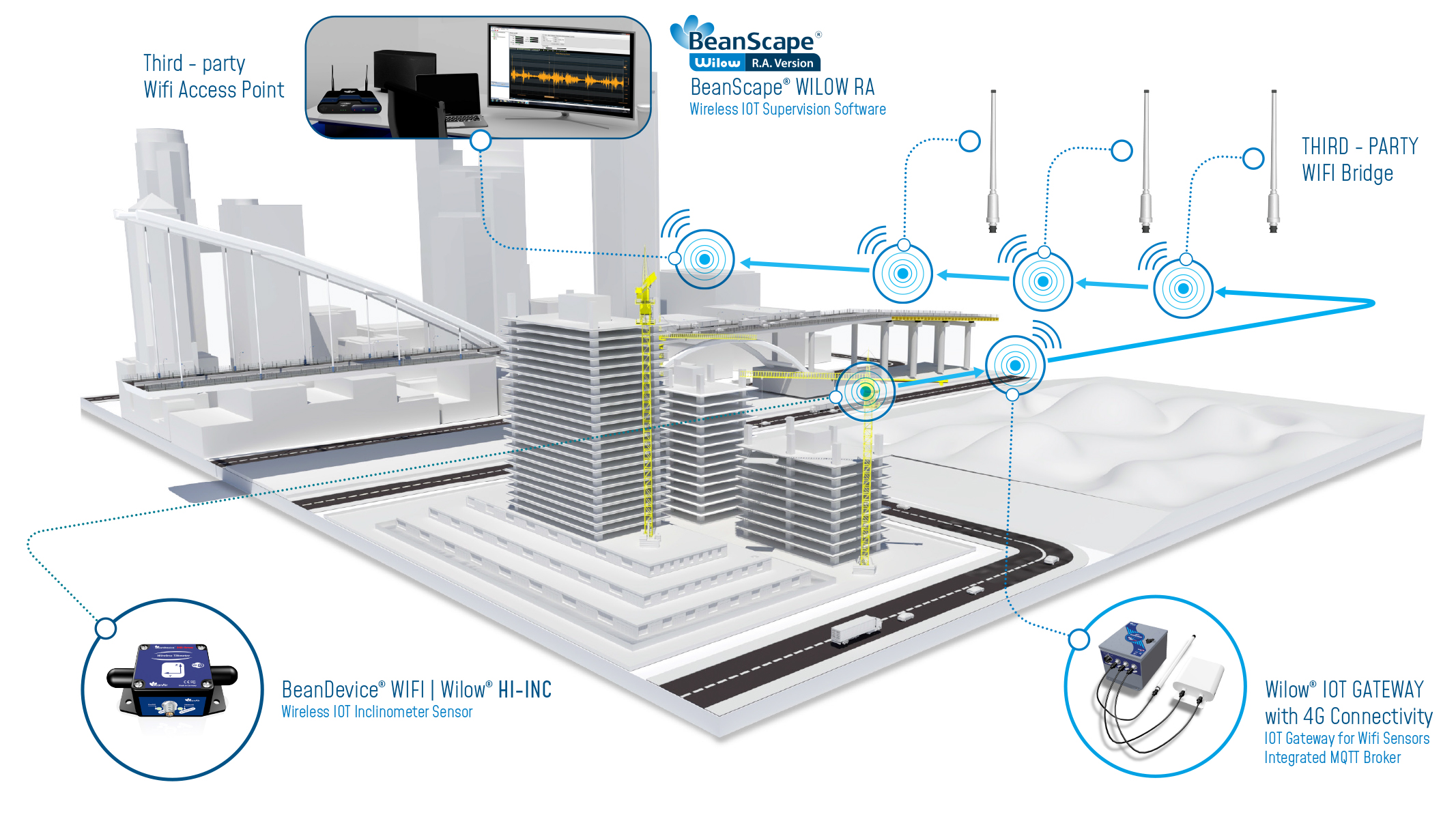

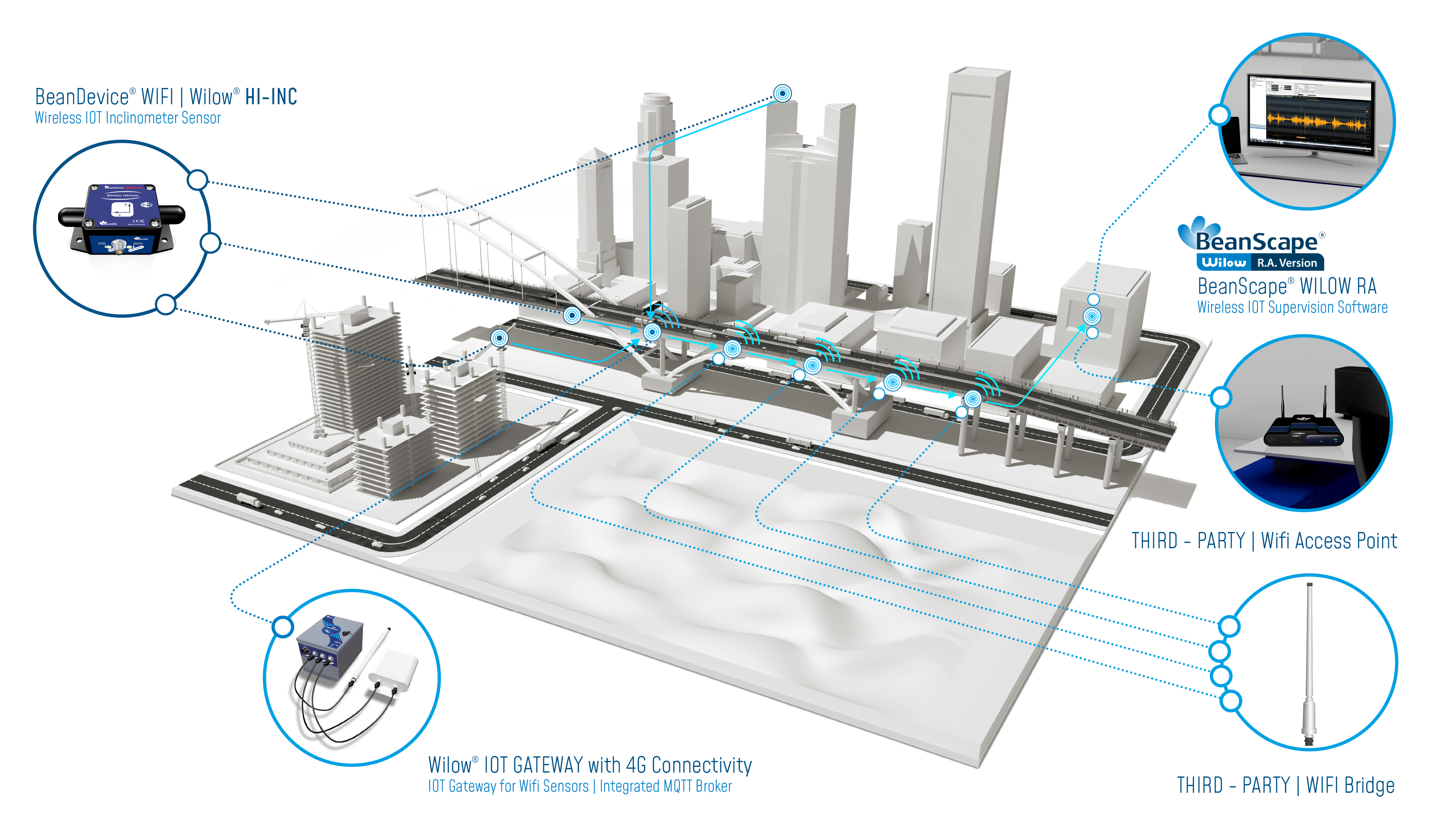

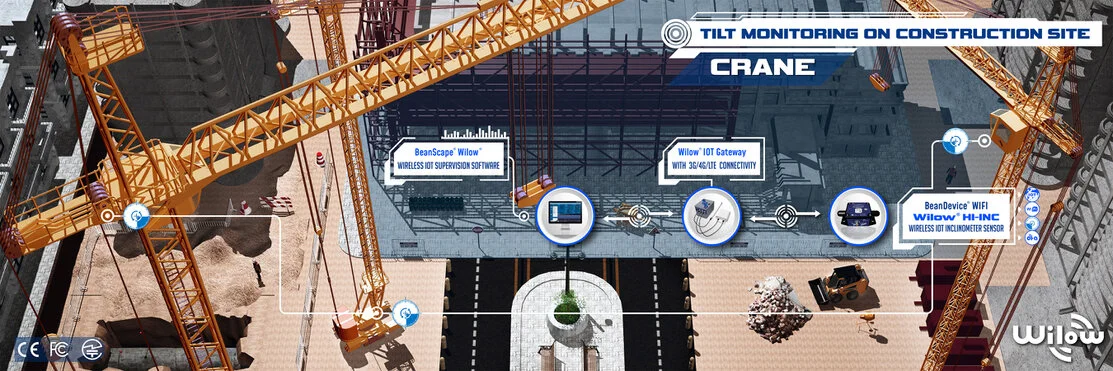

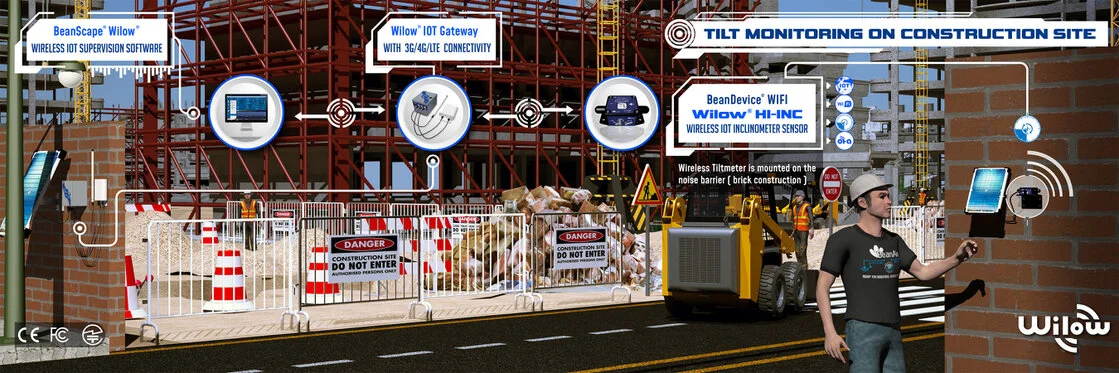

Applications

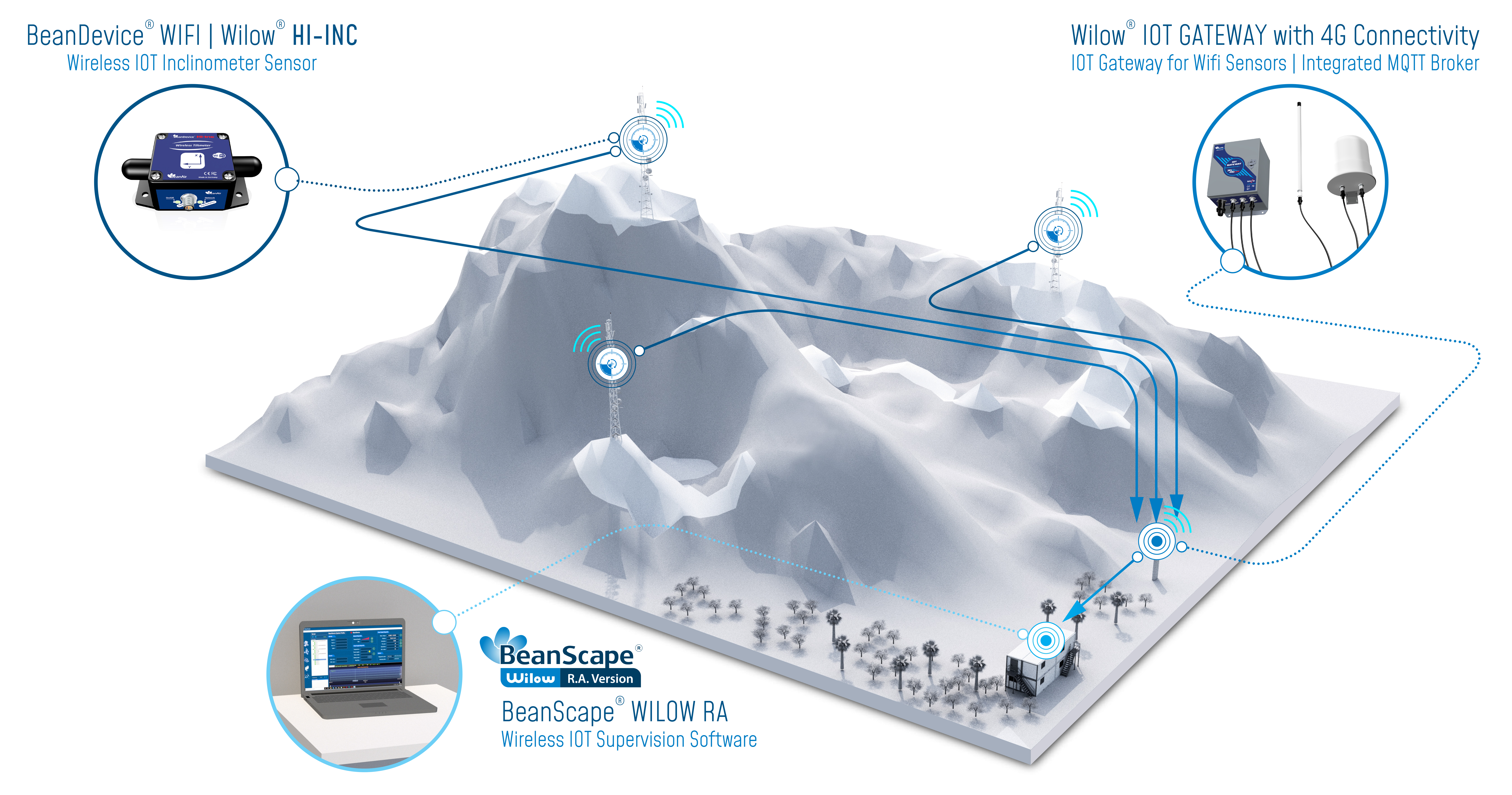

Antenna Base Station | ||
 | ||
Video
Featured Video
Mechanical Mounting Options Video
Product Video

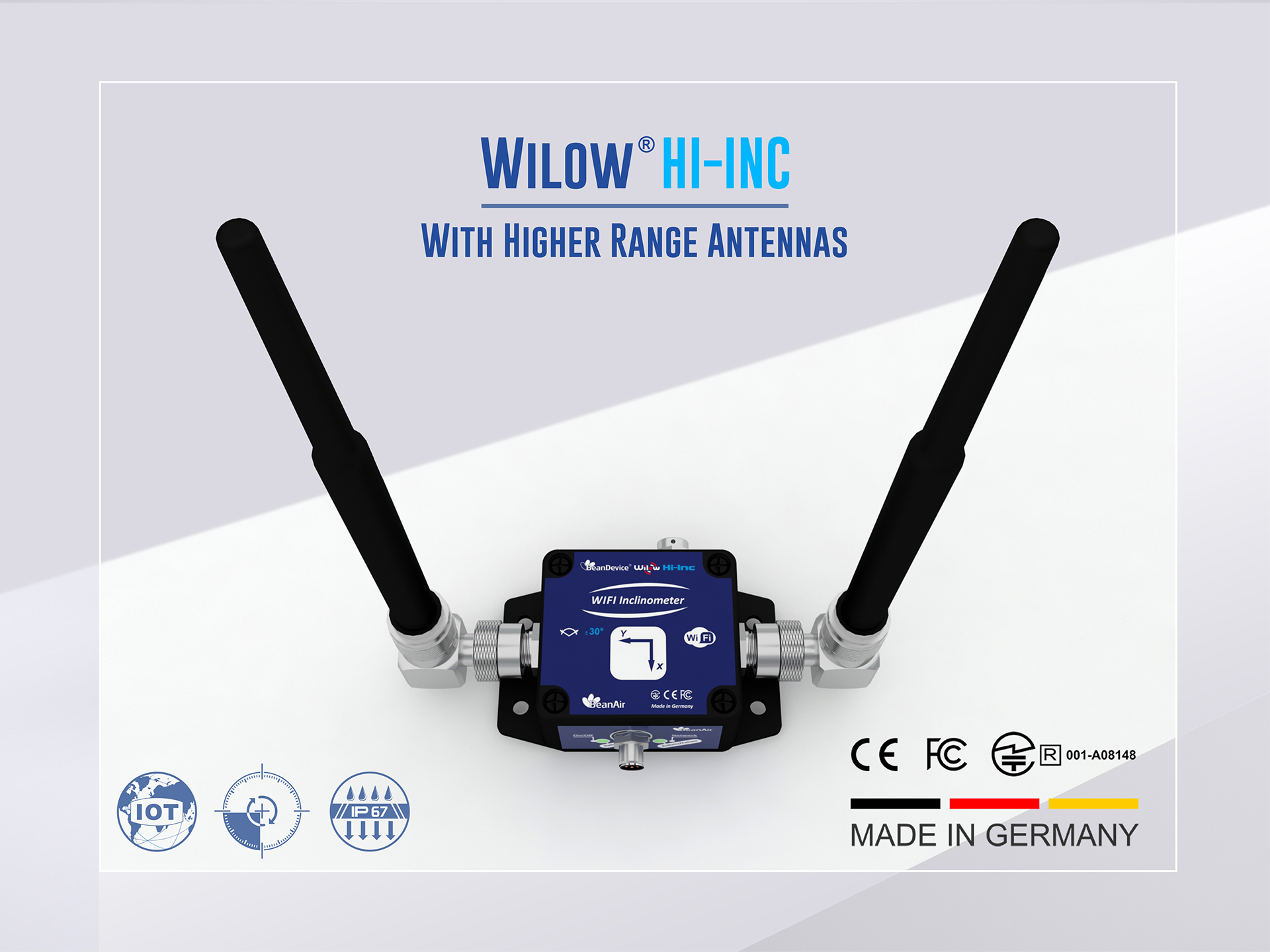

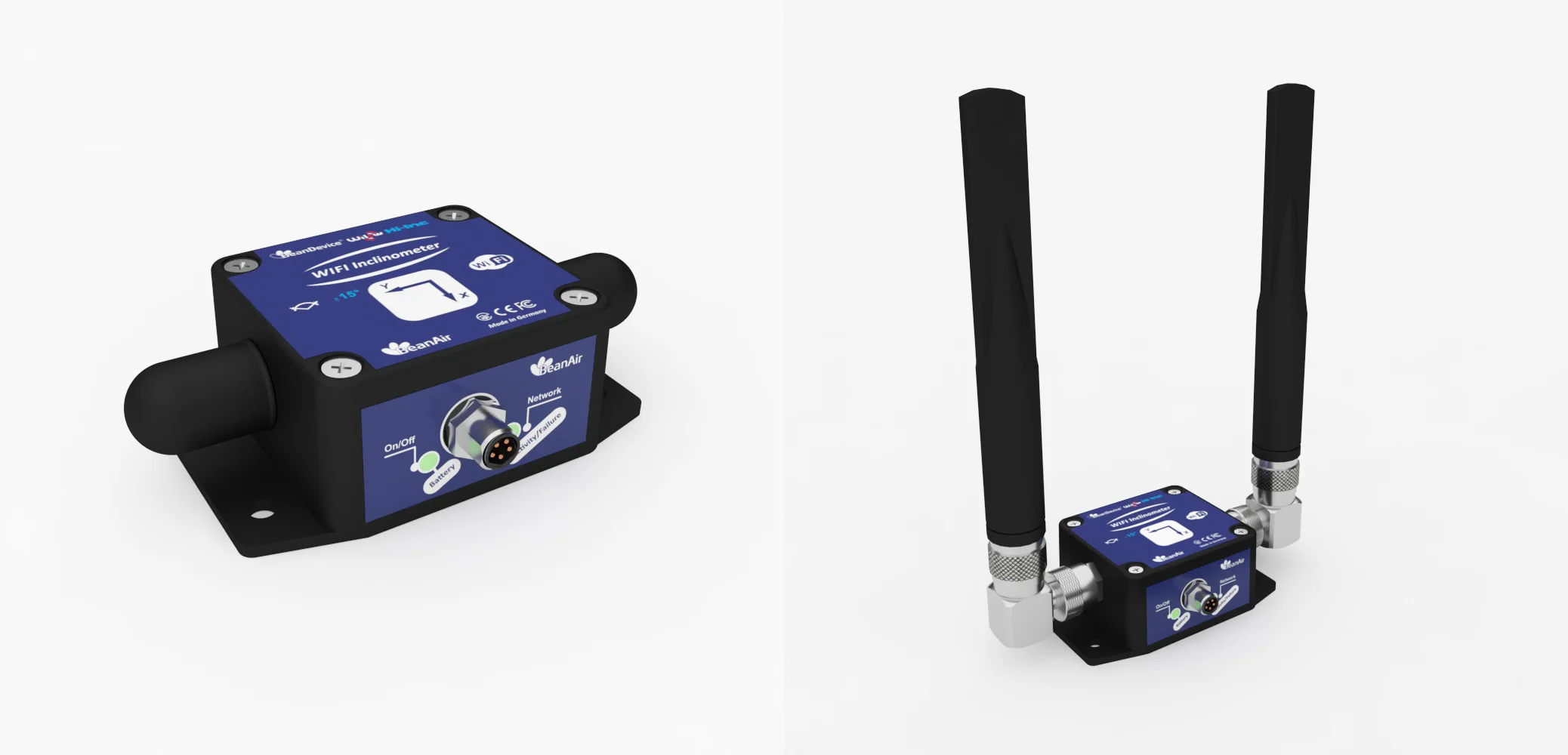

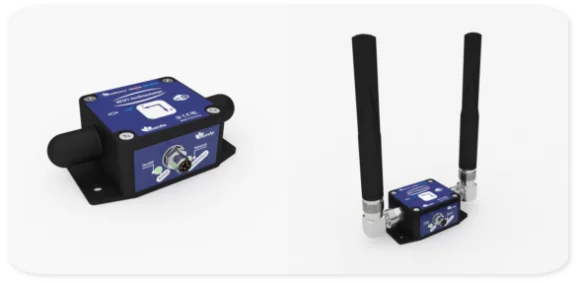

Antenna Options for Different Applications

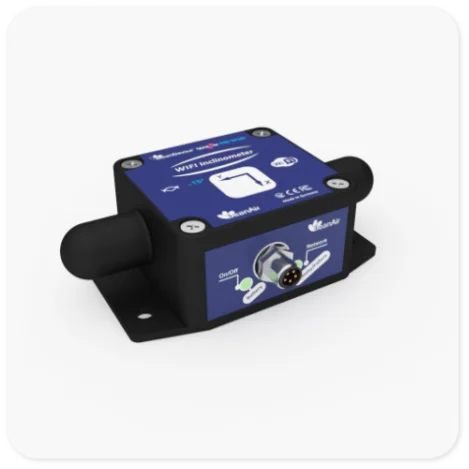

• Radome AntennaIdeal for space-constrained applications.
• High-Gain AntennaOptimized for long-range wireless communication.For broader coverage, the wireless range can be expanded using third-party WiFi repeaters.
Multiple Powering Options for Wilow® IOT Sensors
WiLow IOT sensors offer multiple powering options for flexibility and reliability:
• USB 5VDC Power Supply:
Compatible with any IOT-dedicated USB power bank, providing a convenient power source.
• Solar Panel Connectivity:
Directly connect a solar panel (EHR option) for a renewable energy source.
• Integrated Rechargeable Battery:
WiLow sensors feature a built-in 900mAh rechargeable battery, ensuring continuous operation.

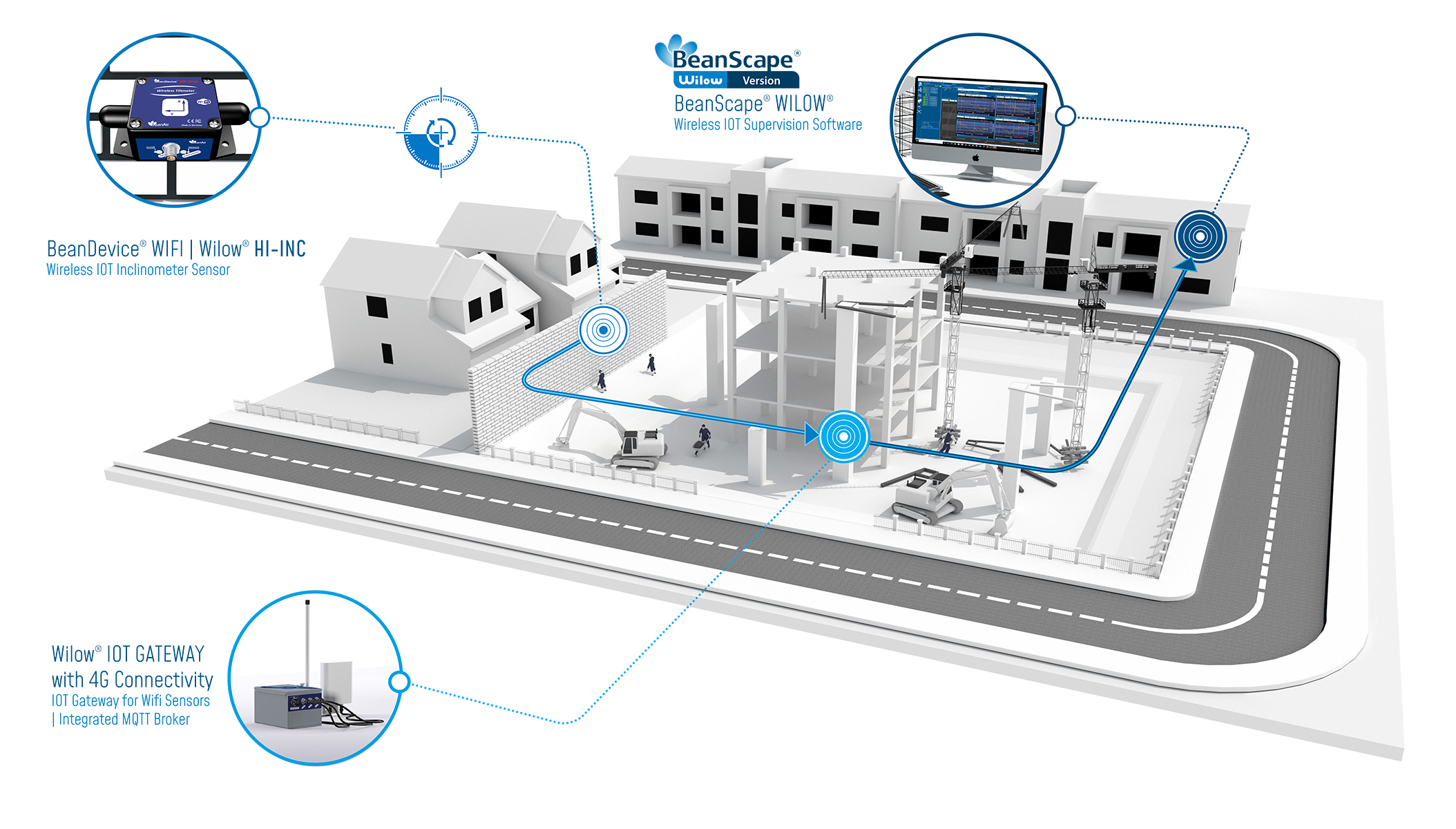

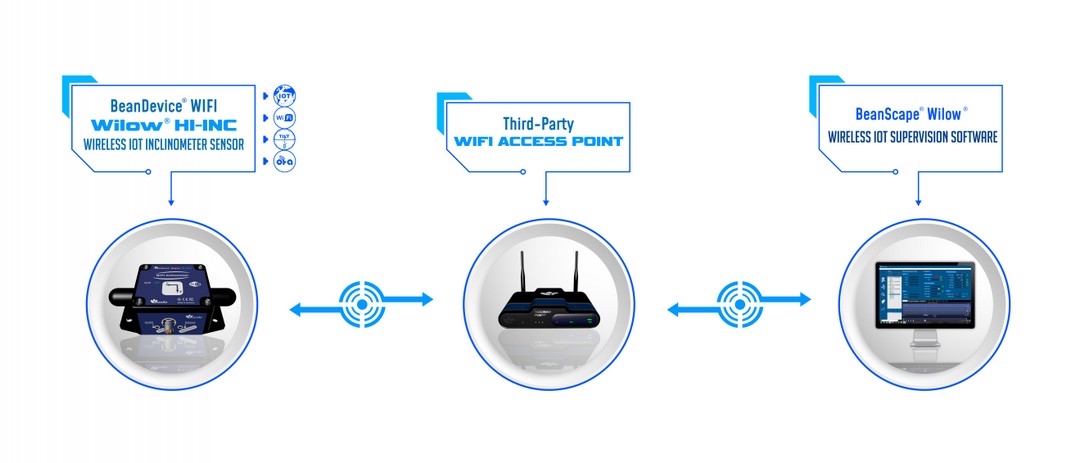

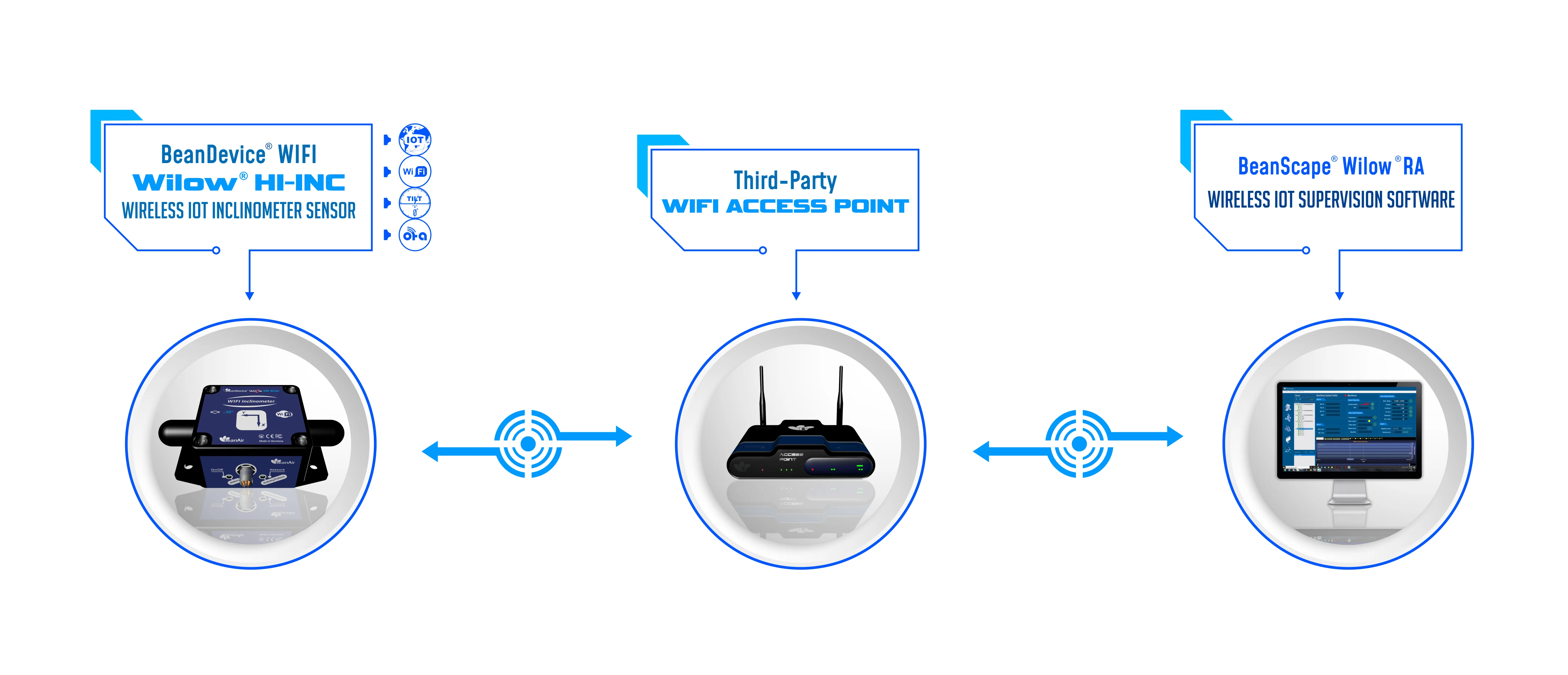

How it Works ?

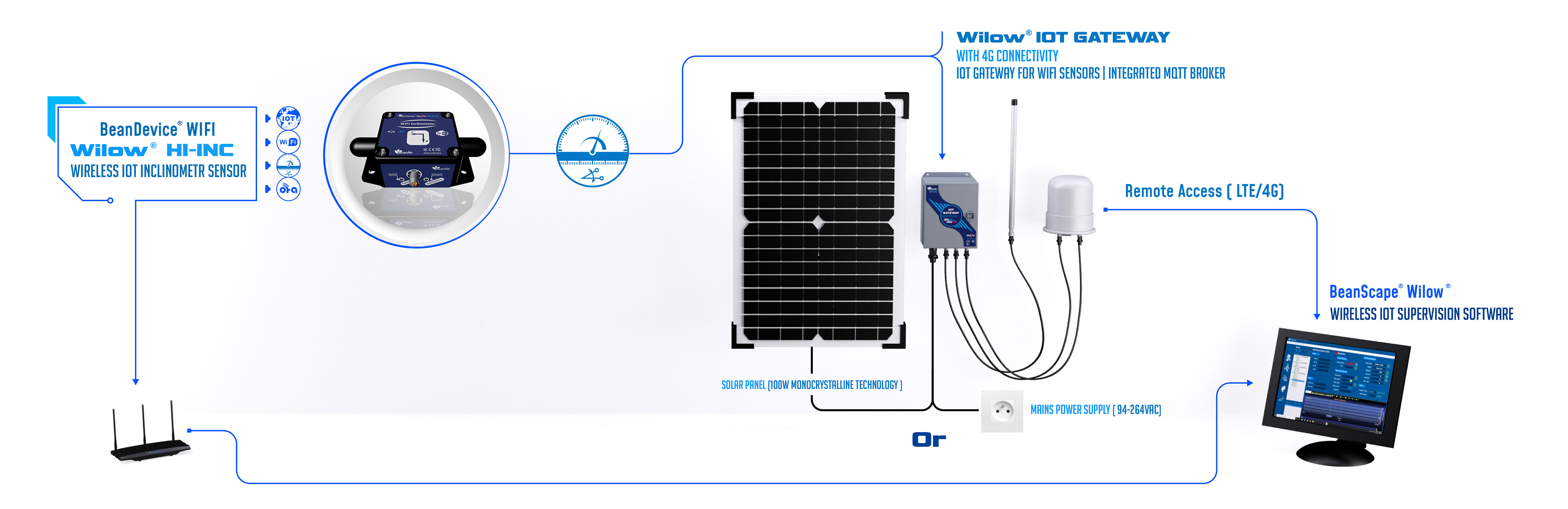

Enable a Quick and Reliable Remote Access Thanks to our IoT Gateway
Accessories
INCLUDED ACCESSORIES | |
 | M8 plastic cap 1pcs REF:WL-PC |
 | M8 to USB cable Technical specifications: 1pcs M8-6pins to USB Cable, 2 meters length. Ref: WL-CBL-M8-6P-USB-2M |
Wall mounting kit 4 pcs M5 screws+ Locknut. Ref: WL-WIFI-SCMKIT | |
 | Magnet for Power ON | Power OFF 1pcs Magnet. REF:WL-MGN |
OPTIONAL ACCESSORIES AND SERVICES | |
 | Solar Panel Kit X-Solar 14ah | Solar Panel with Solar Charging Controller Ref: X-SOL-14AH-SLP-VOUT-CL  X-Solar 7ah | Solar Panel with Solar Charging Controller Ref: X-SOL-7AH-SLP-VOUT-CL |
 | Molded Cable with M8-6Pins Male on one side and bare wires on the other side For external Power supply (24VDC max if EHR option is present ) or USB (5VDC) Waterproof - IP67 (only on M8 Side) Material : PVC Ref: WL-CBL-M8-2M for 2 meters cable length Ref: WL-CBL-M8-5M for 5 meters cable length |

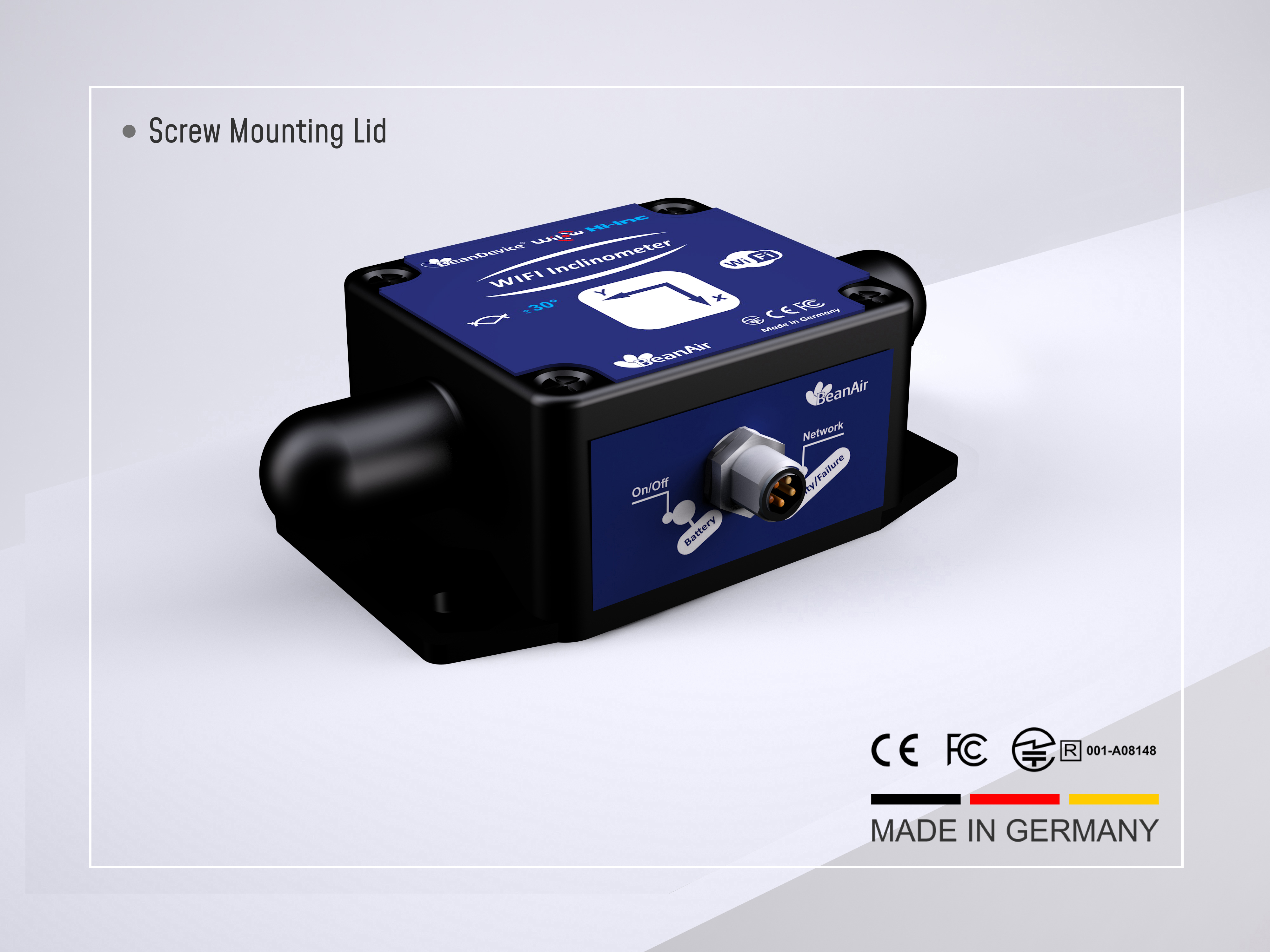

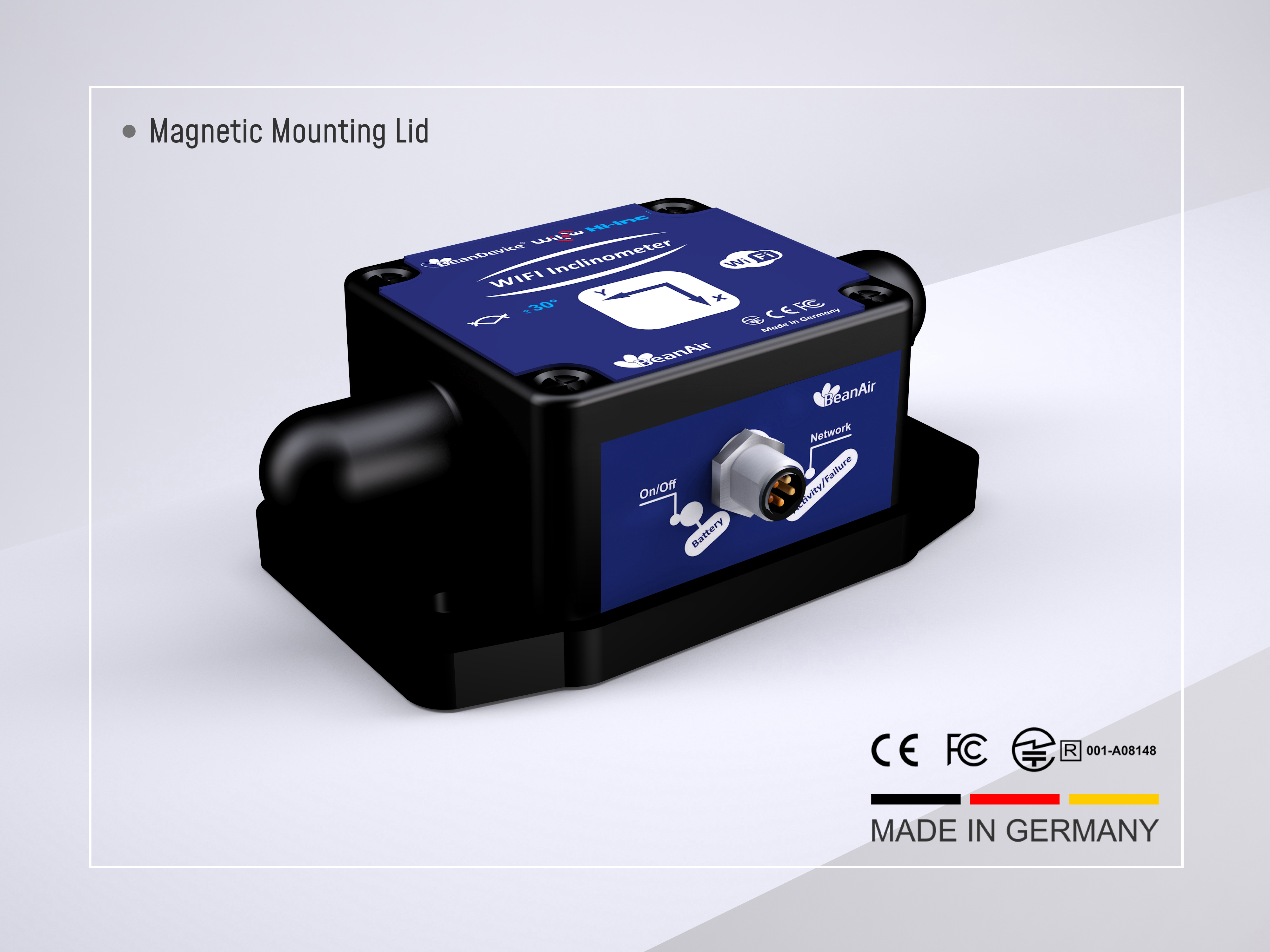

Mechanical Mounting Options By default, the BeanDevice® Wilow® comes with a screw mounting lid. Two other mounting options are available: • Magnetic mounting , add the extension –M on your product reference   • 90° bracket, add the extension –BR on your product reference  | |
 | Power Supply Wall plug-in, Switchmode power Supply 5V @ 1,25A with USB plug Provided with power adapter: North America / Japan / China or Europe or UK or Australia |
Solar Panel 5W MonoCrystalline Solar Panel for BeanDevice® Wilow® power supply ( compatible with -EHR Power extension Only ) Maximum Power : 5W Optimum operating Voltage: 12 VDC Max Voltage = 17.8V Max Current: 0.28A Efficiency: 16% Operating Temperature : -40°C to +85°C Temperature Coeff. : -0.45%/°C Dimensions : 250 x 185 x 25 mm Weight: 0.7kg Protection Frame: Aluminum Frame , Waterproof IP67 Cable Length : 2 meters ( REF: WL-SLP-5W-2M ) or 5 meters ( REF: WL-SLP-5W-2M ) with M8-6 Pins plug for a direct to connection to the BeanDevice® Wilow® Can work with the following Data Acquisition mode: Low Duty Cycle, Alarm, Streaming with Burst Data Acquisition Mode with battery saver mode enabled | |
 | AC/DC Power Adapter for Wilow Sensors • Waterproof aluminum casing (IP67) • Input voltage: 85-264 VAC • Output voltage : 5VDC • Can power supply up to 4 BeanDevice® Wilow® |
Suitecase IP67 Suitcase for Wilow Sensors: - high quality special plastic - shock proof, break resistant and scratch proof - watertight seal around the lid - long life clip closure - long life fully length hinges - cubed foam in the bottom and convoluted foams in the lid Can contain up to 4 x Wilow WIFI Sensors and related accessories (except WIFI Bridge and Antenna) Dimensions (LxWxH): 258 x 243 x 167.5 mm Weight : 1.1kg Ref: WILOW-IP67-SUITCASE-01 | |
 | Calibration Certificate Calibration certificate provided by Beanair GmbH A static calibration method is used on a granite surface plate DIN876 Ref: WL-CERT-CAL |
Download Resources
Technical & Product FAQ
Related Products
BeanDevice® WIFI

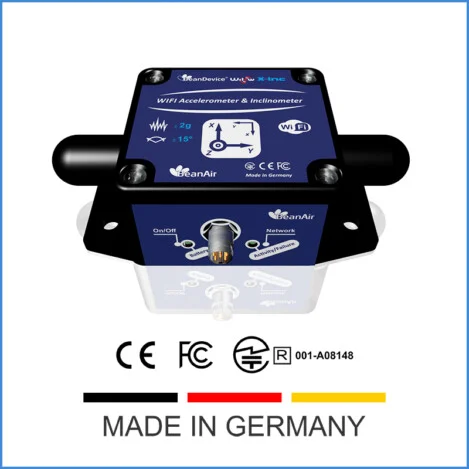

Wilow® X-INC
