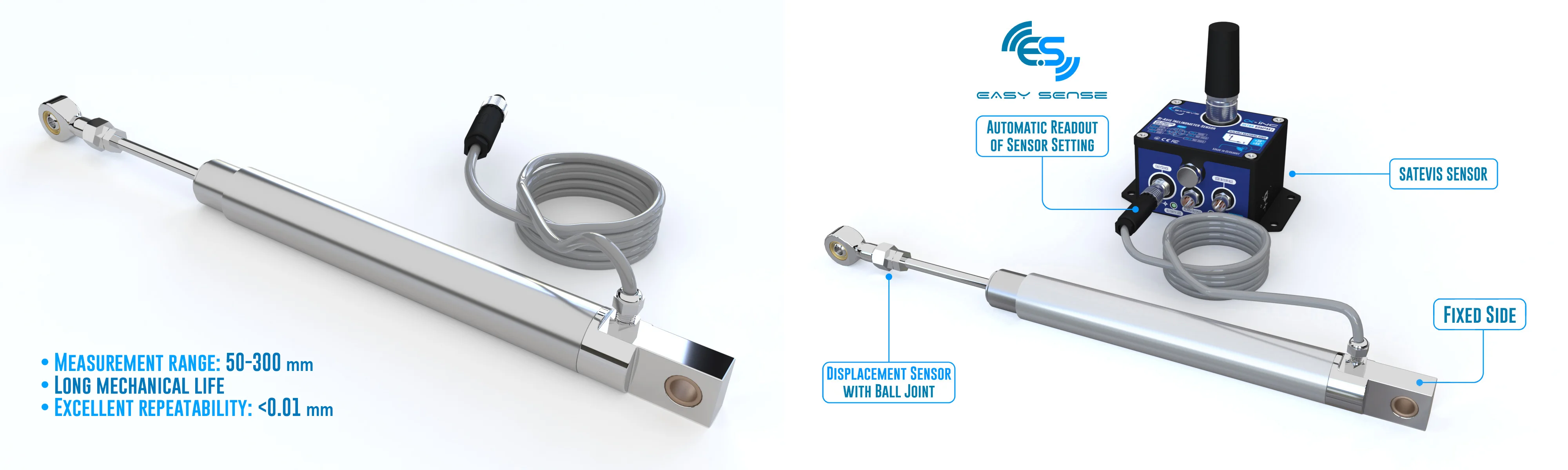

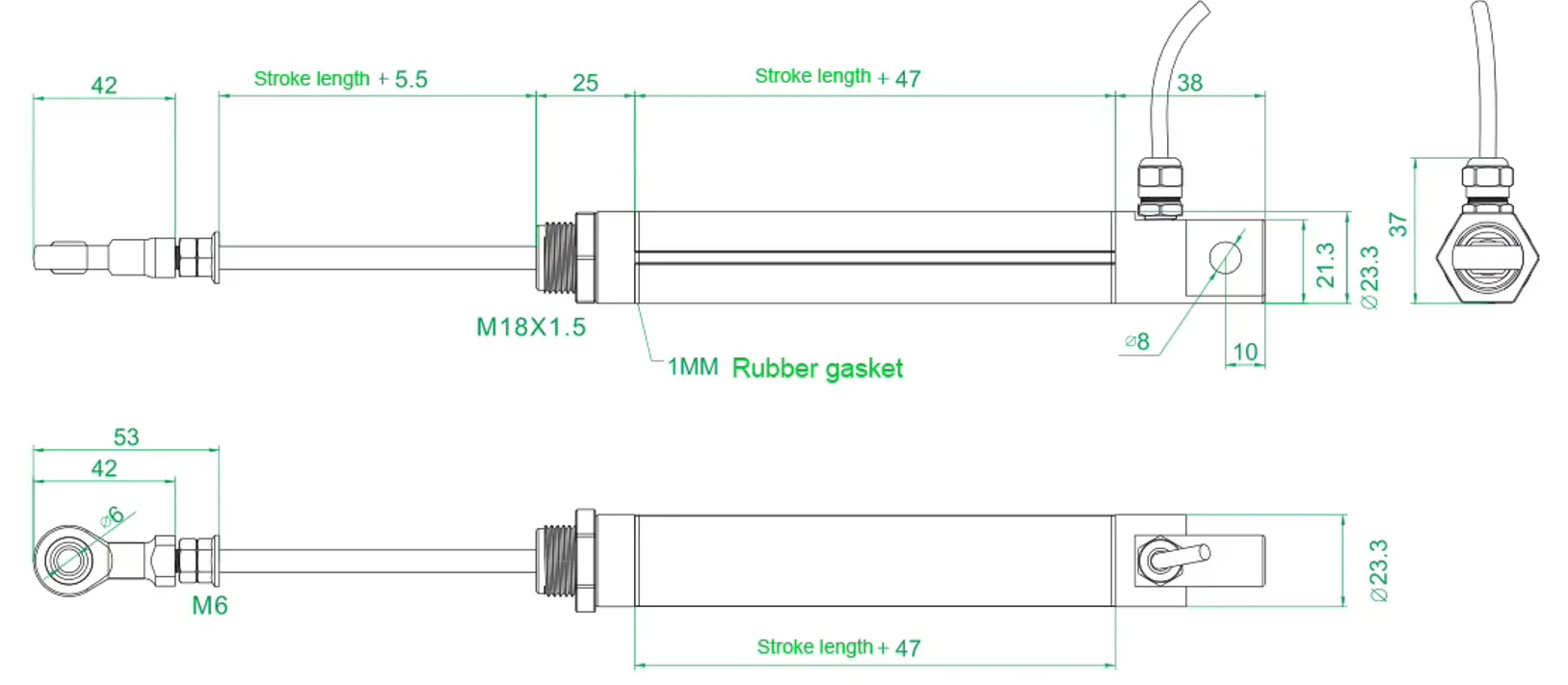

Displacement Sensor with Ball Joint
SAT-EASY-SENSE-DISP-BJ-03
Video
Technical Specifications
Product reference |
SAT-EASY-SENSE-DISP-BJ-03-MS-YY-CL-XX |
MS-YY - Measurement stroke 50mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm |
CL-XX– SENSOR CABLE LENGTH from 1m to 10 meters |
| Example: SAT-EASY-SENSE-DISP-BJ-03-MS-100MM-CL-10M
Displacement sensor with ball Joint, Measurement stroke 100mm, Cable length 10 meters |
Displacement sensor specifications | |
| Sensor technology | Linear potentiometer with ball joints on both sides |
| Measurement stroke | 50mm to 300mm |
| Linearity | ±0.05% (100-300 mm) , ±0.1% (50 mm) |
| Repeatability | < 0.01mm |
| Resolution | 0.0017mm for 50mm measurement stroke 0.0034mm for 100mm measurement stroke 0.0050mm for 150mm measurement stroke 0.0067mm for 200mm measurement stroke 0.0084mm for 250mm measurement stroke 0.0101mm for 300mm measurement stroke |
| Resistance | 5 kOhm : 50….300mm |
| Sensor Voltage | 3.3VDC Powered directly by Satevis® device |
Integrated Analog to Digital Converter | Integrated 15-bit Analog to Digital Converter |
| Displacement speed | < 5m/s |
| Mechanical Life | 100 millions movements |
| Casing dimensions | 23.3 mm of diameter |
| Casing material | Anodized Aluminum |
| Rod material | stainless steel |
| Rod diameter | 6 mm of diameter |
| Mechanical mounting | ball joints on both sides |
| Waterproofness | IP66 |
| Operating Temperature | -30°C to +85°C |
| Connection Plug | M8-4Pins connector |
Satevis® compatibility | compatible with Satevis® Alpah-Inc / Alpha-Inc Kompakt / Alpha-Inc SK |
Easy-Sense function | |
Internal Flash Memory | Automatic Readout of Sensor Settings: • Sensor Type and Range • Sensor Calibration settings and date of calibration ; • Alarms Thresholds Values • Sensor Zero-offset and date of Sensor zero offset |
Calibration | Calibration performed at Beanair Lab. |
Alarms Management | Three level of Alarms: Critical/Severe/Minor With High/low and Mixed Alarms Thresholds |
Sensor Zeroing | Sensor Zeroing can be performed on site or Remotely from Satevis Cloud Application (or Third-Party Cloud software) |
