Ball Joint
Displacement Sensor with Easy-Sense FunctionEasy-Sense sensors belong to Satevis’s sensor series and are not compatible with other BeanAir sensor series.
Video
Technical Specifications
Product reference |
SAT-EASY-SENSE-DISP-BJ-MS-YY-CL-XX |
MS-YY - Measurement stroke 10mm, 50mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm |
CL-XX– SENSOR CABLE LENGTH from 1m to 20 meters |
| Example: SAT-EASY-SENSE-DISP-BJ-MS-100MM-CL-10M Displacement sensor with ball joint, Measurement stroke 100mm, Cable length 10 meters |
Displacement sensor specifications | |
| Sensor technology | Linear potentiometer with ball joints on both sides |
| Measurement stroke | 10mm to 400mm |
| Linearity | ±0.05% (>200 mm) , ±0.1% (130-200 mm) , ±0.2% ( 75-130 mm) , ±0.5% (50 and 10 mm) |
| Repeatability | < 0.01mm |
| Resolution | 0.0003mm for 10mm measurement stroke 0.0017mm for 50mm measurement stroke 0.0034mm for 100mm measurement stroke 0.0050mm for 150mm measurement stroke 0.0067mm for 200mm measurement stroke 0.0084mm for 250mm measurement stroke 0.0101mm for 300mm measurement stroke 0.0117mm for 350mm measurement stroke 0.0134mm for 400mm measurement stroke |
| Resistance | 2 kOhm: 10….50mm 5 kOhm : 75….400mm |
| Sensor Voltage | 3.3VDC Powered directly by Satevis® device |
Integrated Analog to Digital Converter | Integrated 15-bit Analog to Digital Converter |
| Displacement speed | < 5m/s |
| Mechanical Life | 100 millions movements |
| Casing dimensions | 18 mm of diameter |
| Casing material | Anodized Aluminum |
| Rod material | stainless steel |
| Rod diameter | 5 mm of diameter |
| Mechanical mounting | ball joints on both sides |
| Waterproofness | IP66 |
| Operating Temperature | -20°C to +80°C |
| Connection Plug | M8-4Pins connector |
Satevis® compatibility | compatible with Satevis® Alpah-Inc/Alpha-Inc Kompakt |
Easy-Sense function | |
Internal Flash Memory | Automatic Readout of Sensor Settings: • Sensor Type and Range • Sensor Calibration settings and date of calibration ; • Alarms Thresholds Values • Sensor Zero-offset and date of Sensor zero offset |
Calibration | Calibration performed at Beanair Lab. |
Alarms Management | Three level of Alarms: Critical/Severe/Minor With High/low and Mixed Alarms Thresholds |
Sensor Zeroing | Sensor Zeroing can be performed on site or Remotely from Satevis Cloud Application (or Third-Party Cloud software) |

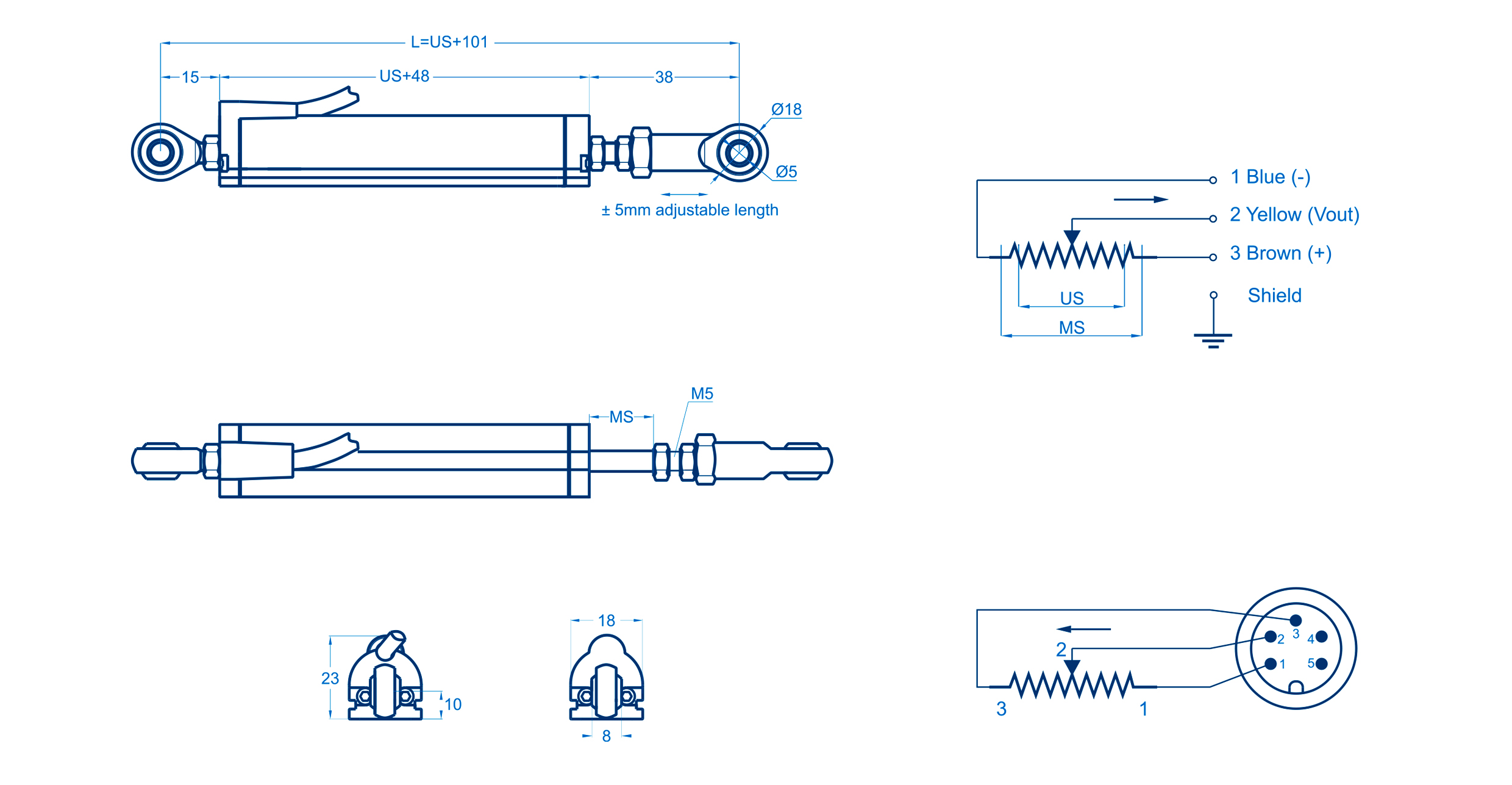

| DISP-SENS (mm) | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| US (Usefull Stroke) | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| MS (Mecanical Stroke) | 13 | 53 | 103 | 153 | 203 | 253 | 303 | 353 | 403 |
| L (total Length) | 111 | 151 | 201 | 251 | 301 | 351 | 401 | 451 | 501 |

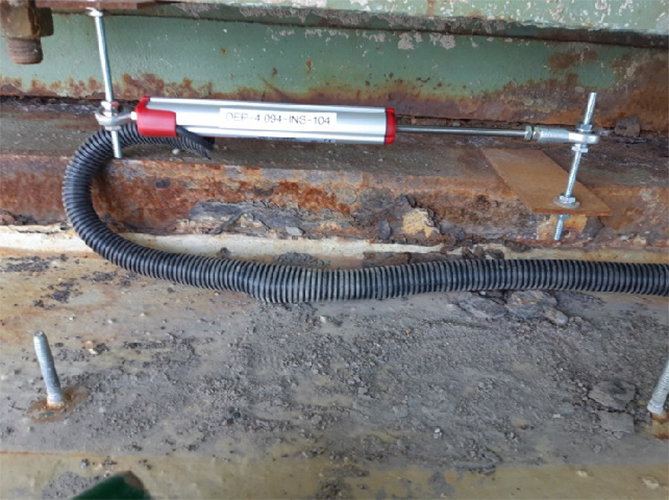

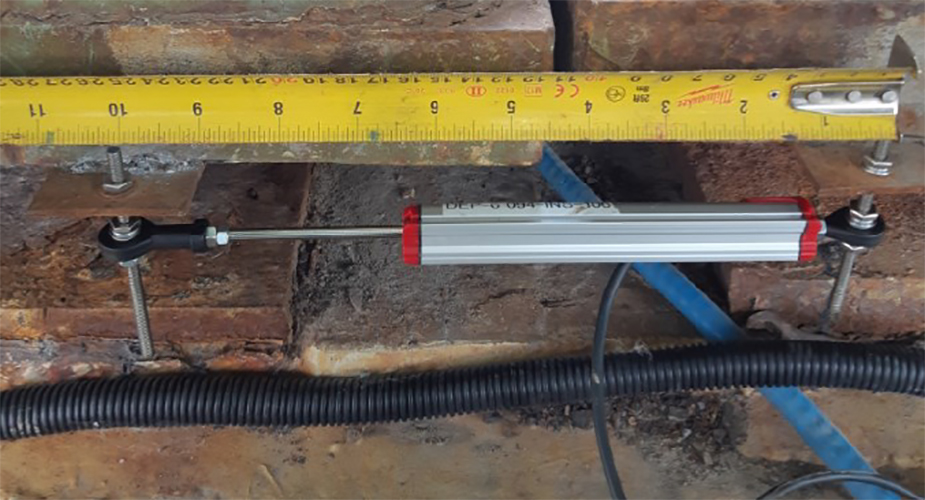

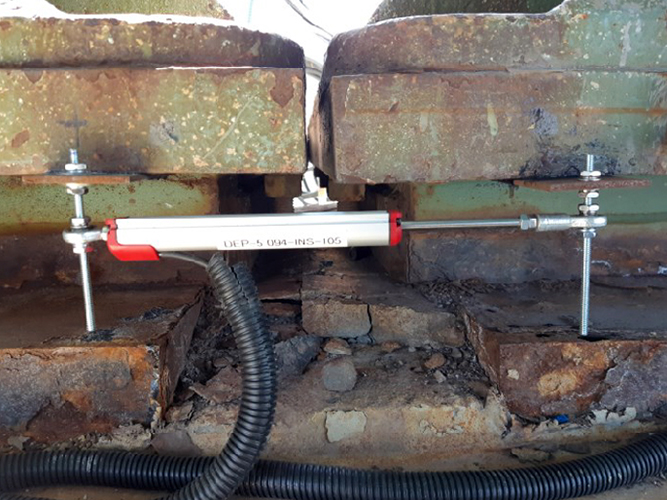

Sensor Installation on the field
