BeanDevice® 2.4GHz Inc
Wireless inclinometer sensor | tilt / inclination / slope monitoring | Low-cost version

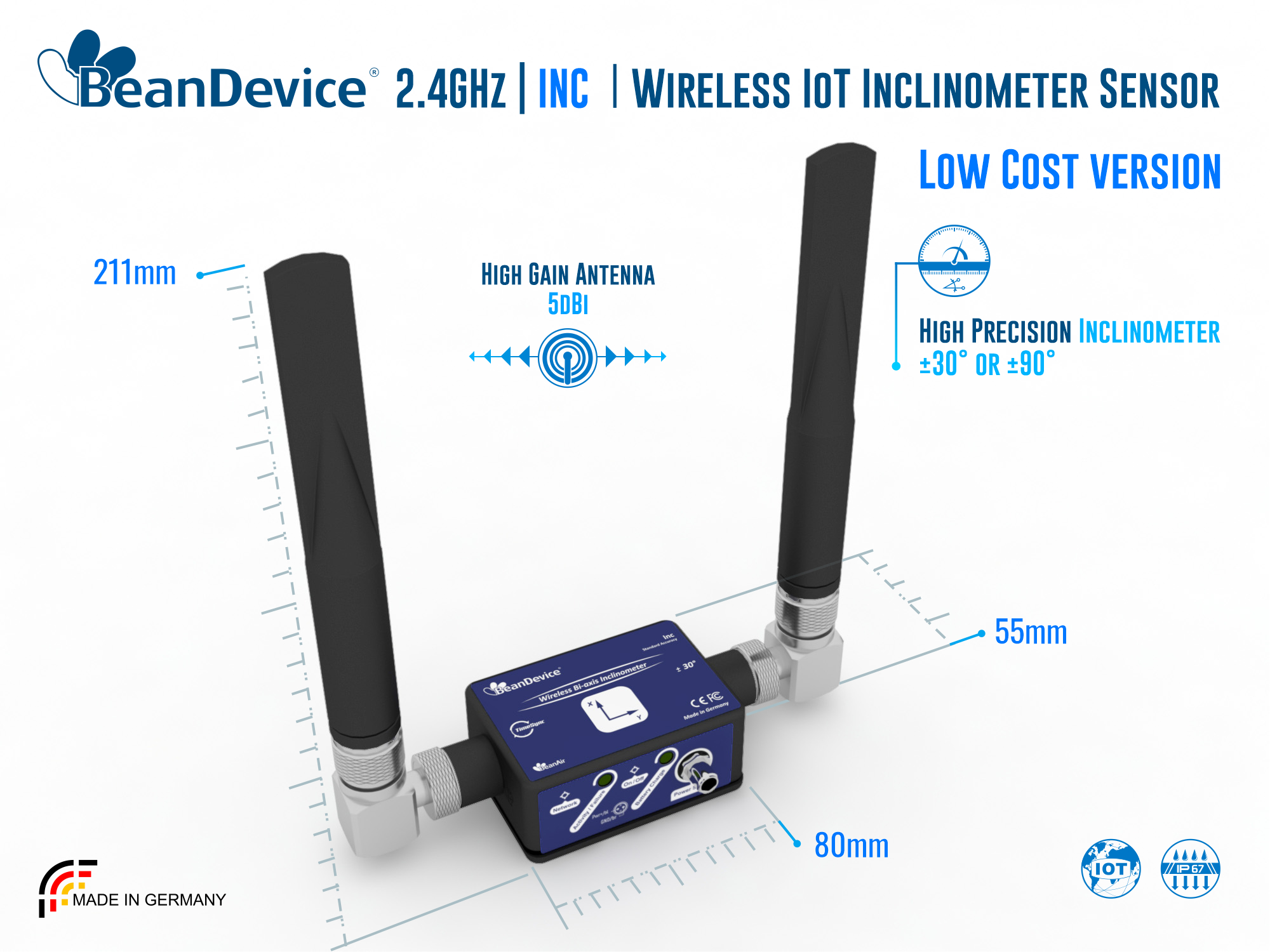

Available in several versions (±30°or ±90° bi-axis), the BeanDevice® 2.4GHz INC is a wireless inclinometer with integrated data logger.

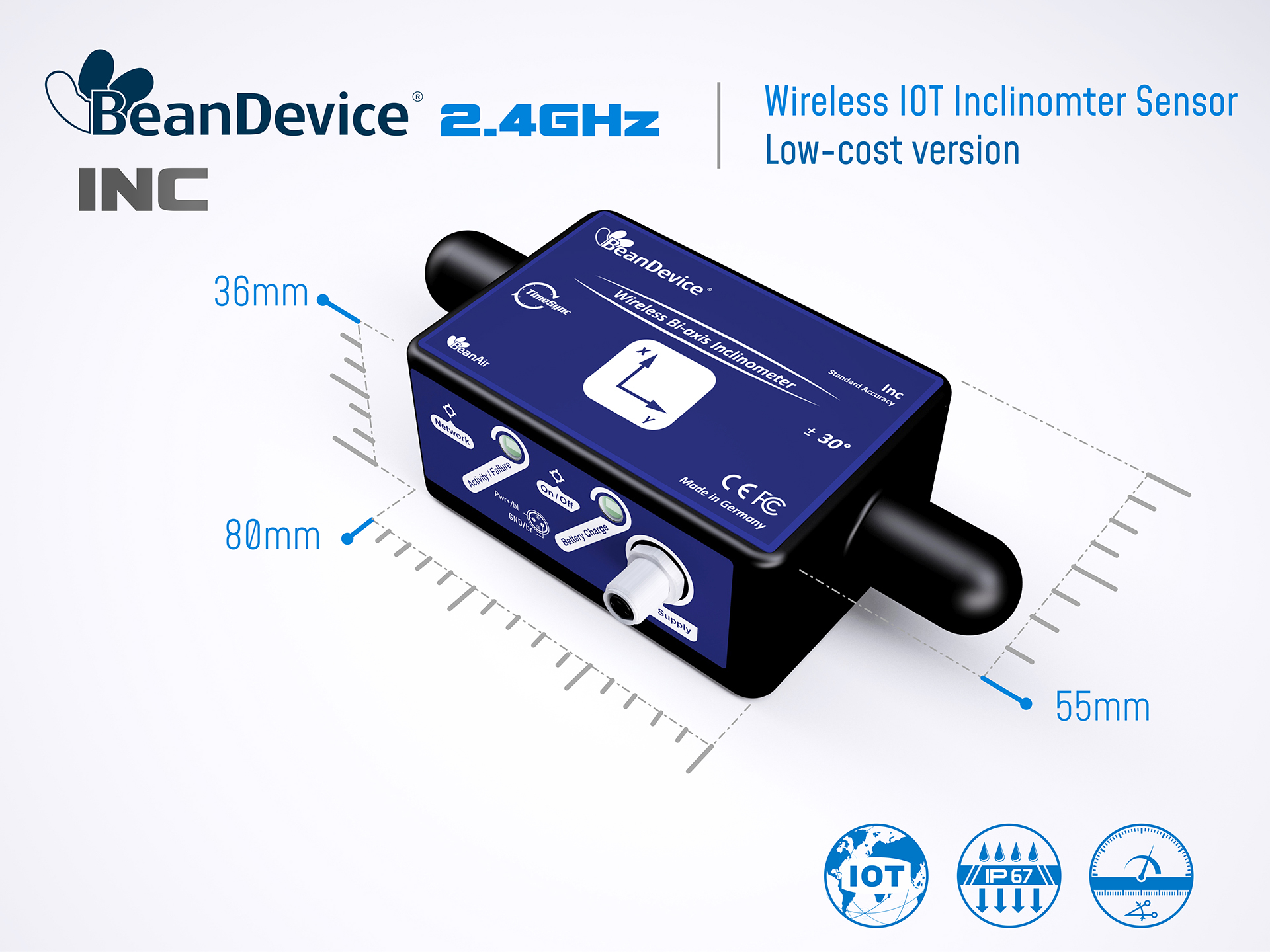

Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (80x55x36mm, 155g), an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless inclinometer is well suited for all types of industrial applications.
While the vast majority of wireless sensors are not suitable for harsh industrial environment, the BeanDevice® 2.4GHz INC integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna Diversity improves both the quality and reliability of a wireless link by 30%.
The combination of a high-performance MEMS inclinometer and a 5th order anti-aliasing filter (remotely programmable by the user) enables a great precision (±0.04° for ±30° version at 25°C).
Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.
Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® 2.4GHz
The BeanDevice® 2.4GHz INC is suitable for the following applications:
• Platform Leveling and stabilization
• Built-in test equipment
• Tilt measurement (Building, infrastructure & construction)
• Oil drilling
• Axial rotor measurement'Student and Education Discount' please contact us ( sales@beanair.com )
● High precision bi-axis inclinometer with great measurement repeatability (±0.04° for bi-axis ±30° version, and ±0.08° for bi-axis ±90° version ) | ||
● Time-synchronized wireless sensor networks (±2.5ms of accuracy) | ||
● Waterproof IP67 casing (Nema 6) | ||
● Integrated Lithium-Ion battery charger | ||
● Embedded data logger : up to 1 million data points (with events dating) | ||
● Excellent radio link relying on the radio antenna diversity developed by Beanair® |

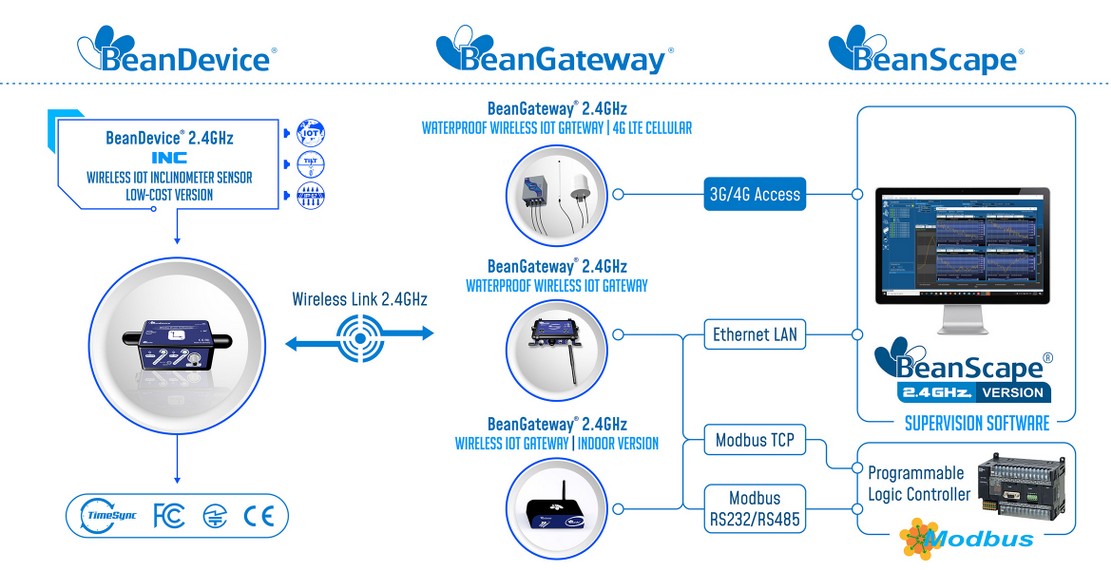

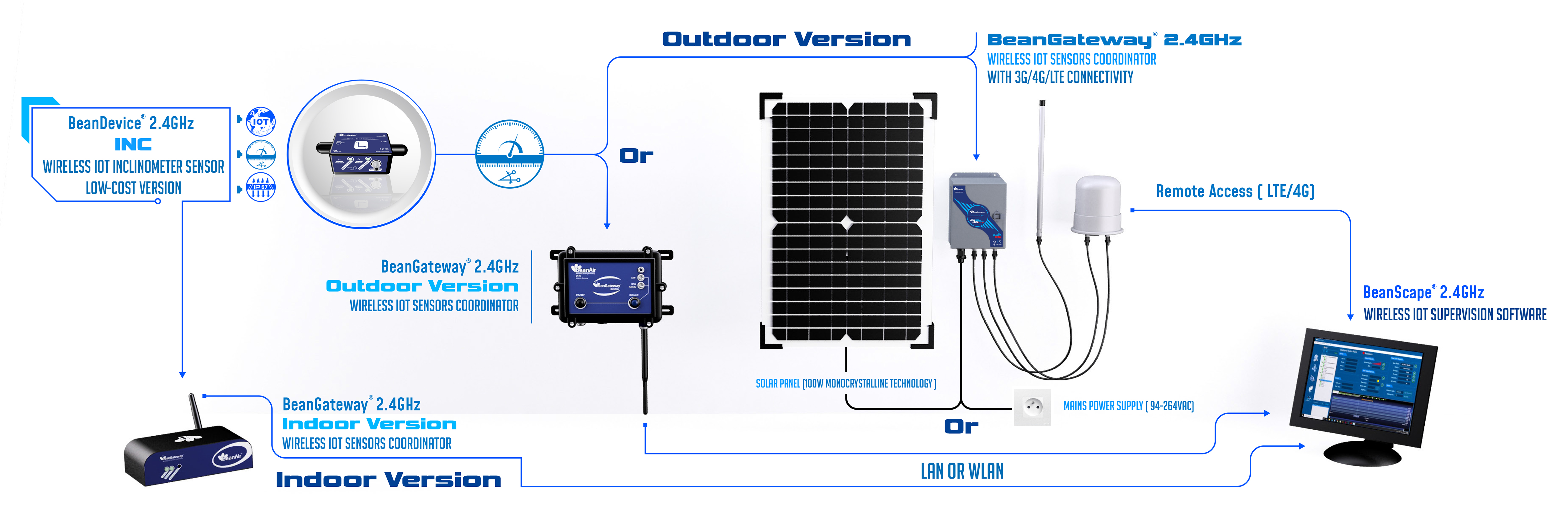

HOW IT WORKS ? | ||
 | ||

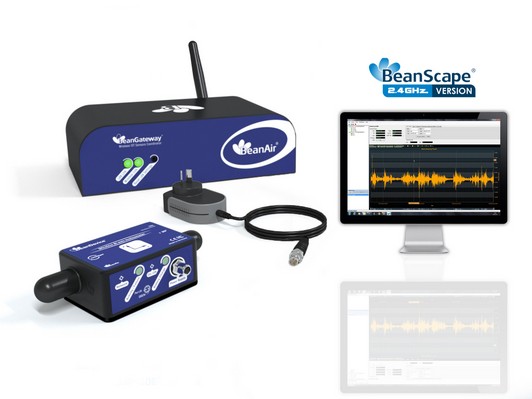

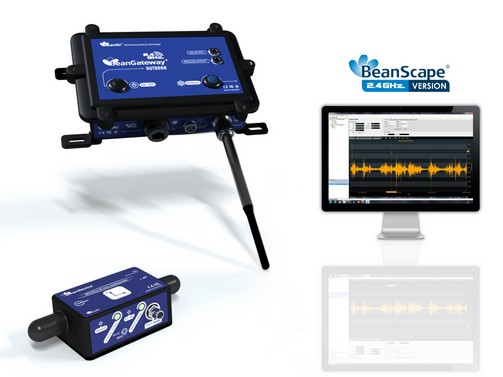

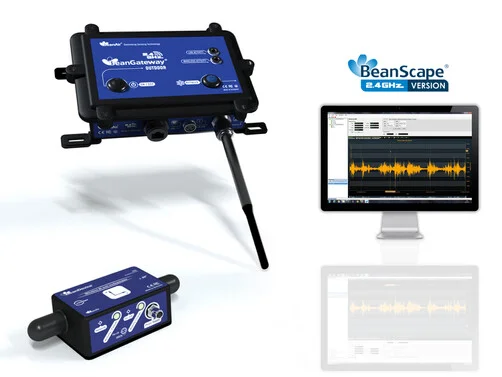

STARTERKIT | ||
  |
Certifications & Approvals | |
 | |
| |
| |
| |
 | |
PRODUCT REFERENCE | |||
BND-2.4GHz-INC –MR–PS | |||

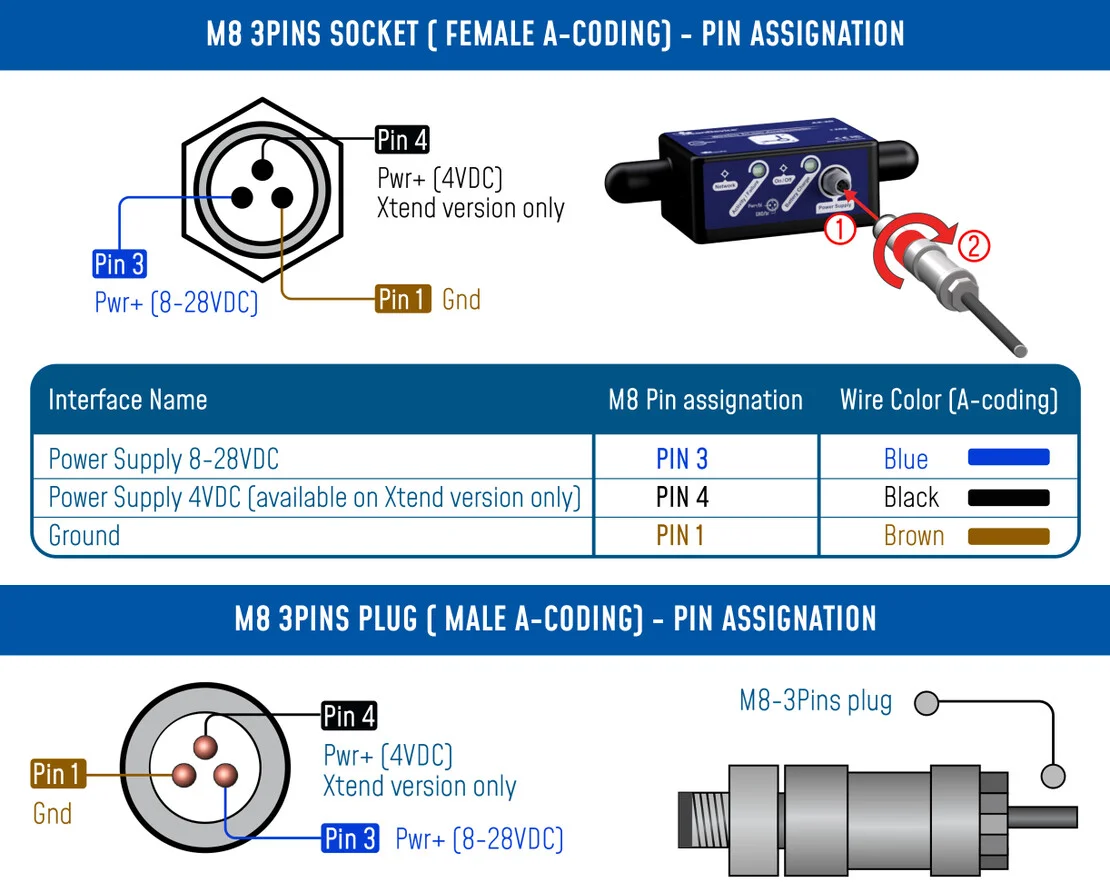

MR – Measurement Range: - 15B : bi-axis ±30° - 30B : bi-axis ±90° | PS - Power supply : - RB : Internal rechargeable battery - XT : External Primary cell | ||
Example 1: BND-2.4Hz-INC-30B-RB wireless bi-axial inclinometer with ±30° measurement range, internal rechargeable battery Example 2: BND-2.4Hz-INC-90B-XT wireless bi-axial inclinometer with ±90° measurement range, external primary cell | |||
 Stock Status : Available | |||
 | ||
Enable a quick and reliable remote access thanks to our BeanGateway® With 4G Connectivity
