BeanDevice® 2.4GHz AX-3D
Wireless IOT Vibration Sensor | built-in datalogger
BeanDevice® 2.4GHz AX-3D
Available in two versions (measurement range: ±2g or ±10g), the BeanDevice® 2.4GHz AX-3D is a wireless vibration sensor with built-in data logger.
Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (80x55x36mm, 155g), an ultra-low power, a very low noise (35 µg/√Hz for ±2g version), an integrated data logger that can store up to 1 million data logs, this wireless vibration sensor is well suited for acceleration and velocity monitoring.
While the vast majority of wireless sensors are not suitable for harsh industrial environment, the BeanDevice® 2.4GHz AX-3D integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna Diversity improves both the quality and reliability of a wireless link by 30%.
The combination of a 5th order anti-aliasing filter (remotely programmable by the user) and a software IIR filter enables a seamless operation on a harsh environment (construction site, structural monitoring).
Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.
The BeanScape® 2.4GHz (except Manager and Basic versions), a supervision software dedicated to Beanair® WSN comes with a complete vibration analysis report:
• Real-Time vibration and Velocity display
• Advanced vibration analysis tool: FFT, PPV (Peak Particle Velocity), Velocity
• Automatic FFT (with PPV values) and Velocity reports (meeting the DIN4150-3 standard)
• Alarm generation by email when a trigger is reached
This BeanDevice® 2.4GHz AX-3D is suitable for the following applications:
Included Free Software
● Wireless accelerometer (measurement range ±2g or ±10g) FFT and DIN4150-3 (Ground Vibration) modules available | ||
● Time-synchronized wireless sensor networks (±2.5ms of accuracy) | ||
● Waterproof IP67 casing (Nema 6) | ||
● Integrated Lithium-Ion battery charger | ||
● Embedded data logger : up to 1 million data points (with events dating) | ||
● Excellent radio link relying on the radio antenna diversity developed by Beanair® |

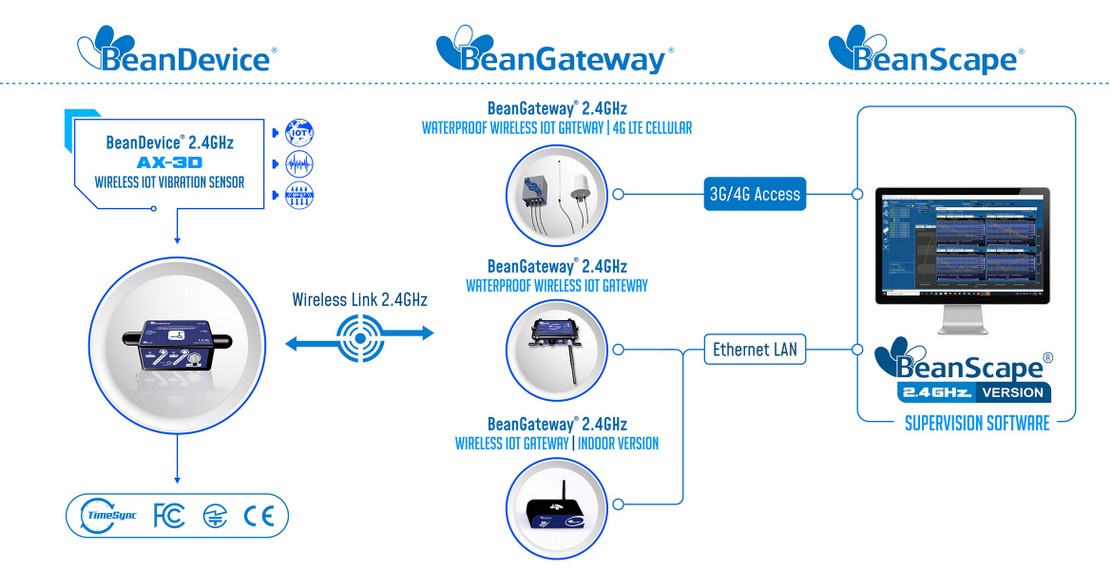

HOW IT WORKS ? | ||
 |
Technical Documents |

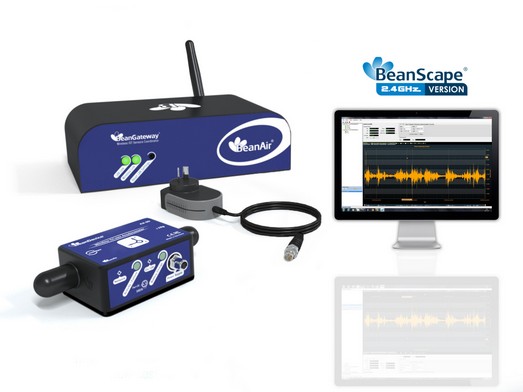

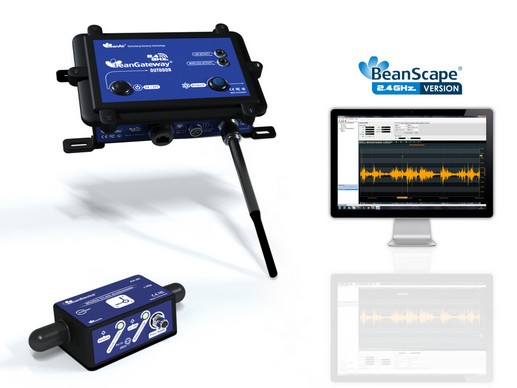

STARTERKIT | ||
  |
Certifications & Approvals | |
 | |
| |
| |
| |
 | |
PRODUCT REFERENCE | |||
BND-2.4GHz-AX3D -MRG-RB-HG | |||
MR – Measurement Range (1g = 9806.65 mm/s^2) - 2: ±2g measurement range - 10: ±10g measurement range | HG: High Gain External Antenna 5dBi If this field is left blank,Integrated Radome Antenna will be provided | ||
Example 1: BND-2.4GHZ-AX3D-10G-RB, Wireless Accelerometer with 10g measurement range, Integrated Radome Antenna 5dBi Example 2: BND-2.4GHZ-AX3D-10G-RB-HG, Wireless Accelerometer with 10g measurement range, External High Gain Antenna | |||
 Stock Status : Available | |||
 | ||
Enable a quick and reliable remote access thanks to our BeanGateway® With 4G Connectivity
Applications

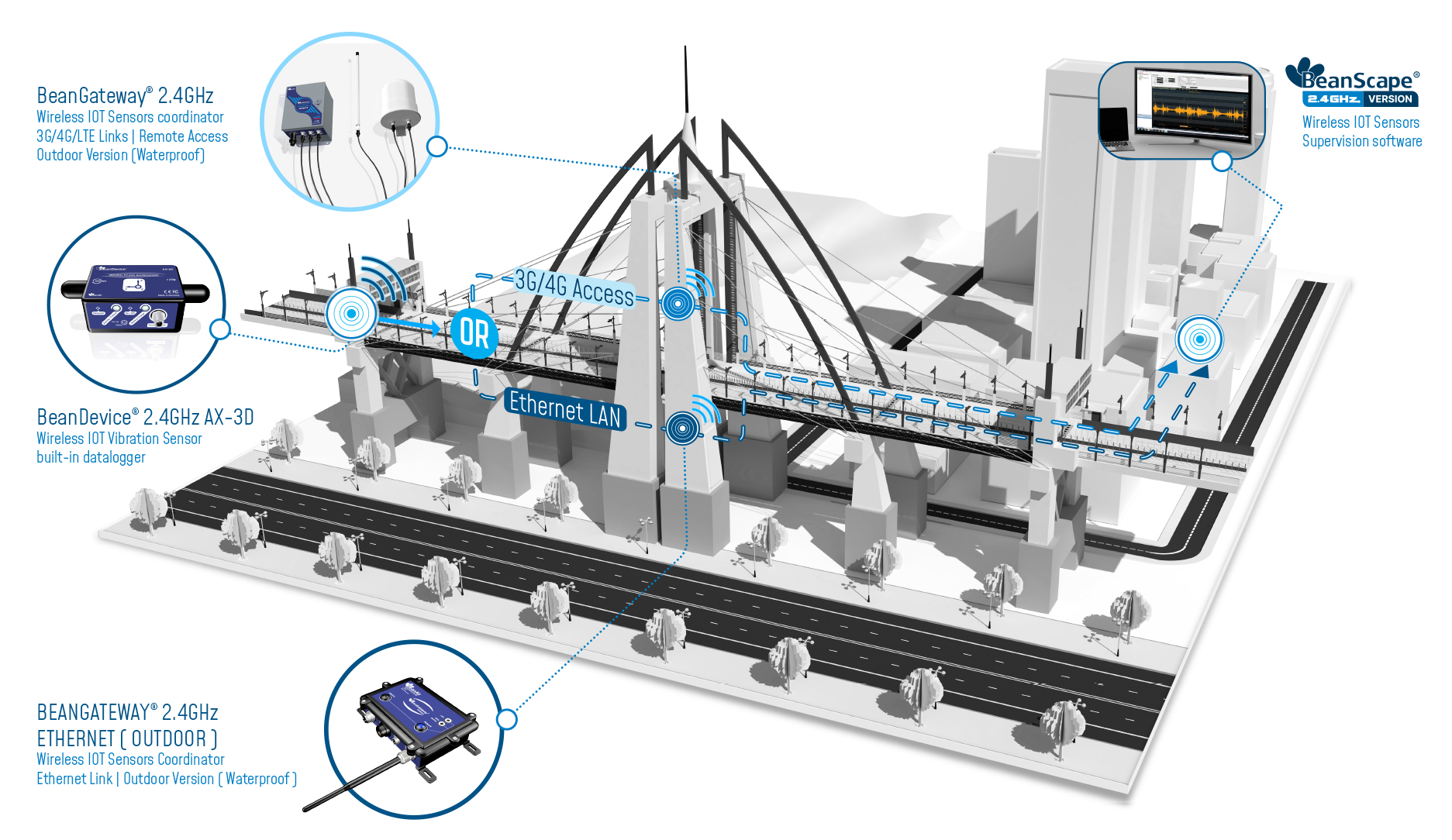

Vibration Monitoring on Bridge | |||
 |

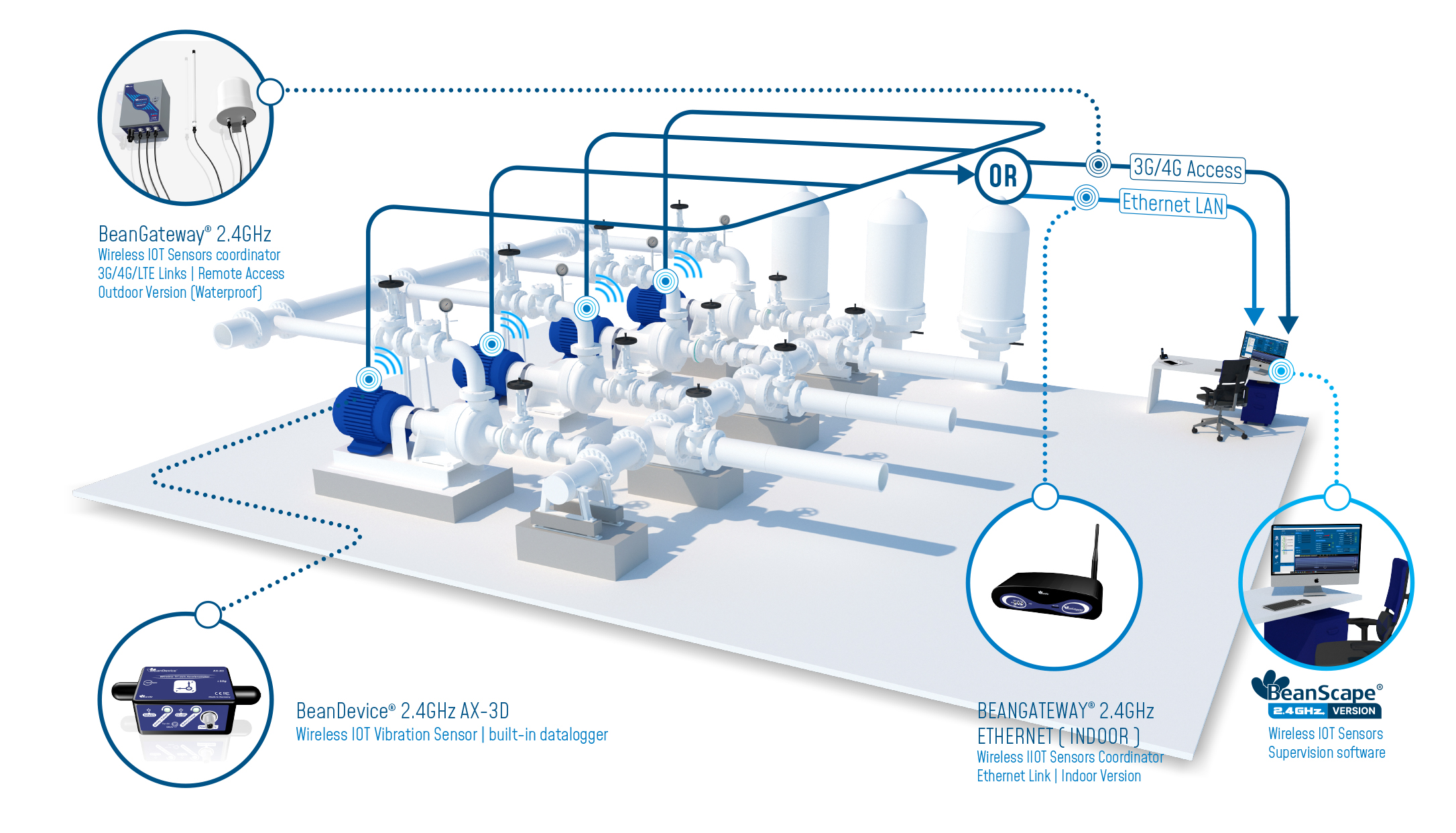

Vibration Monitoring on Water Pump | |
 | |

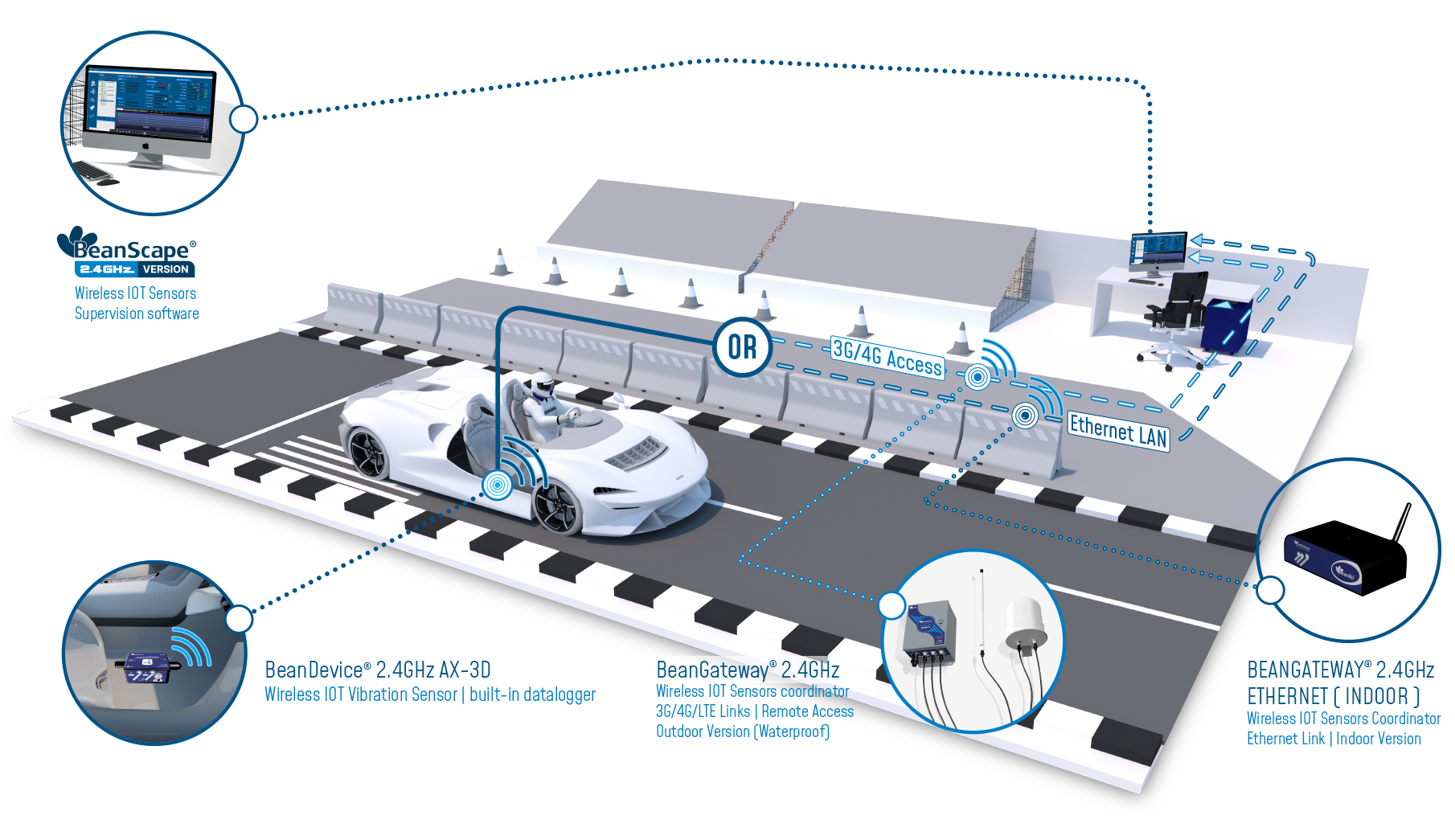

Automotive Testing | ||
 | ||

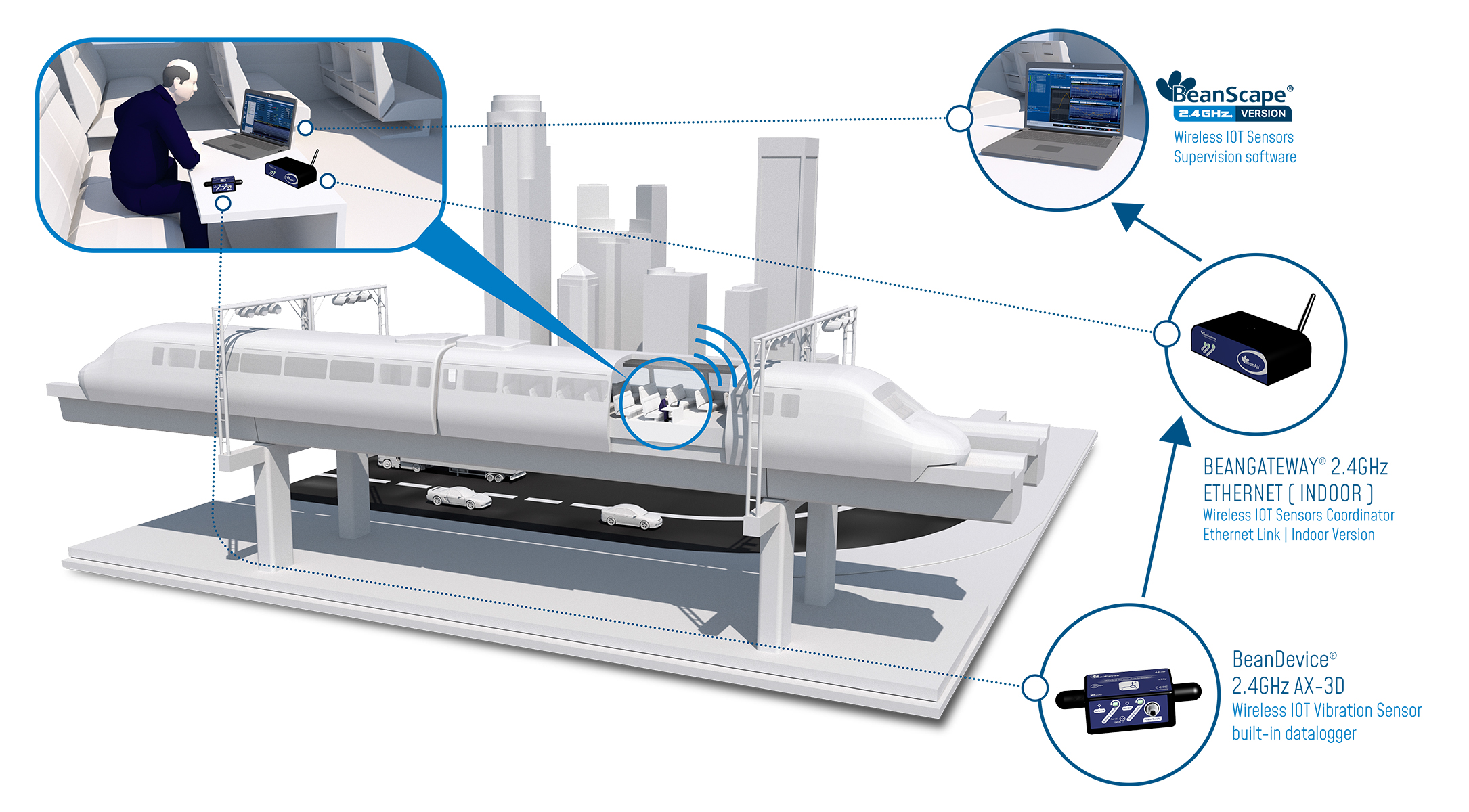

Vibration Monitoring on Train | ||
 | ||
