Technical Specifications
Product Reference
BND-2.4GHz-AX3D-MR-XR-PS-MO-HG
MR – Measurement Range (1g = 9806.65 mm/s^2)
- 2: ±2g measurement range
- 10: ±10g measurement range
PS - Power Supply
RB : Built-in rechargeable Lithium-Polymer battery 2Ah
MO - Mounting Option
SCM - Screw Mounting base
MM - Magnetic Mounting base
HG: High Gain External Antenna 5dBi
If this field is left blank,Integrated Radome Antenna will be provided
Example n°1: BND-2.4GHZ-AX-3D-10G-XR-RB-SCM, High performance wireless accelerometer with 10g measurement  range, built-in rechargeable battery, screw mounting, Integrated Radome  Antenna
   Example n°2: BND-2.4GHZ-AX-3D-2G-XR-RB-MM, High performance wireless  accelerometer with 2g measurement range, built-in rechargeable battery,  Magnet Mounting, Integrated Radome Antenna
   Example n°3: BND-2.4GHZ-AX-3D-10G-XR-RB-SCM-HG, High performance wireless  accelerometer with 10g measurement range, built-in rechargeable battery,  screw mounting, High Gain Antenna
Accelerometer Specifications
Accelerometer technology
Accurate and low power MEMS technology
Sensor  Resolution
±2g  Version : 0.1mg
±10g version: 0.3mg
Typical  non-linearity (Full scale, @ 25°C)
±0.1%
Analog to Digital converter
16-bit, SAR architecture (Successive Approximation Register) with temperature compensation. Measurement values are limited to 4 digits on Beanscape software.
Sensor frequency response (-3 dB)
DC to 800 Hz
Noise spectral density
±2g Version :45 µg/√Hz
±10g version: 100 µg/√Hz
Zero-g Offset Variation from RT over Temp
±2g Version : ±0.1 mg/°C
±10g version: ±0.1 mg/°C
Sensitivity Variation from RT over Temp
±2g Version : ±0.01 %/°C (XY) , ±0.02 %/°C (Z)
±10g version: ±0.01 %/°C
Offset Ratiometric Error
±2g Version : 2mg
±10g version: ±0.2% (XY) , ±0.1% (Z)
Sensitivity Ratiometric Error
±2g Version : ±1.25 % (X-Y) , ±0.2 % (Z)
±10g Version : ±1.6% (X-Y) , ±0.2 % (Z)
Cross Axis Sensitivity
1%
Anti-aliasing Hardware filter
Butterworth 5th order filter – cut-off frequency : 1 Hz to 2000 Hz remotely programmable (BeanScape®)
Configurable settings from the BeanScape® 2.4GHz software
Data Acquisition mode
(SPS = sample per second)
Static Data Acquisition: Low Duty Cycle Data Acquisition (LDCDA) Mode Measurement heartbeat 1s to 24 hour
Dynamic data acquisition: Streaming and S.E.T ( Streaming with Event Trigger )
Sampling Rate (in streaming mode with data logger only)
Minimum: 1 SPS
Maximum: 4 kSPS maximum per axis (one or two axis enabled)
3,5 kSPS per axis (3-axis enabled)
Sampling Rate (in streaming and S.E.T mode)
Minimum: 1 SPS
Maximum: 3 kSPS per axis (one axis enabled)
1,5 kSPS per axis (2-axis enabled)
1 kSPS per axis (3-axis enabled)
Programmable Cut-off frequency
(Anti-aliasing filter)
1-2000 Hz
Power Mode
Battery saver mode & Active power mode
RF Specifications
Wireless Protocol Stack
Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
WSN Topology
Point-to-Point / Star
Data rate
250 Kbits/s
RF Characteristics
ISM 2.4GHz – 16 Channels. Antenna diversity architecture designed by BeanAir®
TX Power
+18 dBm
Receiver Sensitivity
-104 dBm
Maximum Radio Range
High Gain Antenna : 400-500m (L.O.S), 60-120m (N.L.O.S.)
Integrated Radome Antenna : 200-300m (L.O.S), 30-60m (N.L.O.S.)
Antenna
Antenna diversity :
High Gain Antenna : 2 x N-Type Antenna 5dBi , IP67
Radome Antenna : 2 x Antenna 1.9 dBi , IP67
Embedded Data logger
Storage Capacity
up to 8 million data points
Wireless data downloading
20 minutes to download the full memory (average time)
Environmental and Mechanical
Casing
• Aluminum AL6061 & Waterpoof casing
• Dimensions in mm (LxWxH): 100 x 71 x 38 (without Radome antennas, with  mounting eyelet)
• Weight (with internal battery & Radome Antenna) :
       240g (screw mounting)
       265g (magnetic mounting)
• Weight (with internal battery & High Gain Antenna) :
       440g (screw mounting)
       465g (magnetic mounting)
Shocks resistance
150g during 50 ms
Operating Temperature
-40 °C  to +60 °C , a sunshield must be used if the sensor is exposed to direct sun  radiation
Maximum  Humidity
90 %RH
Norms & Radio certifications
• CE Labelling Directive R&TTE (Radio) ETSI EN 300 328
• FCC (North America)
• ARIB STD-T66 Ver 3.6
• ROHS - Directive 2002/95/EC
Base plate
• Aluminum black anodized AL 7075 with rugged three-point-mounting
• Screw Mounting Option: the device should be mounted on a flat and smooth surface with 3 screws, dimension M5. Mounting torque 5 ±1Nm
• Magnet Mounting Option: the device should be mounted on a steel surface.
IP|NEMA Rating
IP67 | Nema 6
INCLUDED ACCESSORIES
1x Magnet to Power ON/Power OFF the device
1x M8 Cap for Power Supply
Optional Accessories and Services
External Power Supply
Wall   plug-in, Switchmode power Supply 12V @ 1,25A with sealed M8 Plug (IP67/Nema   6)
Ref: M8-PWR-12V
Bracket Mounting
90°   Bracket for BeanDevice
(Xrange smartsensor) with 4 x M5 screws + Locknut
Ref: SMART-BRACK-MNT
M8 extension cable for external power supply
Molded   cable with M8-3pins male plug
Material: PVC with shield protection
IP Rating :  IP67 | Nema 6
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M
Calibration certificate
Calibration   certificate provided by Beanair Sensors
A static calibration method is used on a granite surface plate DIN876
Ref: CERT-CAL-SMART
Power supply
Integrated battery charger
Integrated Lithium-ion battery charger with high precision battery monitoring :
• Overvoltage Protection/Overcurrent/Short-Circuit Protection/Undervoltage protection
• Battery Temperature monitoring
Current consumption @ 3.3V
• During data acquisition : 20 to 30 mA
• During Radio transmission : 40 mA @ 0 dBm, 80mA @ 18dBm
• During Battery Saver Mode : < 30 µA
External power supply
8-28VDC with reverse polarity protection
IEC-61000-4-2:  ESD 30kV(Air), 30kV (Contact)
Surge protection  > 28VDC  (600W during 10us max)
Rechargeable battery
2 Ah,  Lithium-Polymer battery
Included Accessories
« included accessories »
« M8 plastic cap »
M8 plastic cap

1 x M8 Cap for Power Supply
« magnet for power on/off »
Magnet for Power ON | Power OFF

1pcs Magnet.
« included accessories »
Optional Accessories and Services
Solar Panel Kit

X-Solar 14ah | Solar Panel with Solar Charging Controller
Ref: X-SOL-14AH-SLP-VOUT-CL
>> More info

X-Solar 7ah | Solar Panel with Solar Charging Controller
Ref: X-SOL-7AH-SLP-VOUT-CL
« optional accessories »
Mechanical Mounting Options

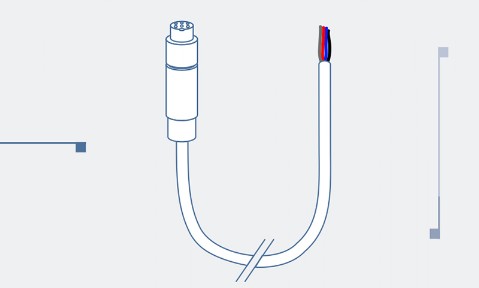

Molded Cable, M8 Male Plug to Bare wire
For sensor power supply (8-28VDC)

Material: PVC
IP Rating :  Waterproof-IP67 ( M8 Plug side in locked conditions )
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M
« optional accessories »
Mechanical Mounting Options

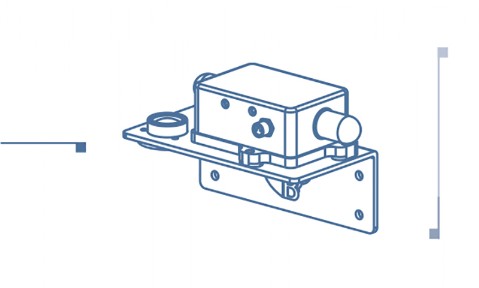

• 90° Bracket with bullseye level for BeanDevice  ( Xrange smartsensor )


« optional accessories »
Mechanical Mounting Options
« optional accessories »
Mechanical Mounting Options
Switch-Mode Power Supply 12V with M8-3Pins plug
Power supply complies with IS 13252 (Part 1)/IEC 60950

1-Safety Standards
Cable Lenght: 1.5meters
IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions )
Ref: M8-PWR-12V
Calibration Certificate

Calibration certificate provided by Beanair GmbH
A static calibration method is used on a granite surface plate DIN876
Ref: CERT-CAL-SMART
« optional accessories »
Mechanical Mounting Options
Copyright 2025 © BeanAir - All rights reserve
