Wireless IoT Vibration Sensor
- High Sampling Rate -

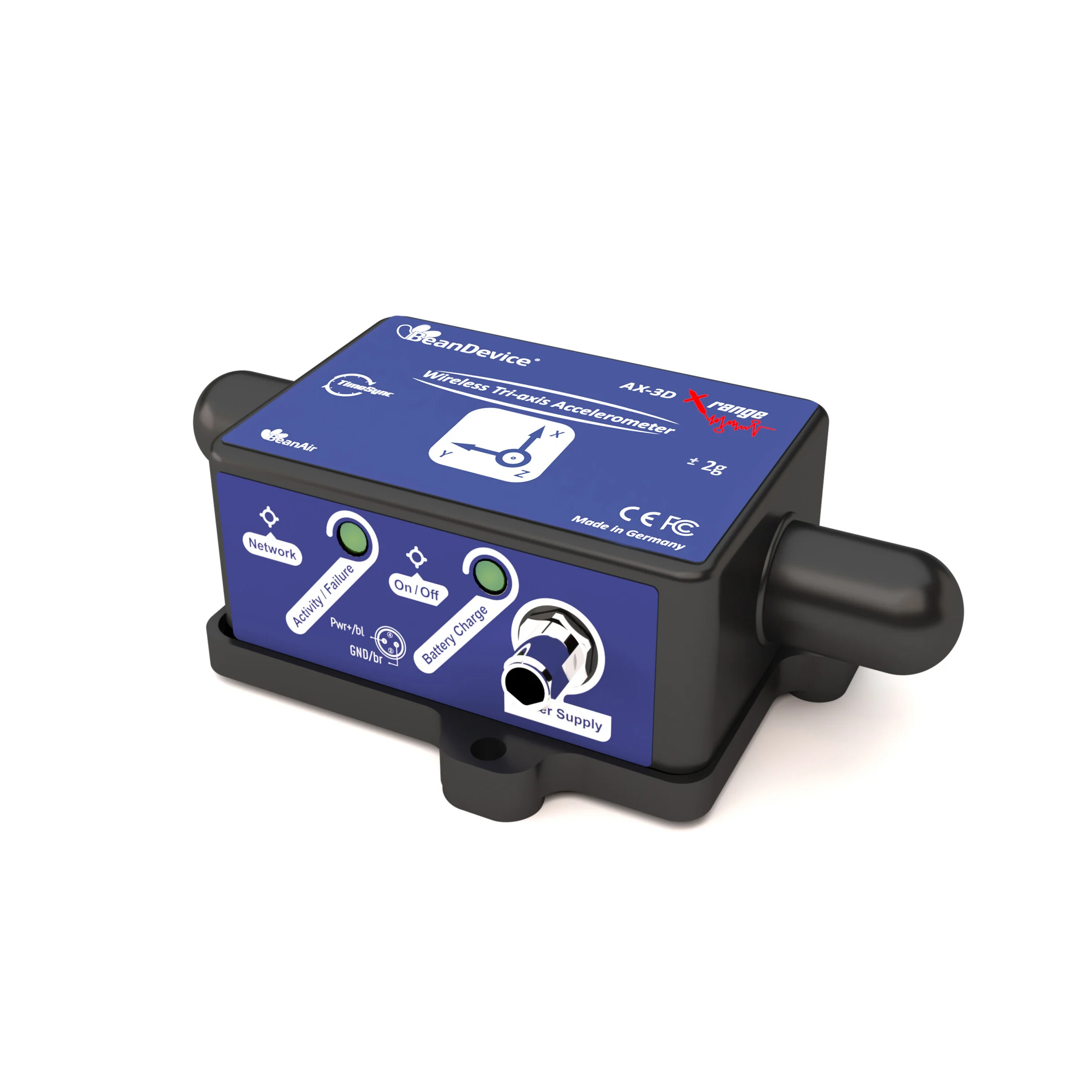

BeanDevice® 2.4GHz AX-3D XRange

The BeanDevice® 2.4GHz AX-3D XRange is a wireless vibration sensor with a built-in data logger, available in multiple versions to suit different needs. It offers:
• Measurement ranges: ±2g or ±10g

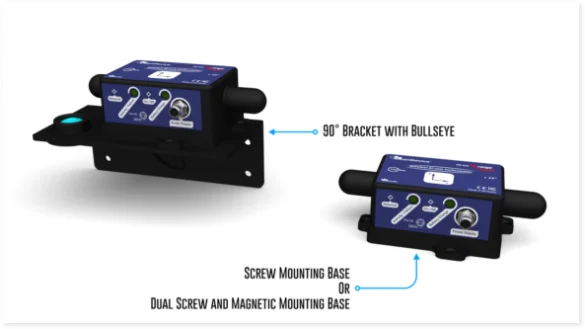

• Mounting options: Screw or magnetic

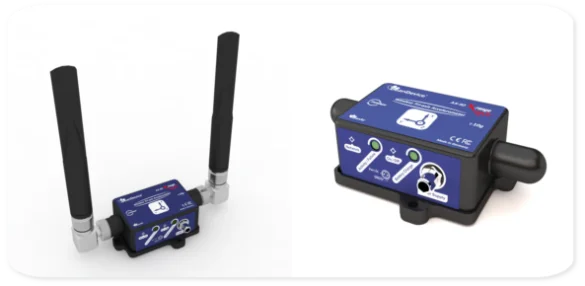

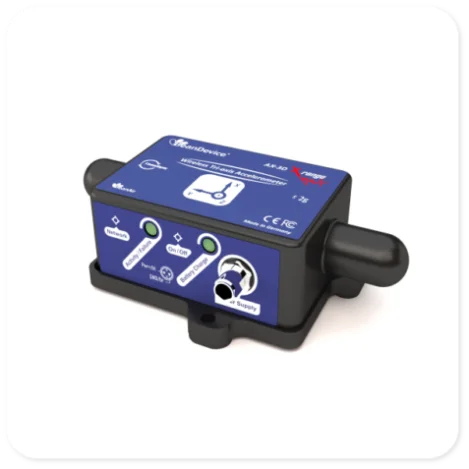

• Antenna choices: High-Gain Antenna or Radome Antenna
REQUEST PRICE

Included Free Software

Student and Education Discount
Please Contact us (sales@beanair.com)

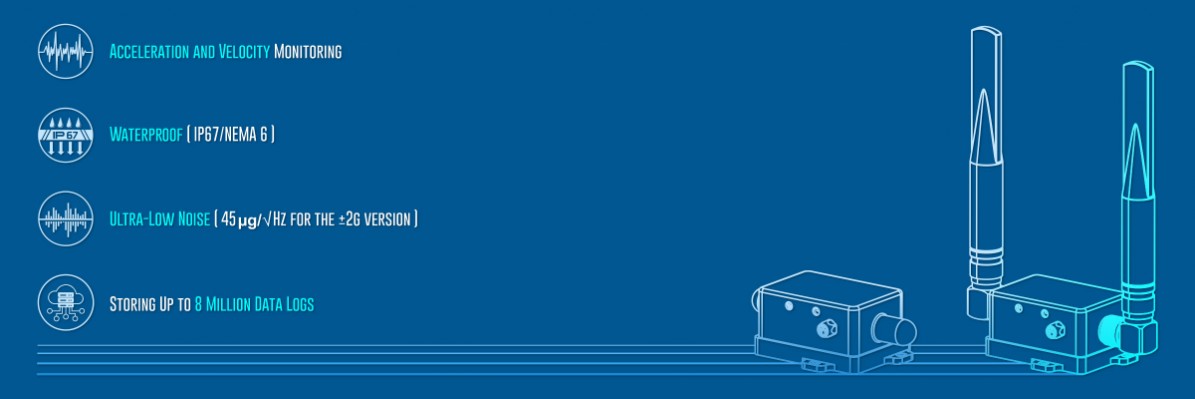

Key Features
«Icon Key Feature »
«Blue line »
Designed with a waterproof (IP67/NEMA 6) and lightweight aluminum casing, this sensor ensures durability in harsh environments. It features ultra-low noise (45 µg/√Hz for the ±2g version) and an integrated data logger capable of storing up to 8 million data logs. The ±2g version is ideal for acceleration and velocity monitoring.
«Key feature»
Built-In Hardware Filter:
«Anti-Aliasing Filter Icon »
«Blue line »
Equipped with a 5th-order anti-aliasing filter (remotely programmable) and a software IIR filter, the BeanDevice® 2.4GHz AX-3D XRange ensures reliable operation in demanding environments such as construction sites and structural monitoring.
Our innovative TimeSync® function achieves ±2.5ms time synchronization across wireless sensor networks, enhancing data fusion and modal analysis for an improved user experience.
«Anti Aliaising Filter»
«Anti-Aliasing Filter Icon »

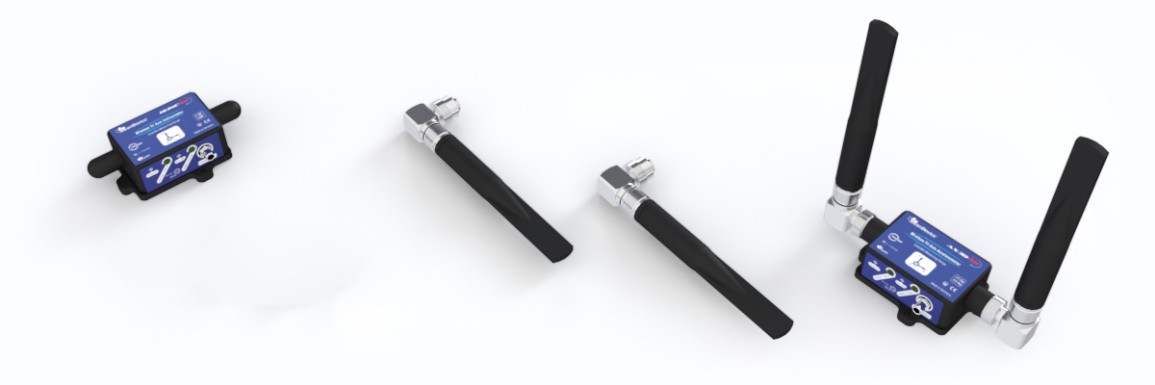

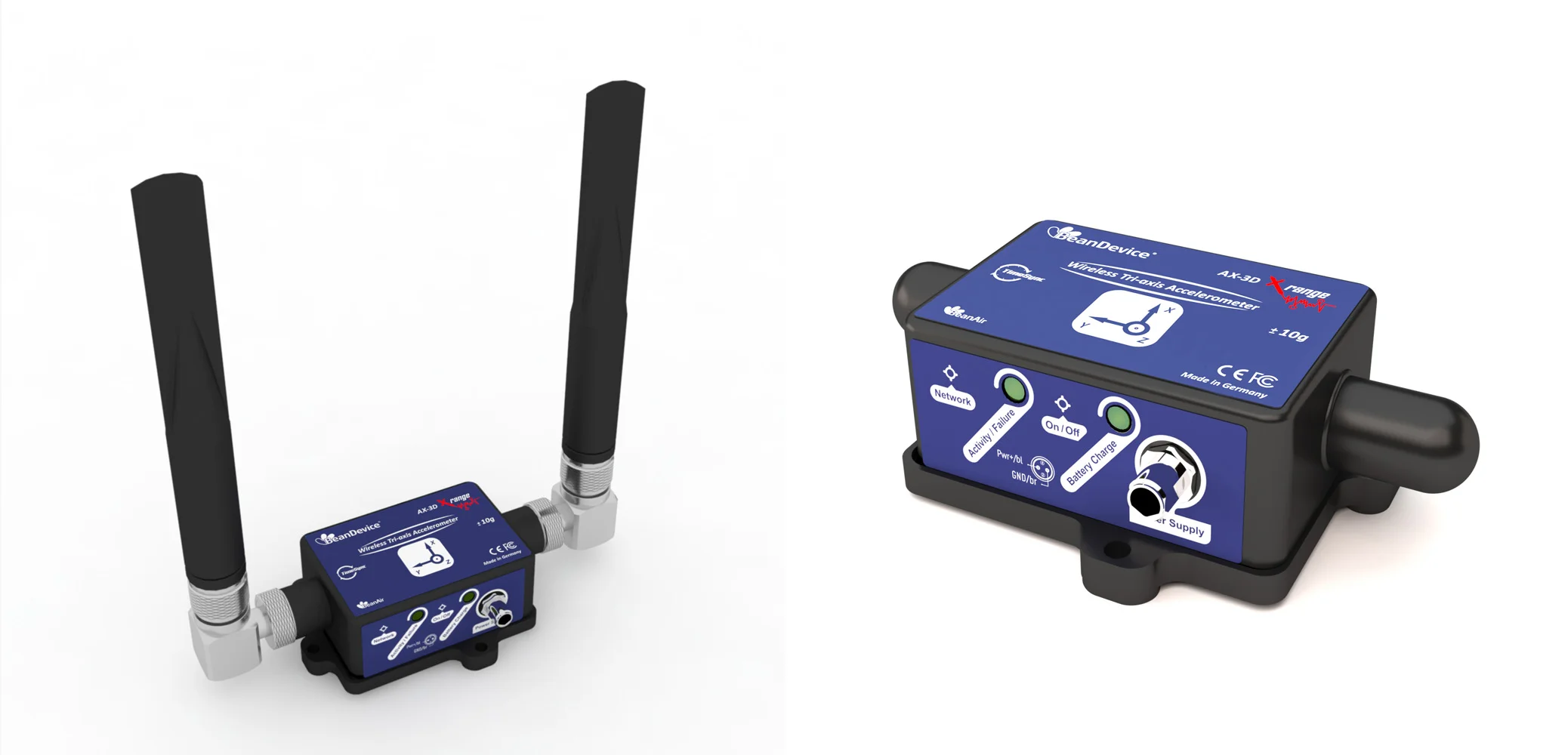

Antenna Options for Different Applications
«Blue line »

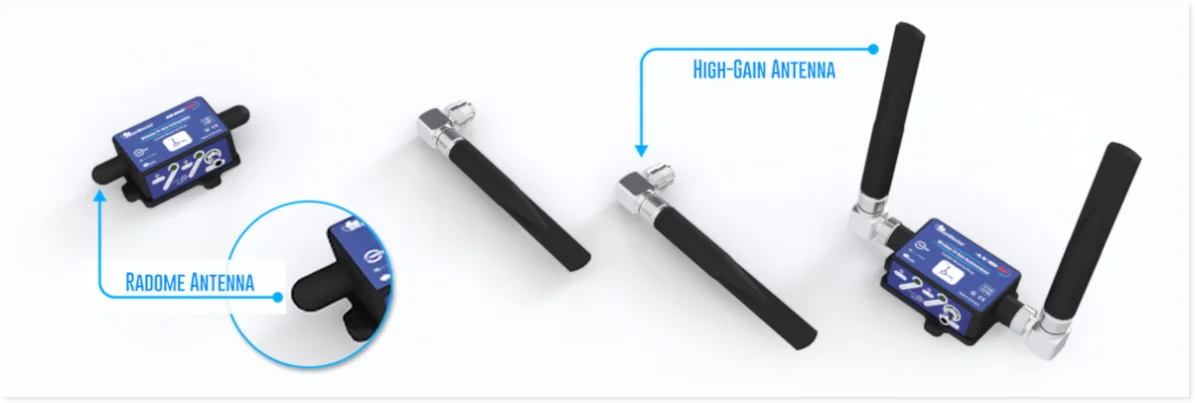

• Radome Antenna - Ideal for space-constrained applications.
• High-Gain Antenna - Optimized for long-range wireless communication.
«Antenna Options»
«Anti-Aliasing Filter Icon »

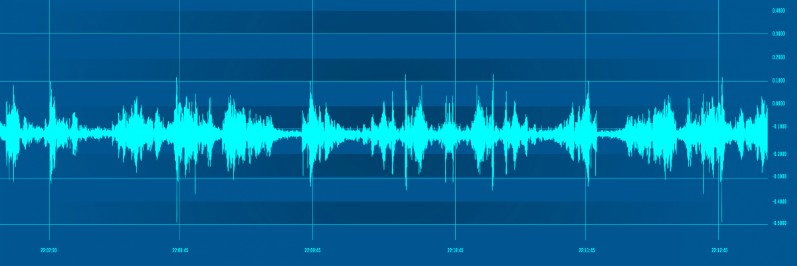

Advanced Vibration Analysis with BeanScape® Premium
«Blue line »
The BeanScape® Premium supervision software is designed for Beanair® Wireless Sensor Networks (WSN), offering advanced capabilities, such as:

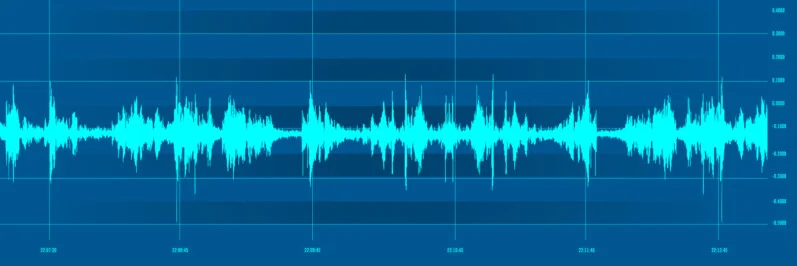

•Real-Time Monitoring: Vibration and velocity data visualization.
•Comprehensive Analysis Tools: Includes FFT (Fast Fourier Transform), PPV (Peak Particle Velocity), and velocity measurements.
•Automated Reporting: FFT results with PPV values and velocity analysis reports compliant with DIN 4150-3 standards.
•Proactive Alerts: Automatically generates alarm notifications via email when trigger thresholds are exceeded.

«Vibration Graphic»
«Technical Specification Icon»
Technical Specifications
«Blue line »
Main Features Ordering Accelerometer Software RF Specifications Data logger TimeSync Mechanical Accessories Power supply
High performance wireless tri-axial vibration sensor based on MEMS Technology
Real-Time FFT and Velocity display
Automatic report meeting the DIN4150-3 standard (Excel, PDF and Word) with FFT, PPV and Velocity values (± 2g version with BeanScape® 2.4GHZ Premium)
Advanced measurement modes available: continuous monitoring or event-trigger mode
Wireless range :
-High Gain Antenna : 400m max LOS* , 60-120m (N.L.O.S.)
-Integrated Low-profile Antenna : 150m max** , 30-60m (N.L.O.S.)
Measurement range: ± 2g or ± 10g
Very Low Noise Density: 45 μg/√Hz (± 2g version), 100 μg/√Hz (± 10g version)
Maximum sampling rate: 3 KSPS (if 1 channel enabled)
Anti-aliasing Hardware Butterworth filter (5th order) with a programmable cut-off frequency 1 Hz to 2 KHz
Embedded Data Logger: up to 8 million data points (with events dating)
Integrated Lithium-Polymer rechargeable battery with industrial battery charger (8-28VDC)
Waterproof (IP67 | Nema 6) aluminum casing (dimensions Lxlxh: 100x71x38 mm)
Mounting process: screw mounting or magnetic mounting
TimSync function: Time-synchronization over the Wireless Sensor Networks with a precision of ±2.5 ms
*High Gain Antenna Pointing to Vertical position, BeanGateway® Installed on a mast 10 meters height with 9dBi Antenna
**Low Profile Antenna Pointing to Vertical position, BeanGateway® Installed on a mast 10 meters height with 9dBi Antenna
PRODUCT REFERENCE
BND-2.4GHz-AX3D-MR-XR-PS-MO-HG
MR – Measurement Range (1g = 9806.65 mm/s^2)
- 2: ±2g measurement range
- 10: ±10g measurement range
PS - Power Supply
RB : Built-in rechargeable Lithium-Polymer battery 2Ah
MO - Mounting Option
SCM - Screw Mounting base
MM - Magnetic Mounting base
HG: High Gain External Antenna 5dBi
If this field is left blank,Integrated Radome Antenna will be provided
Example n°1: BND-2.4GHZ-AX-3D-10G-XR-RB-SCM, High performance wireless accelerometer with 10g measurement range, built-in rechargeable battery, screw mounting, Integrated Radome Antenna
Example n°2: BND-2.4GHZ-AX-3D-2G-XR-RB-MM, High performance wireless accelerometer with 2g measurement range, built-in rechargeable battery, Magnet Mounting, Integrated Radome Antenna
Example n°3: BND-2.4GHZ-AX-3D-10G-XR-RB-SCM-HG, High performance wireless accelerometer with 10g measurement range, built-in rechargeable battery, screw mounting, High Gain Antenna
 Stock Status : Available
Accelerometer Specifications
Accelerometer technology
Accurate and low power MEMS technology
Sensor  Resolution
±2g  Version : 0.1mg
±10g version: 0.3mg
Typical  non-linearity (Full scale, @ 25°C)
±0.1%
Analog to Digital converter
16-bit, SAR architecture (Successive Approximation Register) with temperature compensation. Measurement values are limited to 4 digits on Beanscape software.
Sensor frequency response (-3 dB)
DC to 800 Hz
Noise spectral density
±2g Version :45 µg/√Hz
±10g version: 100 µg/√Hz
Zero-g Offset Variation from RT over Temp
±2g Version : ±0.1 mg/°C
±10g version: ±0.1 mg/°C
Sensitivity Variation from RT over Temp
±2g Version : ±0.01 %/°C (XY) , ±0.02 %/°C (Z)
±10g version: ±0.01 %/°C
Offset Ratiometric Error
±2g Version : 2mg
±10g version: ±0.2% (XY) , ±0.1% (Z)
Sensitivity Ratiometric Error
±2g Version : ±1.25 % (X-Y) , ±0.2 % (Z)
±10g Version : ±1.6% (X-Y) , ±0.2 % (Z)
Cross Axis Sensitivity
1%
Anti-aliasing Hardware filter
Butterworth 5th order filter – cut-off frequency : 1 Hz to 2000 Hz remotely programmable (BeanScape®)
Configurable settings from the BeanScape® 2.4GHz software
Data Acquisition mode
(SPS = sample per second)
Static Data Acquisition: Low Duty Cycle Data Acquisition (LDCDA) Mode Measurement heartbeat 1s to 24 hour
Dynamic data acquisition: Streaming and S.E.T ( Streaming with Event Trigger )
Sampling Rate (in streaming mode with data logger only)
Minimum: 1 SPS
Maximum: 4 kSPS maximum per axis (one or two axis enabled)
3,5 kSPS per axis (3-axis enabled)
Sampling Rate (in streaming and S.E.T mode)
Minimum: 1 SPS
Maximum: 3 kSPS per axis (one axis enabled)
1,5 kSPS per axis (2-axis enabled)
1 kSPS per axis (3-axis enabled)
Programmable Cut-off frequency
(Anti-aliasing filter)
1-2000 Hz
Power Mode
Battery saver mode & Active power mode
RF Specifications
Wireless Protocol Stack
Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
WSN Topology
Point-to-Point / Star
Data rate
250 Kbits/s
RF Characteristics
ISM 2.4GHz – 16 Channels. Antenna diversity architecture designed by BeanAir®
TX Power
+18 dBm
Receiver Sensitivity
-104 dBm
Maximum Radio Range
High Gain Antenna : 400m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 60-120m (N.L.O.S.)
Integrated Radome Antenna : 150m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 30-60m (N.L.O.S.)
Antenna
Antenna diversity :
High Gain Antenna version: 2 x N-Type Antenna 5dBi , IP67
Radome Antenna version: 2 x Antenna 1.9 dBi , IP67
Embedded Data logger
Storage Capacity
up to 8 million data points
Wireless data downloading
20 minutes to download the full memory (average time)
TimeSync function : Clock synchronization over the Wireless Sensor Networks (WSN)
Clock synchronization accuracy

±2.5 ms (at 25°C)
Crystal specifications
Tolerance ±10ppm, stability ±10ppm
Environmental and Mechanical
Casing
• Aluminum AL6061 & Waterpoof casing
• Dimensions in mm (LxWxH): 100 x 71 x 38 (without Radome antennas, with  mounting eyelet)
• Weight (with internal battery & Radome Antenna) :
-240g (screw mounting)
-265g (magnetic mounting)
• Weight (with internal battery & High Gain Antenna) :
-440g (screw mounting)
-465g (magnetic mounting)
Shocks resistance
150g during 50 ms
Operating Temperature
-40 °C  to +60 °C , a sunshield must be used if the sensor is exposed to direct sun  radiation
Maximum  Humidity
90 %RH
Norms & Radio certifications
• CE Labelling Directive R&TTE (Radio) ETSI EN 300 328
• FCC (North America)
• ARIB STD-T66 Ver 3.6
• ROHS - Directive 2002/95/EC
Base plate
• Aluminum black anodized AL 7075 with rugged three-point-mounting
• Screw Mounting Option: the device should be mounted on a flat and smooth surface with 3 screws, dimension M5. Mounting torque 5 ±1Nm
• Magnet Mounting Option: the device should be mounted on a steel surface.
IP|NEMA Rating
IP67 | Nema 6
INCLUDED ACCESSORIES
1x Magnet to Power ON/Power OFF the device
1x M8 Cap for Power Supply
Optional Accessories and Services
External Power Supply
Wall plug-in, Switchmode power Supply 12V @ 1,25A with sealed M8 Plug (IP67/Nema   6)
Ref: M8-PWR-12V
Bracket Mounting
90° Bracket for BeanDevice
(Xrange smartsensor) with 4 x M5 screws + Locknut
Ref: SMART-BRACK-MNT
M8 extension cable for external power supply
Molded  cable with M8-3pins male plug
Material: PVC with shield protection
IP Rating : IP67 | Nema 6
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M
Calibration certificate
Calibration certificate provided by Beanair Sensors.
Important: This document should be requested during the sensor ordering.
A static calibration method is used on a granite surface plate DIN876
Ref: CERT-CAL-SMART
Power supply
Integrated battery charger
Integrated Lithium-ion battery charger with high precision battery monitoring :
• Overvoltage Protection/Overcurrent/Short-Circuit Protection/Undervoltage protection
• Battery Temperature monitoring
Current consumption @ 3.3V
• During data acquisition : 20 to 30 mA
• During Radio transmission : 40 mA @ 0 dBm, 80mA @ 18dBm
• During Battery Saver Mode : < 30 µA
External power supply
8-28VDC with reverse polarity protection
IEC-61000-4-2:  ESD 30kV(Air), 30kV (Contact)
Surge protection  > 28VDC  (600W during 10us max)
Rechargeable battery
2 Ah,  Lithium-Polymer battery
Applications
«Applications Icon »
«Blue line »

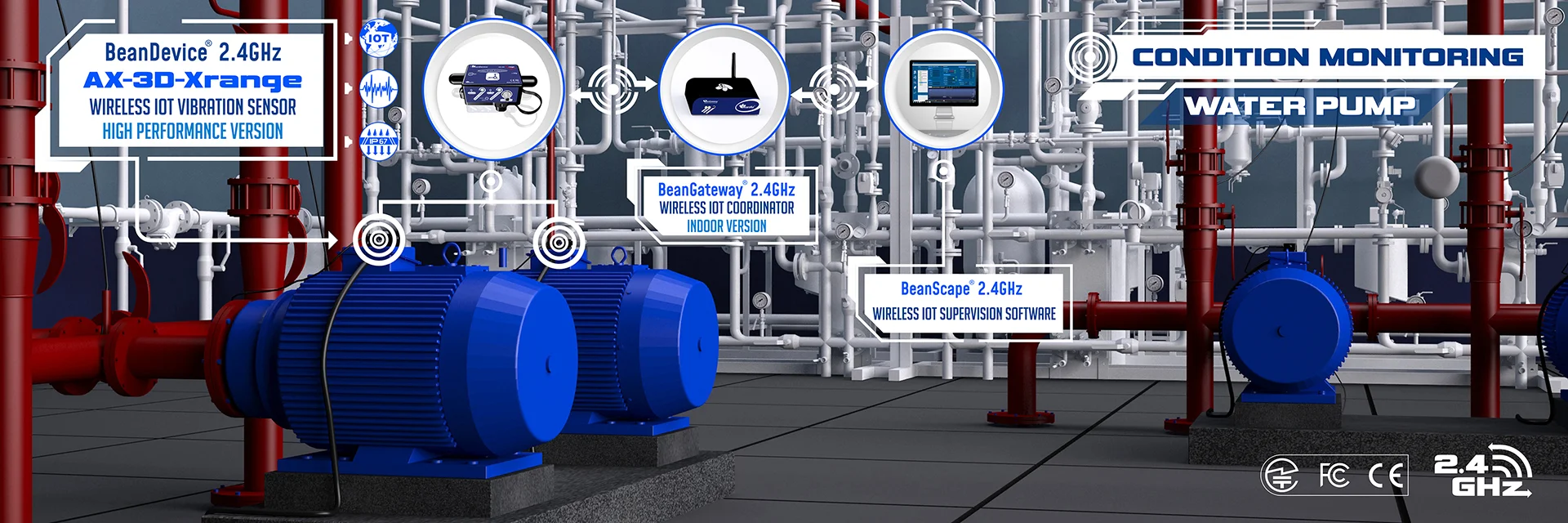

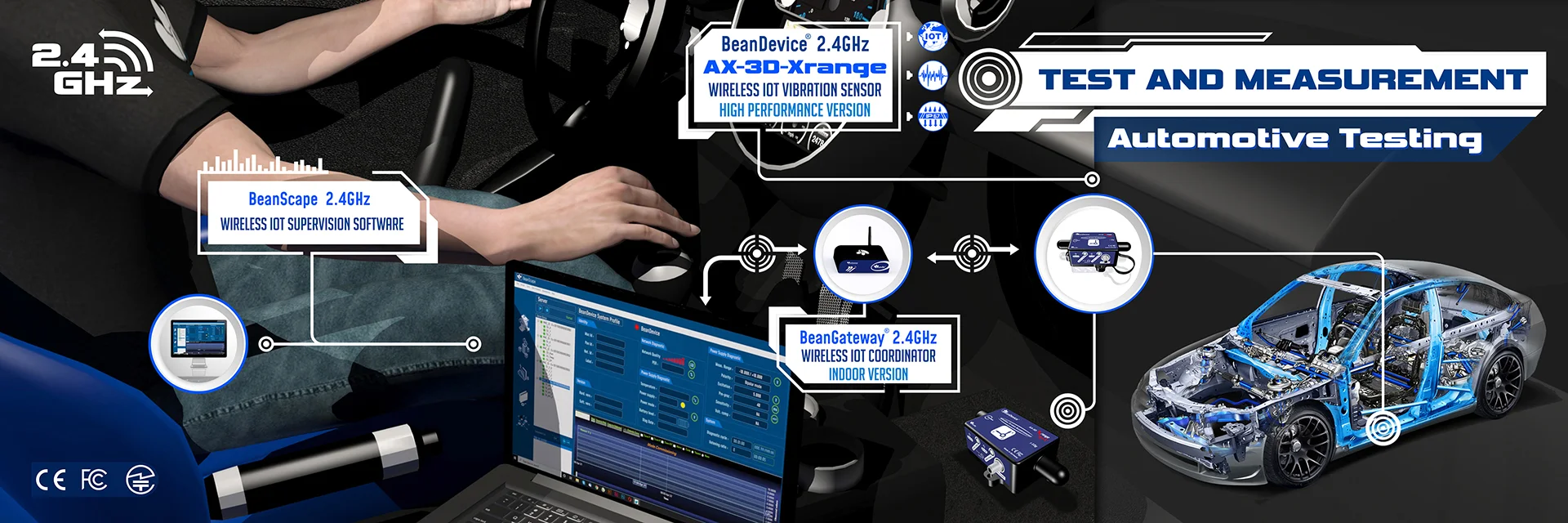

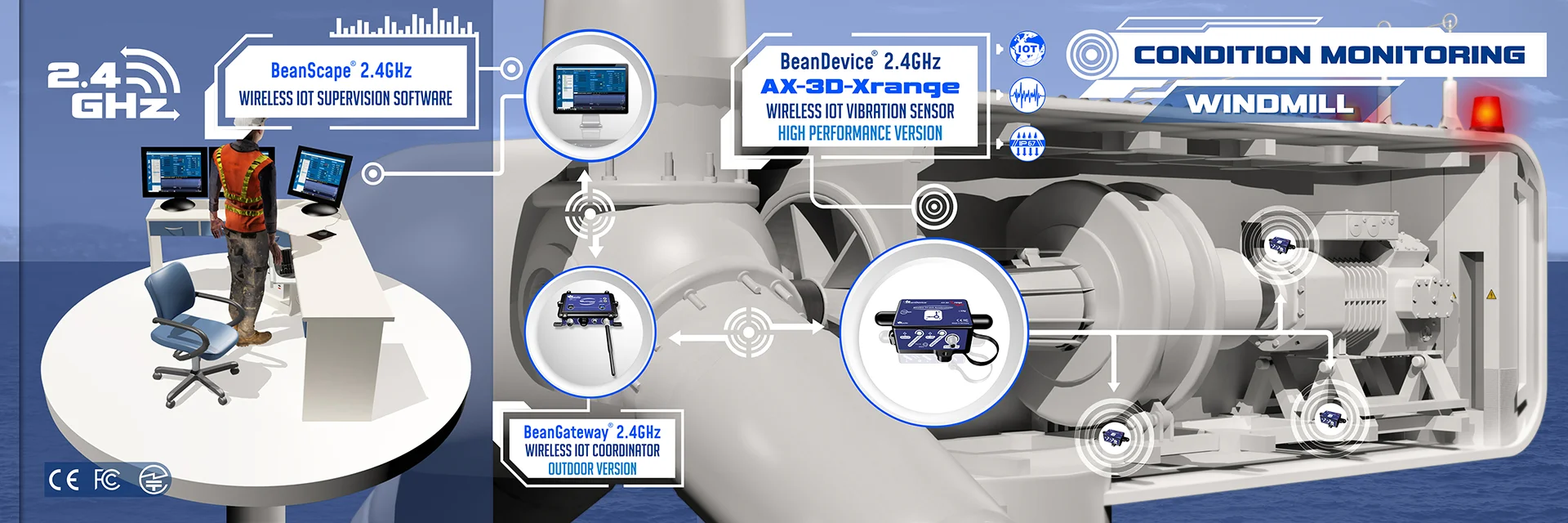

This sensor is ideal for various vibration monitoring applications, including:

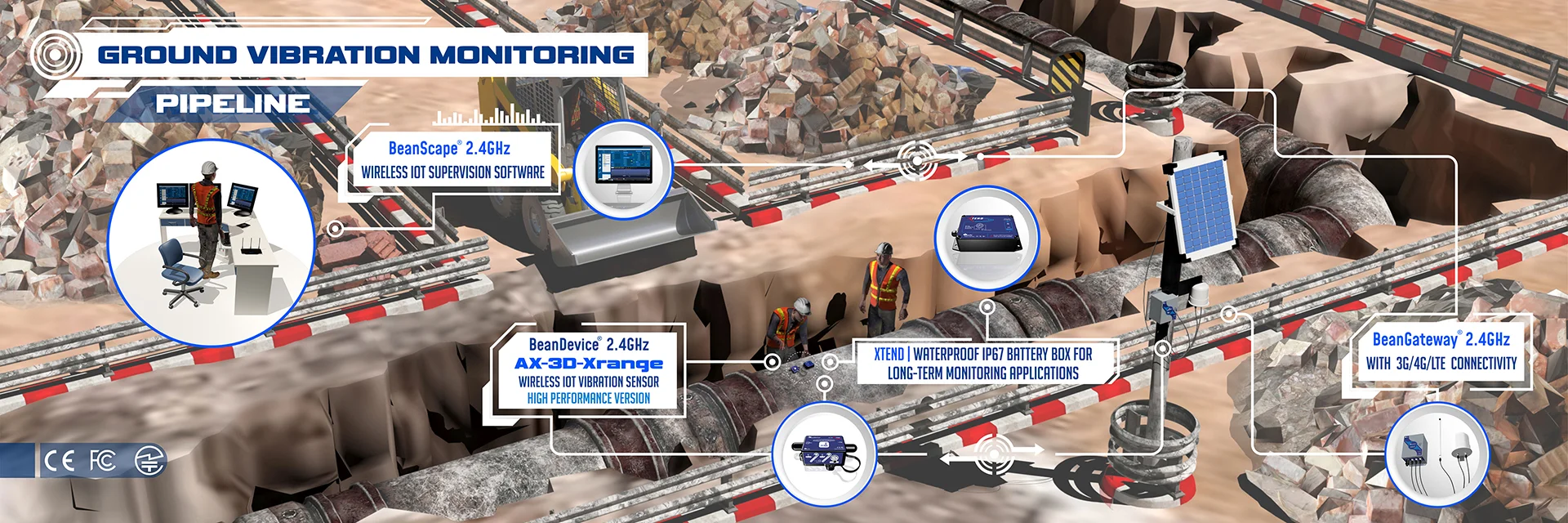

• Ground vibration monitoring on construction sites
• Dynamic measurements for rolling stock

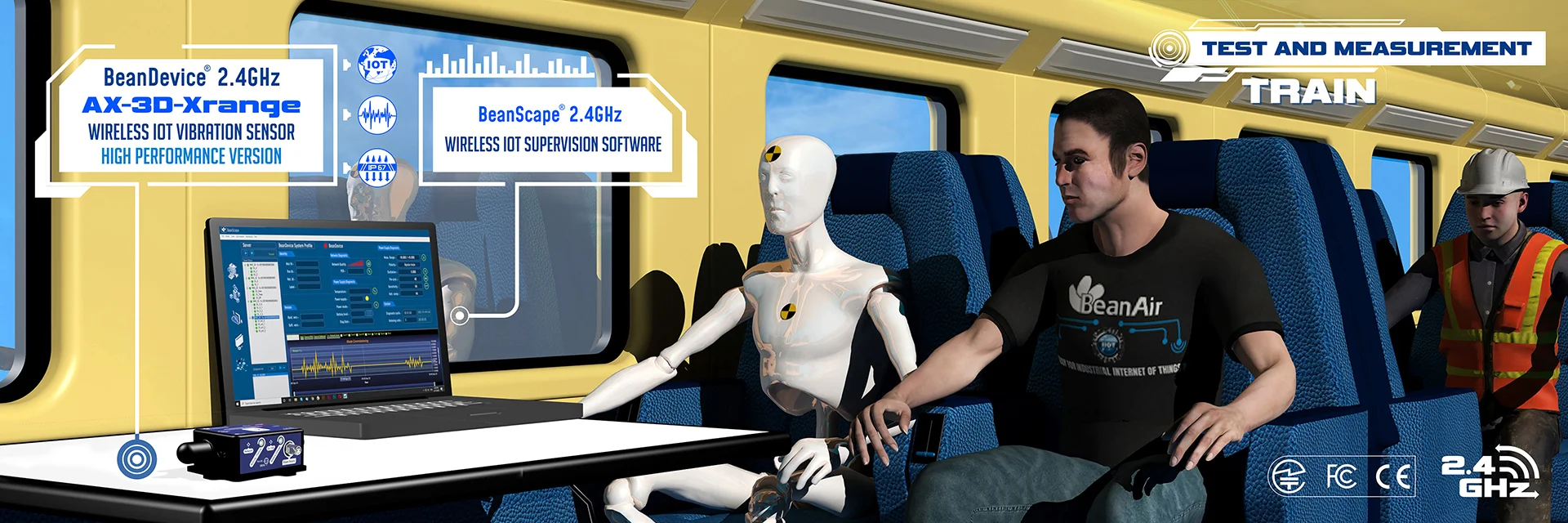

• Test and Measurement for rolling stock

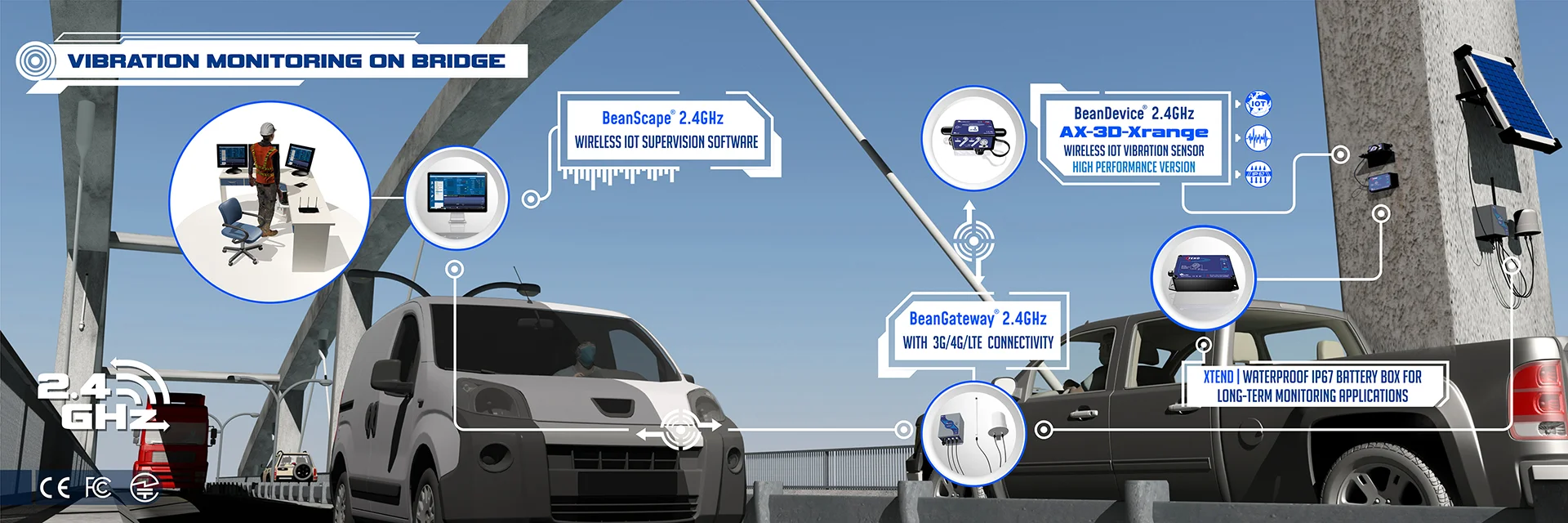

• Structural Health Monitoring (SHM) for buildings and infrastructure
• Vibration analysis for predictive maintenance and diagnostics
Compared to the standard version, the XRange model provides enhanced data logger capacity and supports both screw and magnetic mounting for greater installation flexibility.

«Video Icon »
Video
«Blue line »
Featured Video
First steps into BeanAir Industrial Internet of Things Sensors
WSN dedicated to Structural Health Monitoring
Product Video
The BeanDevice® AX-3DS a revolutionary product for shock monitoring. Here is a video that shows all its characteristics and main features added to its different applications.
Download Ressources
«Technical Documents Icon »
«Blue line »
«Anti-Aliasing Filter Icon »
«Blue line »
Accessories
INCLUDED ACCESSORIES

M8 plastic cap

1 x M8 Cap for Power Supply

Magnet for Power ON | Power OFF

1pcs Magnet.
OPTIONAL ACCESSORIES AND SERVICES
Solar Panel Kit
X-Solar 14ah | Solar Panel with Solar Charging Controller
Ref: X-SOL-14AH-SLP-VOUT-CL
X-Solar 7ah | Solar Panel with Solar Charging Controller
Ref: X-SOL-7AH-SLP-VOUT-CL

Molded Cable, M8 Male Plug to Bare wire
For sensor power supply (8-28VDC)
Material: PVC
IP Rating :  Waterproof-IP67 ( M8 Plug side in locked conditions )
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M

Mechanical Mounting Options

• 90° Bracket with bullseye level for BeanDevice  ( Xrange smartsensor )

Switch-Mode Power Supply 12V with M8-3Pins plug
Power supply complies with IS 13252 (Part 1)/IEC 60950
1-Safety Standards
Cable Lenght: 1.5meters
IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions )
Ref: M8-PWR-12V

Calibration Certificate
Calibration certificate provided by Beanair GmbH
A static calibration method is used on a granite surface plate DIN876
Ref: CERT-CAL-SMART
