Wireless and Ultra-Low Noise Vibration Sensor
- Scalable Measuring Range ±1.2g and ±2.4g -

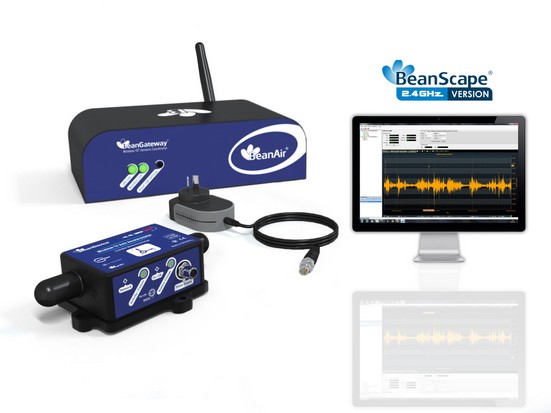

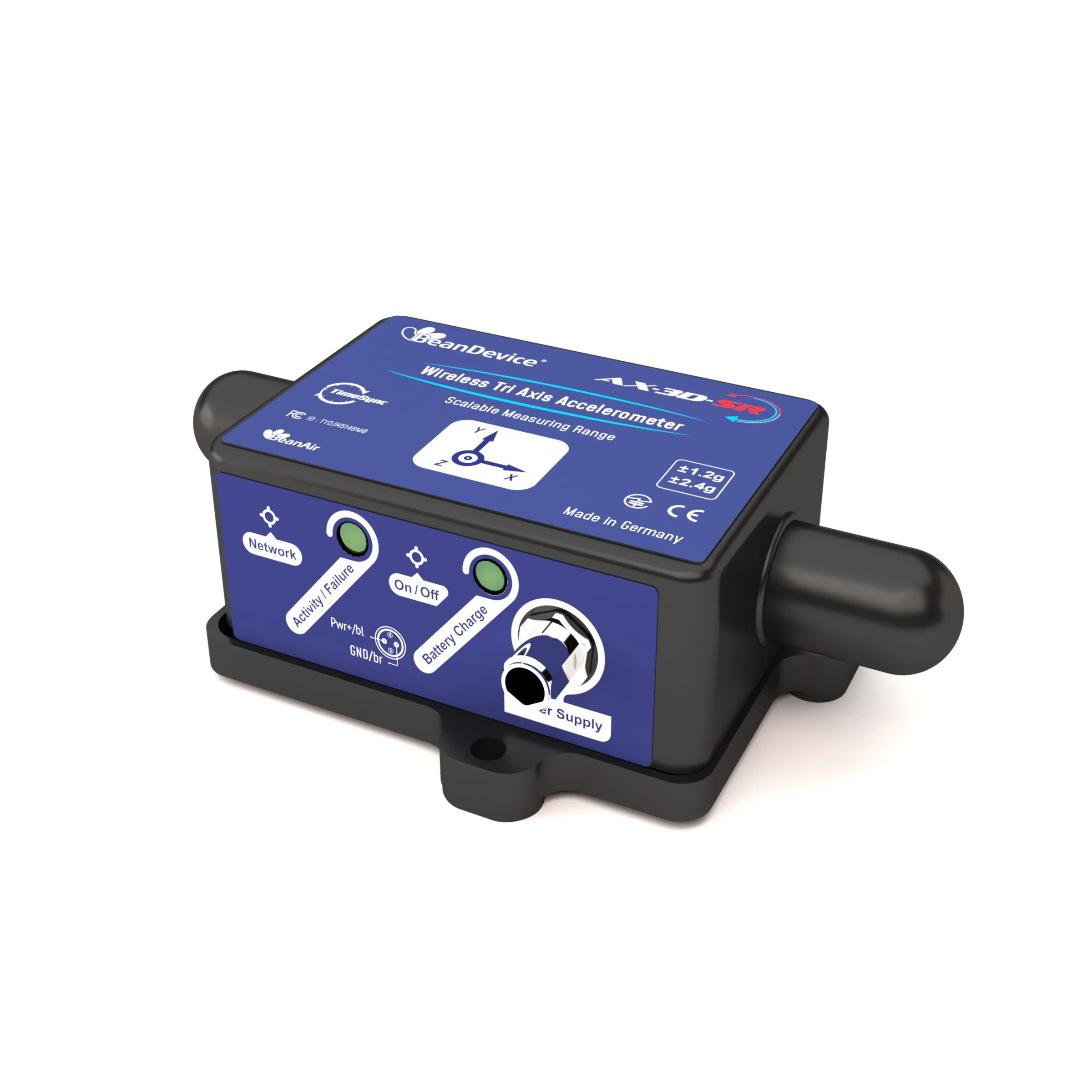

BeanDevice® 2.4GHz AX-3D-SR

The BeanDevice® 2.4GHz AX-3D SR is a cutting-edge wireless vibration sensor offering a scalable measuring range (±1.2G and ±2.4G, with automatic range adjustment based on your application’s requirements). This high-performance device delivers exceptional accuracy (±1 mg for ±1.2G and ±2 mg for ±2.4G at 1 Hz) and features an integrated temperature sensor (located on the device base) to monitor the temperature of your equipment or structures.
This IoT sensor is available with flexible configuration options:
• Mounting: Choose between screw-based or magnetic mounting options.
• Antenna: Select a High-Gain Antenna for extended wireless range or a Radome Antenna for space-constrained applications.

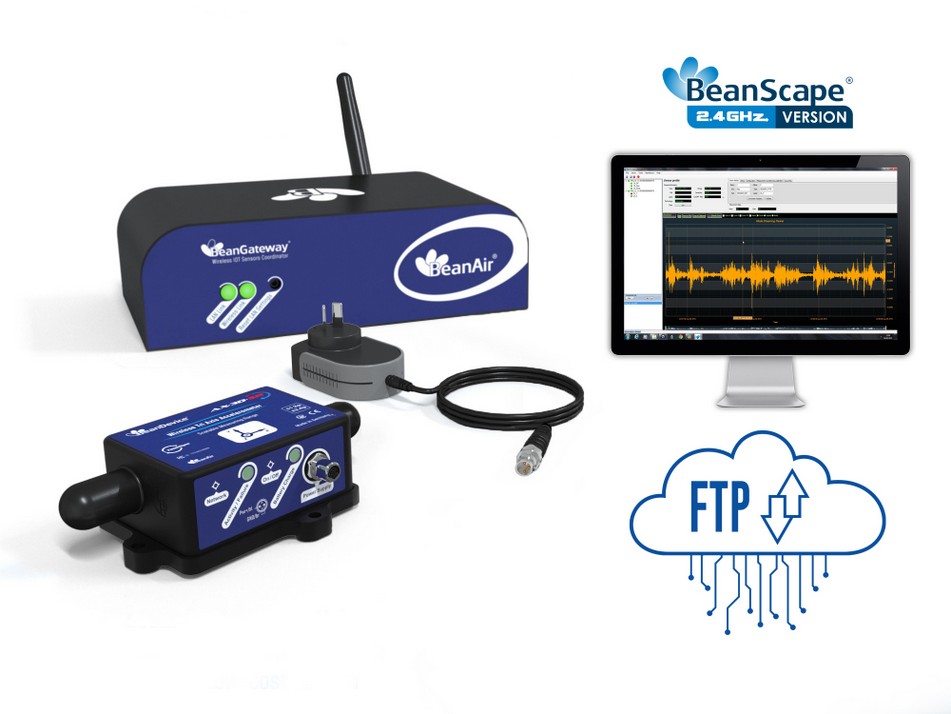

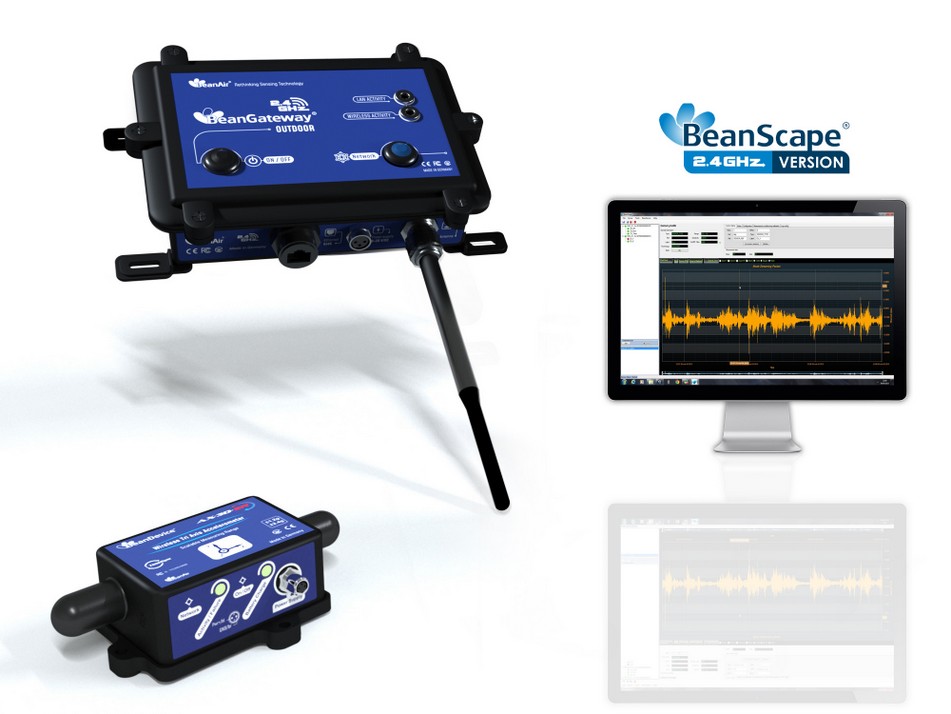

Additionally, it comes with the eco-friendly BeanScape® 2.4GHz Lite supervision software (at no additional cost), which allows users to display real-time data and back up measurements to CSV log files.


Included Free Software

Student and Education Discount
Please Contact us (sales@beanair.com)
Key Features
«Icon Key Feature »
«Blue line »

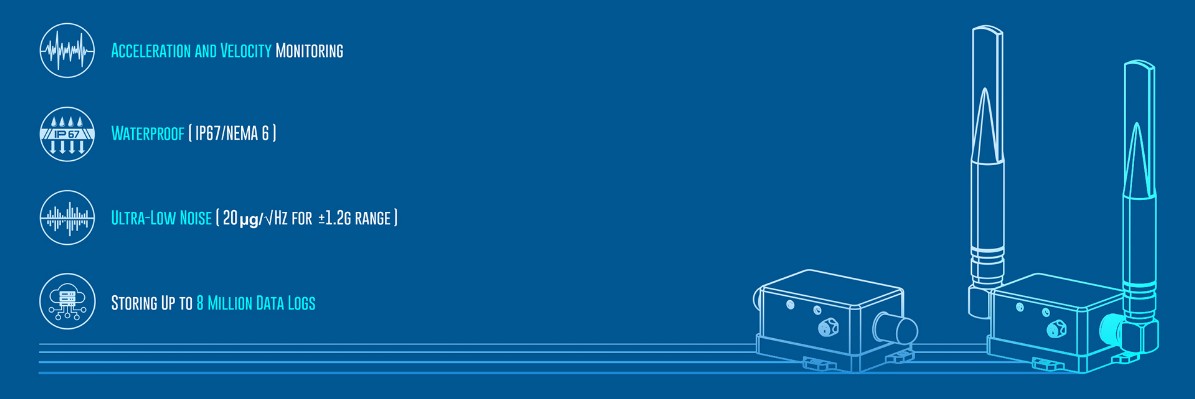

Designed for reliability in harsh environments, the sensor boasts:
• Durable Casing: A waterproof IP67/NEMA 6 lightweight aluminum enclosure ensures long-lasting performance.
• Low Noise Levels: Ultra-low noise (20 µg/√Hz for ± 1.2G range) for precise measurements;
• High Storage Capacity: An integrated data logger capable of storing up to 8 million data logs.
• Acceleration and Velocity Monitoring: Ideal for a range of applications, with velocity monitoring available exclusively via BeanScape® 2.4GHz Premium.

«Key feature»
«Anti-Aliasing Filter Icon »

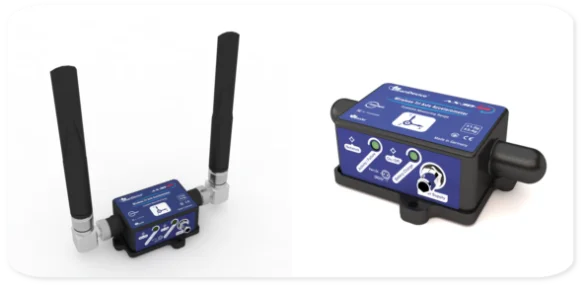

Antenna Options for Different Applications
«Blue line »

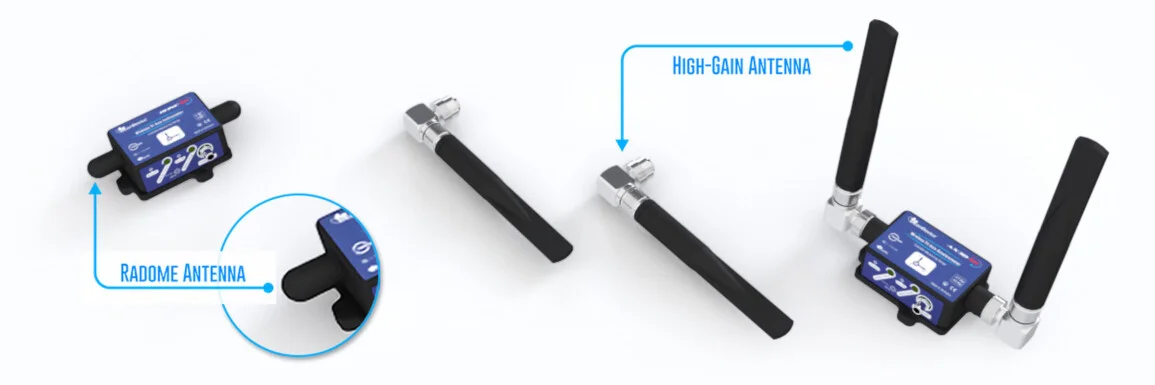

Radome Antenna - Ideal for space-constrained applications.
High-Gain Antenna - Optimized for long-range wireless communication.
«Antenna Options»
«Anti-Aliasing Filter Icon »
Advanced Vibration Analysis with BeanScape® Premium
«Blue line »

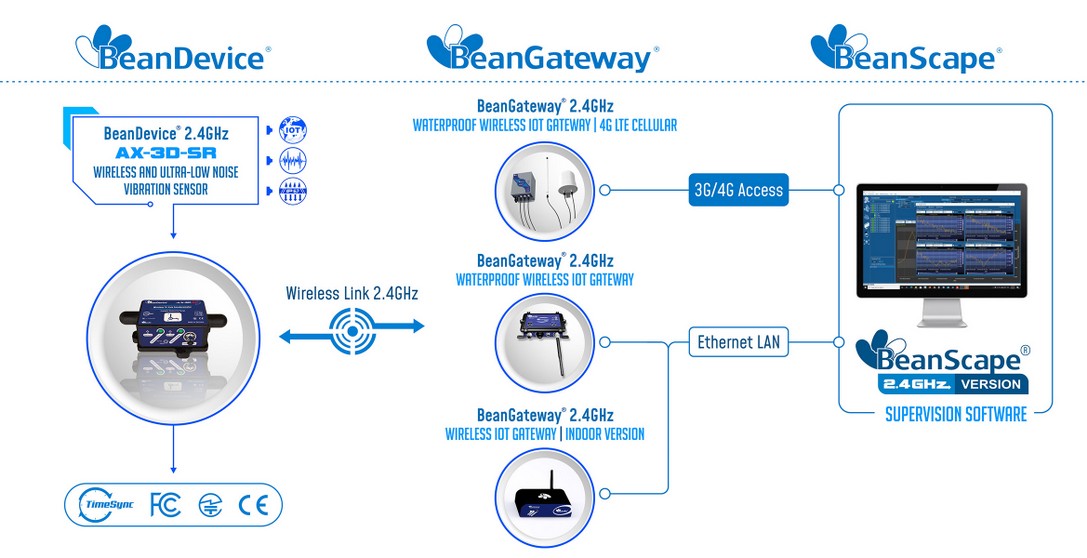

The BeanScape® Premium supervision software is designed for Beanair® Wireless Sensor Networks (WSN), offering advanced capabilities, such as:
•Real-Time Monitoring: Vibration and velocity data visualization.
•Comprehensive Analysis Tools: Includes FFT (Fast Fourier Transform), PPV (Peak Particle Velocity), and velocity measurements.
•Automated Reporting: FFT results with PPV values and velocity analysis reports compliant with DIN 4150-3 standards.
•Proactive Alerts: Automatically generates alarm notifications via email when trigger thresholds are exceeded.

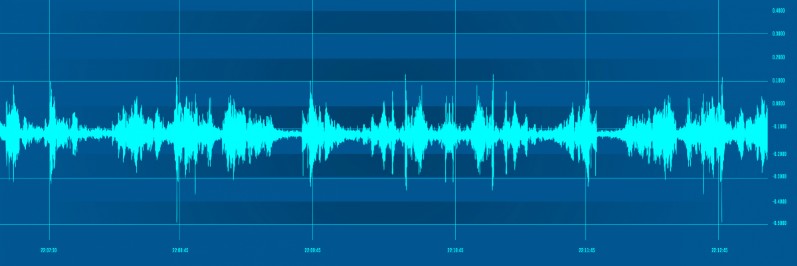

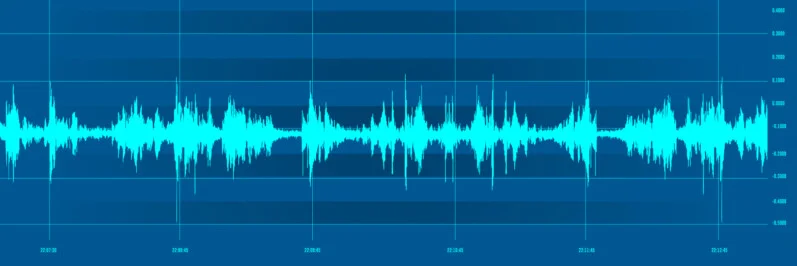

«Vibration Graphic»
«Technical Specification Icon»
Technical Specifications
«Blue line »
High performance wireless tri-axial vibration sensor based on MEMS Technology
Real-Time FFT and Velocity display
Automatic report meeting the DIN4150-3 standard (Excel, PDF and Word) with FFT, PPV and Velocity values ( with BeanScape® 2.4GHZ Premium)
Advanced measurement modes available: continuous monitoring or event-trigger mode
Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
High Gain Antenna : 400m max*, 60-120m (N.L.O.S.)
Excellent radio link budget thanks to our antenna diversity innovative design
Scalable Range: ±1.2G or ±2.4G  with automatic range adjustment
Ultra Low Noise Density: 20 μg/√Hz (± 1.2G range), 32 μg/√Hz (± 2.4G range)
Maximum sampling rate: 320 Samples Per Second

Excellent radio link budget thanks to our antenna diversity innovative design
Embedded Data Logger: up to 8 million data points (with events dating)
Integrated Lithium-Polymer rechargeable battery with industrial battery charger (8-28VDC)
Waterproof (IP67 | Nema 6) aluminum casing (dimensions Lxlxh: 100x71x38 mm)

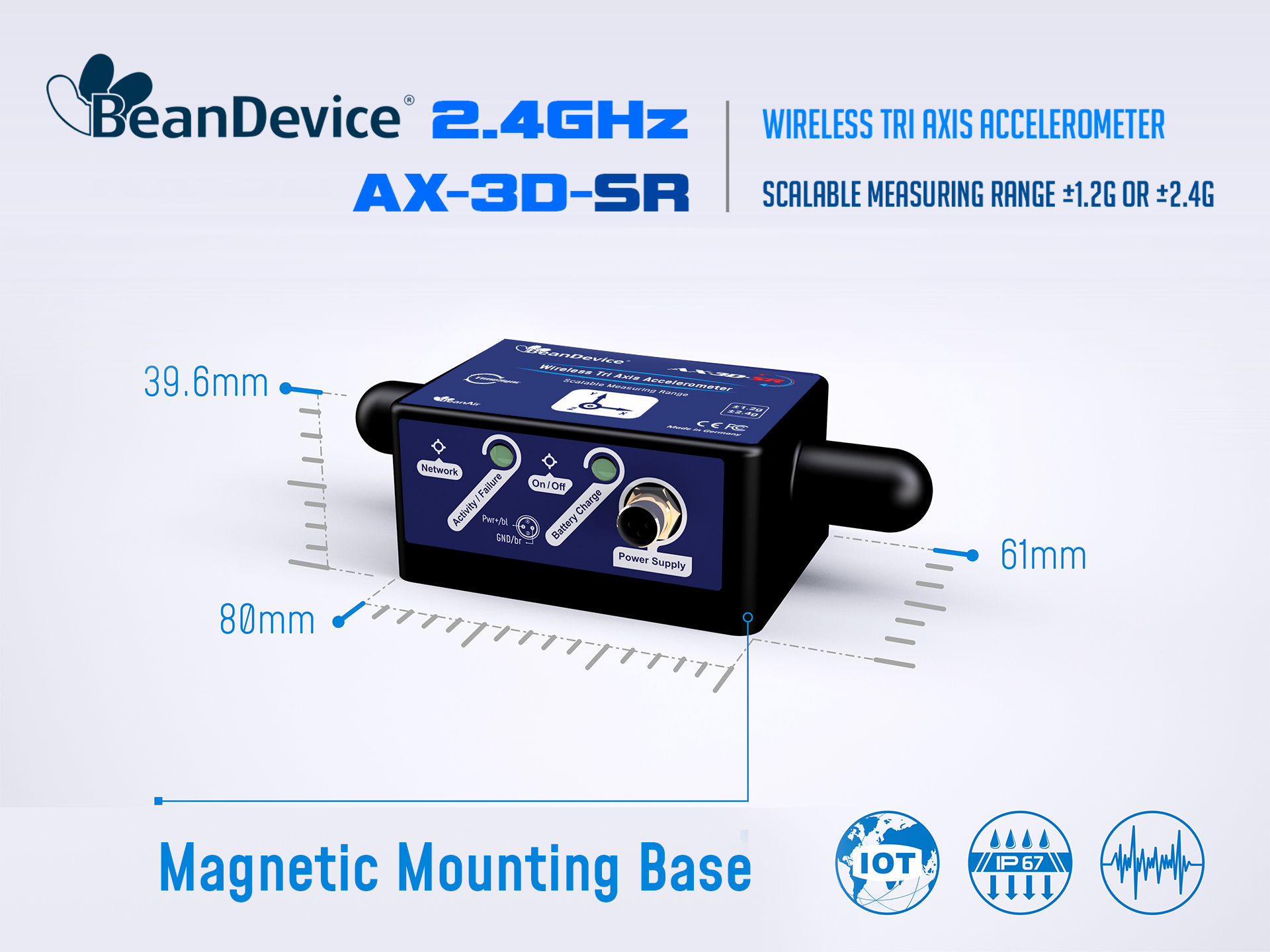

Mounting process: screw mounting or magnetic mounting
TimSync function: Time-synchronization over the Wireless Sensor Networks with a precision of ±2.5 ms
* L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height
PRODUCT REFERENCE
BND-2.4GHZ-AX-3D-SR-MR-PS-MO-HG
MR – Measurement Range (1g = 9806.65 mm/s^2)
1.2T :tri-axis Low noise vibration sensor ±1.2g/±2.4g
PS - Power Supply
RB : Built-in rechargeable Lithium-Polymer battery 2Ah
MO - Mounting Option
SCM - Screw Mounting base
MM - Magnetic Mounting base
HG: High Gain External Antenna 5dBi
If this field is left blank,Integrated Radome Antenna will be provided
Example 1: BND-2.4GHZ-AX-3D-SR-1.2T-RB-SCM
Low Noise wireless Vibration sensor with ±1.2G/±2.4G measurement range, internal rechargeable battery, Screw mounting  , Integrated Radome Antenna
Example 2: BND-2.4GHZ-AX-3D-SR-1.2T-RB-MM
Low Noise wireless Vibration sensor with ±1.2G/±2.4G measurement range,  internal rechargeable battery, Magnetic Mounting  , Integrated Radome Antenna
Example 3: BND-2.4GHZ-AX-3D-SR-1.2T-RB-SCM-HG
Low Noise wireless Vibration sensor with ±1.2G/±2.4G measurement range, internal rechargeable battery, Screw mounting ,External High Gain Antenna
 Stock Status : Available
Accelerometer Specifications
Accelerometer technology
Accurate and low power MEMS technology
Scalable Measuring Range
user-seletctable range ±1.2g or ±2.4g, with  automatic range adjustment depending on the application
Sensor resolution
0.167 mg range ±1.2g
0.333 mg range ±2.4g
Noise  density
20 µg/√Hz for  ±1.2G measurement range
32 µg/√Hz for  ±2.4G measurement range
Sensor precision (full scale, @ 25°C @1HZ sampling rate)
±1.1mg for  ±1.2g  range
±1.8mg for  ±2.4g  range
Sensitivity temperature dependency (temperature range –25°C to +85°C)
±0.1 %
Offset LifeTime Drift (@25°C)
±4mg
Sensor frequency Response (-3 dB)
DC to 40 Hz for  ±1.2g measurement range
DC to 70 Hz for  ±2.4g measurement range
Calibrations
Factory calibrated for both ranges ±1.2g  and ±2.4g with calibration settings backed up on the sensor Flash memory.
Calibration method used : Back-to-back calibrated with a reference sensor.
Integrated Temperature sensor
Temperature Range
-40°C to +60°C
Measurement resolution
±0.06°C
Sensor Precision
±0.5°C
Configurable settings from the BeanScape® 2.4GHz software
Data Acquisition mode
(SPS = sample per second)
Static Data Acquisition: Low Duty Cycle Data Acquisition (LDCDA) and Alarm Mode (based on alarm thresholds) .
Measurement heartbeat 1s to 24 hour
Dynamic data acquisition(not available on devices with ref. extension XT ): Streaming and S.E.T. (Streaming with Event Trigger) Mode
Sampling Rate (in streaming mode with data logger only)
Minimum: 1 SPS
Maximum: 400SPS on each axis , for ±1.2g measurement range (Static and Auto Range) ,  for ±2.4g measurement range (Auto Range) ,
Maximum: 800 SPS on each axis , for ±2.4g measurement range (Static Range)
Sampling Rate (in streaming and S.E.T mode)
Minimum: 1 SPS
Maximum: 3 kSPS per axis (one axis enabled)
1,5 kSPS per axis (2-axis enabled)
1 kSPS per axis (3-axis enabled)
Alarm Threshold
Three-level alarms : Alert < Action < Alarm
Scalable Mesurement Range
±1.2g  , ±2.4g and automatic ±1.2g/±2.4g
Power Mode
Battery saver mode & Active power mode
(Active Power Mode is not available on -XT version)
RF Specifications
Wireless Protocol Stack
Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
WSN Topology
Point-to-Point / Star
Data rate
250 Kbits/s
RF Characteristics
ISM 2.4GHz – 16 Channels. Antenna diversity architecture designed by BeanAir®
TX Power
+18 dBm
Receiver Sensitivity
-104 dBm
Maximum Radio Range
High Gain Antenna : 400m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 60-120m (N.L.O.S.)
Integrated Radome Antenna : 150m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 30-60m (N.L.O.S.)
Antenna
Antenna diversity :
High Gain Antenna : 2 x N-Type Antenna 5dBi , IP67
Radome Antenna : 2 x Antenna 1.9 dBi , IP67
Embedded Data logger
Storage Capacity
up to 8 million data points
Wireless data downloading
20 minutes to download the full memory (average time)
Environmental and Mechanical
Casing
Aluminum AL6061 & Waterpoof casing
Dimensions in mm (LxWxH): 100 x 71 x 38 (without Radome antennas, with  mounting eyelet)
Weight (with internal battery & Radome Antenna) :
-240g (screw mounting)
-265g (magnetic mounting)
Weight (with internal battery & High Gain Antenna) :
-440g (screw mounting)
-465g (magnetic mounting)
Shocks resistance
150g during 50 ms
Operating Temperature
RB : Internal rechargeable battery
-40°C to +60°C
XT : External Power Supply
-40°C to +75°C during battery discharge
A Sunshield must be used if the sensor is exposed to direct sun radiation.
Maximum  Humidity
90 %RH
Norms & Radio certifications
CE Labelling Directive R&TTE (Radio) ETSI EN 300 328
FCC (North America)
ARIB STD-T66 Ver 3.6
ROHS - Directive 2002/95/EC
Base plate
Aluminum black anodized AL 7075 with rugged three-point-mounting
Screw Mounting Option: the device should be mounted on a flat and smooth surface with 3 screws, dimension M5. Mounting torque 5 ±1Nm
Magnet Mounting Option: the device should be mounted on a steel surface.
IP|NEMA Rating
IP67 | Nema 6
Power supply
Integrated battery charger
Integrated Lithium-ion battery charger with high precision battery monitoring :
Overvoltage Protection/Overcurrent/Short-Circuit Protection/Undervoltage protection
Battery Temperature monitoring
Current consumption @ 3.3V
During data acquisition : 20 to 30 mA
During Radio transmission : 40 mA @ 0 dBm, 80mA @ 18dBm
During Battery Saver Mode : < 30 µA

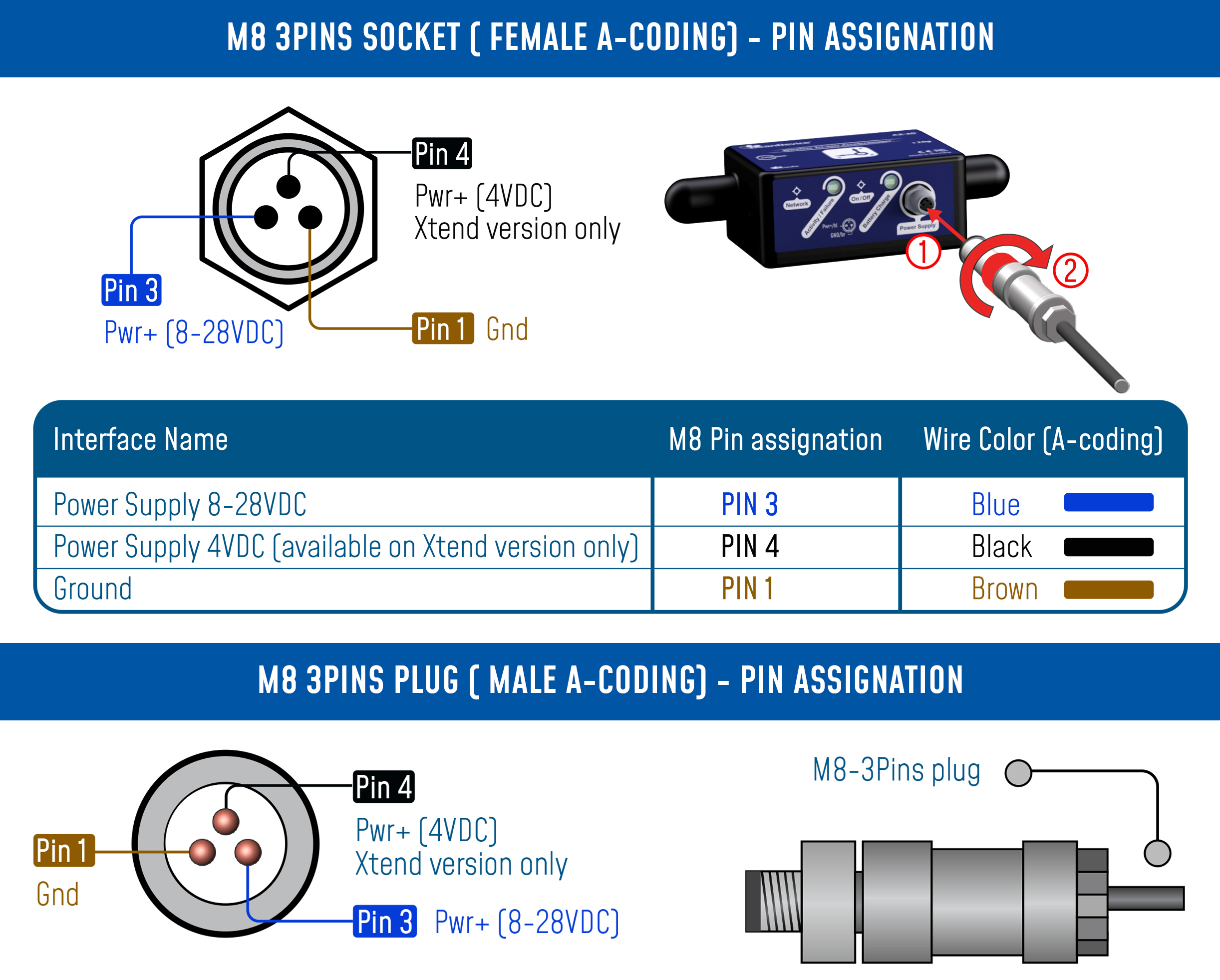

External power supply

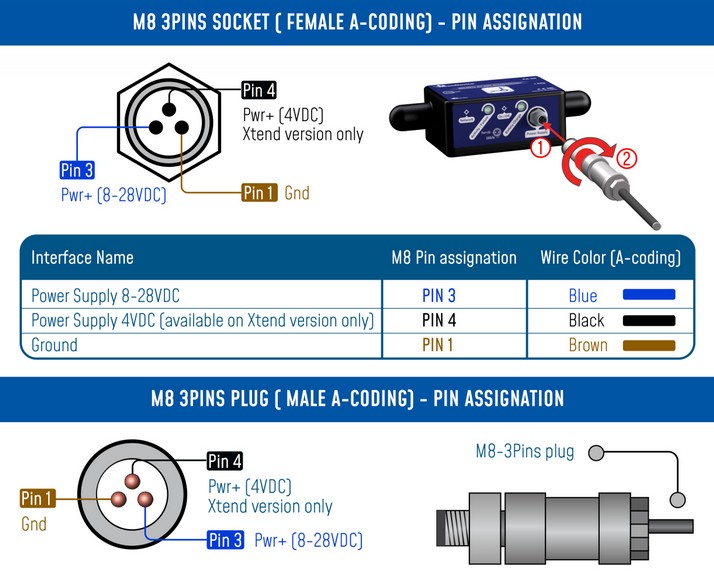

8-28VDC with reverse polarity protection
IEC-61000-4-2:  ESD 30kV(Air), 30kV (Contact)
Surge protection  > 28VDC  (600W during 10us max)
Rechargeable battery
2 Ah,  Lithium-Polymer battery
INCLUDED ACCESSORIES
1x Magnet to Power ON/Power OFF the device
1x M8 Cap for Power Supply
Optional Accessories and Services
External Power Supply
Wall plug-in, Switchmode power Supply 12V @ 1,25A with sealed M8 Plug (IP67/Nema   6)
Ref: M8-PWR-12V

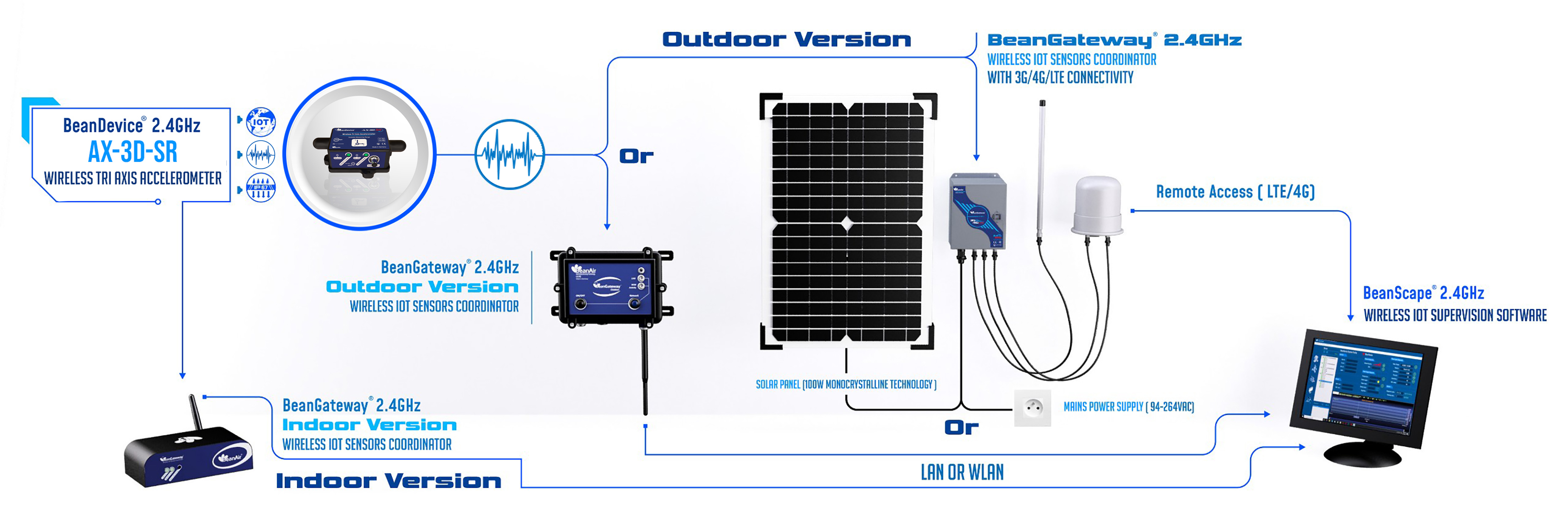

Standalone   Solar System
High efficiency solar panel with
with Solar charging controller and Lead-acid   battery
Ref.: X-SOL-7AH-20W-4V-5M for XT version
Ref.: X-SOL-7AH-20W-12V-5M for RB version
Ref: X-SOL-14AH-20W-4CH-4V-5M for XT   version
Ref: X-SOL-14AH-20W-4CH-12V-5M for RB version
Ref: X-SOL-14AH-80W-4CH-4V-5M for XT version
Ref: X-SOL-14AH-80W-4CH-12V-5M  for   RB version
More options and references are available on   X-SOLAR datasheet

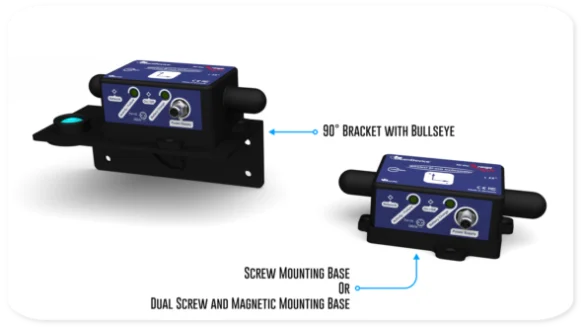

Bracket Mounting

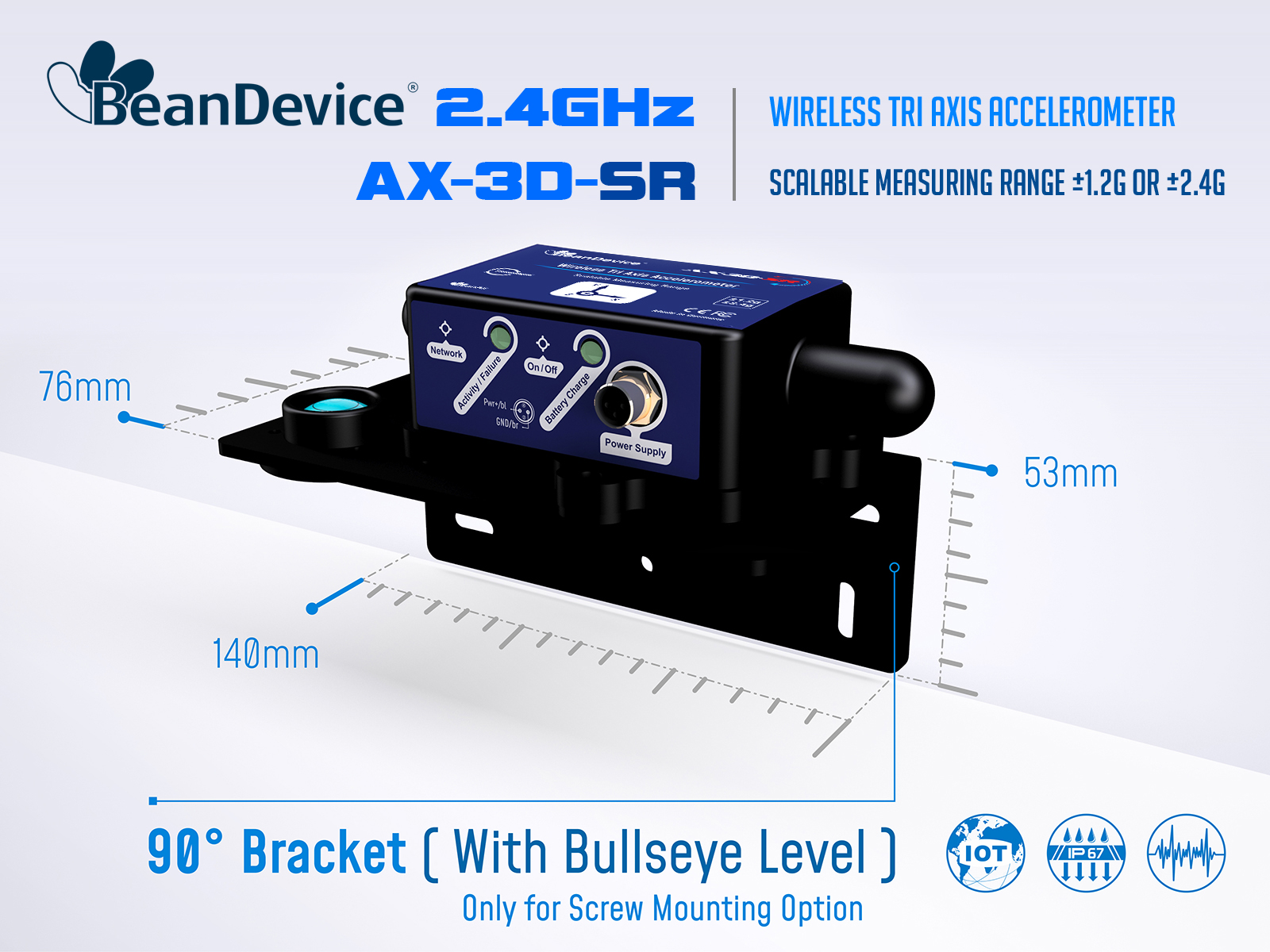

90° Bracket for BeanDevice
(Xrange smartsensor) with 4 x M5 screws + Locknut
Ref: SMART-BRACK-MNT
M8 extension cable for external power supply
Molded  cable with M8-3pins male plug
Material: PVC with shield protection
IP Rating : IP67 | Nema 6
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M
Calibration certificate
Calibration certificate provided by Beanair Sensors
A static calibration method is used on a granite surface plate DIN876
Ref: CERT-CAL-SMART
«Applications Icon »

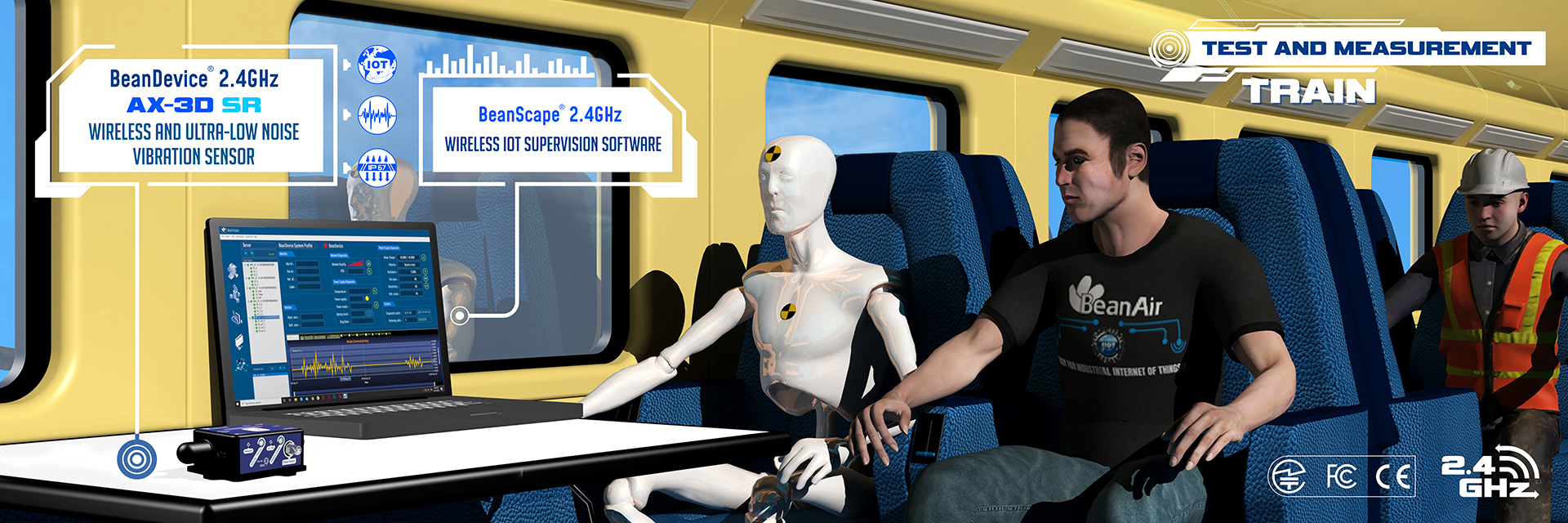

Applications
«Blue line »

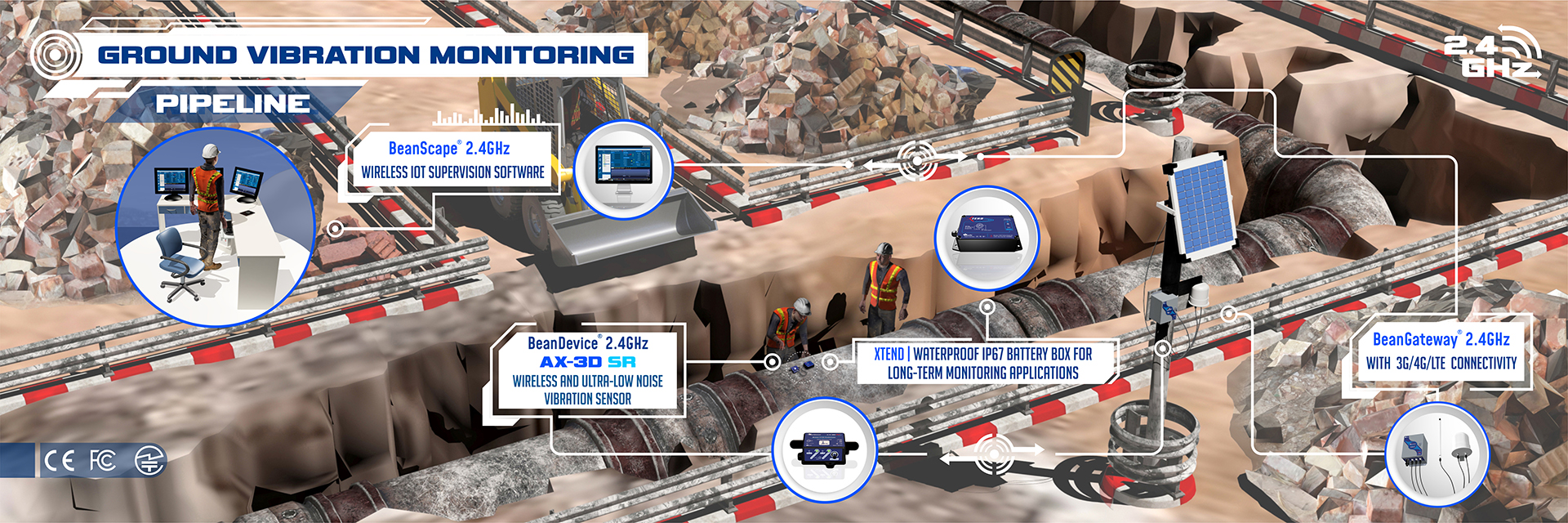

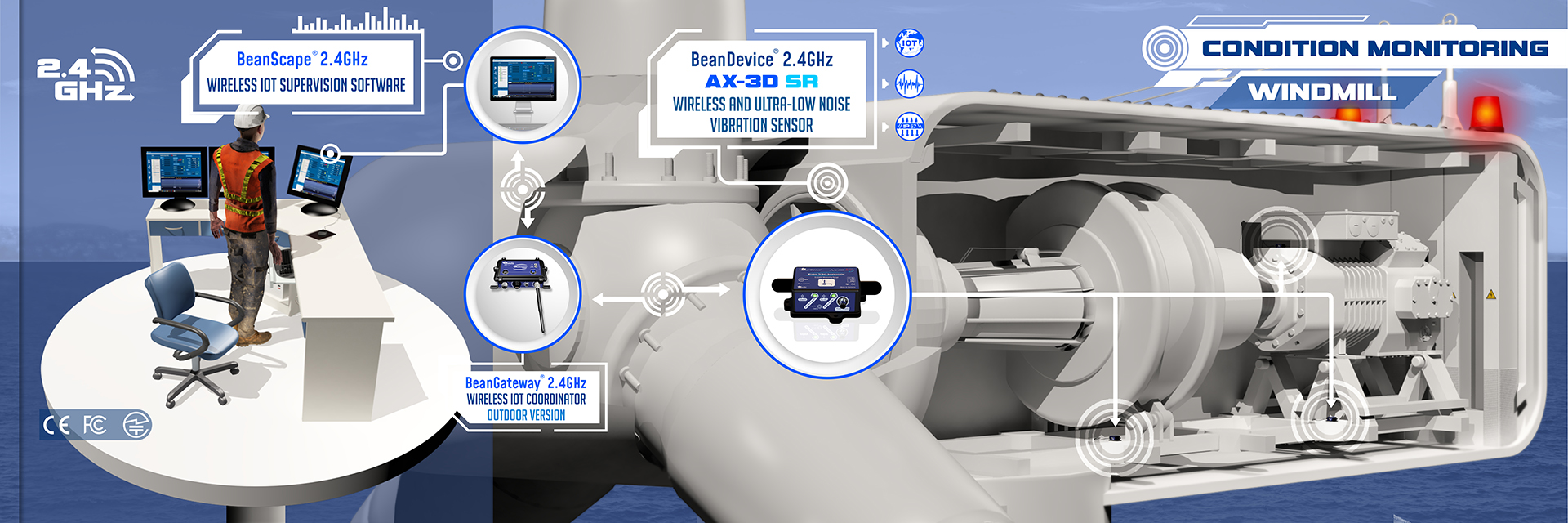

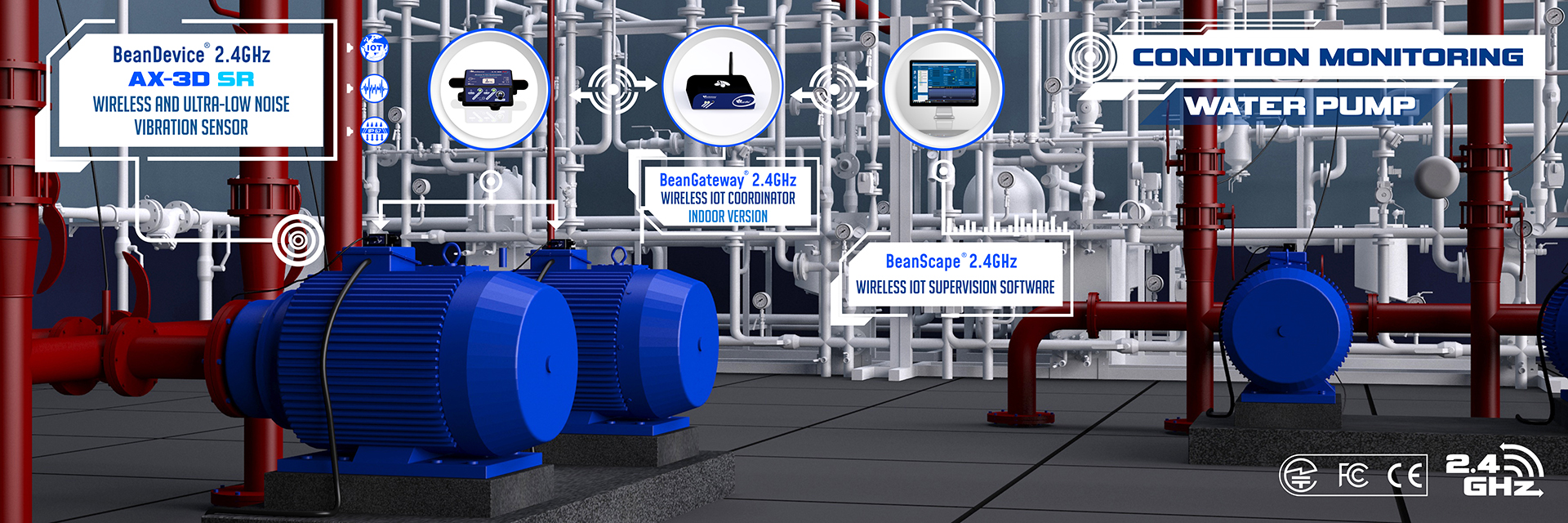

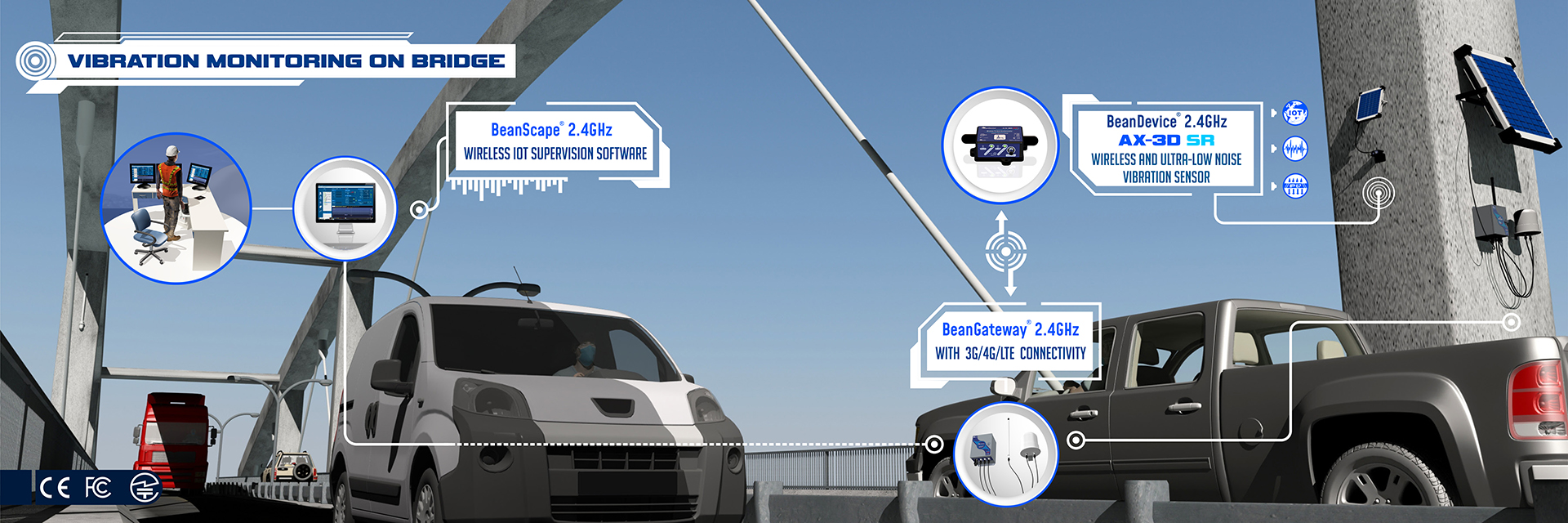

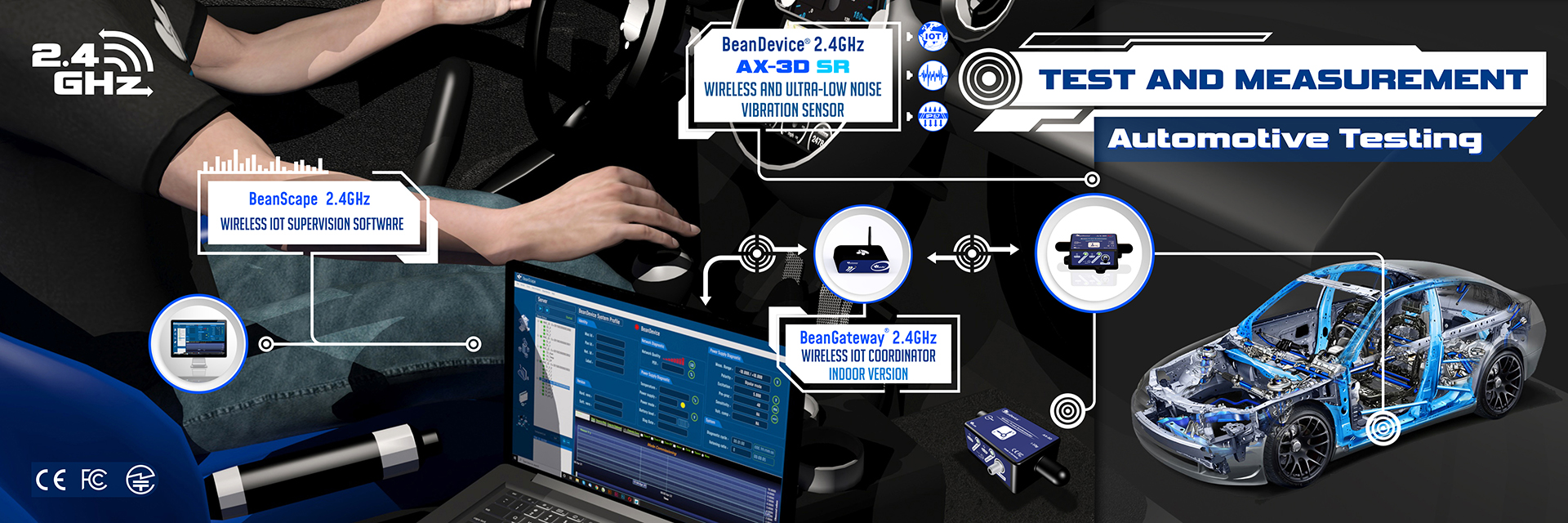

This sensor is ideal for various vibration monitoring applications, including:
• Dynamic measurements for rolling stock
• Vibration analysis for predictive maintenance and diagnostics
Compared to the standard version, the XRange model provides enhanced data logger capacity and supports both screw and magnetic mounting for greater installation flexibility.

Video
«Video Icon »
«Blue line »
WSN dedicated to Structural Health Monitoring
Product Video
The BeanDevice® AX-3D-SR is a high-performance wireless inclinometer with a scalable measuring range ( ±1.2g and ±2.4g, with automatic range adjustment depending on the application). It offers a high level of precision ( ±1mg for ±1.2g range, ±2mg for ±2.4g range ). It integrates a temperature
Featured Video
First steps into BeanAir Industrial Internet of Things Sensors
«Technical Documents Icon »
«Blue line »
Download Ressources
«Anti-Aliasing Filter Icon »
Accessories
«Blue line »
INCLUDED ACCESSORIES

M8 plastic cap

1 x M8 Cap for Power Supply

Magnet for Power ON | Power OFF

1pcs Magnet.
OPTIONAL ACCESSORIES AND SERVICES
Standalone Solar System
High efficiency solar panel with Solar charging controller and Lead-acid battery
Ref: X-SOL-14AH-20W-4CH-4V-5M for XT version
Ref: X-SOL-14AH-20W-4CH-12V-5M for RB version
Ref: X-SOL-14AH-80W-4CH-4V-5M for XT version
Ref: X-SOL-14AH-80W-4CH-12V-5M  for RB version
Ref.: X-SOL-7AH-20W-4V-5M for XT version
Ref.: X-SOL-7AH-20W-12V-5M for RB version
More options and references are available on X-SOLAR datasheet

Molded Cable, M8 Male Plug to Bare wire
For sensor power supply (8-28VDC)
Material: PVC
IP Rating :  Waterproof-IP67 ( M8 Plug side in locked conditions )
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M

Mechanical Mounting Options

90° Bracket for BeanDevice
(Xrange smartsensor) with 4 x M5 screws + Locknut

Ref: SMART-BRACK-MNT

Switch-Mode Power Supply 12V with M8-3Pins plug
Power supply complies with IS 13252 (Part 1)/IEC 60950
1-Safety Standards
Cable Lenght: 1.5meters
IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions )
Ref: M8-PWR-12V

Calibration Certificate
Calibration certificate provided by Beanair GmbH
A static calibration method is used on a granite surface plate DIN876
Ref: CERT-CAL-SMART
Support
«SUPPORT Icon »
«Blue line »
SUPPORT MANUAL
Do you need help with any of our BeanAir® products ?
2 YEAR LIMITED WARRANTY
We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
Copyright 2025 © BeanAir - All rights reserve
Back to content
