BeanDevice® 2.4GHz HI-INC-SR
Wireless BI AXIS inclinometer Sensor | SCALABLE MEASURING RANGE
The BeanDevice® HI-INC-SR is a high-performance wireless inclinometer with a scalable measuring range ( ±30° and ±90°, with automatic range adjustment depending on the application). It offers a high level of precision ( ±0.01° for ±30° range, ±0.02° for ±90° range ). It integrates a temperature sensor (located on the device base) for monitoring the temperature on your equipment or structure.
Characterized by a waterproof (IP67/Nema 6) and alightweight aluminum casing, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 8 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless inclinometer is well suited for all types of industrial applications.
This IOT sensor is provided with a free of cost version of our eco-friendly supervision software BeanScape® 2.4GHz Lite ( real-time data display , data measurements backed-up on CSV log files).
Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® or OPC DA available on our BeanScape® 2.4GHz ( Premium+ &Multiview versions only ).
The BeanDevice® HI-INCSR can be used :
· Railway sleepers monitoring
 | MEMS inclinometer with scalable measuring range (±10° and ±90°) | ||
 | High resolution 0.0055° and a High precision (±0.01° for ±10° range, ±0.02° for ±90° range) | ||
 | Time-synchronized wireless sensor networks (±2.5ms of accuracy) | ||
 | Waterproof IP67 casing (Nema 6) | ||
 | Integrated Lithium-Ion battery charger | ||
 | Embedded data logger : up to 8 millions data points (with events dating) | ||
 | Excellent radio link relying on the radio antenna diversity designed by Beanair® | ||
Certifications & Approvals | |
 | |
| |
| |
| |
 | |
PRODUCT REFERENCE | |||
BND-2.4Hz-HI-INC-SR –MR–PS-MO | |||

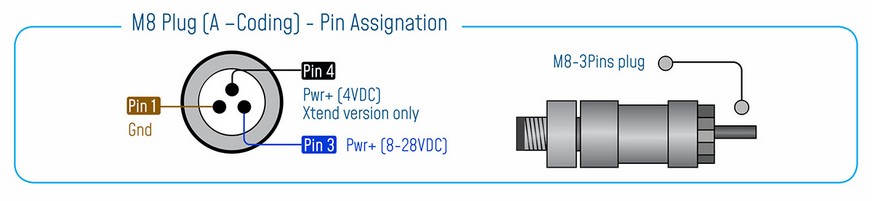

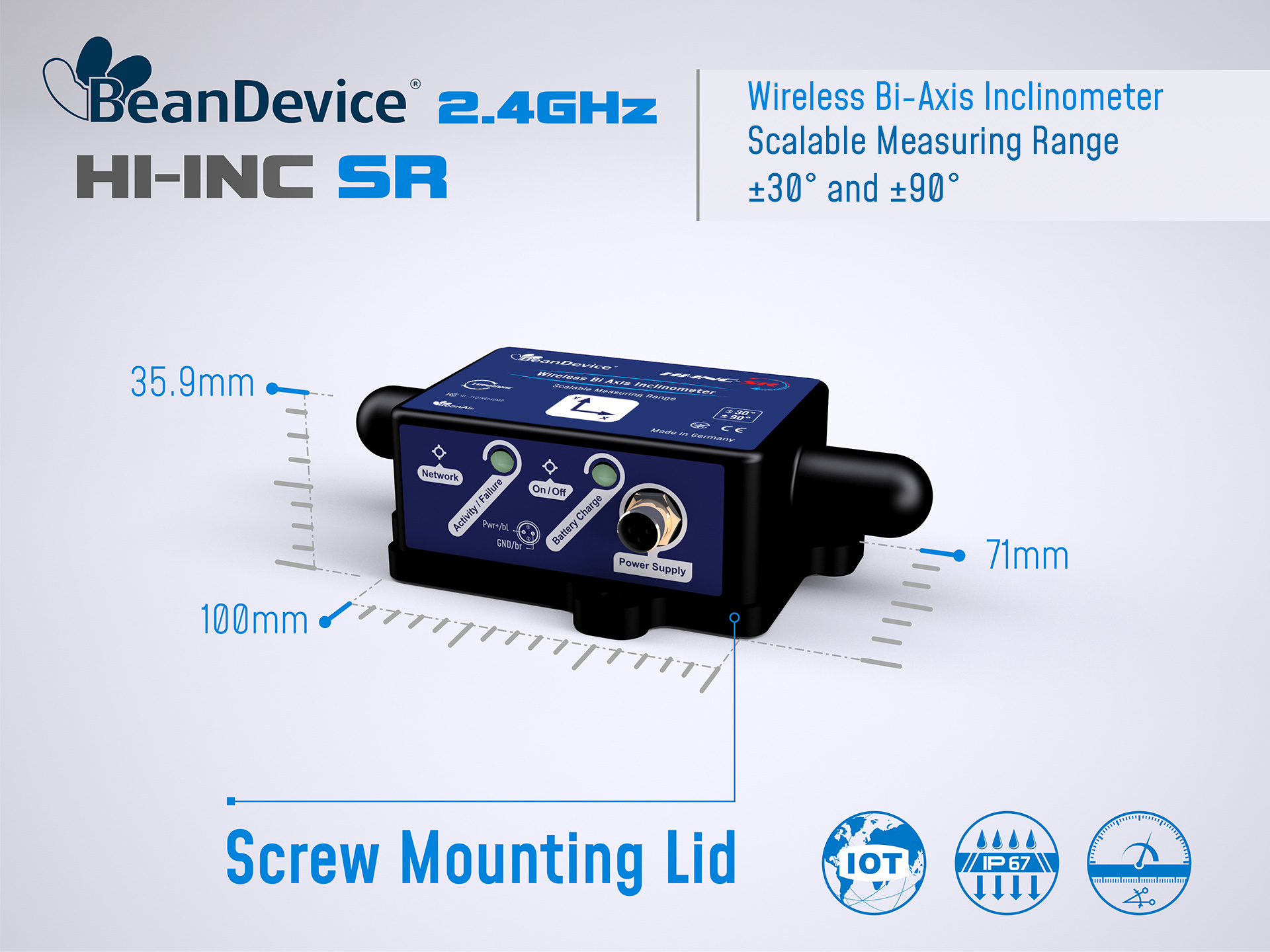

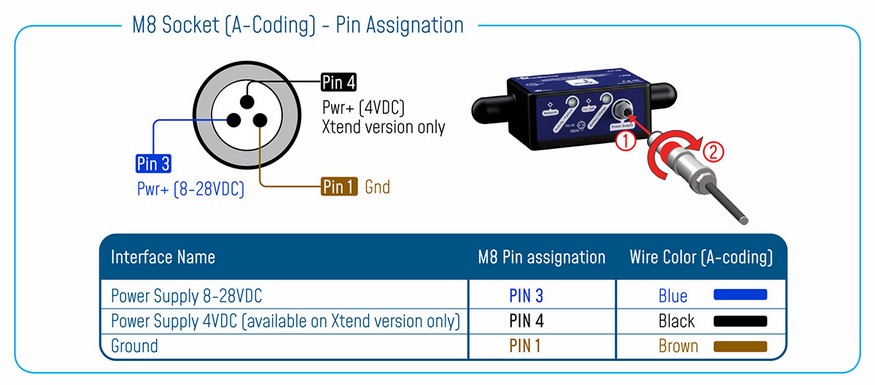

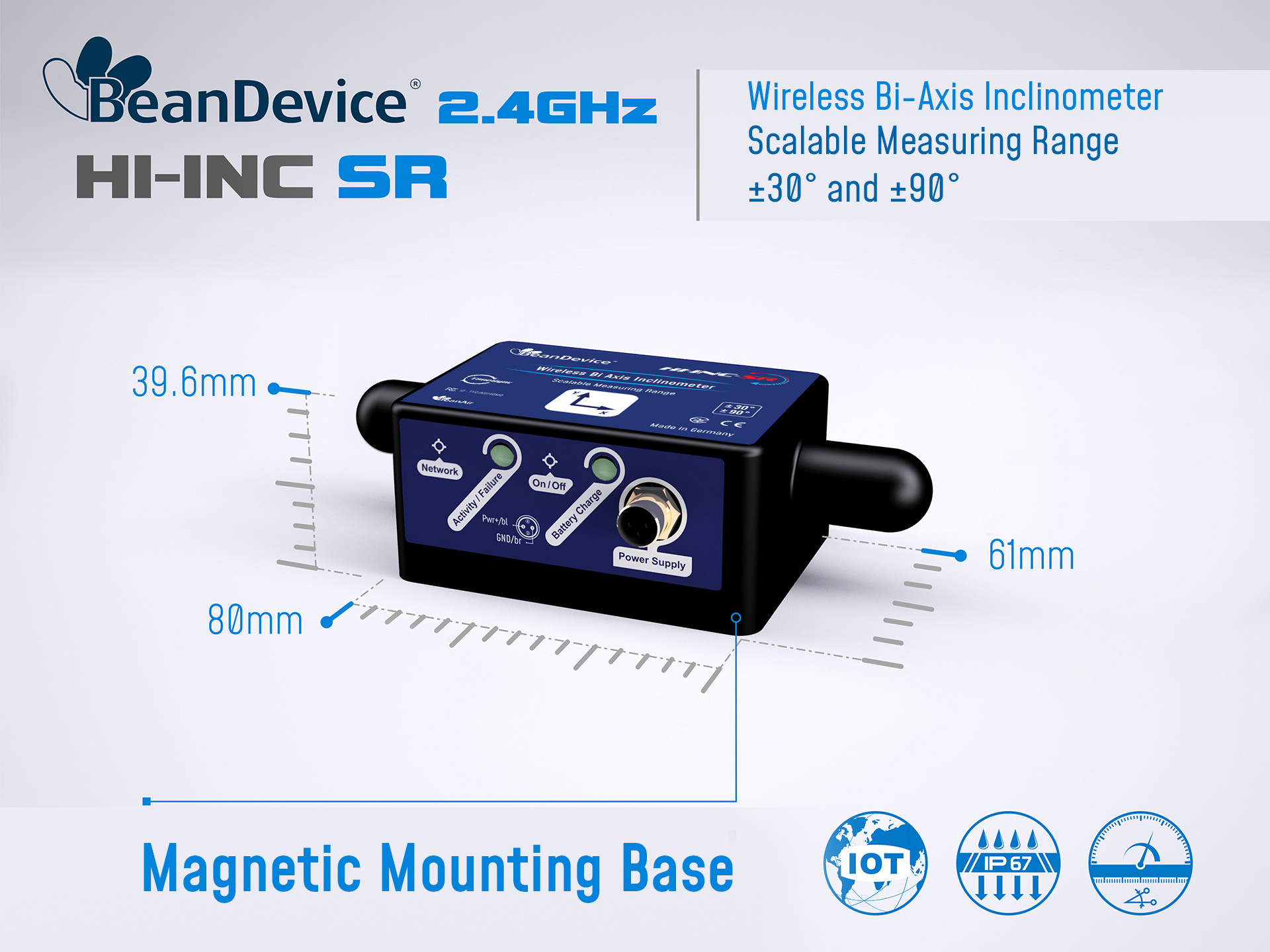

MR – Measurement Range: - 10T : Tri-axis ±10° / ±90° | PS - Power supply : - RB : Internal rechargeable battery - XT : External power supply 4VDC ( Compatible with X-SOLAR-4VDC and PRIM-XTENDER) | MO - Mounting Option SCM - Screw Mounting Lid MM - Magnetic Mounting Lid | |
Example 1: BND-2.4GHZ-HI-INC-SR-10T-SCM, High performance wireless Tri-axis inclinometer with ±10°/±90° measurement range, internal rechargeable battery, Screw mounting Example 2: BND-2.4GHZ-HI-INC-SR-10T-XT-MM, High performance wireless Tri-axis inclinometer with ±10°/±90° measurement range, external power supply, Magnetic Mounting | |||
 Stock Status : Available | |||
  | ||
Enable a quick and reliable remote access thanks to our BeanGateway® With 4G Connectivity
Applications
Tilt Monitoring on Bridge
Tilt Monitoring on Construction Site
Tilt Monitoring on Antenna Base Station
