Technical Specifications
Product Reference | |
BGTW-2.4GHz-ETH-OUT |
Ethernet/LAN Network | |
Network/Transport Protocol | Client TCP/IP, UDP, DNS, DHCP |
Data Link Protocol | Ethernet / Fast Ethernet with auto-uplink (MDI/MDI-X auto) -IEE 802.3x |
IP Adressing | Dynamic (DHCP) or static |
IP Configuration | LAN parameters (DNS, DHCP, Keep Alive…) are configurable from the BeanScape® (UDP/Ethernet Interface). |
Physical & Environmental | |
Dimensions (L x l x h) | 202 mm x142 mm x 55 mm |
Enclosure/Finish | · Aluminium alloy ADC12 black finish · Wall mounting holes (outside the sealing area) |
Weight | 1220g |
Connectors | · Power supply connector: M8-3P female socket, Ratings IP67, Contact brass with gold plated · Ethernet connector : RJ45 Female, Ratings IP67, Contact copper alloy with gold plated · Antenna connector: N-Type female, Ratings IP67 · ON/OFF push button : Latching push-button, Ratings IP67 · Network context push button: momentary push-button, Ratings IP67 |
Operating temperature | · -40 °C to +60 °C |
Norms and Radio Certifications | · CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 · FCC (North America) · ARIB STD-T66 Ver 3.6 · ROHS - Directive 2002/95/EC |
IP Ratings | IP67 |
Power Supply | |
Power Consumption | 250 mA to 300 mA during wireless RX/TX and Ethernet activated |
External power supply | 8-28 VDC , integrated Lithium-Ion battery charger with high-precision battery monitoring |
integrated Lithium-Ion Battery with UPS function | -High density Lithium-Ion rechargeable battery with a capacity of 2.2Ah with polyswitch protection -In case of external power supply failure, the BeanGateway® can switch on the internal battery. |
Included Accessories
Waterproof 2.4 GHz Antenna
· High gain antenna 5.5 dBi
· V.S.W.R : 1.5 :1
· Connector : N-Type (Waterproof)
Connectors cap
M8-3P cap
Ethernet Cable
· RJ45 Male waterproof connector (casing side only)
· Cable length: 3 meters
Wall mounting

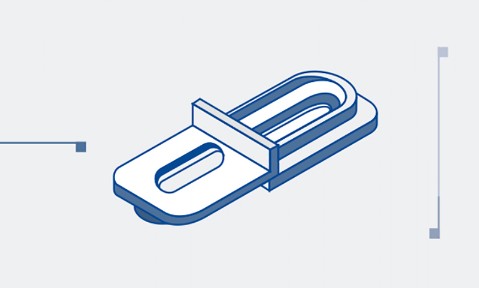

Wall mounting kit, 4 pcs
Wall plug-in power supply
Wall plug-in, Switchmode power Supply 12V @ 1,25A
Ref: M8-PWR-12V
Optional Accessories and Services
M8 extension cable for external power supply
Molded cable with M8-3pins male plug
Material: PVC with shield protection
IP Rating : IP67 | Nema 6
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M
Antenna Cable
N-Type cable (Male/Male),
Cable type: RF-5/H155
IP Rating : IP67 | Nema 6
Cable length: 1 meter, Ref: CBL-ANT-1M
Cable length: 2 meters, Ref: CBL-ANT-2M
Cable length: 3 meters, Ref: CBL-ANT-3M
Cable length: 5 meters, Ref: CBL-ANT-5M
Cable length: 10 meters, Ref: CBL-ANT-10M
High Gain Antenna option
High Gain Omnidirectional antenna
Frequency range 2400-2500MHz
VSWR < 1.4, Impedance 50 Ohm, Polarization Vertical
Vertical plane 24° (7dBi Gain version), 16°(9dBi Gain version), 6°(12dBi Gain version), Horizontal plane 360°
Connector N female, Wind load (170km/h) 7.3N
Included: N-Type cable (Male/Male), length: 1 meter
Gain: 7dBi, Dimensions: 360mm x 23mm, Weight: 0.44 kg, >> datasheet
Ref: HG-OMNI-OUT-7DBI
Gain: 9dBi , Dimensions: 540x23 mm, Weight: 0.61 kg , >> datasheet
Ref: HG-OMNI-OUT-9DBI
Gain: 12dBi , Dimensions: 1125mm x 19 mm, Weight: 1.06 kg , >> datasheet
Ref: HG-OMNI-OUT-12DBI
